OB60SDPTDX1 16 Function Self Cleaning Oven
User Guide
Series 9 | Contemporary
Stainless Steel

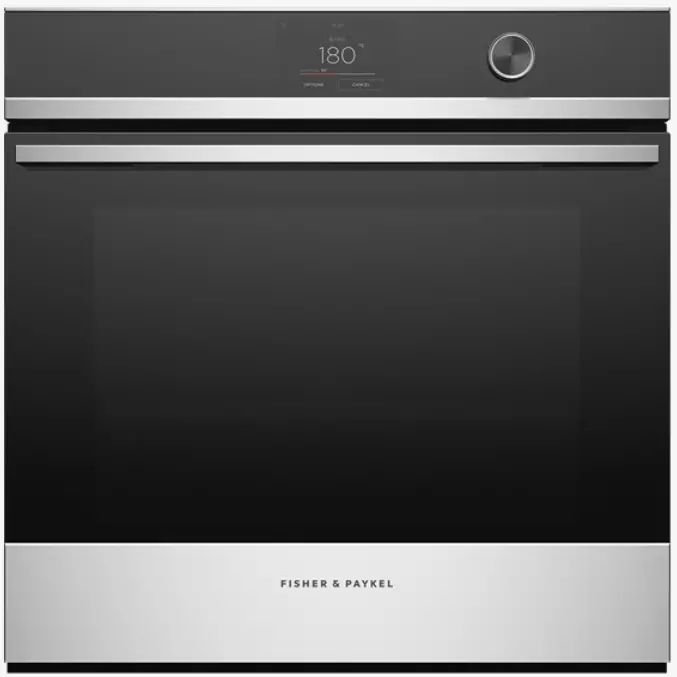

OB60SDPTDX1 16 Function Self Cleaning Oven
A highlight of the Fisher & Paykel collection, this Series 9 oven with touchscreen ensures that every dish is cooked to perfection.
- Touchscreen guided cooking capability offers helpful guidance for different food types as well as full recipes
- 85 L total capacity with 16 oven functions including Roast and Pastry Bake
- Moisture level control with ActiveVent™ technology
- Pyrolytic self-cleaning function breaks down food residue for an easy clean

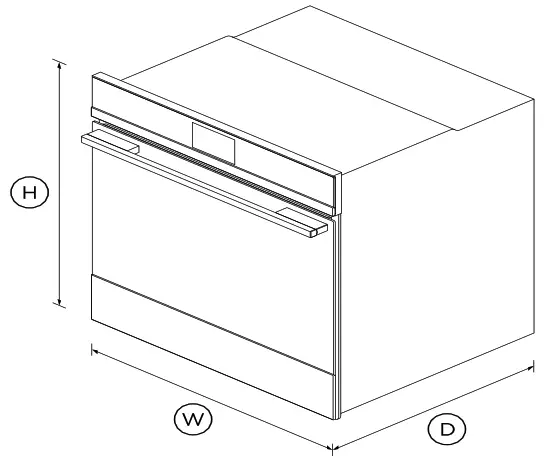

DIMENSIONS
| Height | 598 mm |
| Width | 596 mm |
| Depth | 565 mm |
FEATURES & BENEFITS
COOK WITH CONFIDENCE
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favourite method, a hero ingredient, or a go-to cooking function or recipe.
GENEROUS CAPACITY
With a generous 85 L total capacity, you can create several perfectly cooked dishes at once using multiple shelves.
EXCEPTIONAL PERFORMANCE
Our unique cooking technologies were developed to deliver perfect results. Active Vent ensures optimized moisture levels, while AeroTech circulates heat evenly for a consistent temperature.
MULTI-FUNCTION FLEXIBILITY
The cooking functions have each been tailored, tested, tweaked and perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. A food probe precisely monitors cooking in real time, giving you complete control.
SELF-CLEANING
Our pyrolytic self-cleaning technology breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel coated side racks don’t need to be removed when using this function.
DESIGN FREEDOM
Available in an elegant black or a stylish black with stainless steel, this oven is designed to fit seamlessly into your kitchen. Premium materials and detailing support a cohesive, considered kitchen design.
SPECIFICATIONS
| Accessories | |
| Food probe | 1 |
| Full extension sliding shelves | 2 sets |
| Grill rack | 1 set |
| Optional Accessory round | Part 81645 |
| Roasting dish | 1 |
| Capacity | |
| Shelf positions | 6 |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Controls | |
| Adjustable audio and display | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Dial with illuminated halo | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Guided cooking by food type | • |
| Intuitive touchscreen display | • |
| Multi-language display | UK English, US English, |
| Precise electronic temperature | • |
| Soft open and close door | • |
| Functions | |
| Air fry | • |
| Bake | • |
| Classic bake | • |
| Dehydrate | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 16 |
| Pastry Bake | • |
| Pizza bake | • |
| Pyrolytic self-clean | • |
| Rapid proof | • |
| Roast | • |
| Slow cook | • |
| Vent bake | • |
| Warm | • |
| Performance | |
| Active Vent System | • |
| AeroTech Technology | • |
| Automatic rapid pre-heat | • |
| Grill power | 3000 W |
| Whisper quiet cooking | • |
| Power requirements | |
| Amperage | 12.8 – 13.8 A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 565 mm |
| Height | 598 mm |
| Width | 596 mm |
| Safety | |
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| Cool Touch door | • |
| Full extension sliding shelves | • |
| Non-tip shelves | • |
| SKU | 81782 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
