Date: 06.04.2023 >

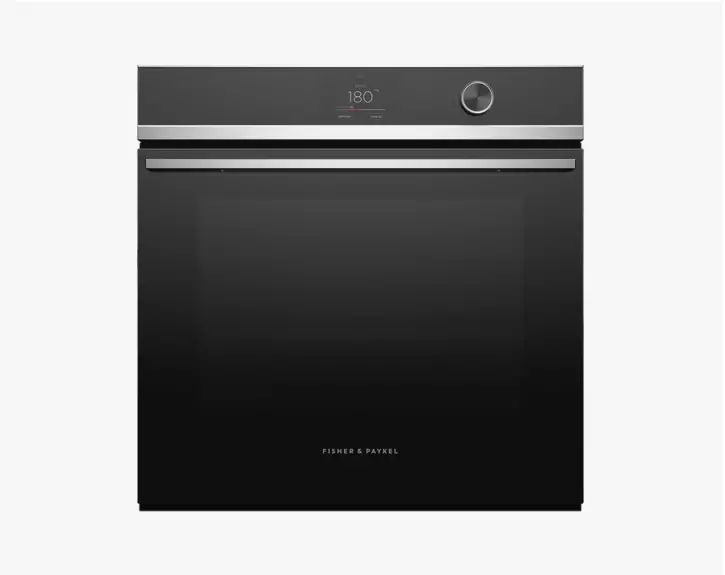

QUICK REFERENCE GUIDE > OB60SDPTDX2
Oven, 60cm, 16 Function, Self-cleaning
Series 9 | Contemporary
Stainless Steel
A highlight of the Fisher & Paykel collection, this Series 9 oven with touchscreen guided cooking helps to ensure every dish is cooked to perfection.
- Touchscreen guided cooking capability offers helpful tips for different food types as well as full recipes
- 85L total capacity, with 16 oven functions including Pastry Bake, Roast, Air Fry and Dehydrate
- Moisture level control with ActiveVent technology
- Pyrolytic self-cleaning function breaks down food residue for an easy clean

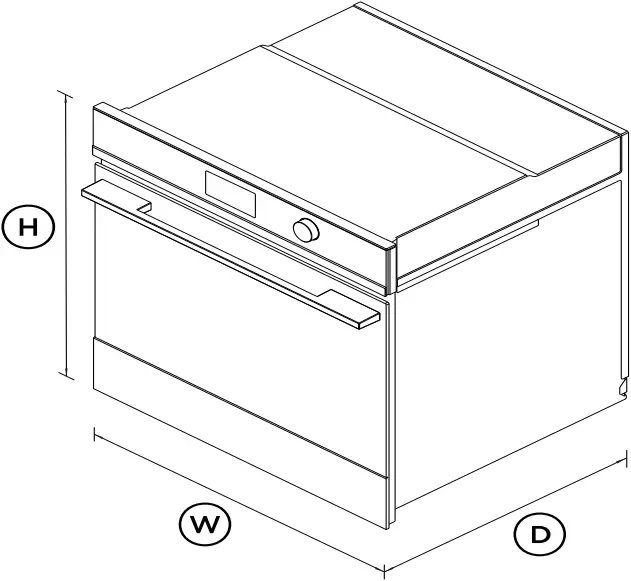

DIMENSIONS
Height 598mm
Width 596mm
Depth 565mm
FEATURES & BENEFITS
COOK WITH CONFIDENCE
Using the large 5″ touchscreen interface, you can cook with a favourite method, a hero ingredient, or a go-to cooking function or recipe. Your oven will guide you through the steps, or change the temperature and heat type automatically, depending on your selection.
GENEROUS CAPACITY
With a generous 85L total capacity, you can create several perfectly cooked dishes at once using multiple shelves. Non-tip, full-extension shelves help to ensure safe removal of hot dishes.
EXCEPTIONAL PERFORMANCE
Our unique cooking technologies were developed to deliver perfect results. ActiveVent ensures optimised moisture levels, while AeroTech™ circulates heat evenly for a consistent temperature.
SAFE AND SOUND
The CoolTouch door of this built-in oven is safe to touch from the outside. Sturdy, fully extendable shelves slide all the way out, reducing the need for you to reach inside.
SELF-CLEANING
Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel coated side racks don’t need to be removed when using this function.
DESIGN FREEDOM
Designed to fit seamlessly into your kitchen, this built-in oven features premium materials and detailing to support a cohesive, considered kitchen design.
MULTI-FUNCTION FLEXIBILITY
Each function has been tailored, tested and perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. A Wireless Temperature Sensor precisely monitors cooking in real time, giving you complete control.
SPECIFICATIONS
Accessories
Flat brushed baking tray 1
Full extension sliding shelves 1 set
Grill rack 1 set
Pyrolytic proof shelf runners •
Roasting dish 1
Smokeless grill tray 1
Step down wire shelf 1
Wired temperature sensor 1
Capacity
Shelf positions 6
Total capacity 85L
Usable capacity 72L
Cleaning
Acid resistant graphite enamel •
Pyrolytic proof shelf runners •
Pyrolytic self-clean •
Removable oven door •
Removable oven door inner •
Removable shelf runners •
Controls
Adjustable audio and display •
Audio feedback •
Automatic cooking/minute •
Automatic pre-set •
Celsius/Fahrenheit •
Delay start •
Electronic clock •
Electronic oven control •
Food probe •
Guided cooking by food type •
Halogen lights •
Intuitive touchscreen display •
Multi-language display UK English, US English,
Precise electronic temperature •
Soft open and close door •
True convection oven •
Turned stainless dials with •
Functions
Air fry •
Bake •
Classic bake •
Dehydrate •
Fan bake •
Fan forced •
Fan grill •
Grill •
Number of functions 16
Pastry Bake •
Pizza bake •
Pyrolytic self-clean •
Rapid proof •
Roast •
Slow cook •
Vent bake •
Warm •
Performance
ActiveVent System •
AeroTech Technology •
Automatic rapid pre-heat •
Grill power 3000W
Temperature range 35°C – 280°C
Whisper quiet cooking •
Power requirements
Amperage 12.8 – 13.8A
Supply frequency 50Hz
Supply voltage 220 – 240V
Product dimensions
Depth 565mm
Height 598mm
Width 596mm
Safety
Balanced oven door •
Catalytic venting system •
Control panel key lock •
CoolTouch door •
Non-tip shelves •
Safety thermostat •
Warranty
Parts and labour 1 year
SKU 82524
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
