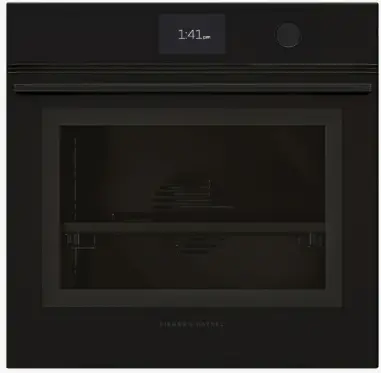

OB60SMPTDB1 60cm 16 Function Self Cleaning Oven
User Guide
OB60SMPTDB1 60cm 16 Function Self Cleaning Oven
QUICK REFERENCE GUIDE > OB60SMPTDB1
Oven, 60cm, 16 Function, Selfcleaning
Series 9 | Minimal
Black Glass
A highlight of the Fisher & Paykel collection, this Minimal style oven with touchscreen guided cooking helps to ensure every dish is cooked to perfection.
- Touchscreen guided cooking capability offers helpful tips for different food types as well as full recipes
- 85L total capacity with 16 oven functions including Pastry Bake, Roast, Air Fry and Dehydrate
- A Wireless Temperature Sensor precisely monitors cooking in real time
- Pyrolytic self-cleaning function breaks down food residue for an easy clean

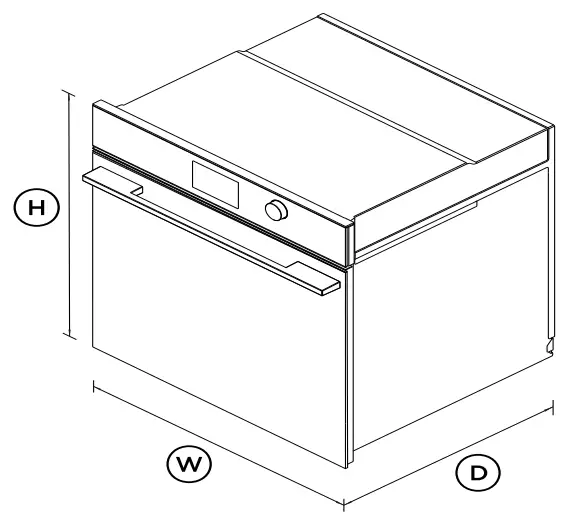

DIMENSIONS
| Height | 598mm |
| Width | 596mm |
| Depth | 565mm |
FEATURES & BENEFITS
COOK WITH CONFIDENCE
Using the large 5″ touchscreen interface, you can cook with a favourite method, hero ingredient, cooking function or recipe. Your oven will guide you through the steps, or change the temperature and heat type automatically, depending on your selection.
GENEROUS CAPACITY
With a generous 85L total capacity, you can create several perfectly cooked dishes at once using multiple shelves. Non-tip, full-extension shelves help to ensure safe removal of hot dishes.
EXCEPTIONAL PERFORMANCE
Our unique cooking technologies were developed to help deliver perfect results. ActiveVent ensures optimised moisture levels, while AeroTechTM circulates heat evenly for a consistent temperature.
SAFE AND SOUND
The CoolTouch door of this built-in oven is safe to touch from the outside. Sturdy, fully extendable shelves slide all the way out, reducing the need for you to reach inside.
SELF-CLEANING
Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel coated side racks don’t need to be removed when using this function.
COMPLEMENTARY DESIGN
Designed to blend seamlessly into the kitchen, this Minimal style oven features subtle textural and tonal contrasts. Available in a black or grey finish to support a considered kitchen design. Pair with a Warming Drawer for the ultimate kitchen solution.
MULTI-FUNCTION FLEXIBILITY
Each function has been tailored, tested and perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. A Wireless Temperature Sensor precisely monitors cooking in real time, giving you complete control.
SPECIFICATIONS
| Accessories | |
| Flat brushed baking tray | 1 |
| Full extension sliding shelves | 1 |
| Grill rack | 1 set |
| Pyrolytic proof shelf runners | • |
| Roasting dish | 1 |
| Smokeless grill tray | 1 |
| Step down wire shelf | 1 |
| Wireless temperature sensor | 1 |
| Capacity | |
| Shelf positions | 6 |
| Total capacity | 85L |
| Usable capacity | 72L |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Pyrolytic proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Controls | |
| Adjustable audio and display | • |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Delay start | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Guided cooking by food type | • |
| Halogen lights | • |
| Intuitive touchscreen display | • |
| Multi-language display | UK English, US English, |
| Sabbath mode | • |
| Soft close doors | • |
| Turned stainless steel dials | • |
| Wi-Fi connectivity | • |
| Wireless temperature sensor | • |
| Functions | |
| Air fry | • |
| Bake | • |
| Classic bake | • |
| Dehydrate | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 16 |
| Pastry Bake | • |
| Pizza bake | • |
| Pyrolytic self-clean | • |
| Rapid proof | • |
| Roast | • |
| Slow cook | • |
| Vent bake | • |
| Warm | • |
| Performance | |
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Temperature range | 35°C – 280°C |
| Whisper quiet cooking | • |
| Power requirements | |
| Amperage | 12.8 – 13.8A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 565mm |
| Height | 598mm |
| Width | 596mm |
| Safety | |
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Non-tip shelves | • |
| Safety thermostat | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 82474 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
