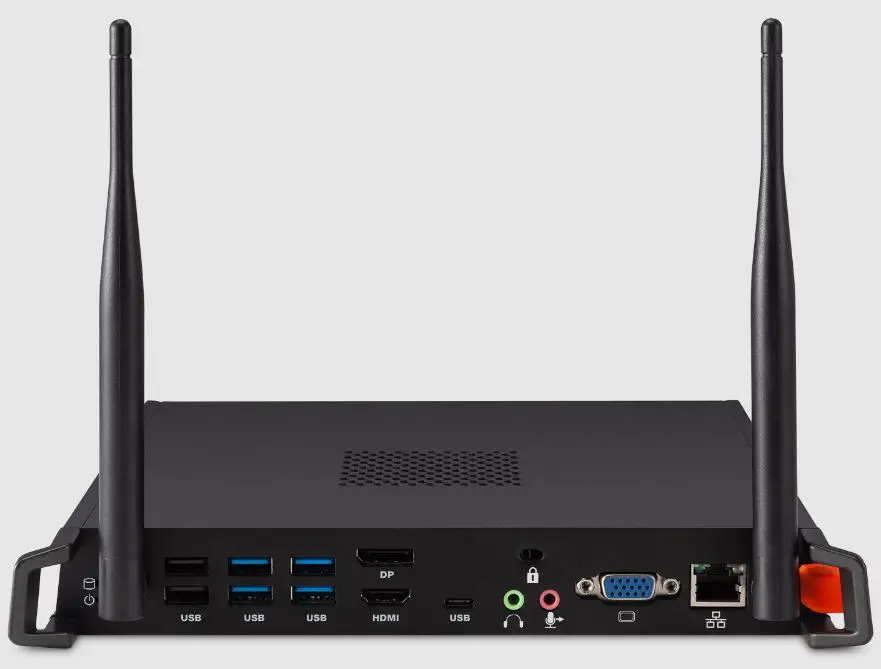

ViewSonic VPC2-O-1B Series Slot in PC module

Thank you for choosing ViewSonic® As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well. Once again, thank you for choosing ViewSonic®!

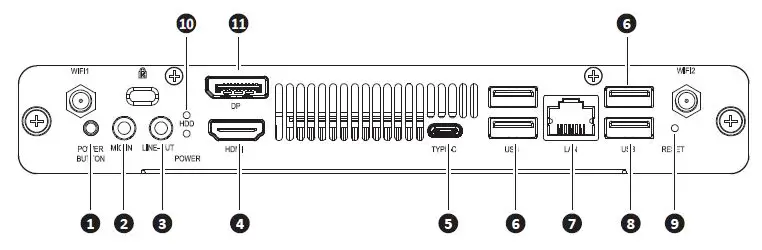

Interface

Item	Description
1	POWER BUTTON
2	MIC-IN
3	LINE-OUT
4	HDMI
5	TYPE-C (DC5V, 500mA)
6	USB 2.0 (DC5V, 500mA)
7	LAN
8	USB 3.2 (DC5V, 500mA)
9	RESET
10	HDD/POWER_LED
11	DP

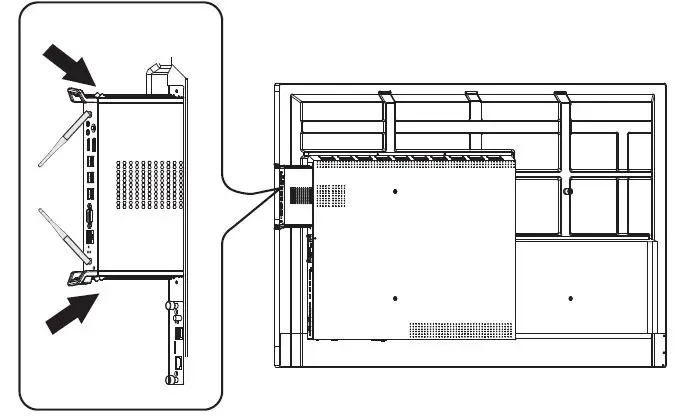

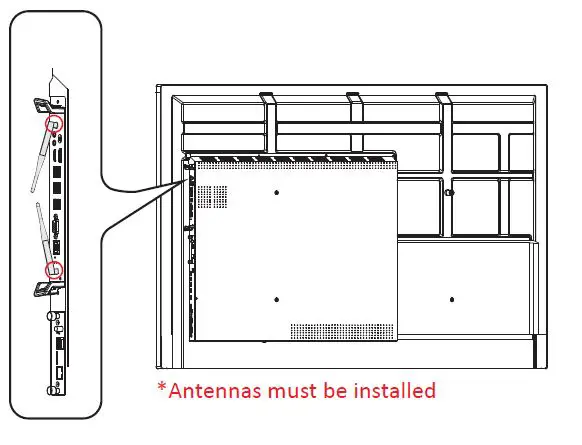

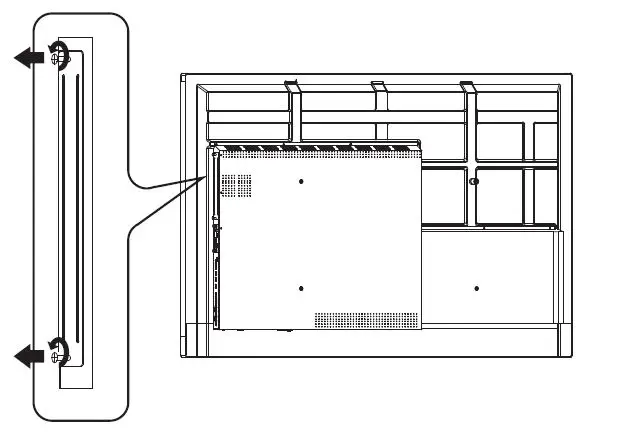

Installation

2-1

2-2

2-3

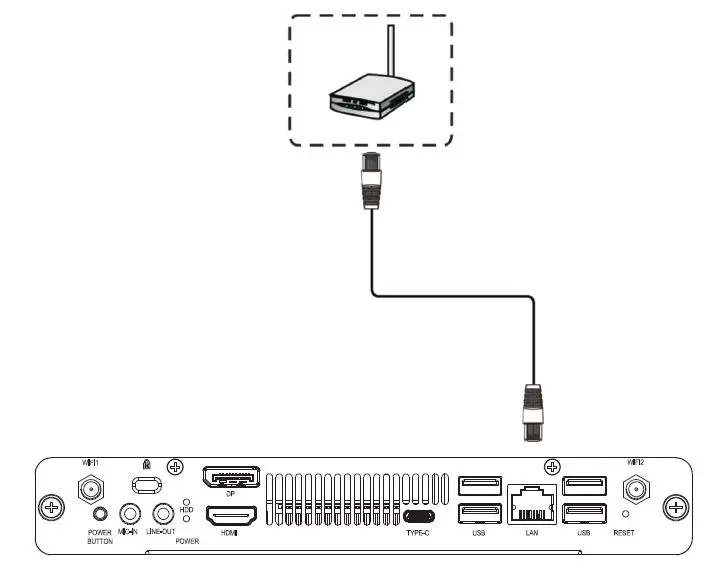

Internet Connection

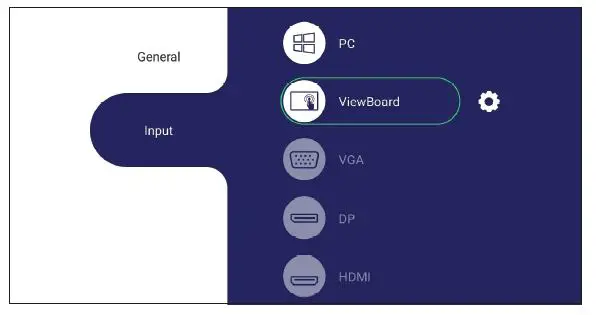

Input Selection

To select an Input Source

Press INPUT on the remote control, press the setting button on the front panel, or press the 42 setting icon from the toolbar to display the Input Settings menu.
Press / 42 / 42 / 42 to select PC.
Press 42 on the remote control, or touch the input source.
Press on the remote control, or touch a blank area outside of the menu to exit.

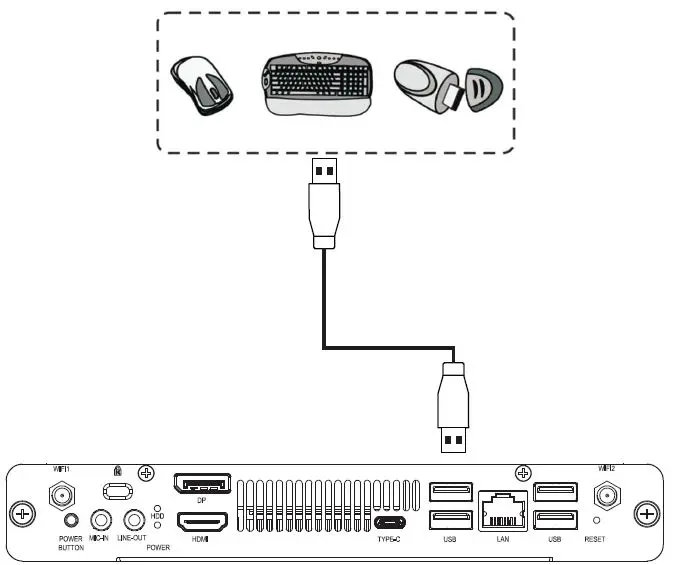

USB Connection

Specifications

Processor	Intel® Comet Lake-S
PCH	H510	Q570
Graphic	Integrated Intel® UHD graphic
RAM	2 x DDR4 SO-DIMM, 32GB (Max)
Storage	1 x NVMe M.2 2280 PCIe SSD
IO ports	1 x USB Type-C (USB 3.2 Gen1, Data Only) 3 x USB 2.0, 1 x USB 3.2 Gen1	1 x USB Type-C (USB 3.2 Gen2x2, Data Only) 4 x USB 3.2 Gen2
	1 x DP 1.2 out 1 x HDMI 1.4 out 1 x RJ45 Ethernet (with Intel I219LM) 1 x Microphone/Line out 2 x External antenna Holes 1 x Power On/Off Button 1 x Reset Button 1 x Power LED 1 x HDD LED 1 x 80 Pin JAE OPS connector
WIFI/BT	1 x M.2 2230 (with Intel® AX200 WiFi 6 + BT 5.2 module)
Watchdog	Support
vPro/AMT	No	Yes
BIOS	AMI UEFI BIOS
Power	DC in +19V @ 3.42A 65 W (Typical)
Operating Conditions	-5 °C to +45 °C 20% RH ~ 80% RH non-condensing
Storage Conditions	-20 °C to +70 °C 10% ~ 80% R.H. non-condensing

Regulatory and Service Information

Compliance Information
This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

ISED compliance statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

This device may not cause interference.
This device must accept any interference, including interference that may cause undesired operation of the device.

Warning for LE-LAN devices:

the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly indicated.

ISED Radiation Exposure statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

The following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE).The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. In all EU member states, operation of 5150-5350MHz is restricted to indoor use only. This device should be installed and operated with a minimum distance of 20cm between the radiator and your body

Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6⁺)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%	< 0.1%
Butyl benzyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below:

Copper alloy containing up to 4% lead by weight.
Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead)
Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
Lead in dielectric ceramic in capacitors for a rated voltage of 125V AC or 250V DC or higher.

Indian Restriction of Hazardous Substances
Restriction on Hazardous Substances statement (India). This product complies
with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers in
concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for
the exemptions set in Schedule 2 of the Rule.
Product Disposal at End of Product Life
ViewSonic® respects the environment and is committed to working and living
green. Thank you for being part of Smarter, Greener Computing. Please visit the
ViewSonic® website to learn more.

USA & Canada:
http://www.viewsonic.com/company/green/recycle-program/

Europe:
http://www.viewsoniceurope.com/eu/support/call-desk/

Taiwan:
https://recycle.epa.gov.tw/
