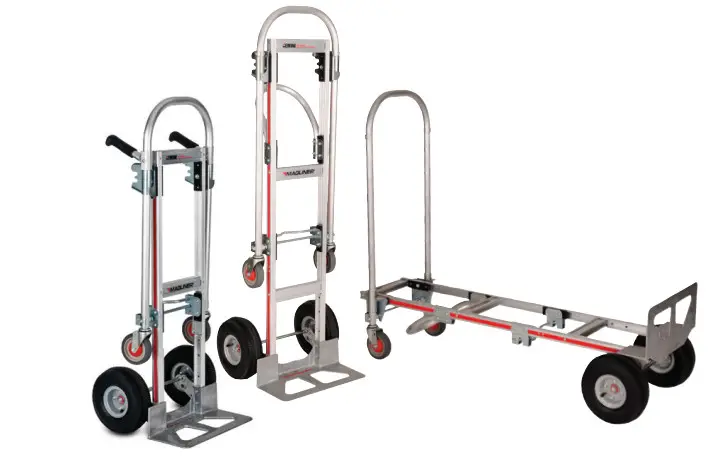

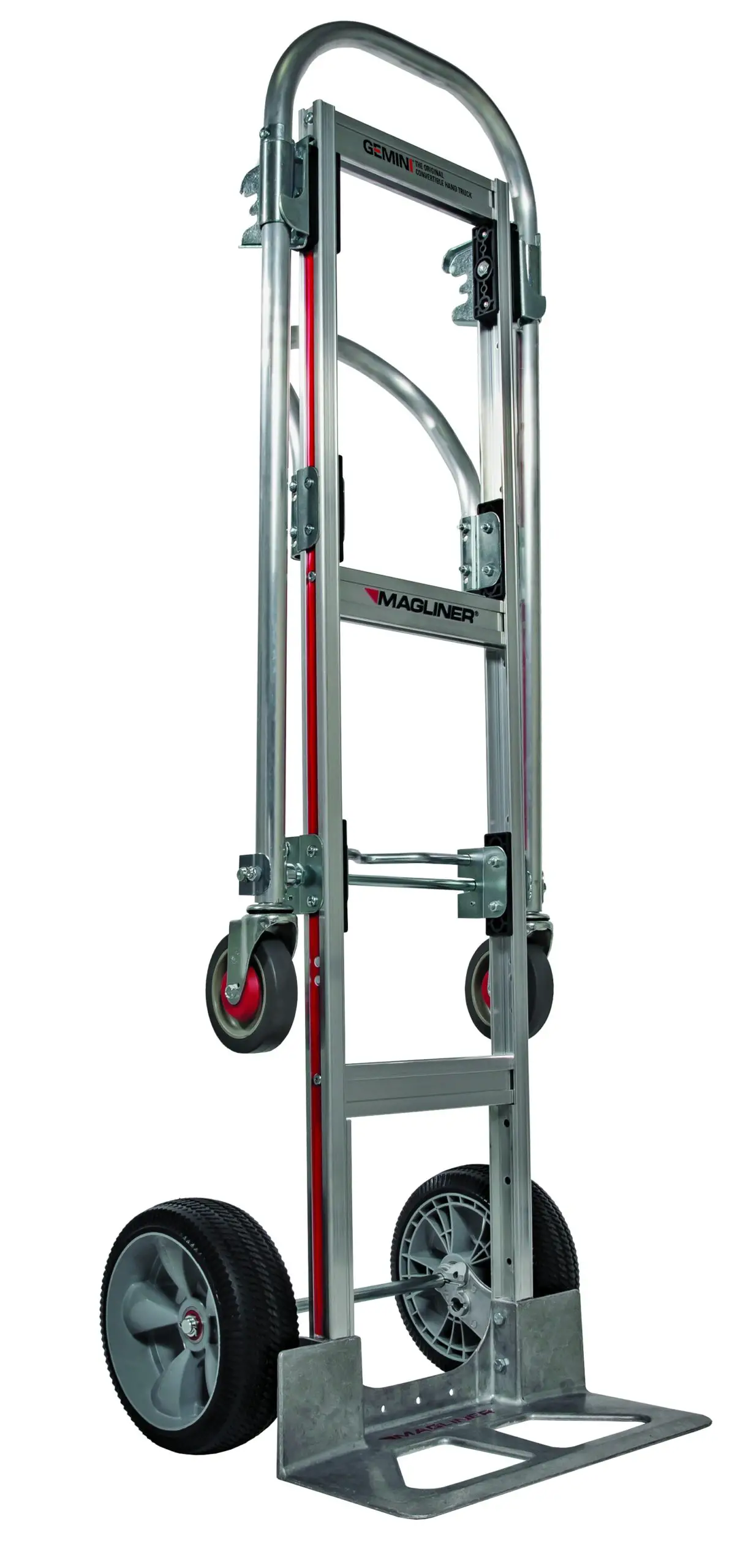

GEMINI Convertible Hand Trucks
User Manual
Benefits
- 2-in-1 truck converts from 2 to 4 wheels in seconds
- High capacities reduce number of trips per day, increasing productivity
- Bolted cross braces are up to 10 times more rigid and over twice as strong as riveted braces due to custom engineered internal rib structure
- Trilobular, thread locking screws exceed IFI locking standards encompassing extreme resistance to vibrational loosening
- Strong, lightweight construction reduces user fatigue
- Optional accessories available to meet all delivery needs
- Modular design means no welds to break, all parts are replaceable for longer product life

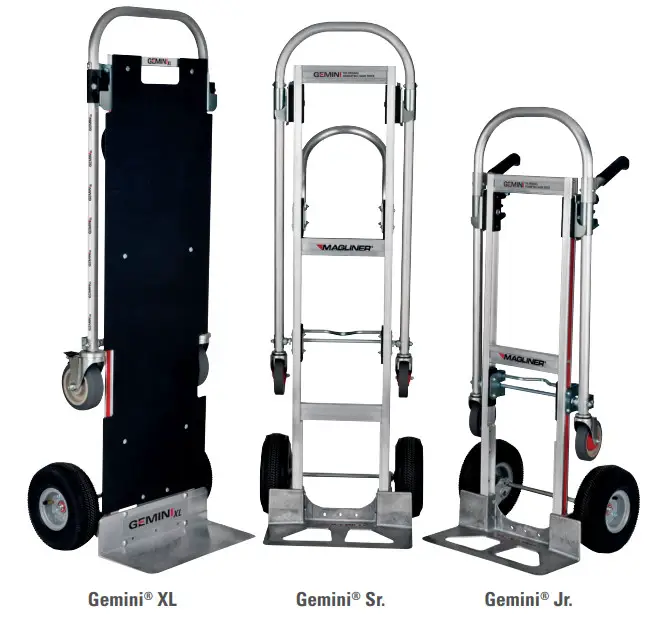

SPECIFICATIONS | |||
| Gemini Jr. GMK16UA4 | Gemini Sr. GMK81UA4 | Gemini XL XLSP | |
| Overall width | 21” | 21” | 22-¾” |
| Frame width | 12” | 12” | 14” |
| Deck width | 12” | 12” | 17” |
| Overall length, 4 wheel | 47-½” | 55-¾” | 57-¼” |
| Height as hand truck | 51” | 61” | 62-¾” |
| Handle height as platform truck | 40” | 45-1/8” | 45-¾” |
| Platform bed length | 38” | 51” | 53-¾” |
| Capacity as hand truck | 500 lbs. | 500 lbs. | 500 lbs. |
| Capacity as platform truck | 1,000 lbs. | 1,000 lbs. | 1,250 lbs. |
| Platform height from floor | 10-½” | 10-½” | 11-3/16” |
| Standard wheel (pneumatic) | 10” | 10” | 10” |
| Casters (standard swivel) | 5” x 1-¼” | 5” x 1-¼” | 6” x 2” |
| Nose | 18” x 7-½” | 18” x 7-½” | 18” x 9” |
| Shipping weight | 44 lbs. | 45 lbs. | 54 lbs. |

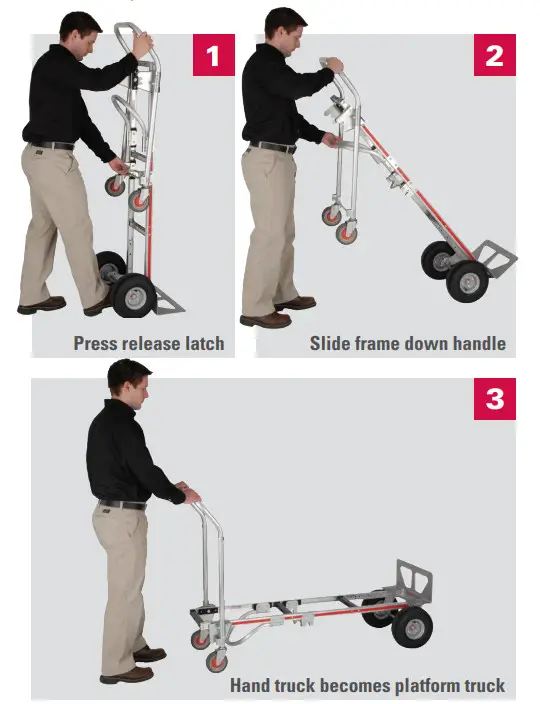

As easy as 1… 2… 3
Options

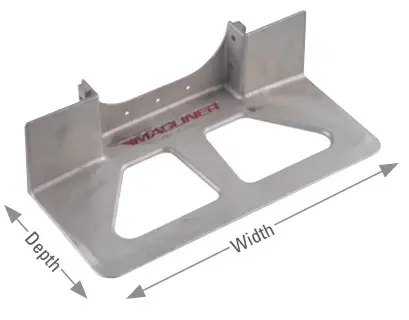

DIE-CAST NOSES
ALUMINUM | ||||
| P/N | M/N | W” | D” | WT.(LBS.) |
| 300200 | AA | 14 | 7-½ | 4.0 |
| 300201 | UA | 18 | 7-½ | 5.0 |
MAGNESIUM | ||||
| P/N | M/N | W” | D” | WT.(LBS.) |
| 300204 | AM | 14 | 7-½ | 2.5 |
| 300197 | HM | 14 | 12 | 3.0 |
| 300205 | UM | 18 | 7-½ | 3.0 |
Designed using either aluminum or magnesium alloys chosen for high strength and corrosion resistance. Aluminum is more rigid and best suited for moderate to mild climates. Magnesium is lighter than aluminum, more flexible and is the best option in cold climates or freezer deliveries.

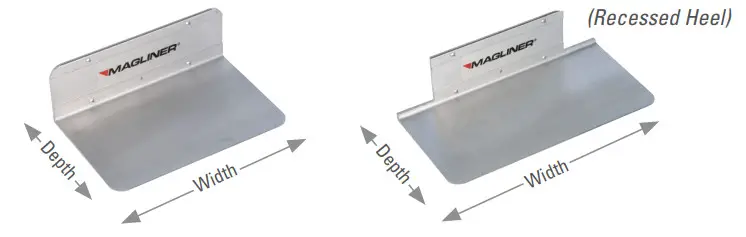

EXTRUDED ALUMINUM NOSES
| P/N | M/N | W” | FLUSH MOUNT D | RECESSED MOUNT* D” | WT.(LBS.) |
| 300244 | E1 | 14 | 9 | 7-¹⁄8 | 4.5 |
| 300254 | E2 | 14 | 9 | N/A | 5.0 |
| 300245 | G1 | 18 | 9 | 7-¹⁄8 | 5.5 |
| 300248 | G2 | 18 | 9 | N/A | 6.0 |
| 300203 | K1 | 16 | 12 | N/A | 7.0 |
| 300215 | K2 | 20 | 12 | N/A | 8.5 |
| 6000 series alloy designed with a tapered profile and leading edge for ease of use and maximum strength to weight ratio. | |||||
FOLDING NOSES (300 Pound Capacity)

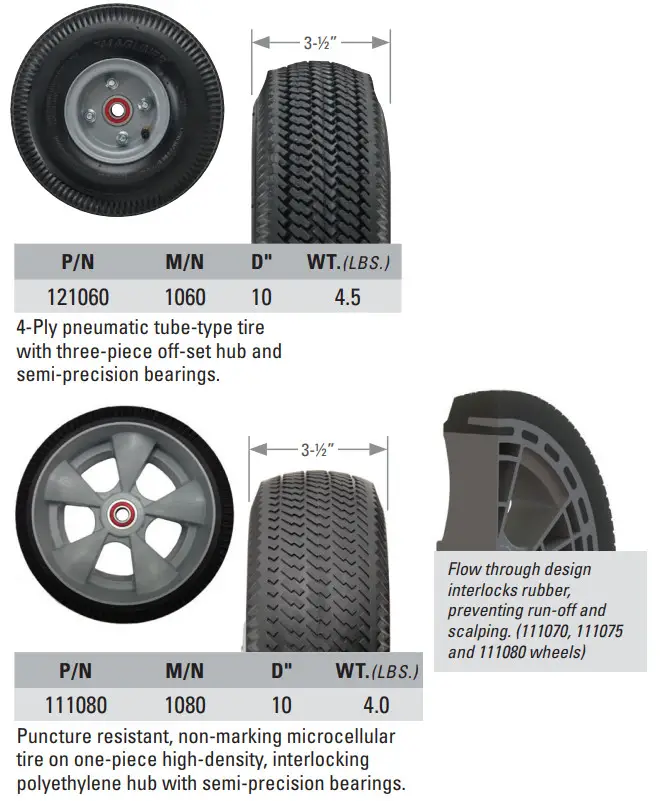

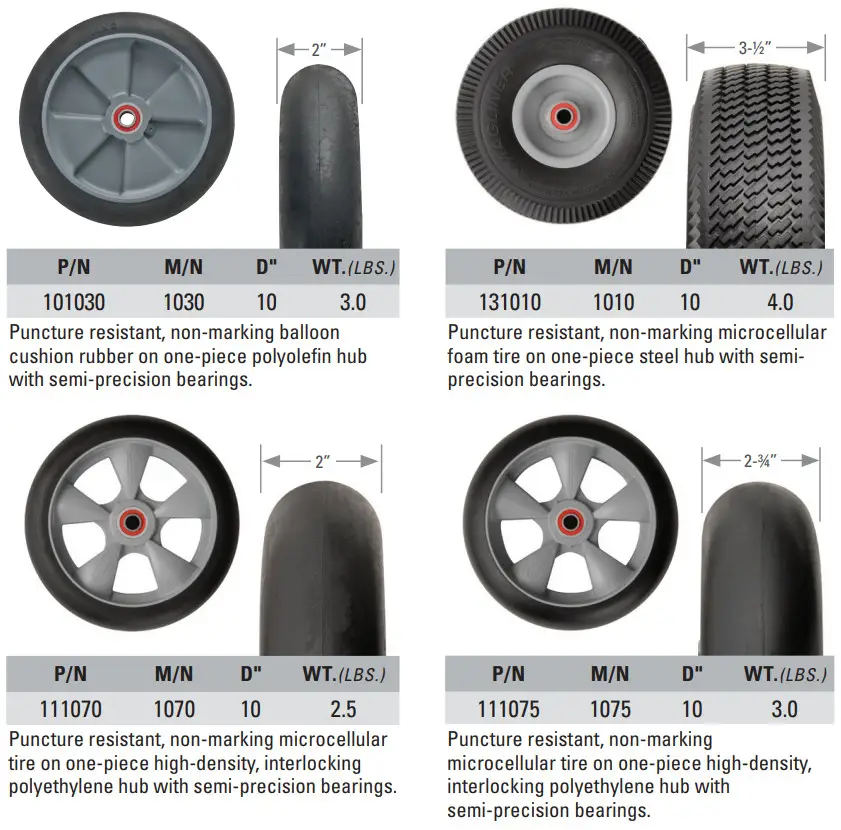

WHEELS

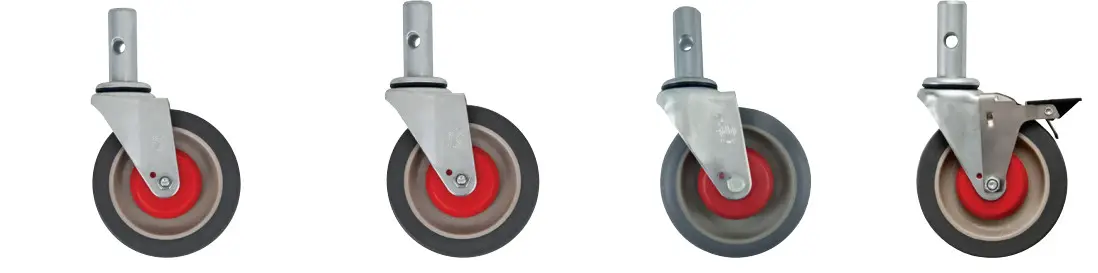

GEMINI® CASTERS

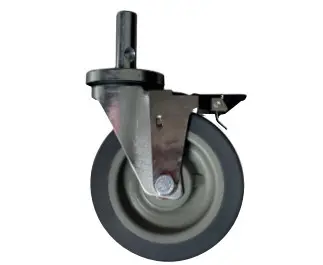

GEMINI® XL CASTER
Accessories

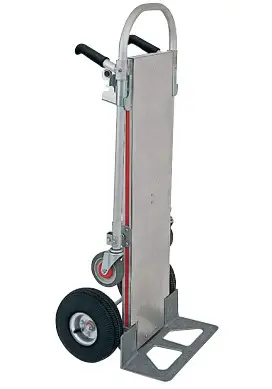

SNAP ON DECKS
- Snaps in place quickly and removes easily
- Great for carrying small packages
- Formed from strong embossed aluminum
- Stays securely in place
| P/N | WT.(LBS.) |
| 301644 Gemini Jr. | 5.5 |
| 301645 Gemini Sr. | 6.5 |
P/N | WT.(LBS.) |
| 86006 | 2.5 |
| Heavy-duty cast stair climbers with replaceable low-friction polymer glide bars (for Sr. only). | |
| P/N | WT.(LBS.) |
| 302725 | 4.5 |

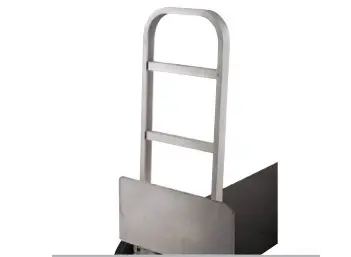

Load containment arm (for Gemini XL only).
© COPYRIGHT 2020-2021, MAGLINE, INC. REV 03/21 – FORM B7538
