BB26329 LED Fixture Battery Back Up
Instructions
LED Fixture Battery Back up
Order Code: BB26329
Emergency LED Driver Listed for Field and Factory Installation
Description: Emergency LED Driver – Output 7.8W (Constant) – Universal Voltage – 156-390mA – 20-50V Forward Voltage – Long Case with Wire
This Driver Will Operate The Following LED Modules: Any LED module designed to accept constant input current of 156-390mA and that has a forward input voltage range of 20-50VDC.
ELECTRICAL DATA
| Input Voltage | 120-277VAC, 50/60Hz |
| Input Current | 0.065A Max. |
| Input Power | 4.8W |
| Blue Lead (LED Driver Output Pass Through) | 2A, 50V Max. |
| White/Black Lead (Input Pass Through) | 1A Max. |
| Output Current | 156-390mA |
| Output Voltage Range | 20-50Vdc |
| Output Power/ Lumens | 7.8W (Constant)/ 1250lm |
| Battery Type/ Model Number | Ni-Cd 7.2Vdc |
| Battery Capacity Available | 20.2WH |
| Recharge Time | 24 Hours |
| Number of Output Channels | 1 |
| RFI/EMI | FCC Part 15A Non-Consum er |
| Output Type | Class 2 |
| Ambient Operating Temperature Range | 0°C to 50°C |
| Surge Protection | Per C62.41 (TVS) |
| Protections | Input Overcurrent Protection (Fusible link) |
| Service Life | 50,000 Hours |
| Approvals / Class | ULus Class 2; Damp Locations |

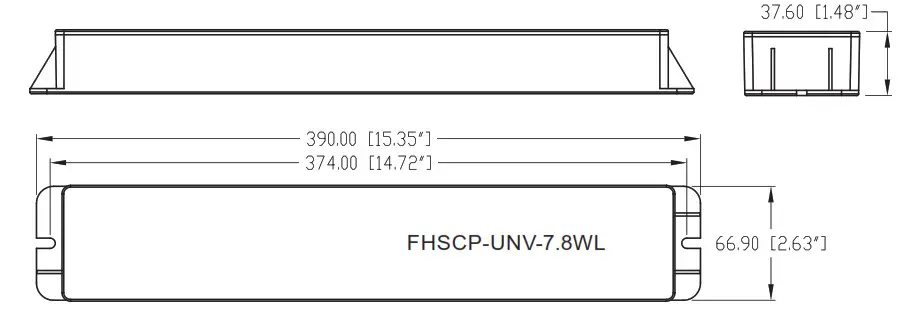

MECHANICAL DATA
Tolerance=±0.02″
NOTE:
- This Driver Must Be Grounded
- Maximum Recommended Remote Mounting Distance: 25’ Using 18AWG Wire.

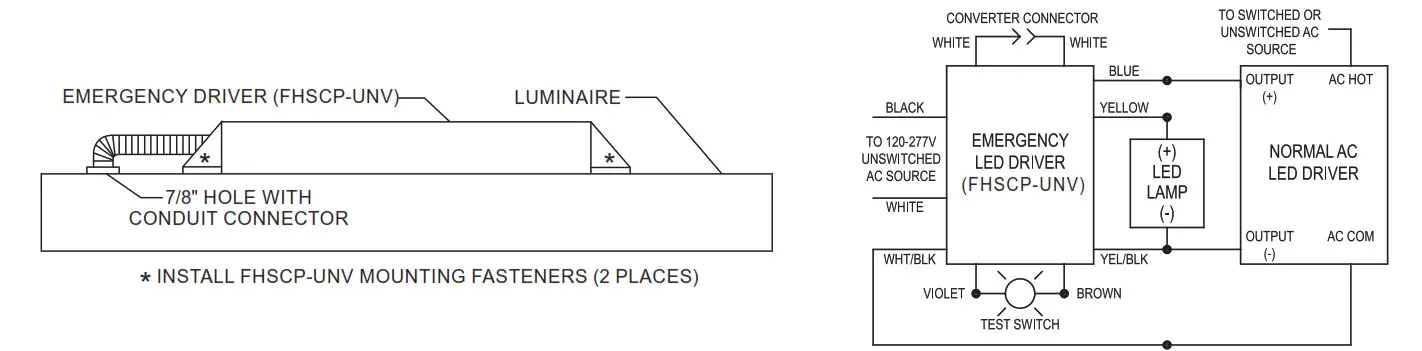

WIRING DIAGRAMS
