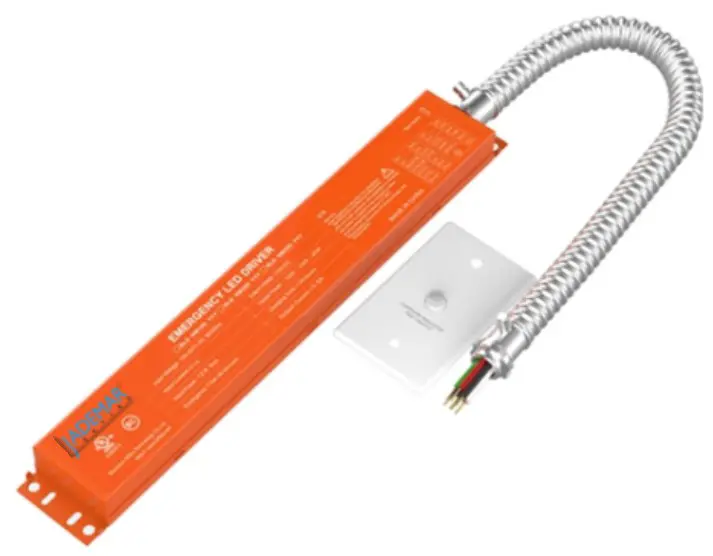

Jademar Lighting Bld-hm Series Emergency Backup Battery Driver Instructions

BLD-HM SERIES
EMERGENCY BACKUP
BATTERY DRIVER

FEATURES

•  Listed for field installaA C22.2 NO.141
• Selectable emergency power 8W, 15W, 20W
• Universal input (100-347VAC)
• Constant output power (Auto-sensing output within each range)
• Output LVLE Compliant
• Baery protecer voltage protecoltage protec over temperature proteccuit protec
•  RoHS compliant

SPECIFICATIONS

cULus Listed
For field or factory installation
Universal Input Voltage
100-347Vac, 50/60Hz
AC Input Current
100mA max.
AC Input Power Rating
12W max.
Output Voltage
170VDC
Output Power
8W / 15W / 20W
Illumination Time
≥90 Minutes
Test Switch/Charging Indicator Light
Low Voltage, Illuminated Test Switch
Battery
High-Temperature, Maintenance-Free Ni-MH battery, 5 Yr. Life Expectancy
Battery Charging Current
250mA
Recharge Time
≥24Hours
Temperature Rating (Ambient)
+5°C to +50°C (+41°F to +122°F)
Dimensions
15”x2.17”x1.3” (382mmx55mmx32mm);
17.7” (450mm) Flexible Conduit
Weight
3.2 lbs (1.45 kg)
Full Warranty
5 Years

APPLICATIONS

BLD-HM08D

• ≤80W (0-10V Dimmable Fixtures)
• ≤8W LED Lamps without dimming function

BLD-HM15D

• ≤150W (0-10V Dimmable Fixtures)
• ≤15W LED Lamps without dimming function

BLD-HM20D

• ≤150W (0-10V Dimmable Fixtures)
• ≤20W LED Lamps without dimming function

ORDERING

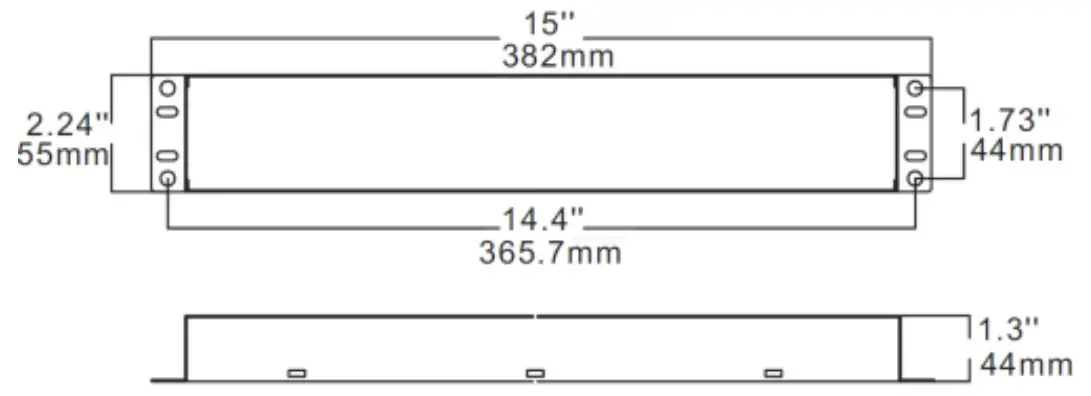

DIMENSIONS

Case: 15”x2.24”x1.3” (mounting center – 14.4”)

WIRING DIAGRAMS

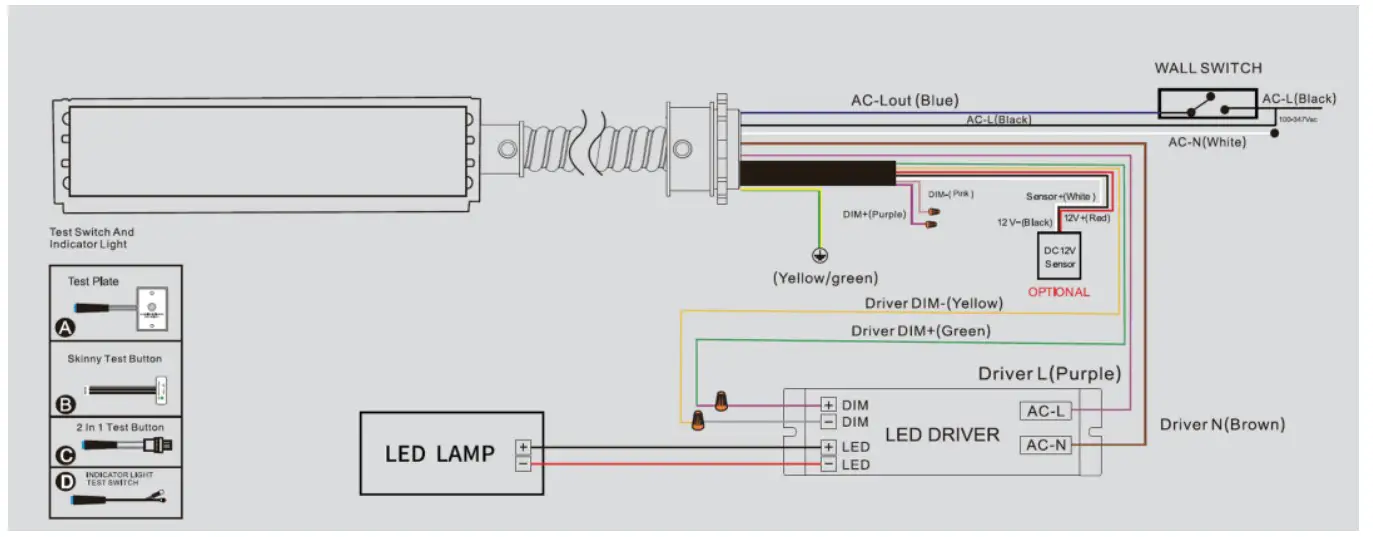

WIRING DIAGRAM 1: For LED Driver with Input Power higher than Emergency Output Power 0/1-10V Dimmable LED Driver + Dimmer Switch

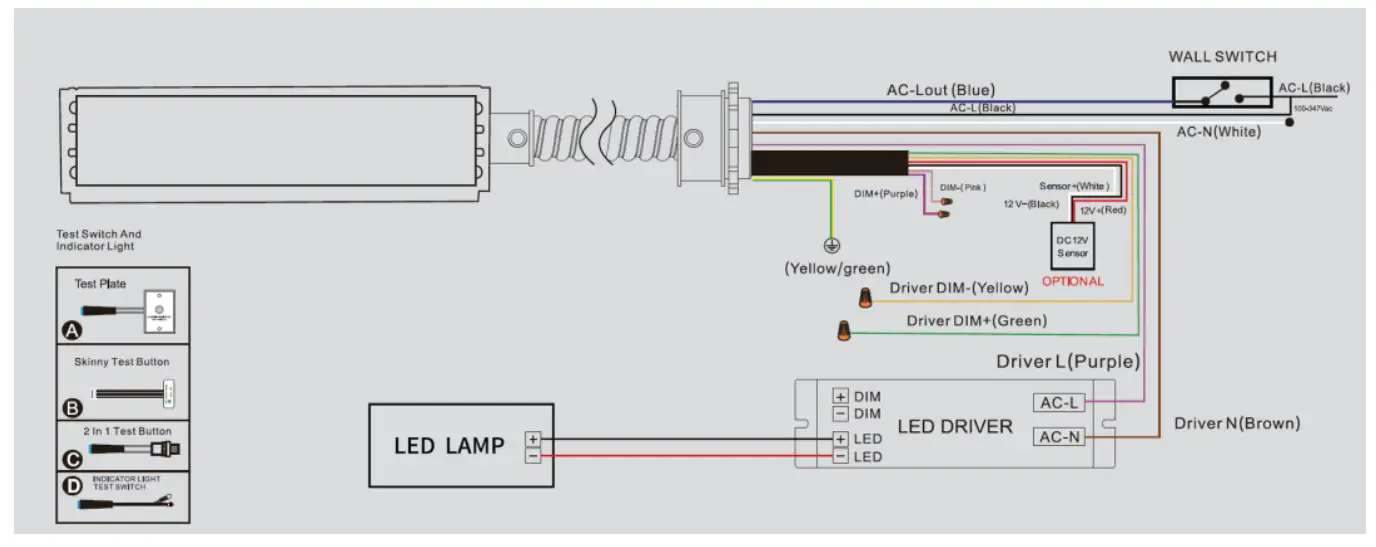

Emergency Driver: DIM+ (Green), Driver DIM- (Yellow). Have to connect LED Driver DIM+ and DIM-WIRING DIAGRAM 2: For LED Driver with Input Power higher than Emergency Output Power 0/1-10V Dimmable LED Driver + Wall Switch
Emergency Driver: DIM+ (Green), Driver DIM- (Yellow). Have to connect LED Driver DIM+ and DIM-WIRING DIAGRAM 3: For LED Driver with Input Power less than Emergency Output Power Non-Dimmable LED Driver

IMPORTANT SAFEGUARDS
PLEASE READ AND FOLLOW ALL SAFETY INSTRUCTIONS

CAUTION: RISK OF SHOCK – disconnect emergency and normal input power sources before servicing any equipment connected to this unit.
CAUTION: RISK OF FIRE OR ELECTRIC SHOCK – This emergency battery pack installation requires knowledge of luminaire and electrical systems.
CAUTION: Servicing of this equipment should be performed by qualified personnel only
CAUTION: Before installation, make certain the AC power to fixture is off.
CAUTION: Verify that all replacement lamp types marked on the installed luminaire are also identified as suitable for use with this emergency battery pack.
CAUTION: Suitable for use in 5°C -50°C ambient temperatures.
CAUTION: Do not use outdoors. Do not mount near gas or electric heaters.
CAUTION: Equipment should be mounted in locations and at heights where it will not be subjected to tampering by unauthorized personnel.
CAUTION: The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition The emergency battery pack is not for in an air-handling fixture.
CAUTION: Do not use this equipment for other than its intended use.
IMPORTANT: An unswitched AC power source is required (100-347 VAC, 50/60 Hz). This device is designed for fixtures listed for dry and damp locations.
IMPORTANT: Customers are advised to charge emergency LED driver 24 hours every 6 months during storage.

http://www.jademar.com
Miami, FL USA – [email protected]
T: 305.640.0465 – F: 305.640.0468
WWW.JADEMAR.COM
Informaontained herein is subject to change without notice.
Values are nominal.
