ARISTON VELIS TECH PW ABSE Storage Electric Water Heaters
Overview
LIST OF THE ABBREVIATIONS
| HW | Hot water. |
| cw | Cold water. |
| C | Ceramic resistance (normal heating). |
| Ca | Ceramic resistance (accelerated heating) |
| TP | Immersion heater. |
| 1 F | With fittings. |
| 2F | Without fittings. |
| 3 F | With fittings and another outlet connection. |
| AM I | With mixing valve. |
| SM I | Without mixing valve. |
| PU ISS | Power of th appliance. |
| PN | Appliance with normal pression. |
| LP | Appliance with low pression. |
| PV | Appliance with variable power. |
| PF | Appliance with fixed power. |
IDENTIFICATION PLATE

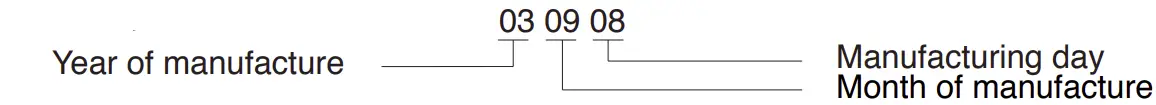

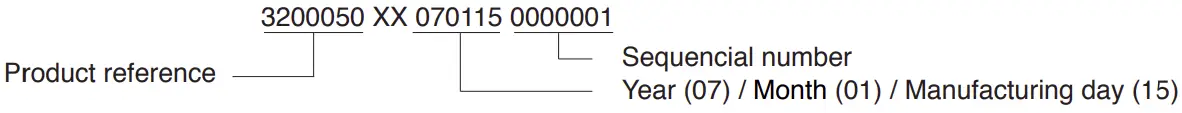

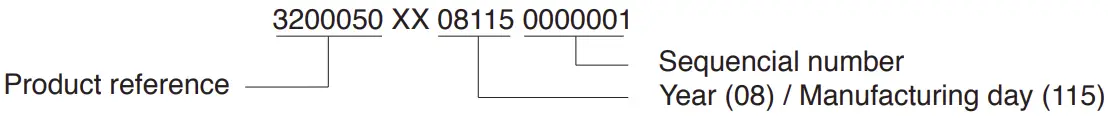

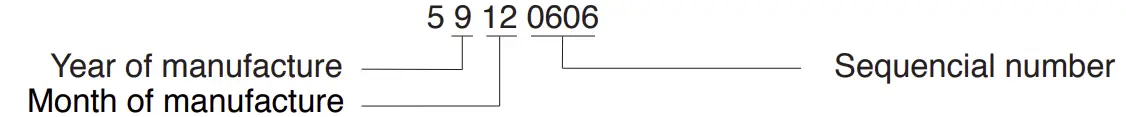

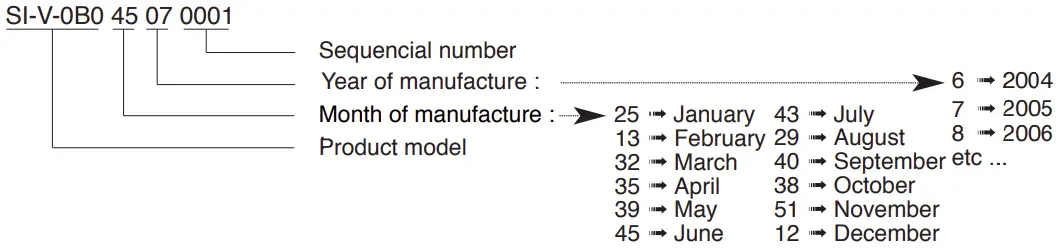

SERIAL NUMBER
6 Characters :
9 Characters :
14 Characters :
14 Characters:
15 Characters :
21 Characters :
22 Characters :
The indications mentionned on the prices, commercial or technical literature and the scheme are written for your guidance and are available at a given time. The CONSTRUCTOR retains the power to modify the presentation, the form, the size, the conception or the material of the products.
