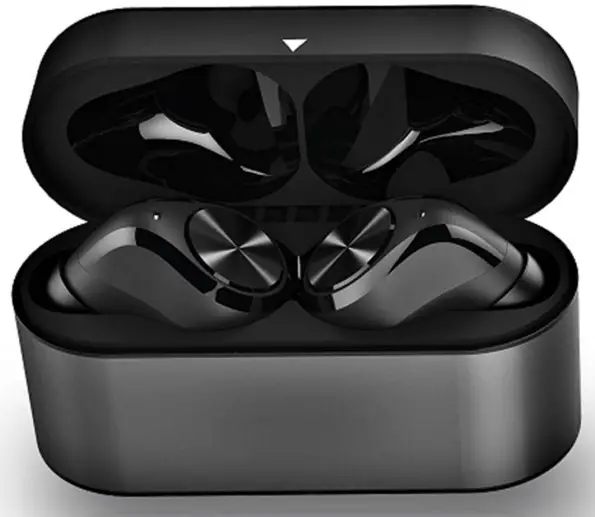

T3 TRUE WIRELESS EARBUDS WITH WIRELESS CHARGING CASE
KATWST3LHSA
OPERATION
Bluetooth pairing
Remove both earbuds from the charging case: they enter pairing mode within approximately 10 seconds with an audio tone and “Pairing” prompt.
Activate Bluetooth on your device, search for devices, and select T3. The earbuds will give a “Connected” prompt after a successful connection.
Enter 0000 if prompted for a password.
Earbud Controls
| Function | Left | Right |
| Play/Pause | Tap xl | Tap xl |
| Previous Song | Tap x2 | |
| Next Song | Tap x2 | |
| Volume + | Touch and hold | |
| Volume – | Touch and hold | |
| Answer/End a call | Tap xl | Tap xl |
| Reject call | Touch and hold for 3 seconds | |
| Voice assistant | Tap x3 |
Low Battery
Your earbuds let you know your battery level is low. Every 20 seconds you will hear “Battery Low” when there is 5 minutes of battery level.
Charging the Earbuds
Insert the earbuds into the case and connect a charging cable to the case to charge the earbuds. The earbud LEDs will be a solid blue.
When the earbuds are fully charged, the earbud LEDs will off and the charging case LED will be a solid red LED.
Earbud LED Status Indicators
| Charging | Solid blue |
| Full charge | Off |
| Pairing | Flashing blue |
Charging the Case
Connect an adapter with 5V output with a type C charge cable.
| Charging | Flashing blue |
| Full charge | Steady blue light |
Notes:
The earbuds will turn off automatically after 5 minutes if there is no connection to another device.
The earbuds will exit pairing mode automatically after 3 minutes if there is no connection to another device.
SPECIFICATIONS
Earbud
| Size | 23.4 x 18.5 x 21mm (one earbud) |
| Weight | 6.3g (one earbud) |
| Earbud charging port | Magnetic type |
| Earbud charging current | 80mA |
| Earbud charging time | 2 hours |
| Working voltage | 3.3V-4.2V |
| Standby time | Approx. 160 hours |
| Operation time | Music Time:11 hours I Talk Time:11 hours |
| Operation time w. charging case | Music Time: 60 hours I Talk Time: 60 hours |
| Bluetooth version | Bluetooth 5.0 |
| Bluetooth chip | BES2300 |
| Supported profiles | HSP, HFP, A2DP, AVRCP |
| RF transmit | class 2 |
| RF input impedance | 50ohm |
| RF emissive power | 9dBm |
| Receive sensitivity | -89dBm |
| Transmission range (Hz) | 2.40GHz-2.48GHz |
| Transmission distance | Approx. 10m |
| True Wireless Stereo | Yes |
| Audio sampling accuracy | 16bits |
| Audio sampling rate | Up to 96kHz |
| Audio encoding format | CVSD, MSBC, SBC, ACC |
| SNR | >95dB |
| Working temperature | -15°C–+60°C |
| Working humidity | 10%-85% (varies according to temperature) |
| Water resistance rating | IPX6 |
Speaker
| Speaker specifications/mode | 0 9mm |
| Impedance | 16ohm/type |
| Frequency (Hz) | 20Hz – 20KHz |
| Sensitivity | 93±3dB |
| Input power | 2mW ( normal), 5mW ( maximum) |
Microphone
| MIC sensitivity | -42±3dB |
| SPL | 130dB |
Charging Case
| Size | 23.4 x 18.5 x 21mm |
| Weight | 44.3g |
| Charging port | Micro USB |
| Battery | Li-polymer Battery 1000mAh 3.7V/3.7Wh |
| Input voltage | DC5V |
| Charging current | 330mA |
| Output voltage | DC5V |
| Discharge current | 160mA |
| Working temperature | -15°C-+60°C |
| Working humidity | 10%-85% (varies according to temperature) |
Need more information?
This is a Quick Start Guide, and we hope that this has given you the assistance needed for a simple setup.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
