ASSEMBLY INSTRUCTION
SKU CODE: (WF299339/WF 299340)

SAFETY WARNINGS

1. This bed is designed for use FULL Mattress 74 inch Long 54 inch Wide and 74 inch Long 39 inch Wide.
2. Always use the recommended size mattresses or mattress supports, or both, to help prevent the likelihood of entrapment or falls.
3. Do not allow horseplay on or under the bed and prohibit jumping on the bed
4. Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
5. Keep these instructions for future reference

ASSEMBLY INSTRUCTION

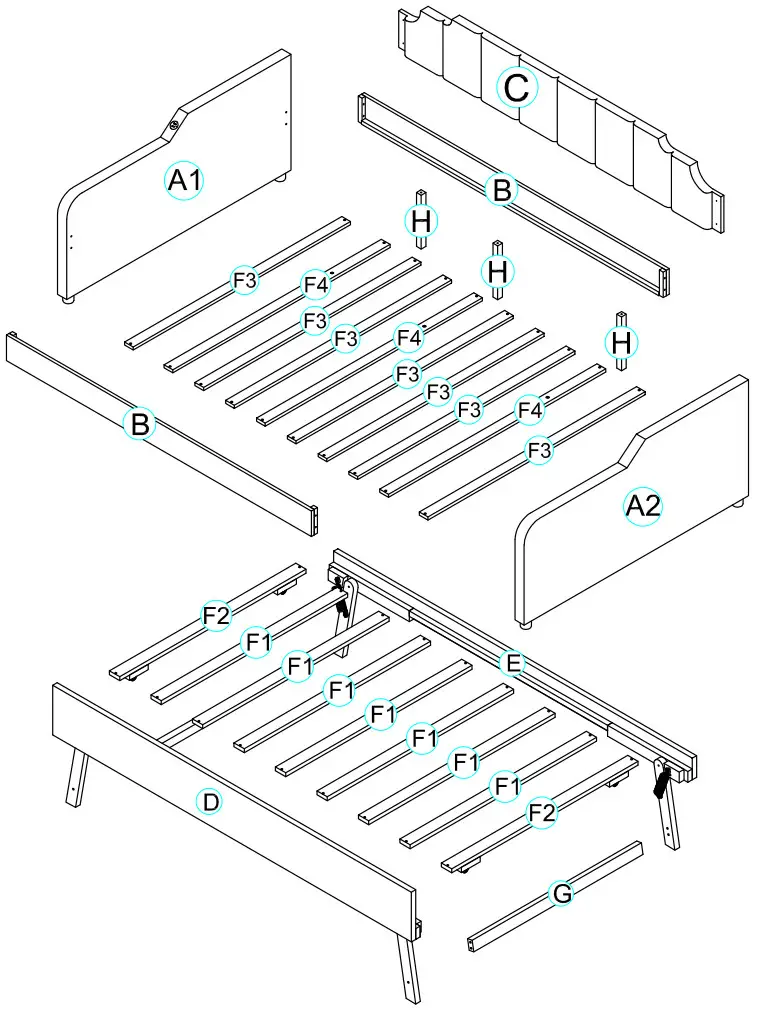

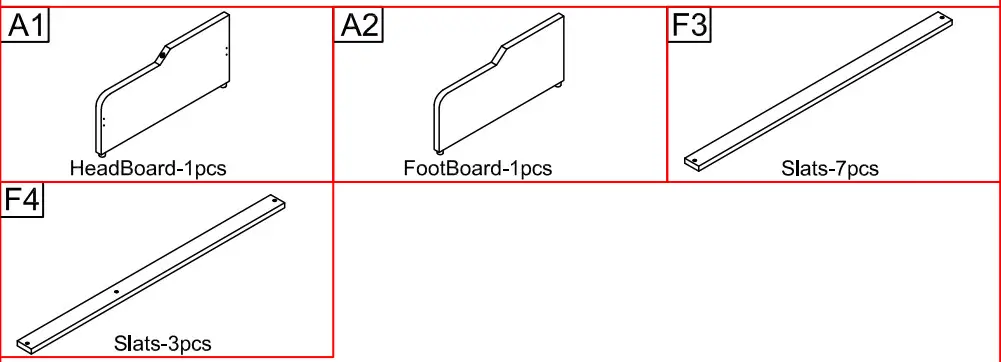

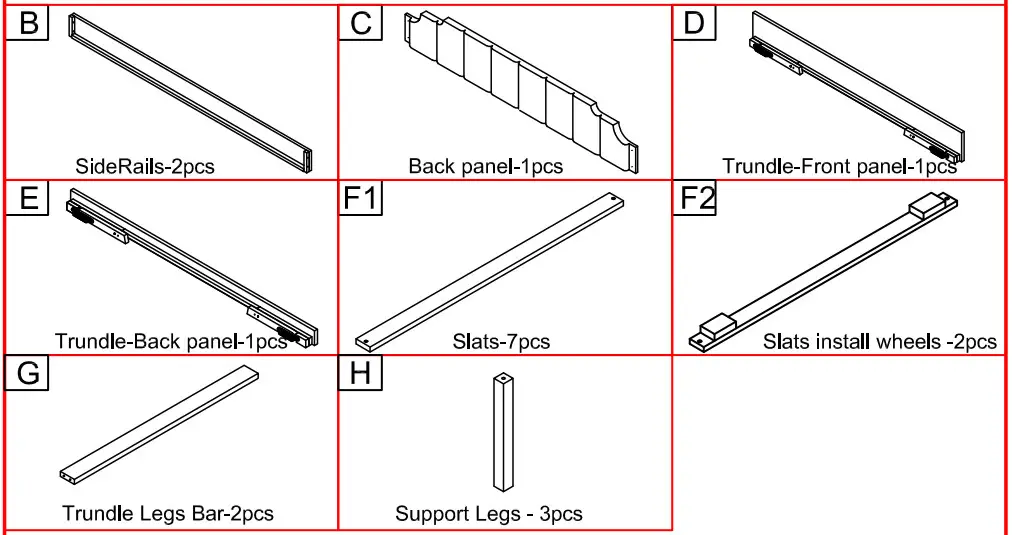

Part List(wF299339)

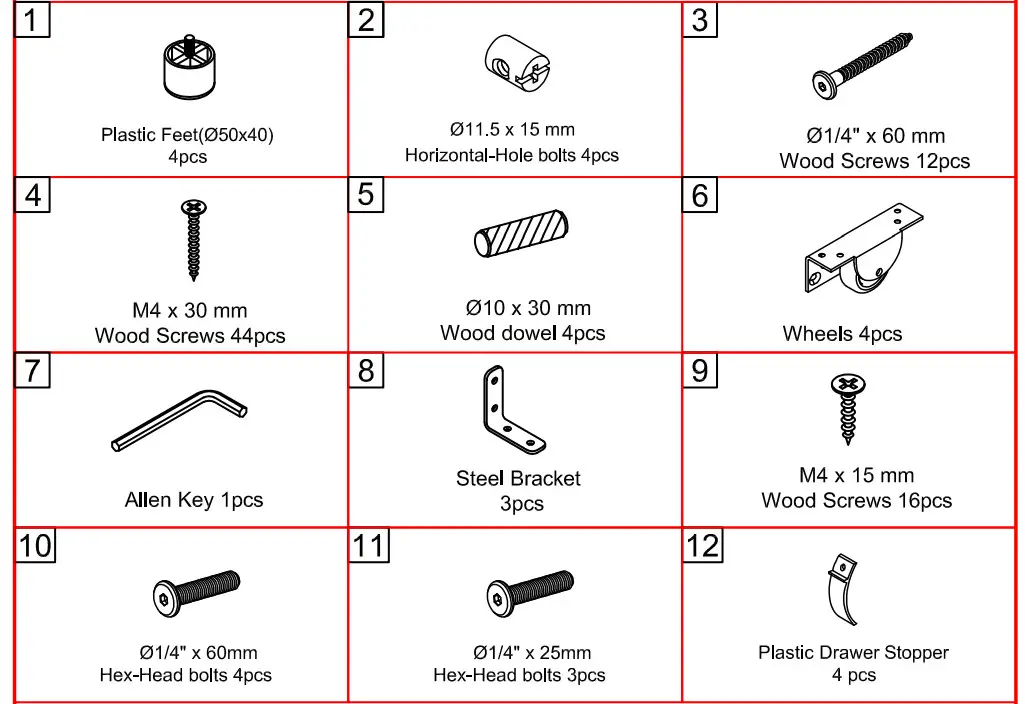

Hardware List

Part List(wF299340)

Assembly Tools Required (Not Included)

STEP 1: Following below illustration Assembly Plastic Feet(#1) With Headboard and Footboard use HW #2

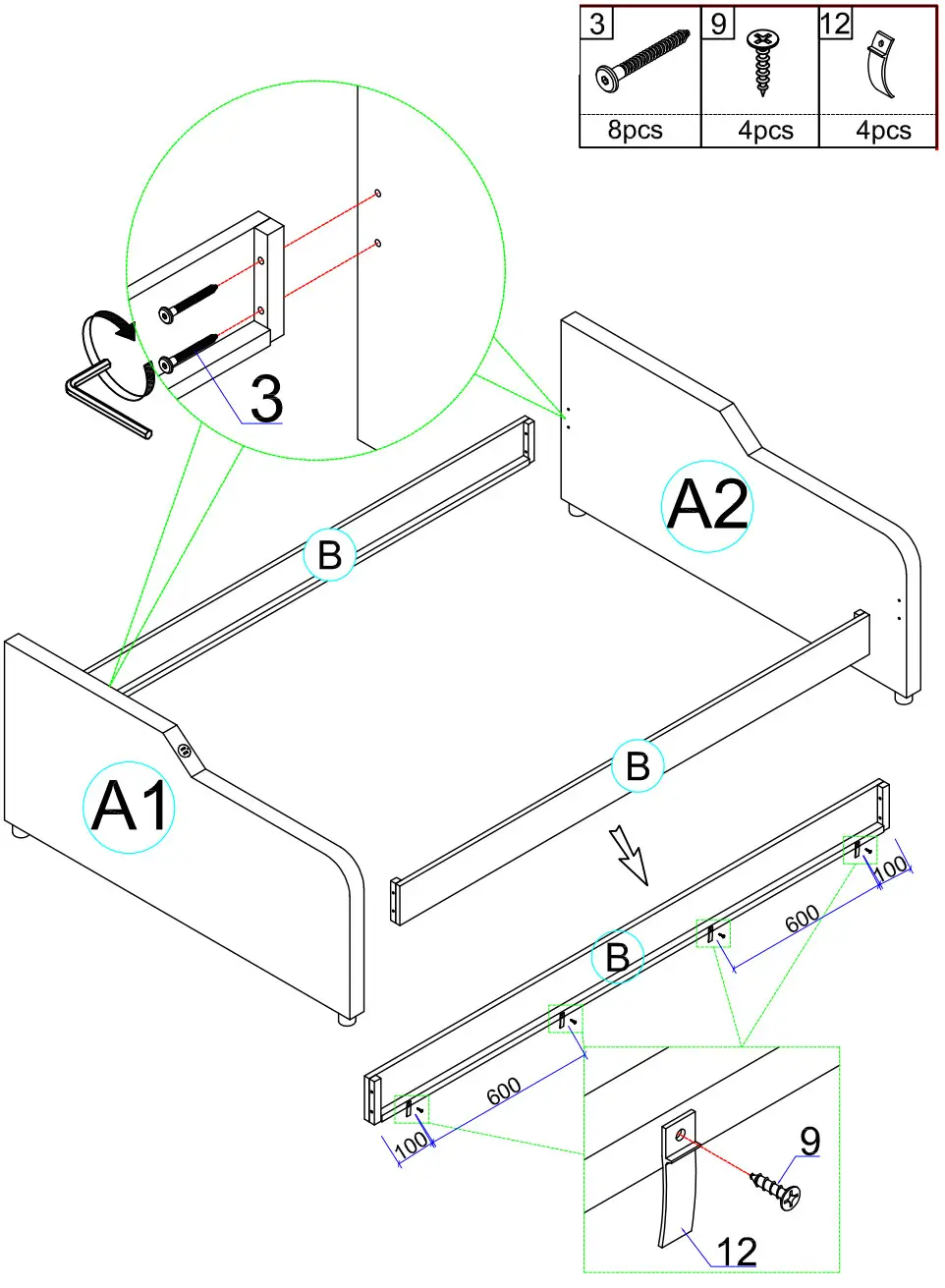

STEP 2: Following below illustration Using hardware #2 to Assembly Headboard and Footboard with side rail B(x2).Look at detail view for more detail

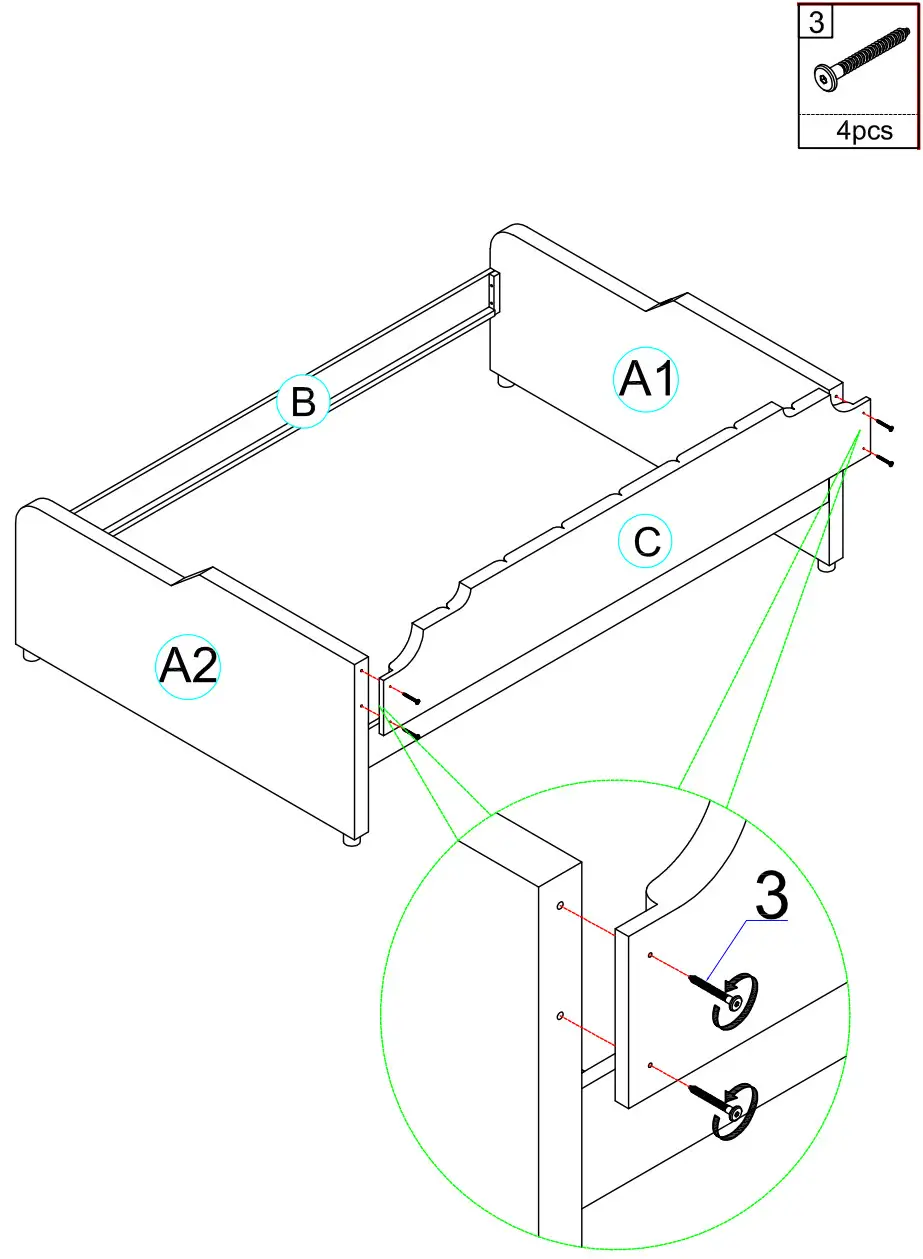

STEP 3: Following below illustration
– Using hardware #3 to Assembly Frame(completed on step 2) with Bach Frame C

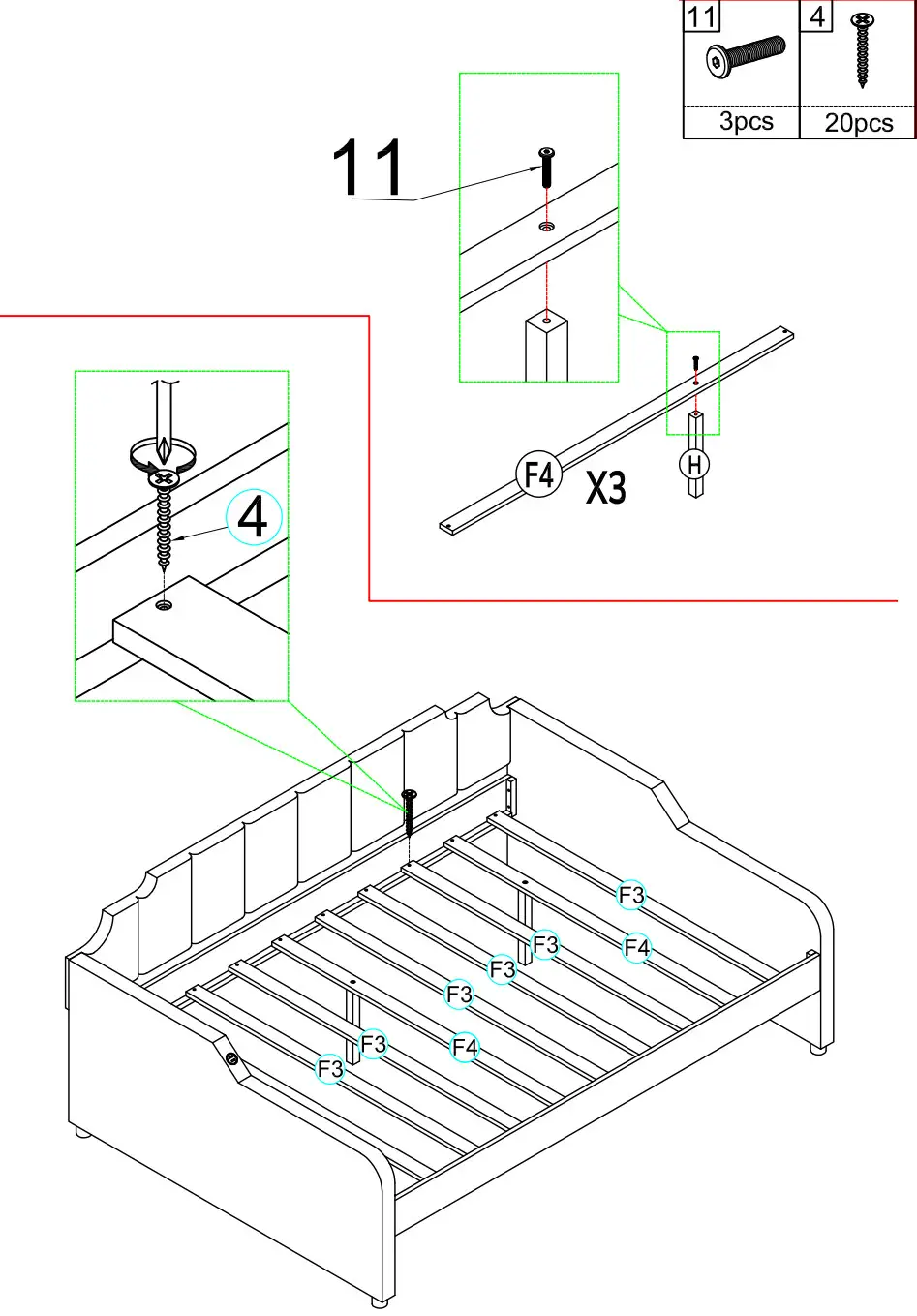

STEP 4: Following below illustration:
– Screw 10 slats F with Side Rail B by using hardware #4.
– Look at detail view for more detail

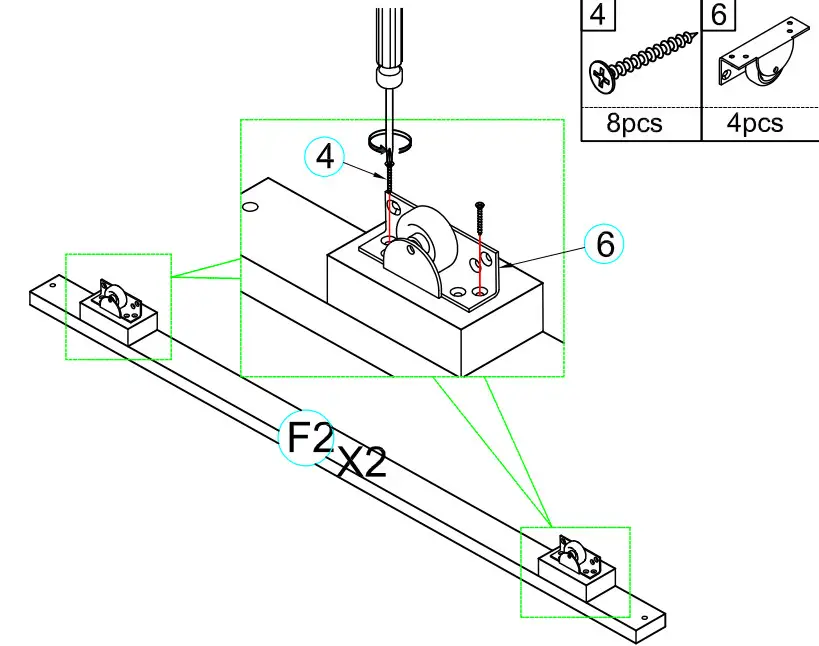

STEP 5: Following below illustration:

STEP 5: Loosen a screw number 4 and keep for step 6

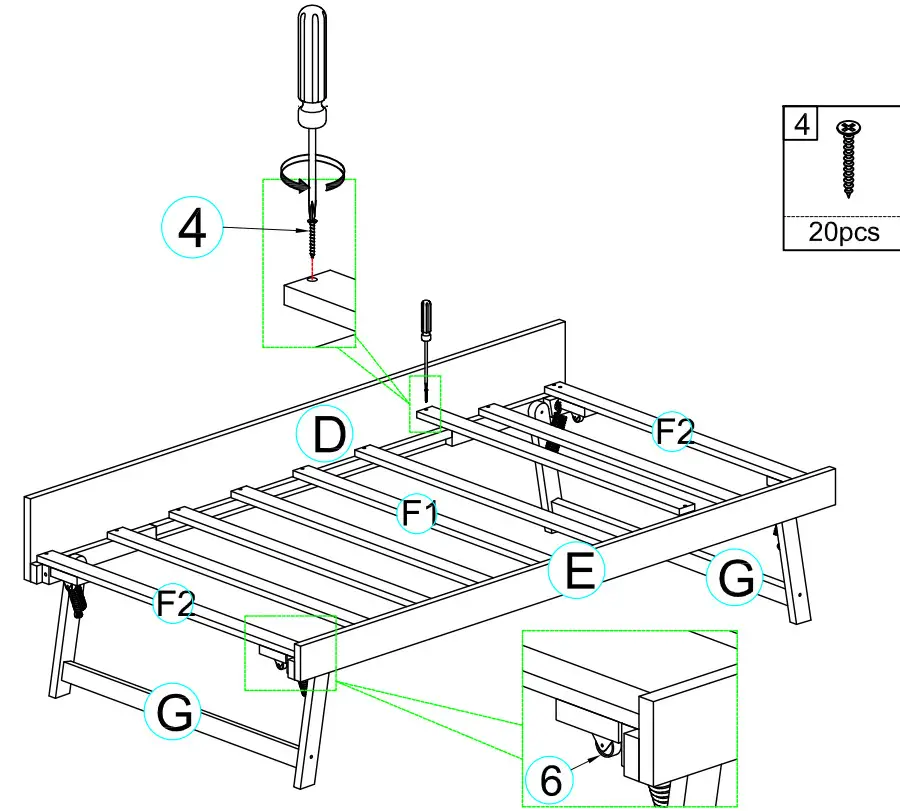

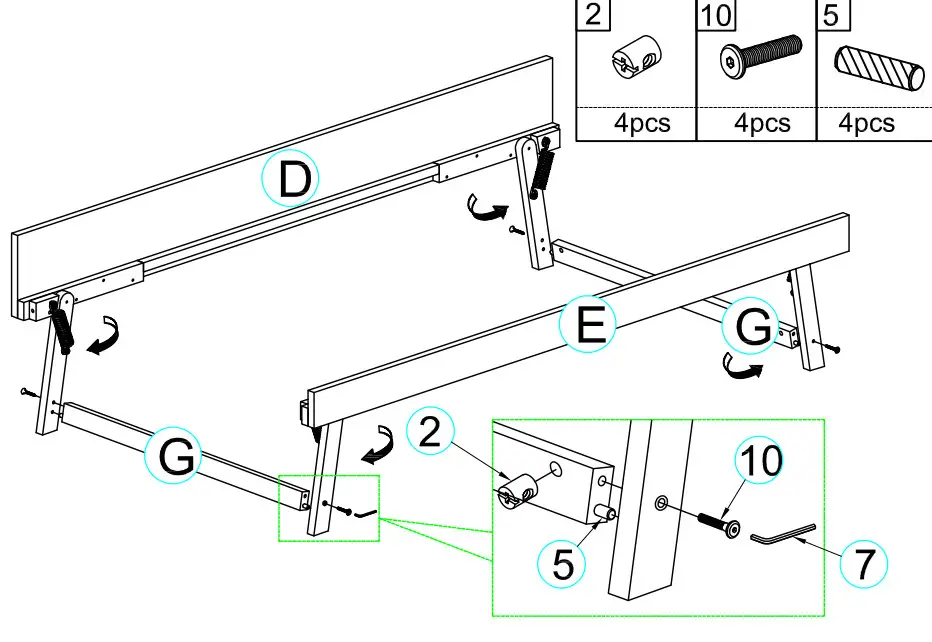

STE P 6- 1: Following below illustration

STEP 6-2: Following below illustration:

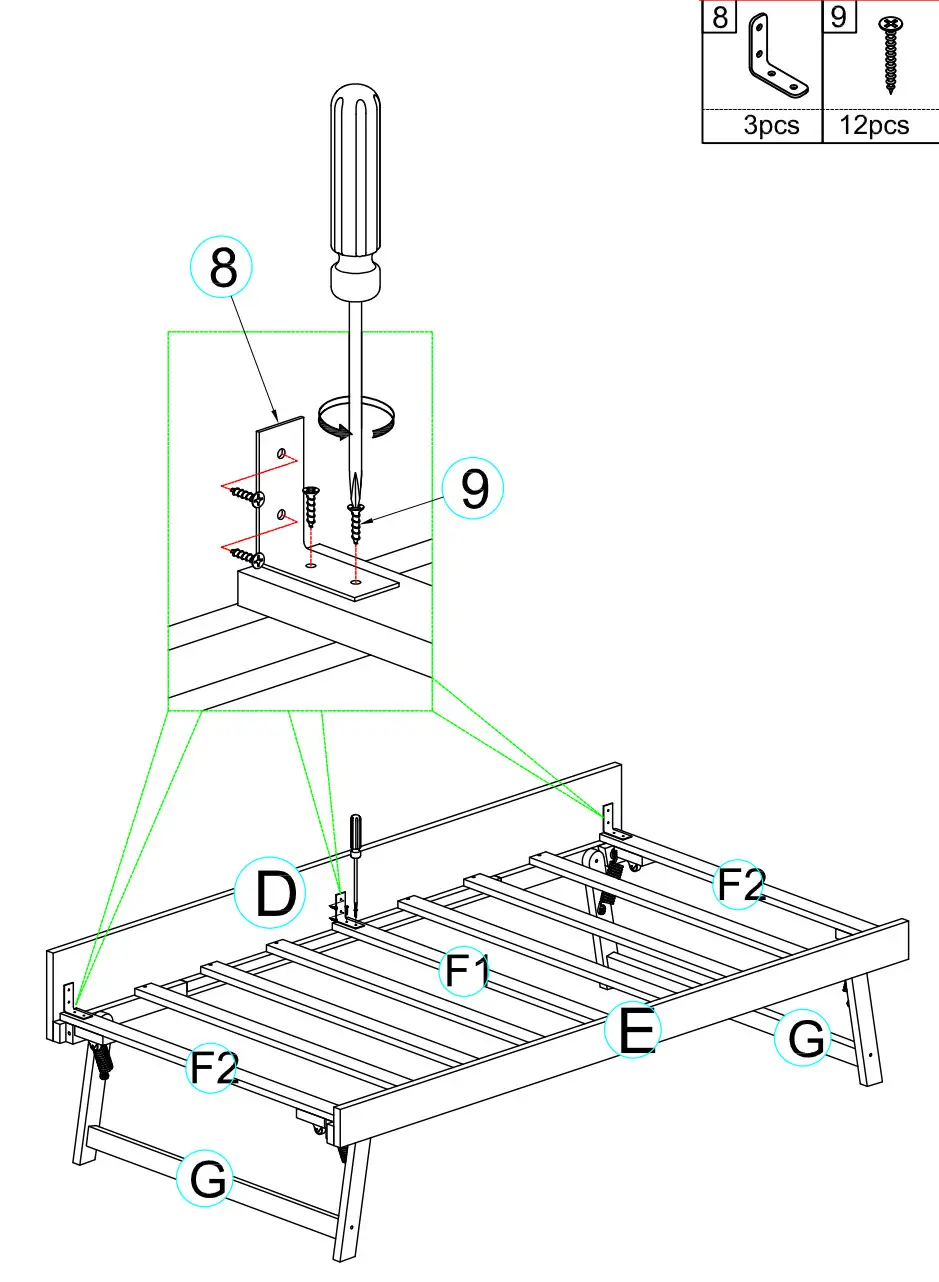

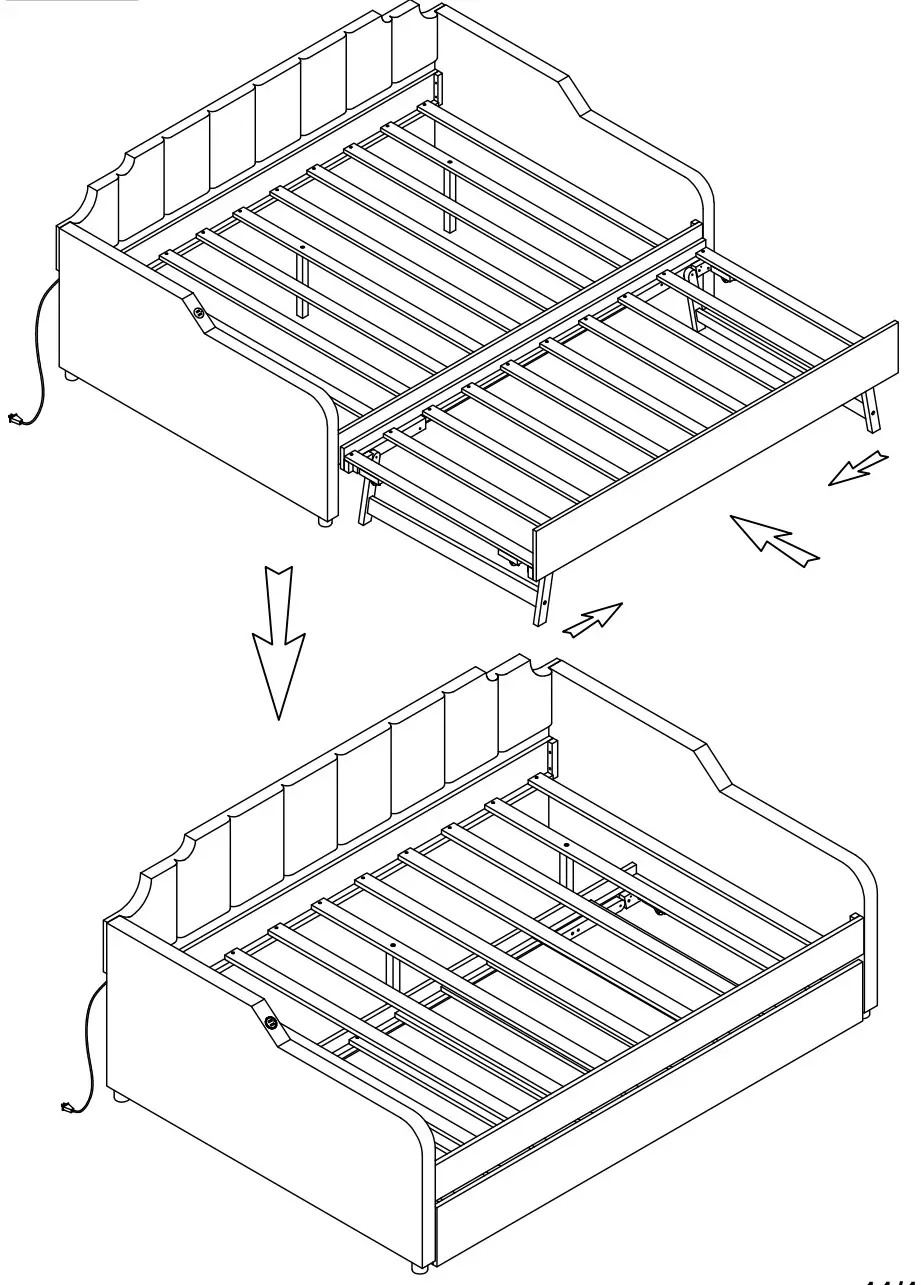

STEPT: Following below illustration:

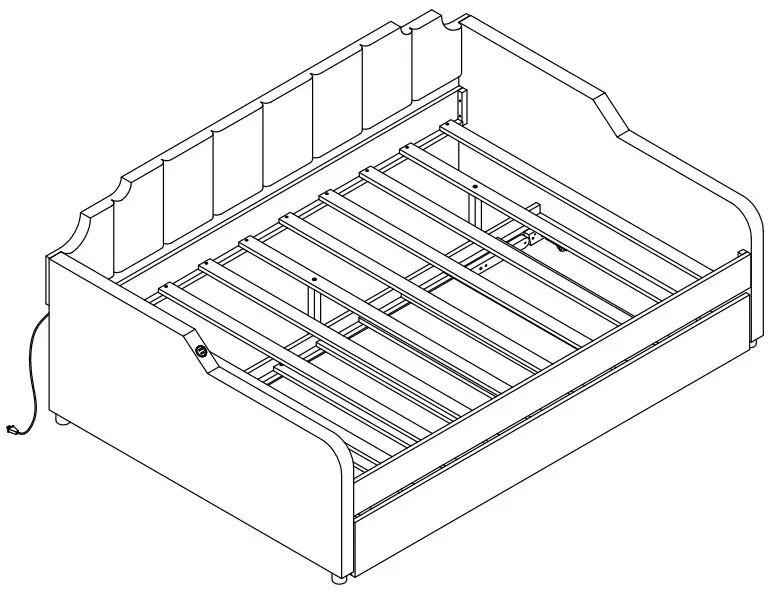

FINISH
