Franke Fvad A90 Bk Matt Hood Instruction Manual

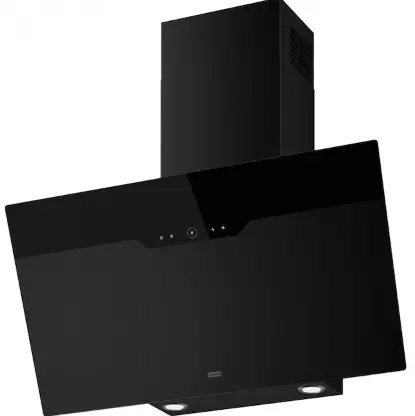

FRANKE FVAD A90 BK MATT Hood

Product Information

The product is labeled as FVAD A90 BK MATT. The user manual is available in multiple languages, including English, Italian, German, Russian, Dutch, Polish, Croatian, Hungarian, Serbian, Lithuanian, Latvian, Slovenian, Ukrainian, Romanian, and Arabic. The product is manufactured by Franke S.p.a located at Via
Pignolini,2 37019 Peschiera del Garda (VR).

Product Usage Instructions

1. Before proceeding with the installation of the product, it is important to read the safety recommendations and suggestions mentioned in the user manual.

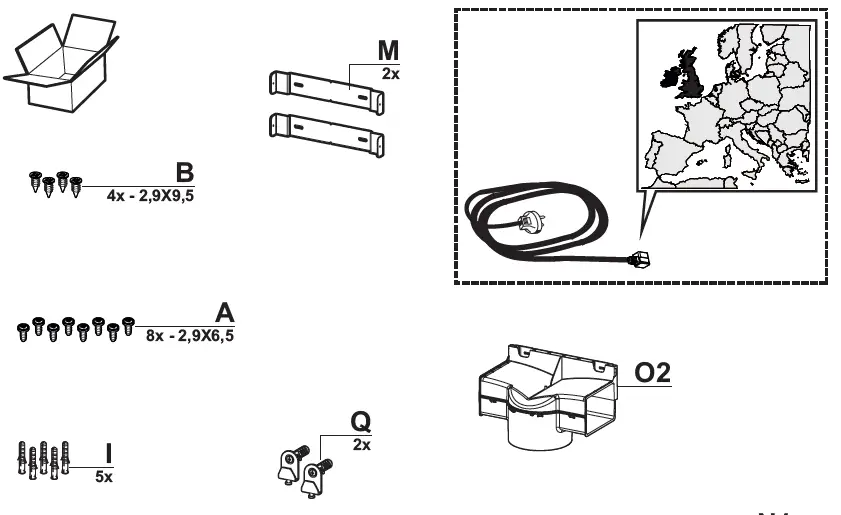

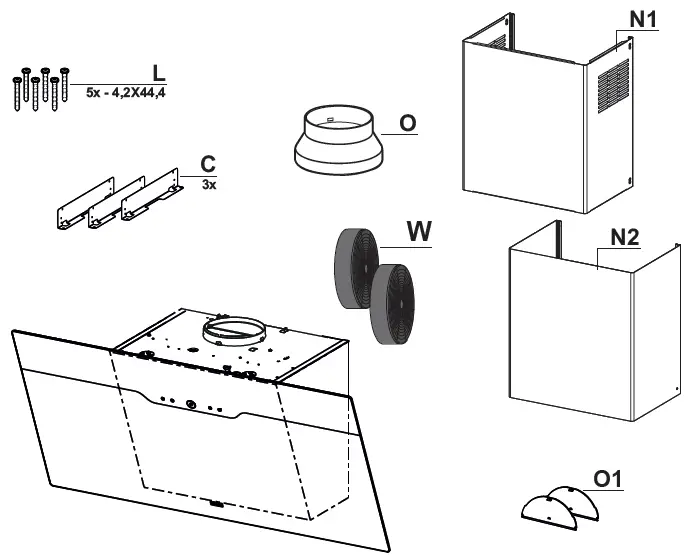

2. Use the following items to install the product:
   • B – 4x
   • C – 3x
   • I – 4x
   • L – 5x
   • M – 2x
   • N – 4x
   • O – 3x
   • P – 1x
   • Q – 2x
   • W – 2x
3. Use the screws provided in the following quantities for
   installation:
   • A – 8x – 2.9X6.5
   • B – 4x – 2.9X9.5
   • C – 3x
   • I – 4x
   • L – 5x – 4.2X44.4
   • M – 2x – N = 4x
   • N – 4x
   • O – 3x
   • P – 4x
   • Q – 2x
   • W – 2x

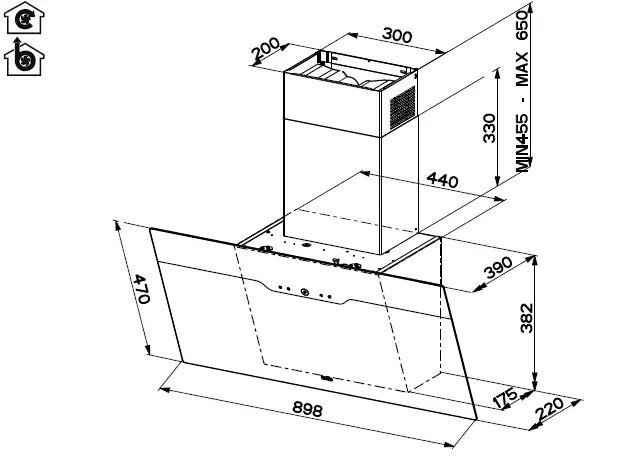

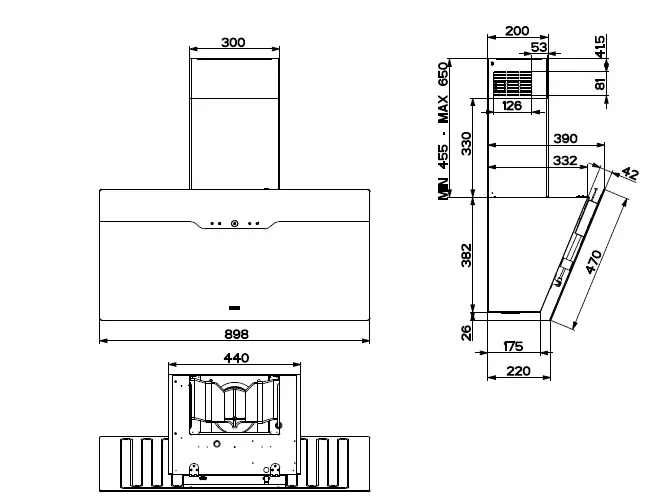

4. The dimensions of the product are 445500mm x 645500mm.

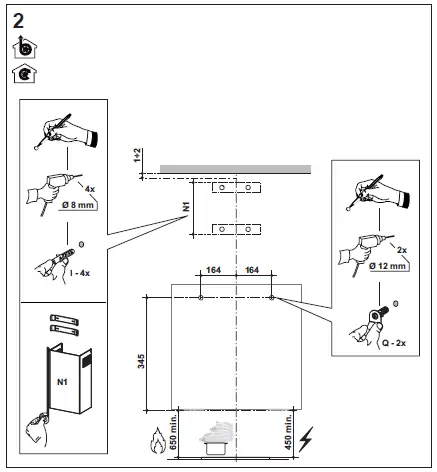

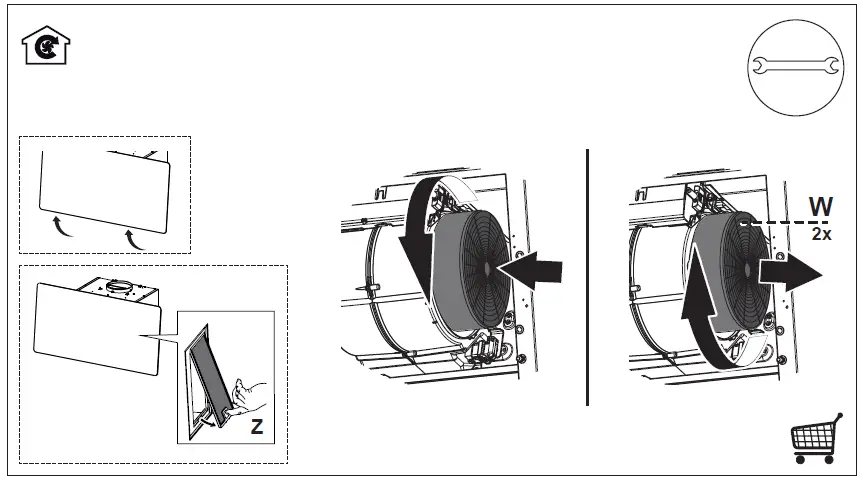

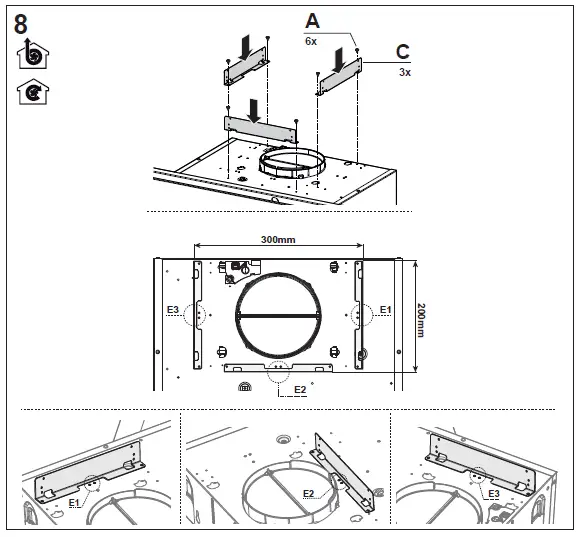

5. Use the E1, E2, and E3 parts as per the installation instructions.
6. Refer to the user manual for additional information and instructions on the product usage.

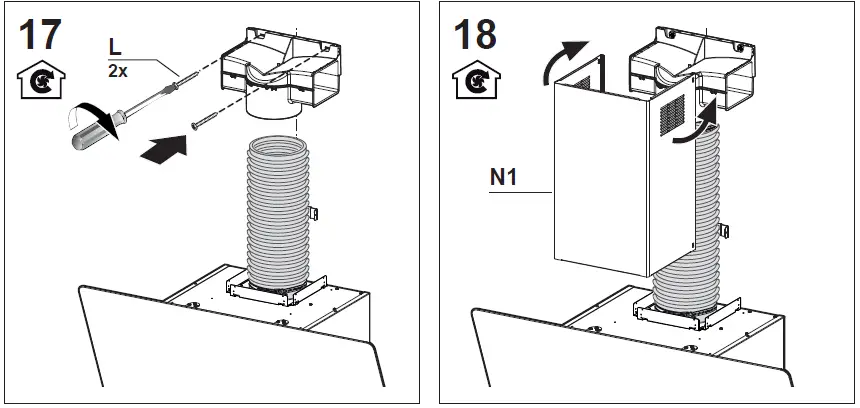

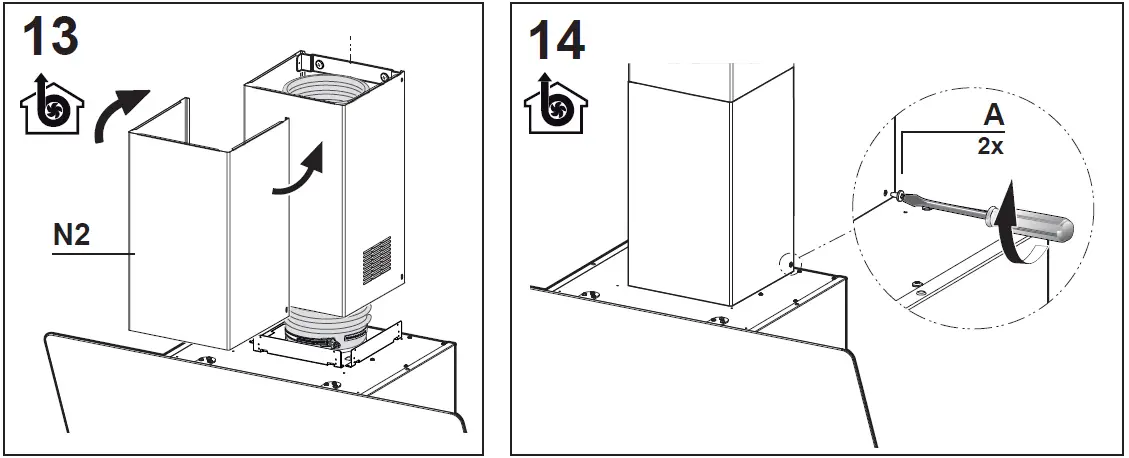

INSTALLATION MANUAL

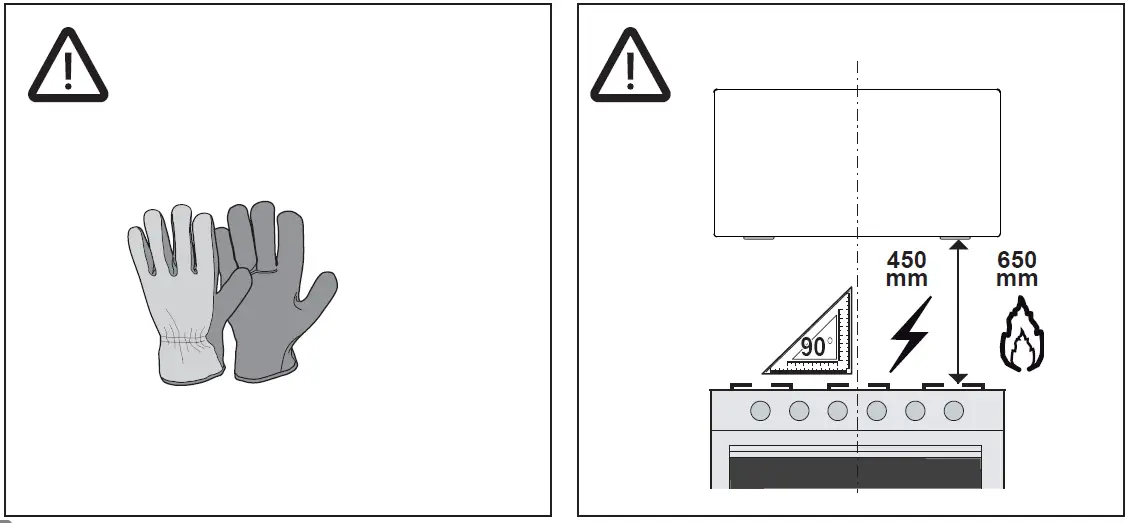

Warning! Before proceeding with installation, read the Recommendations and Suggestions in the User Manual.

ASSEMBLY INSTRUCTIONS

Franke S.p.a. Via Pignolini,2

37019 Peschiera del Garda (VR) www.franke.it

991.0674.372_01 – 220221 – D000000008470_00
