HRE3001 30 Inch Professional Electric Range
Owner’s Manual

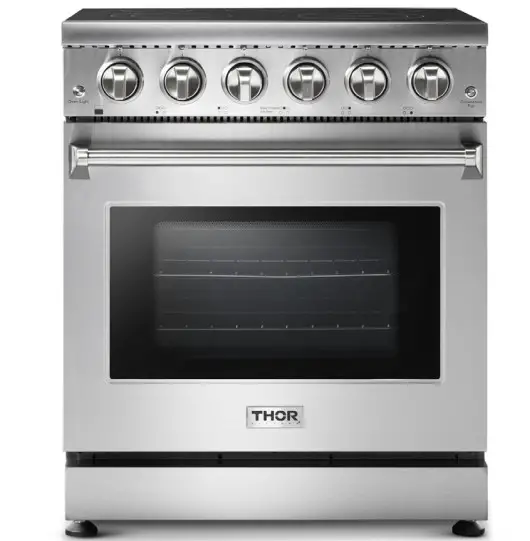

Product: 30 Inch Professional Electric Range in Stainless Steel
Model Number: HRE3001
TECHNICAL DETAILS
| Fuel Type | Electric |
| Construction | Freestanding |
| Color | Stainless Steel |
| Voltage | 240V 50A |
| Frequency (Hz) | 60 Hz |
| Controls Type | Zinc Alloy Knobs |
| Control Panel | Blue LED |
| Hot Surface Indicator Light | Front Right Corner of Cooktop w/Temp at 150˚F (65˚C) |
COOKTOP PERFORMANCE
| Cooktop | Black Polished Plate Glass Ceramic Cooktop |

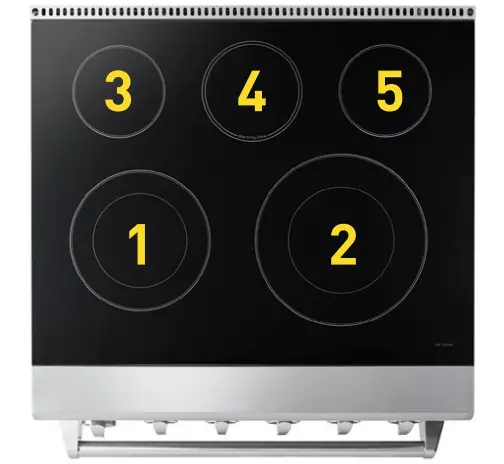

| Total Elements | 5 |
| [1] Front Left Element (Dual) | 3000W |
| [2] Front Right Element (Dual) | 3000W |
| [3] Rear Left Element (Single) | 1200W |
| [4] Rear Middle Element (Single) | 100W |
| [5] Rear Right Element (Single) | 1200W |
FEATURES & BENEFITS
- Smooth Glass Top – Easy to fit in a 30-Inch space, this freestanding professional electric range features a frameless glass top that is flush with the countertop giving it a seamless look that is easy to clean.
- Five Heating Elements – Five element cooktop gives you the ultimate cooking flexibility with a powerful radiant cooktop. From a 100W warming zone to a high-powered 3,000W quick boil element, this range gives you the power to master any meal.
- True Convection Fan – The true convection fan blows heat from the 1300W heating element for more even heating and optimum cooking and baking results.
- LED Control Panel Lights – When in operation, the LED control panel lights illuminate a striking blue for an added pop of color.
- Large Oven Capacity – 4.55 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking.
- Heavy Duty Control Knobs – Heavy duty, die-cast metal burner control knobs add style and durability.
- Brilliant Blue Porcelain Interior – The brilliant blue porcelain interior adds a bold, stylish touch to your professional range.
- Multiple Cooking Modes – Multiple cooking modes including bake, convection bake, broil and convection broil give you the flexibility you need to create masterful meals.
ACCESSORIES
2 Oven Racks, 1 Broiler Pan
WARRANTY: TWO YEAR PARTS AND LABOR
PRODUCT DIMENSIONS
| Product Width | 29 3/4” |
| Product Height | 36” – 37” |
| Product Depth (including door) | 26 1/2” |
| Adjustable Legs | 1” Max |
OVEN PERFORMANCE
| Oven Capacity | 4.55 cu. ft. |
| Oven Functions | Bake, Broil, Keep Warm, Convection Bake, Convection Roast |
| Oven Color | Blue |
| Top Heater Power | 3500W |
| Lower Heater Power | 3500W |
| Convection | True Convection with 1300W Heating Element |
| Oven Light | 1, Rear |
| Oven Racks | 2 |
| Oven Rack Material | Chrome Plated |
| Rack Positions | 6 |
| Baking Sheet | Fits 23” x 16” Baking Sheet |
REQUIRED CUTOUT SIZE
| Cutout Width | 30” |
| Cutout Depth | 24” |
| Cutout Height | 36” |
