L701
WAFERLOCK CORPORATION
Installation Guide

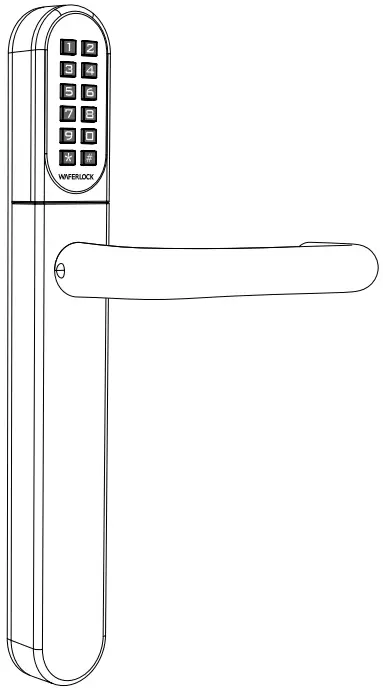

L701 Smart Lock

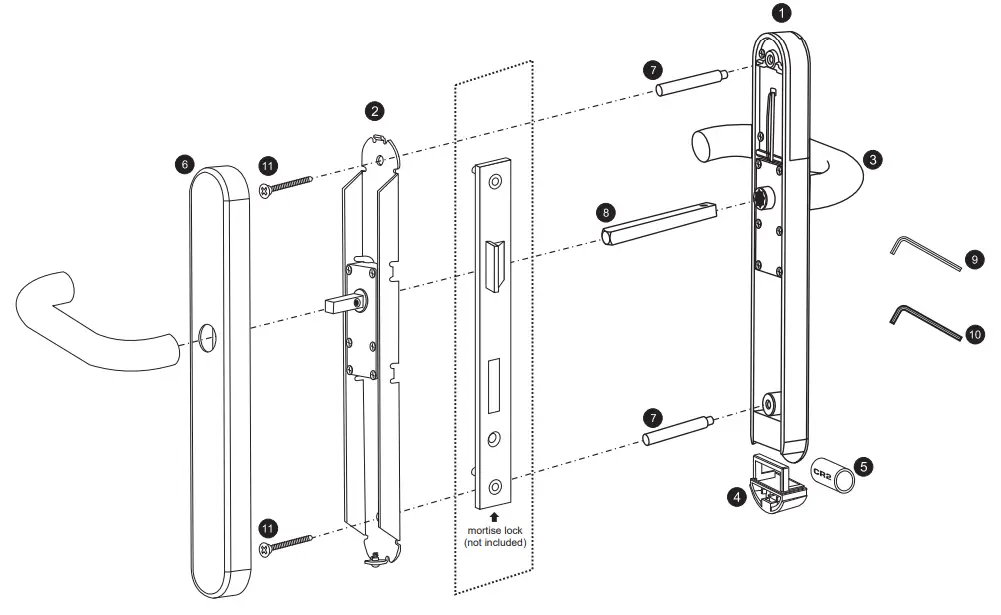

BOX CONTENTS
| No. | Parts Name | Q’ty | Remark |
| 1 | Outer handle set | 1 | |
| 2 | Inner handle set | 1 | |
| 3 | Handle | 2 | |
| 4 | Battery holder | 1 | |
| 5 | CR2 lithium battery | 1 | CR2 3V |
| 6 | Cover plate | 1 | For the inner handle set |
| 7 | Fixing pole | 2 | |
| 8 | Spindle | 1 | |
| 9 | Hexagon driver (#1.5) | 1 | |
| 10 | Hexagon driver (#3.0) | 1 | |
| 11 | Screw | 2 |

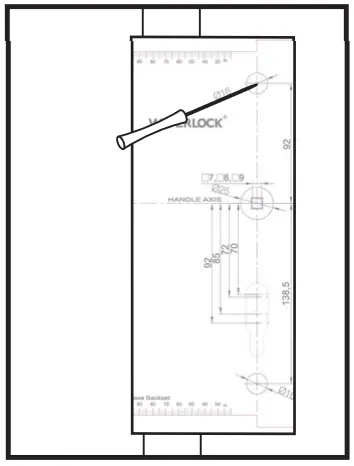

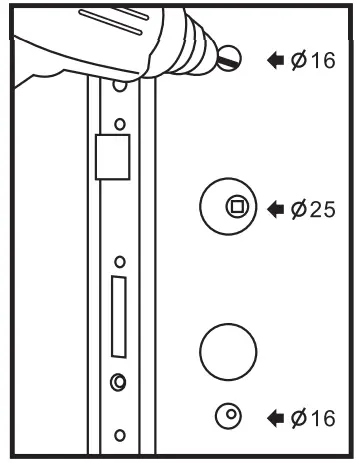

| 1 Place the Door Drilling Template on the door. Use a pin driver to mark the point where you need to drill. | 2 Drill the holes on the door according to the Door Drilling Template. If there is an existing mortise lock, remove it before drilling. |
 |  |

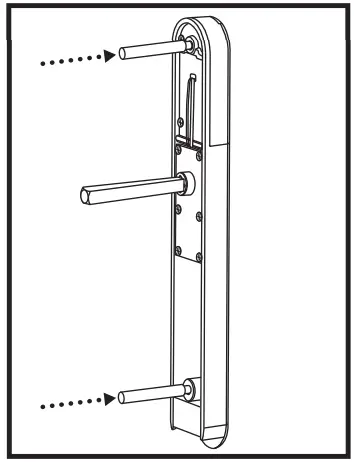

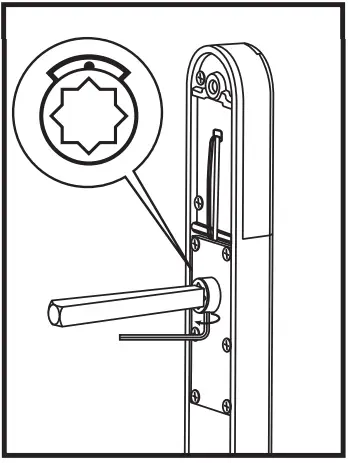

| 3 Install the spindle on the outer handle set and use hexagon driver (#1.5) to tighten the spindle. The screw hole of the spindle must be at the bottom and the mark of the coupling must be on the top. | 4 Screw two fixing poles on the outer handle set. |
 |  |

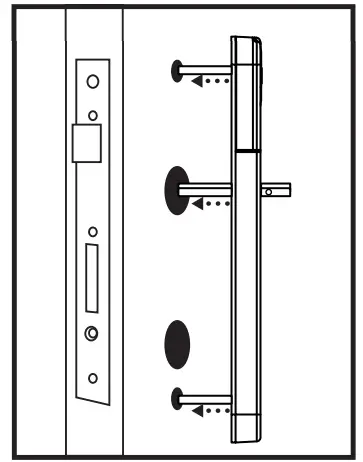

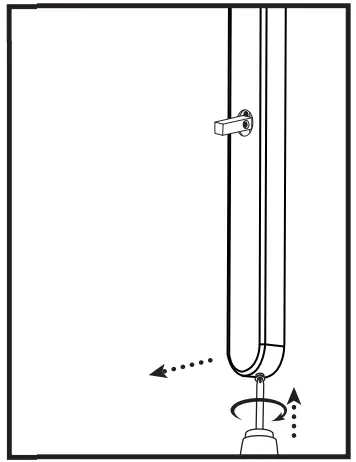

| 5 Install outer handle set on the door. | 6 Turn the screw at the bottom of inner handle set clockwise (go inside) until the cover plate can be pulled out. |
 |  |

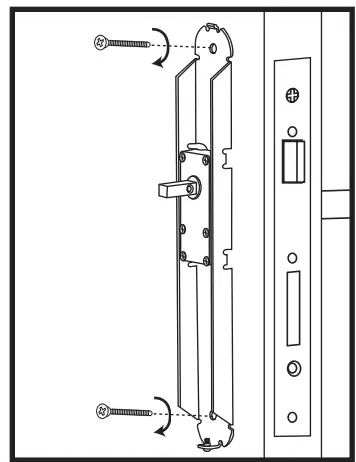

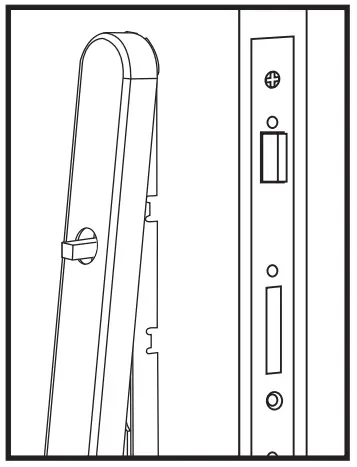

| 7 Install inner handle set on the door, and screw the outer handle set and inner handle set tightly. | 8 Put the cover plate on the inner handle set. |
 |  |

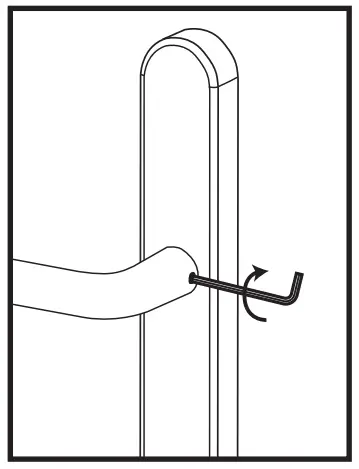

| 9 Turn the screw at the bottom of the inner handle set anti-clockwise (go outside) until you feel resistance. | 10 Install the inner handle and use hexagon driver (#3.0) to tighten the screw on both inner and outer handle. |
 |  |

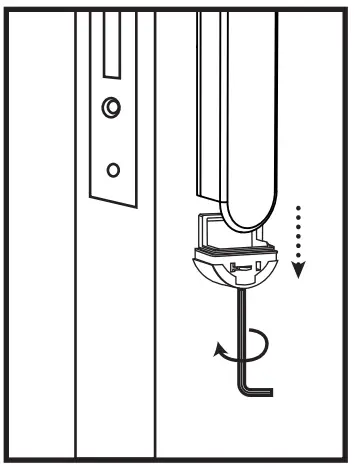

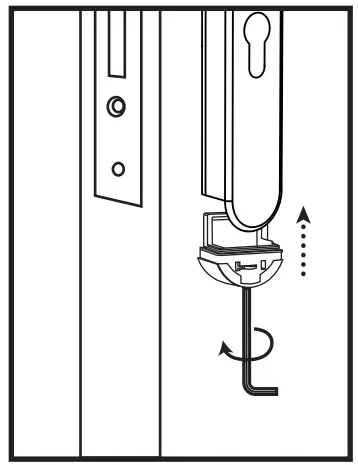

| 11 Use hexagon driver (#1.5) to turn the screw at the bottom of outer handle set anti-clockwise then pull out the battery holder. | 12 Install CR2 lithium battery and install the battery holder back to the outer handle set. |
 |  |
