SDF505-ADH Addressable Duct Detector Housing
Instructions

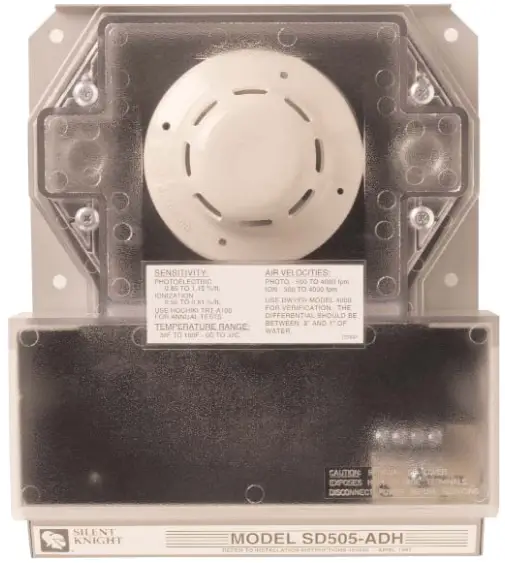

SD505-ADH Shown with Detector (Detector Sold Separately)
Use with SD505-APS photoelectric and SD505-AIS ionization detectors
SDF505-ADH Addressable Duct Detector Housing
SD505-ADH
Analog Duct Detector Housing
The SD505-ADH analog addressable duct smoke detector detects smoke and products of combustion present in air moving through an HVAC air handling system. The SD505-ADH is a heavy duty metal housing with a pre-installed detector base, compatible with the SD505-APS Photoelectric smoke detector and the SD505-AIS Ionization Smoke Detector.
When smoke is detected in a duct, the unit communicates the condition to the fire alarm control panel. The panel can be programmed to turn fans, blowers, and other devices off or on.
Features
- Two-wire connection to SLC LED alarm indication and communication on sensor head
- Rugged steel backbox with clear plastic cover
- Installation template included
- Large terminal connection screws
- Interchangeable “plug-in” photoelectric or ionization heads
- UL listed, complies with NFPA 72 and 101
- CSFM listed
- MEA Approved 429-92-E, Vol 9
- FM Approved
Specifications
| Included Parts: | Metal housing with 7.5″ exhaust tube SD505-4AB detector base Installation template 4 mounting screws |
| Accessory model numbers: | SD505-APS Photoelectric Smoke Detector SD505-AIS Ionization Smoke Detector |
| (parts not included with SD505-ADH) | SD500-ARM Relay Module STS-2.5 Sampling tube for 6 to 2.5 duct width STS-5.0 Sampling tube for 2.5 to 5.0 duct width SDS-10.1 Sampling tube for 5.0 to 10.0 duct width |
| Current: | .55 mA (alarm and standby) |
| Air Velocity: | 500-4000 fpm (SD505-APS) 300-4000 fpm (SD505-AIS) |
| Sensitivity: | 1.1 (SD505-APS) % obs 0.8 (SD505-AIS) % obs |
| Ambient Temperature: | 32ºF to 100ºF (0ºC to 37ºC) |
| Humidity: | 10 to 85% RH |
| Dimensions: | 10 H x 8.25 W x 2.25 D |
| Color: | Gray |
Compatible Control Panels
IFP-1000
IFP-100

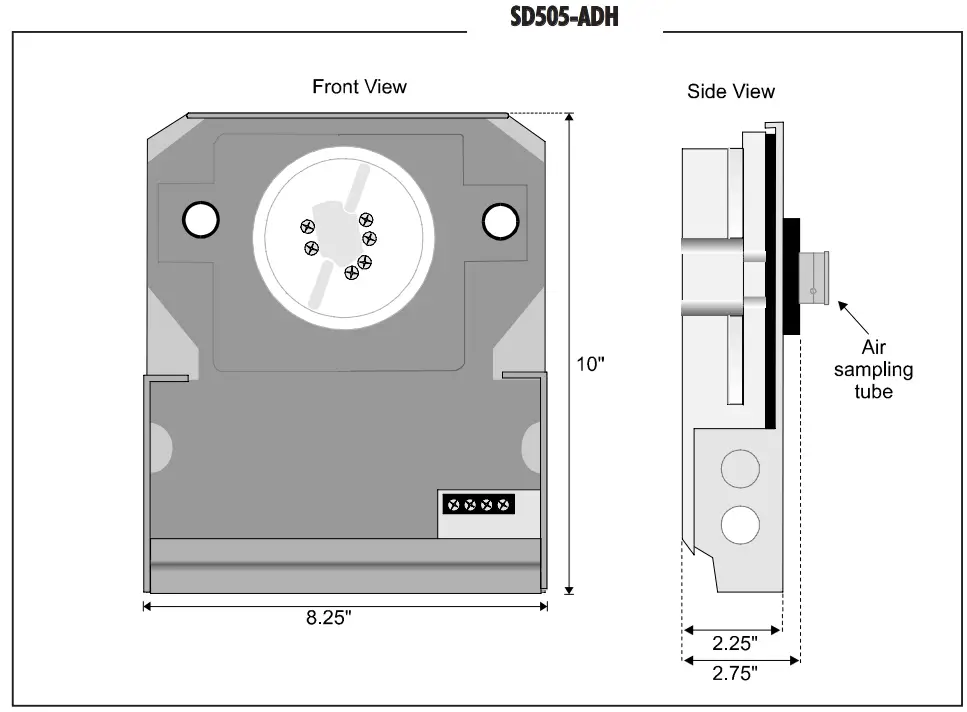

Dimensions
7550 Meridian Circle, Maple Grove, MN 55369-4927
1-800-446-6444 or in Minnesota 763-493-6435
FAX: 763-493-6475 World Wide
Web: http://www.farenhyt.com
P/N 350217, 11/01
Copyright © 2001 Silent Knight
firealarmresources.com
Made in the U.S.A.
