DVDO-Xtend-Pair3.0E
HD BaseT 3.0 Extender
User Manual
Version 1.0.0

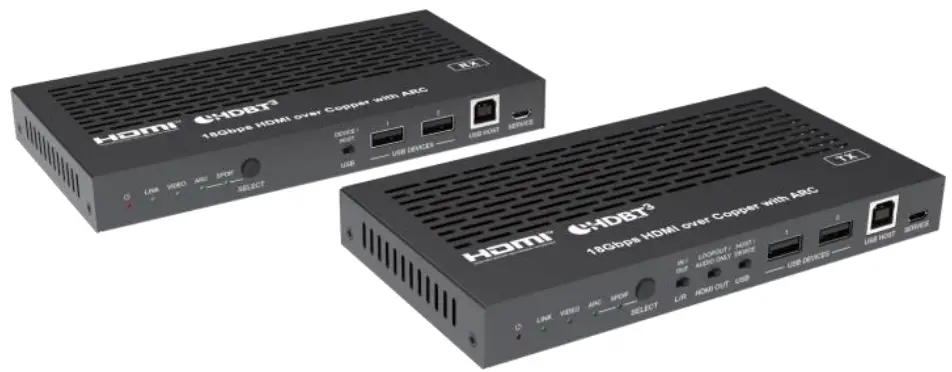

Xtend-Pair3.0E HDBaseT 3.0 Extender
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical sp kes, surges, electric shock, lighting str kes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Introduction
This HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding. The Receiver supports audio de-embedding. It also supports eARC/ARC from RX’s HDMI output pass through to TX’s HDMI input or de-embedding to TX’s HDMI audio only and SPDIF output ports, USB 2.0 (Host/Device is configurable) and bi-directional POC.
The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for home/commercial application.
Features
☆ HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant
☆ Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth
☆ HDR, HDR10, HDR10+, Dolby Vision and HLG pass through
☆ LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24,
DTS High Res, DTS-HD Master Audio, DSD pass through
☆ Transmission distance up to 328 ft / 100 meters via a single CAT 6A/7 cable
☆ Supports eARC/ARC function (the audio is returned to the HDMI IN port, HDMI OUT(AUDIO ONLY) port and SPDIF OUT port of the transmitter.)
☆ Supports SPDIF audio reverse transmission
☆ Bi-directional IR, RS-232 and 1G Ethernet signal pass through
☆ Supports USB2.0 transmission, Host/Device is configurable
☆ Bi-directional 24V POC function
Package Contents
| Qty | Item |
| 1 | HDBaseT 3.0 Extender (Transmitter) |
| 1 | HDBaseT 3.0 Extender (Receiver) |
| 1 | IR Blaster Cable (1.5 meters) |
| 1 | IR Receiver Cable (1.5 meters) |
| 4 | Moun ing Ears |
| 8 | Machine Screws (KM3’4) |
| 2 | 3pin-3.81mm Phoenix Connector |
| 1 | 24V/1A Locking Power Adapter |
| 1 | User Manual |
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| HDBaseT Bandwidth | 16Gbps on main and 2Gbps on return link |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| Audio Formats | LPCM, Dolby DigitaUPlus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio. DSD |
| UR Audio Formats | PCM 2.0 |
| SPDIF Audio Formats | LPCM2.0, AC3 5.1, DTS 5.1 |
| IR Level | 12Vp-p |
| IR Bandwidth | 20K – 60KHz |
| USB Bandwid h | Up to 350Mbps |
| Ethernet | 1000Mbps |
| RS-232 | Up to 921600bps |
| Transmission Distance | 100m (via a single CAT 6A/7 cable) |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Transmitter | Inputs: lx HDMI IN [Type A, 19-pin female] Outputs: lx HDMI OUT [Type A, 19-pin female] lx HDBT OUT [RJ45, 8-pin female] :Ix SPDIF OUT [S/PDIF] 1xUR OUT [3.5mm Stereo Mini-jack] Controls: lx IR IN [3.5mm Stereo Mini-jack] lx IR OUT [3.5mm Stereo Mini jack] 1x RS-232 [3pin-3.81mm Phoenix jack] lx SERVICE [Mini-USB, Update port] 1xUSB HOST [USB Type B] 2xUSB DEVICES [USB Type A] 1xLAN [RJ45] |
| Receiver | Inputs: lx HDBT IN [RJ45, 8-pin female] lx SPDIF IN [S/PDIF] Outputs: lx HDMI OUT [Type A, 19-pin female] 1xUR OUT [3.5mm Stereo Mini-jack] Controls: lx IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] lx RS-232 [3pin-3.81mm Phoenix jack] lx SERVICE [Mini-USB, Update port] 1 xUSB HOST [USB Type B] 2xUSB DEVICES [USB Type A] 1x LAN [RJ45] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 170mm [W] x 102mm [D] x 22mm [H] |
| Weight | Transmitter: 425g, Receiver: 437g |
| Power Supply | Input: AC 100 – 240V 50/60Hz Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 15.36W (POC) | ||
| Opera perature ing Tem | 32 – 104°F / 0 – 40°C | ||
| Storage Temperature | -4 – 140°F / -20 – 60°C | ||
| Relative Humidity | 20 – 90% RH (no condensation) | ||
| Resolution / Cable Length | 41(60 – Feet / Meters | 4K30 – Feet I Meters | 1080P60- Feet / Meters |
| HDMI IN / OUT 16ft i 5M | 32ft / 10M | 501I / 15M | |
| The use of “Premium High Speed HDMI” cable is highly recommended | |||
Operation Controls and Functions

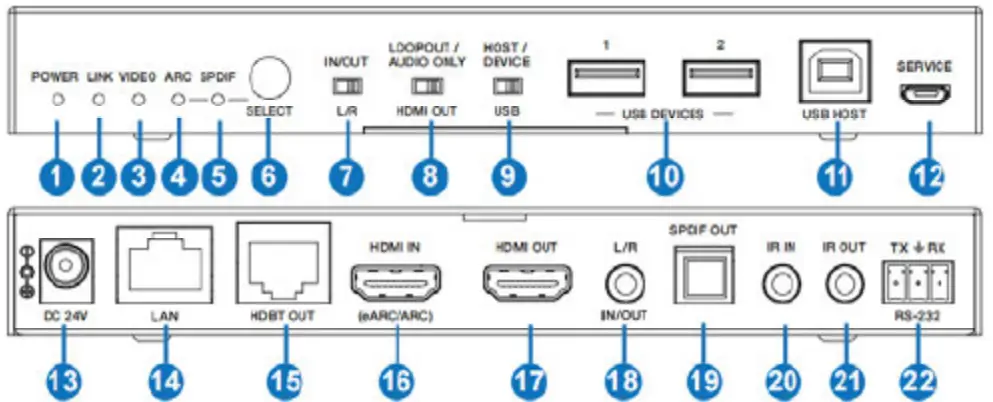

5.1 Transmitter Panel
| No. | Name | Function Description |
| 1 | Power LED | Red LED indicates that he Transmitter is powered on. |
| 2 | LINK LED | – Light on. Transmitter and Receiver are in good connection status. Light flashing: Transmitter and Receiver are in Low Power Mode. – Light off: Transmitter and Receiver are not connected. |
| 3 | VIDEO LED | •Light on. The video is encrypted. •Light flashing: The video is not encrypted •Light off: No HDMI input. |
| 4 | ARC LED | •Light on: The device is switched to the ARC mode. •Light off: The device is switched to the SPDIF mode. |
| 5 | SPDIF LED | •Light on: The device is switched to the SPDIF mode. – Light off: The device is switched to the ARC mode. |
| 6 | SELECT button | Used for switching the ARC mode and SPDIF mode. |
| 7 | UR IN/OUT switch | Switch to left. the UR IN/OUT port is the audio embedding port; Switch to right, the UR IN/OUT port is the audio de-embedding Ka |
| 8 | LOOP OUT/ AUDIO ONLY switch | Switch to left (LOOPOUT). the HDMI OUT pon is the loopout port tor the HDMI IN pod; Switch to right (AUDIO ONLY), the HDMI OUT port outputs 720P black screen image, and the audio is from ARC or SPDIF. |
| 9 | HOST/DEVICE USB switch | Switch to left (HOST), the USB HOST mode is enabled: Switch to right (DEVICE), the USB DEVICE mode is enabled. |
| 10 | USB DEVICES | Two USB device pats, connected to U risk. mouse or keyboard. |
| 11 | USB HOST | USB extension host port. connected to PC. |
| 12 | SERVICE | Firmware update pod. |
| 13 | DC 24V | DC 24V/1A power supply input port. Able that the extender supports POC function, it means that either Dansmilter or reoswens powered on by 24 WM power adapter, the other one &bean t need power supply. |
| 14 | LAN | 1G Network port. |
| 15 | HDBT OUT | 10G Network port, connected to the HDBT IN port of Receiver with a CAT 6N7 cable. It is used for various signals pass-through. |
| 16 | HDMI IN | HDMI signal input port, connected to signal source device, supporting eARC/ARC amplifier. |
| 17 | HDMI OUT | HDMI signal loopout port. It can choose to be a LOOP OUT or AUDIO ONLY port through he LOOP OUT/AUDIO ONLY switch. |
| 18 | UR IN/OUT | Audio embedding/de-embedding port. It can be used for audio through the UR IN/OUT switch. |
| 19 | SPDIF OUT | Optical output port. |
| 20 | IR IN | IR signal input port, connected to IR Receiver cable. |
| 21 | IR OUT | IR signal output port, connected to IR Blaster cable. |
| 22 | RS-232 | RS-232 serial port, used for serial port command transmission. |
5.2 Receiver Panel
| No. | Name | Function Doscription |
| 1 | Power LED | Red LED indicates that the Receiver is powered on. |
| 2 | LINK LED | •Light on: Transmitter and Receiver are in good comet ion status. •Light flashing: Transmitter and Receiver are in Low Power Mode. •Light off: Transmitter and Receiver are not connected. |
| 3 | VIDEO LED | •Light on: The video is encrypted. •Light flashing: The video is not encrypted. •Light oft No HDMI input. |
| 4 | ARC LED | •Light on. The device is switched to the ARC mode •Light off: The device is switched to the SPDIF mode. |
| 1 4, | SPDIF LED | •Light on: The device is switched to the SPDIF mode. •Light off: The device is switched to the ARC mode. |
| 6 | SELECT button | Used for switching the ARC mode and SPDIF mode. |
| 7 | DEVICE HOST USB swttch | Switch to right (HOST), the USB HOST mode is enabled, Switch to left (DEVICE), the USB DEVICE mode is enabled |
| 8 | USB DEVICES | Two USB device ports. connected to U disk, mouse or keyboard. |
| s | USB HOST | USB extension host port. connected to PC. |
| 10 | SERVICE | Firmware update port. |
| 11 | DC 24V | DC 24V/1A power supply input port. Note that the extender supports POC function, it means that either transmiler or receiver Is powered on by 24V/M power adapter, the other one doesnt need poWer supply. |
| 12 | LAN | 1G Network port. |
| 13 | I-IDBT IN | 10G Network port, connected to Me HDBT OUT pod of Transmitte with a CAT 6A/7 cable. It is used for various signals pass-through. |
| 14 | HDMI OUT | HDMI signal output port, supporting eARUARC TV. |
| 15 | L/R OUT | Audio de-embedding output port. |
| 16 | SPDIF IN | Optical input port. |
| 17 | IR IN | IR signal input port, connected to IR Receiver cable. |
| 18 | IR OUT | IR signal output port, connected to IR Blaster cable. |
| 19 | RS-232 | RS-232 serial port, used for serial port command transmission. |
5.3 Input & Output Switching
The Extender can switch to ARC/SPDIF mode by pressing the SELECT button on the front panel of both transmitter and receiver The HDMI OUT port of the transmitter can turn to LOOP OUT Or AUDIO ONLY through the LOOP OUT/AUDIO ONLY switch. The input and output routing are different for different scenarios, as shown in the diagrams below

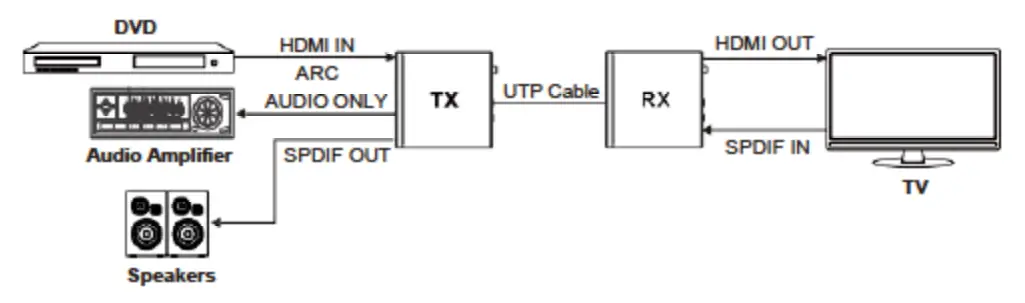

Scene 1: Set the Extender to SPDIF Mode Then switch the LOOP OUT/ AUDIO ONLY switch to night, the HDMI OUT port of the transmitter is set to AUDIO ONLY

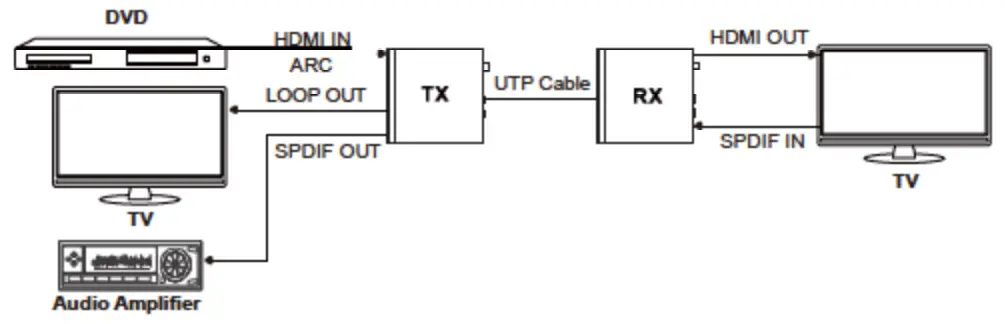

Scene 2: Set the Extender to SPDIF Mode Then switch the LOOP OUT/AUDIO ONL y switch to left, the HDMI OUT port of the transmitter is set to LOOP OUT

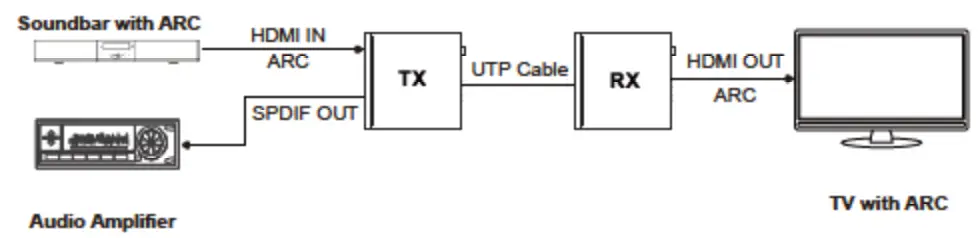

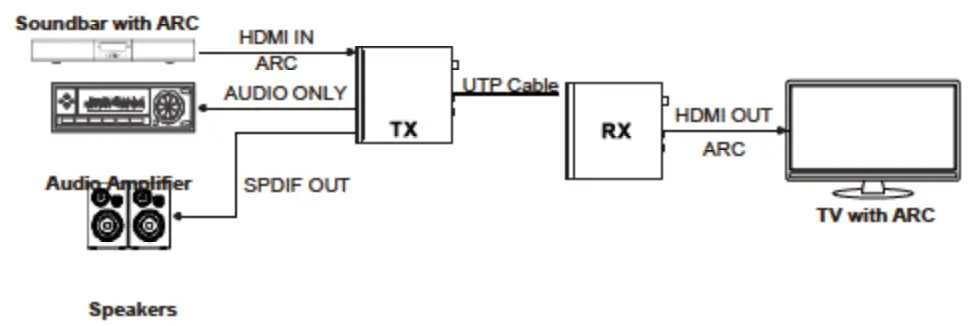

Scene 3: Set the Extender to AC Mode. Then switch the LOOP OUT/AUDIO ONLY switch to night, the HDMI OUT port of the transmitter is setto AUDIOONLY
Scene 4: Set the Extender to ARC Mode. Then switch the LOOP OUT/AUDIO ONL y swrtch to left, the HDMI OUT port of the transmrtter IS set to LOOP OUT

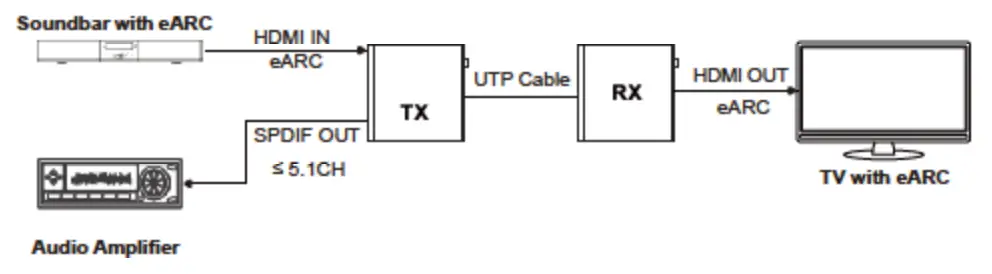

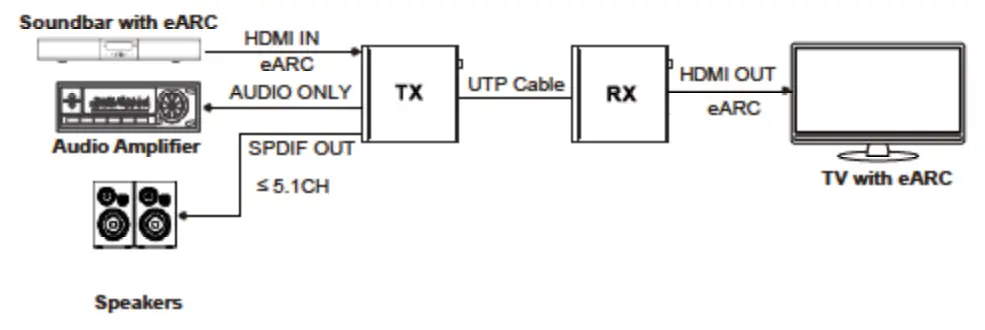

Scene 5: Set the Extender to eARC Mode Then switch the LOOP OUT/AUDIO ONLY switch to night, the HDMI OUT port of the transmitter is set to AUDIO ONLY
Scene 6: Set the Extender to eARC Mode Then switch the LOOP OUT/AUDIO ONLY switch to left, the HDMI OUT port of the transmitter is set to LOOP OUT
Note: In eAC mode, the SPDIF OUT port can only output the audio up to 5.1CH
5.4 Audio Embedding and De-embedding
The Transmitter supports audio embedding and de-embedding. The LIR IN/OUT port can be used for audio embedding or de-embedding through the LR IN/OUT switch

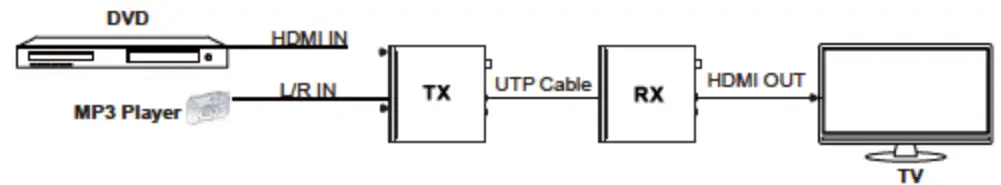

• TX Audio Embedding
When the LR IN/OUT switch is switched to left, the audio from external audio device will be embedded to the L/R IN/OUT port

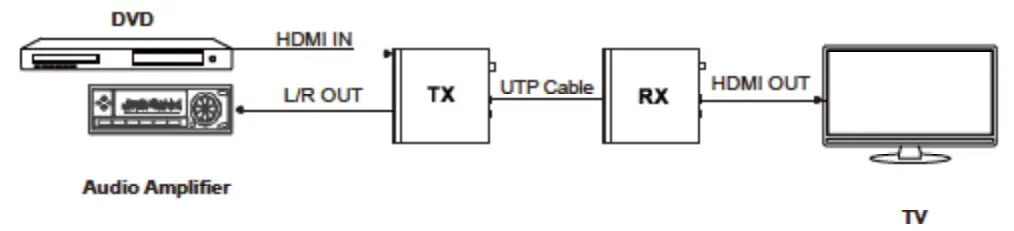

• TX Audio De-embedding
When the L/R IN/OUT switch is switched to night, The LR IN/OUT port will output the audio de-embedded from the HDMI IN port
5.5USB Mode Applications
The Extender supports USB2.0 transmission, and Host/Device is configurable

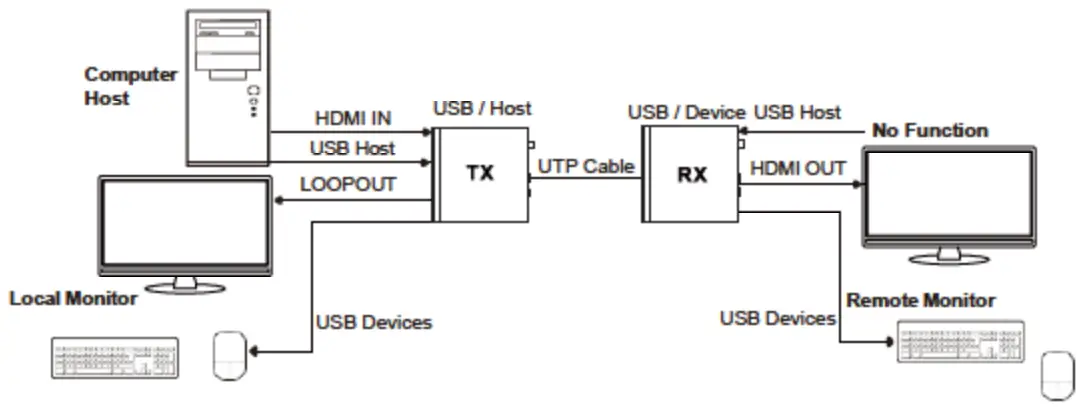

Mode 1: USB forward from TX to RX Switch the HOST/DEVICE USB switch to left, then power off and reboot the transmitter to set to USB Host mode. Meanwhile, switch the DEVICE/HOST USB switch to left, then power off and reboot the receiver to set to USB Device mode

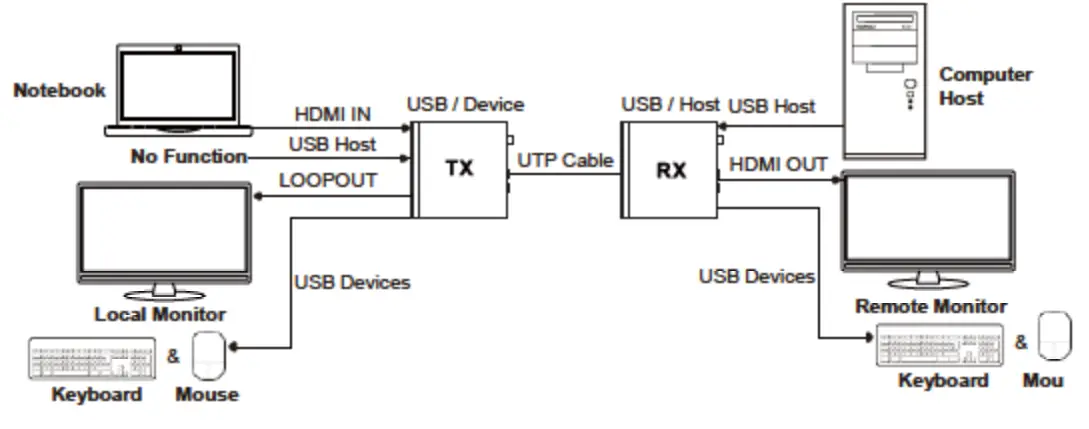

Mode 2: USB reverse from RX to TX
Switch the HOST/DEVICE USB switch to right, then power off and reboot the transmitter to set to USB Device mode. Meanwhile, switch the DEVICE/HOST USB switch to night, then power off and reboot the receiver to set to USB Host mode

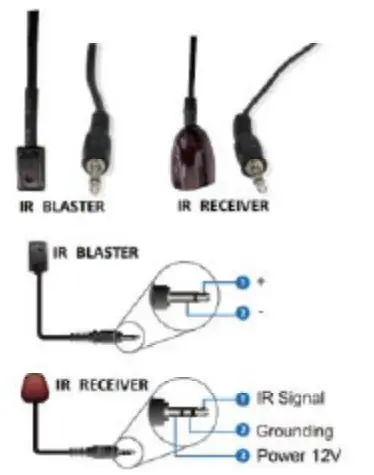

5.6 IR Pin Definition
[ Receiver and Blaster pin’s definition as below
Note. When the angle between the IR receiver and the remote control is ± 45, the transmission distance is 0-5 meters, when the angle between the IR receiver and the remote control is ± 90 the transmission distance is 0-8 meters

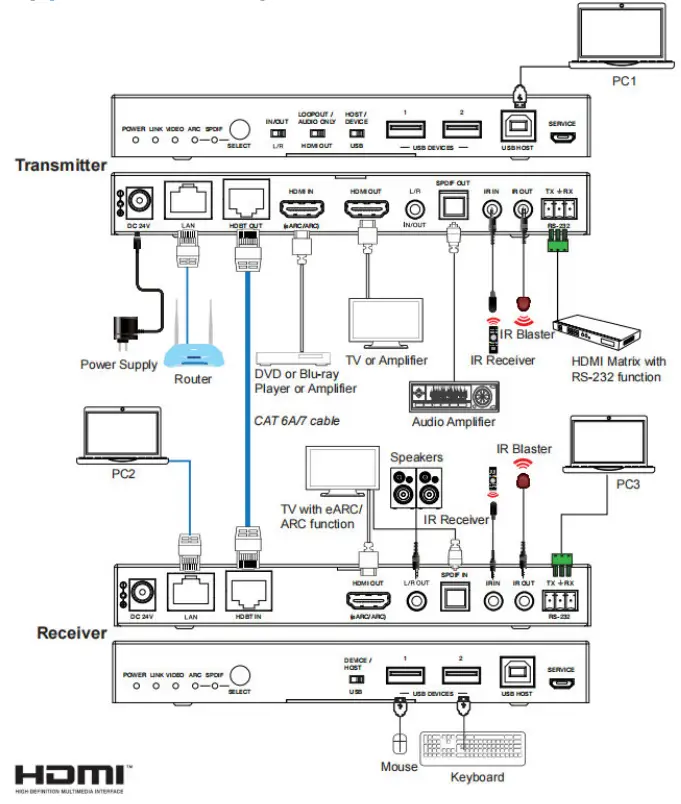

Application Example
