Schuremed 800-0074-r Robotic Stirrup Dolly Instructions (+ PDF)

Intended use is to store components of our Great White Robotic Stirrups. The intended users of this device are medical professionals within hospitals and surgery centers.

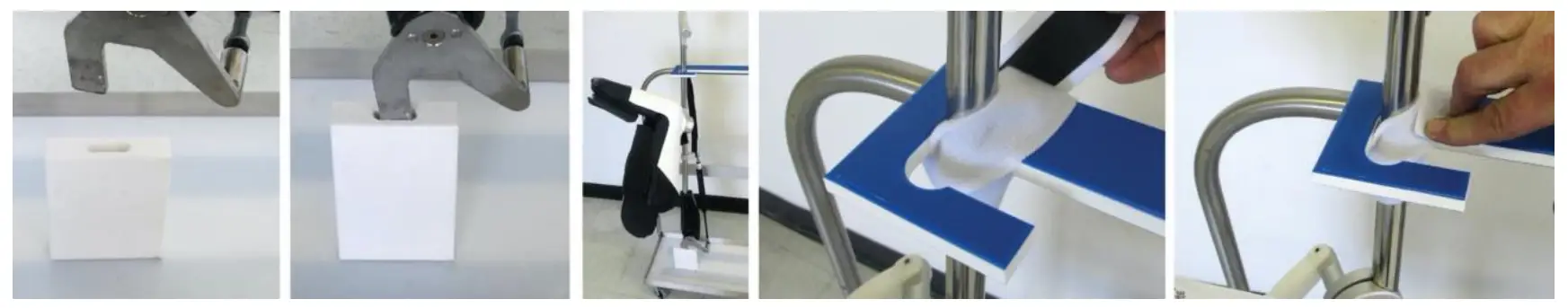

Position stirrup mounting blade as shown. If mounting blade doesn’t face down as shown, squeeze trigger on handle and it will automatically position itself.
Insert blade completely into blocks mounted on dolly
Locate left and right stirrup by label on bottom of boot
Use hook and loop fastener straps provided on dolly to wrap around stirrups and fasten down

COMPONENT OVERVIEW

Robotic Stirrup Dolly is a storage cart used to store components of our Great White Robotic Stirrups.

GENERAL SPECIFICATIONS

Device Dimensions (maximum)

Length: 27” +/- 0.5” (69 cm +/- 1 cm)
Width: 12” +/- 0.5” (31 cm +/- 1 cm)
Height: 38” +/- 0.5” (97 cm +/- 1 cm)
Device Weight: 28 +/- 0.5 lbs. (12.7 +/- .22 kg)
Fully Assembled

GENERAL INFORMATION

Product not made with Natural Rubber Latex
Product warranty covers product from manufacturing defects for period of 2 years
CE marked medical device according to MDR (EU) 2017/745
Product is maintenance-free, check product condition before next use
Life of device is 5 years under normal use
Store device between -4°F to +86°F (-20°C to 30°C)

DISPOSAL

General – Prevent infection by cleaning and disinfecting product before disposal
Packaging – Dispose packaging material via household waste according to national requirements
SchureMed accepts back used or retired products – or dispose of product in accordance with national requirements

PRODUCT USE WARNINGS WARNING!
Hazard resulting from incorrect use. Be absolutely sure to follow Instructions for Use when operating dolly.

WARNING! Do not reuse device if there are obvious signs of damage or functional issues. Consult manufacturer before reusing

CLEANING & DISINFECTING

Spray and wipe clean with hospital approved disinfectant. No sterilization.

USER NOTICE

Any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user and/or patient is established.

Basic UDI-DI: 081001460F0006DU

Symbol Glossary

Symbol	Title	Symbol Description
	Manufacturer	Indicates the medical device manufacturer
	Authorized Representative in the European Community	Indicates the authorized representative in the european community
	Use-by Date	Indicates the date after which the medical device is not to be used.
	Batch Code	Indicates the manufacturer’s batch code so that the batch or lot can be identified.
	Catalogue or Item Number	Indicates the manufacturer’s catalogue or item number so that the medical device can be identified.
	Serial Number	Indicates the manufacturer’s serial number so that a specific medical device can be identified.
	Caution	To indicate that caution is necessary when operating the device or control close to where the symbol is placed, or to indicate that the current situation needs operator awareness or operator action in order to avoid undesirable consequences.
	Medical Device	Indicates the item is a medical device
	Unique Device Identifier	Indicates a barcode as containing unique device identifier information.
	CE Marking	European Conformity
	Single Patient Use	Indicates the item is a single patient use medical device
