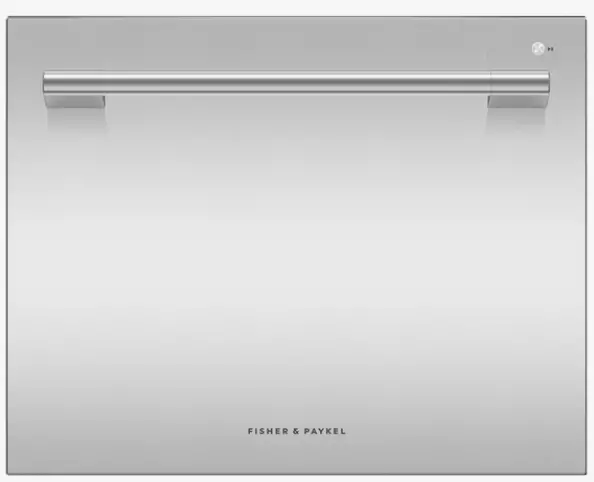

FISHER and PAYKEL DD24STX6PX1 DishDrawer Sanitize Dishwasher
Professional Stainless Steel
Place anywhere in your kitchen at bench height for easy loading and minimal bending. Features a premium stainless steel interior and distinctive Professional styling
- Eight wash cycles from Heavy to Light, including Auto, 60min and Glassware
- Fits full-size dinner plates up to 12 1/4 inches, with flexible racking for large cookware
- With a soft-close drawer, and knock to pause convenience
- Wi-Fi capability and a SmartHQTM app for remote control and notifications

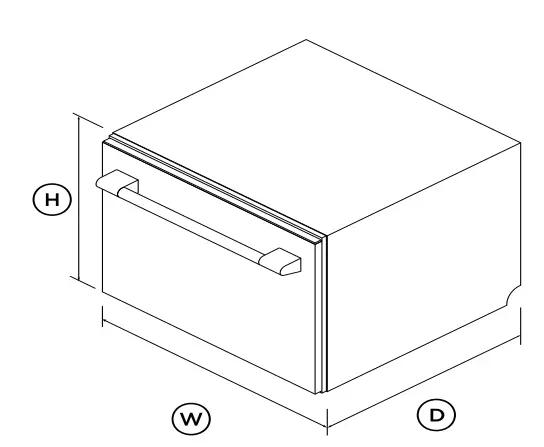

DIMENSIONS
| Height | Height |
| Height | 23 9/16″ |
| Depth | 22 9/16″ |
FEATURES & BENEFITS
EASE OF USE
DishDrawer™ Dishwashers are beautiful to use with soft-close drawers, and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking includes height-adjustable cup racks and wine glass supports.
COMPLEMENTARY DESIGN
With distinctive, bold styling, this DishDrawer™ Dishwasher is designed to match the Fisher & Paykel Professional style family of appliances.
FLEXIBLE WASH OPTIONS
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitize, Dry+ and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing.
DESIGN QUALITY
Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
KNOCK TO PAUSE
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
QUIET PERFORMER
Running at a low decibel rating of 43dBA, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
EFFICIENT PERFORMANCE
Our Energy Star rated DishDrawer™ Dishwashers use the energy they need without compromising on wash performance.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | |
| Knife clip and multipurpose | |
| Capacity and loading | |
| Accommodates round plates | 12.25″ |
| Adjustable height, foldable | |
| Fold down tines | |
| Pitch adjustable tines | |
| Place settings | 7 |
| Wine glass supports with | |
| Consumption | |
| Energy rating | Energy star |
| Energy usage | 155kWh/year |
| Water usage (per wash cycle) | 1.65 ga |
| Controls | |
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Intuitive capacitive touch | • |
| Rinse aid indicator light | • |
| Spray arm sensing | • |
| Wi-Fi connectivity | • |
| Features | |
| Fan assisted drying | • |
| Flood protection | • |
| Flow through detergent | • |
| Internal tub material | Stainless steel |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Soft close drawer | • |
| Performance | |
| Noise on standard cycle top | 43dBA |
| Power requirements | |
| Amperage | 5A |
| Electric circuit | 3 wire |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 22 9/16″ |
| Height | 18 13/16″ |
| Width | 23 9/16″ |
| Warranty | |
| Parts and labor | Limited 2 years |
| Wash Program Modifiers | |
| Dry + | • |
| Quiet | • |
| Sanitize | • |
| Wash modifiers | 3 |
| Wash Program | |
| 60 min | • |
| Auto | • |
| Eco | • |
| Glassware | • |
| Heavy | • |
| Light | • |
| Medium | • |
| Rinse | • |
| Wash programs | 8 |
| Water connection | |
| Inlet water temperature | 140°F |
| Supplied hose to suit 3/8″ | • |
| Water pressure | 0.03 Mpa – 1 Mpa (4.3-145 psi) |
| SKU | 82398 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
Wash Program Data SheetService & WarrantyEnergy Label User Guide DishDrawer™ Installation Guide Single DishDrawer™Datasheet
