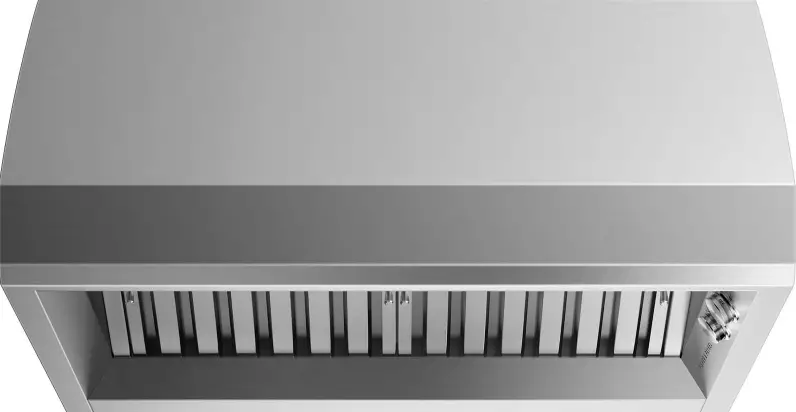

FISHER and PAYKEL HCB36-12_N 36 Inch Wall Range Hood
INTRODUCTION
Striking design that pairs well with any appliances in our Professional range. With powerful extraction of steam and odors.
- With four fan speeds, select the perfect extraction rate for your cooking
- Dishwasher-safe filters that are easy to remove and clean
- Powerful 1200CFM maximum airflow

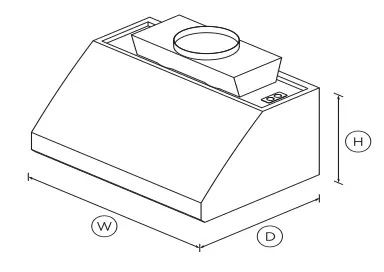

DIMENSIONS
- Height 18″
- Width 35 7/8″
- Depth 25 1/16″
FEATURES & BENEFITS
- Simple design
The new stainless steel range hood is tough and hardworking with a style and simplicity to fit seamlessly into your kitchen. - Edge-to-edge filters
We’ve improved our filters to capture and extract more cooking steam, odors and grease. - Precise control
The Professional Range Hood has been designed to give you better control with sturdy stainless steel dials to set your desired fan speed and light level. - Heat lamp
Accessorize your kitchen and cook like a pro by adding our contemporary heat lamps to your 36” or 48” range hood. - Your kitchen, your style
Enhance your culinary experience in the kitchen with our Range Hood accessories from heat lamps through to duct covers.
Choose a range hood to fit your kitchen – there are three different sizes. For the 36” models, your range hood can come with one or two blowers to give you up to 1200CFM of extraction airflow.
SPECIFICATIONS
Accessories
| 12″ Vertical duct cover | HCC3612 |
| 6″ Vertical duct cover | HCC3606 |
| Infrared warming lights | HIR36 |
| Light bulb | 104176P |
Installation and cleaning
| Air outlet size | 2 x 8″” |
| Dishwasher safe filters | 2 |
| Ducted | Top extraction |
| Metal transition to ductwork | Optional – Transition HTRN10 |
| Recirculation | Ducted only |
Performance
| Extraction type | Surface |
| Fan speeds | 4 |
| Filter type | Stainless Steel Baffle |
Power requirements
| Lighting power | 50W |
| Motor power | 910W |
| Supply voltage | 120V |
| Total Power | 1010W |
Product dimensions
| Depth | 25 1/16″ |
| Height | 18″ |
| Width | 35 7/8″ |
Product information
| Control type | Rotary switch |
Ventilation features
| Dimmable lights | • |
| Light type | Halogen |
Warranty
| Parts and labour | 2 years |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
