Date: 15.11.2022 >
QUICK REFERENCE GUIDE > HCB36-6_N
Wall Range Hood, 36″
Series 9 | Professional
Stainless Steel
Striking design that pairs well with any appliances in our Professional range. Fast, efficient extraction of steam and odors.
- With four fan speeds, select the perfect extraction rate for your cooking
- Dishwasher safe filters that are easy to remove and clean
- Powerful 600CFM maximum airflow

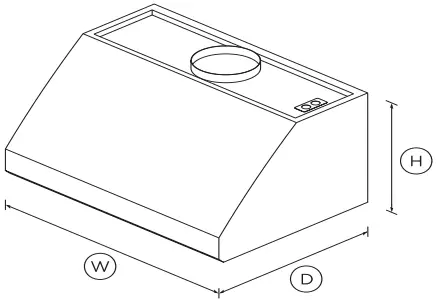

DIMENSIONS
Height 18″
Width 357/8″
Depth 25 1/16″
FEATURES & BENEFITS
SIMPLE DESIGN
The new stainless steel range hood is tough and hardworking with a style and simplicity to fit seamlessly into your kitchen.
EDGE TO EDGE FILTERS
We’ve improved our filters to capture and extract more cooking steam, odors and grease.
PRECISE CONTROL
The Professional Range Hood has been designed to give you better control with sturdy stainless steel dials to set your desired fan speed and light level.
EFFECTIVE EXTRACTION
Our Range Hood filters have been improved to capture more cooking steam, odors and grease. They’re easy to remove and clean – simply put them in your DishDrawer™ dishwasher.
HEAT LAMP
Accessorize your kitchen and cook like a pro by adding our contemporary heat lamps to your 36″ or 48″ range hood.
YOUR KITCHEN, YOUR STYLE
Enhance your culinary experience in the kitchen with our Range Hood accessories from heat lamps through to duct covers. Choose a range hood to fit your kitchen there are three different sizes. For the 36″ models, your range hood can come with one or two blowers to give you up to 1200CFM of extraction airflow.
SPECIFICATIONS
Accessories
12″ Vertical duct cover HCC3612
6″ Vertical duct cover HCC3606
Infrared warming lights HIR36
Light bulb 104176P
Installation and cleaning
Air outlet size 8″”
Dishwasher safe filters 2
Ducted Top extraction
Recirculation Ducted only
Performance
Extraction type Surface
Fan speeds 4
Filter type Stainless Steel Baffle
Power requirements
Lighting power 50W
Motor power 455W
Supply voltage 120V
Total Power 555W
Product dimensions
Depth 25 1/16″
Height 18″
Width 357/8″
Product information
Control type Rotary switch
Ventilation features
Dimmable lights •
Light type Halogen
Warranty
Parts and labor 2 years
SKU 50103
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User Guide Service & Warranty Installation Guide
