QUICK REFERENCE GUIDE > HC36DCXB4
Wall Range Hood, 36″, Box
Chimney
Series 7 | Contemporary
Stainless Steel and Glass

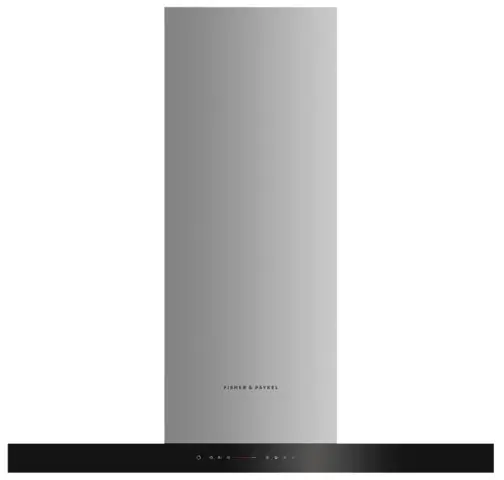

HC36DCXB4 36 Inch Wall Range Hood
This Contemporary style range hood extracts steam, grease and cooking odors quietly and efficiently.
- With three fan speeds plus a boost function, select the perfect extraction rate for your cooking
- Energy-efficient LED lighting to illuminate your cooking surface
- Powerful maximum air movement of 400CFM
- Wi-Fi enabled for notifications through the SmartHQ™ app

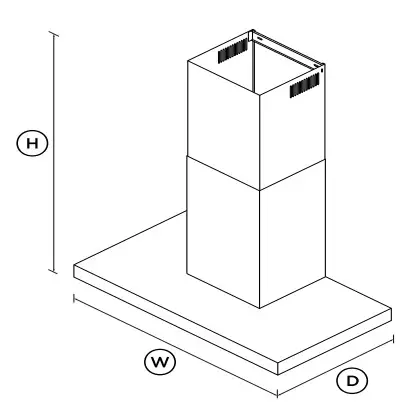

DIMENSIONS
| Height | 23 3/4 – 41 1/16″ |
| Width | 35 3/8″ |
| Depth | 19 11/16″ |
FEATURES & BENEFITS
QUIET AND EFFECTIVE
Featuring perimeter extraction, four fan speeds, and a boost function, this range hood provides powerful extraction to quickly remove odors and steam. Odors can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off.
SIMPLE CONTROLS
The intuitive control panel responds to the touch of your finger. LED strip lighting illuminates the entire cooktop surface for the perfect sear or ideal reduction. Range hood settings, including temperature and fan speed, can be controlled via the SmartHQ™ app, with additional voice control options for fan speeds and lighting.
EASY CLEANING
Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filter to ensure you get the best performance out of your range hood.
COMPLEMENTARY DESIGN
The stainless steel finish of this vent hood will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel kitchen appliance family.
EASY INSTALLATION
This range hood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.
SPECIFICATIONS
| Accessories | |
| Aluminium filter | 792577 |
| Accessories (sold separately) | |
| Chimney extension | 791774 |
| Recirculation carbon filter | 792481 |
| Recirculation diverter | 792560 |
| Fan ratings | |
| Maximum air movement | 400CFM |
| Installation and cleaning | |
| Air outlet size | 6″ |
| Dishwasher safe filters | 4 |
| Ducted | Top extraction |
| Recirculation | Optional – top extraction |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 4 |
| Power requirements | |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Total Power | 248W |
| Product dimensions | |
| Depth | 19 11/16″ |
| Height | 23 3/4 – 41 1/16″ |
| Width | 35 3/8″ |
| Product information | |
| Control type | Capacitive touch |
| Ventilation features | |
| Auto-off/Run-on timer | • |
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED |
| Wi-Fi connectivity | • |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 50210 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
Service & WarrantyPreliminary Specification Guide
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W www.fisherpaykel.com
Date: 22.06.2023 > 1
