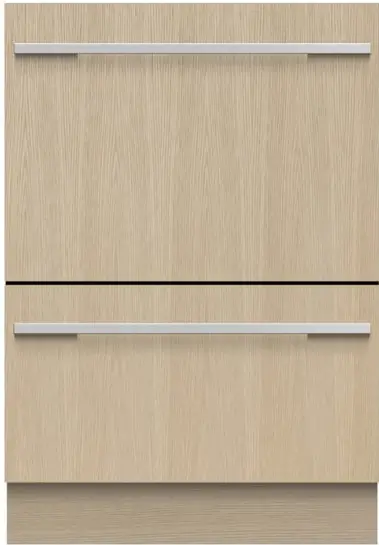

FISHER PAYKEL DD24DTX6HI1 Sanitize Integrated Double DishDrawer Dishwasher
INTRODUCTION
Integrates seamlessly into kitchen cabinetry. Each drawer features a premium stainless steel interior and operates independently, for flexible washing.
- Eight wash cycles from Heavy to Light, including Auto, 60min and Glassware
- Tall top drawer fits full-size dinner plates up to 12 1/4 inches, with flexible racking for large cookware
- With soft-close drawers, and knock-to-pause convenience
- Wi-Fi capability and a SmartHQ™ app for remote control and notifications
DIMENSIONS
- Height 34 – 36 3/8 “
- Width 23 9/16 “
- Depth 22 1/2 “
FEATURES & BENEFITS
- Seamless integration
Install your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry. - Ease of use
DishDrawer™ Dishwashers are beautiful to use with soft-close drawers. The tall top drawer fits your larger plates and dishes up to 12 1/4 inches, while the bottom drawer is ideal for small washes. Flexible racking includes height-adjustable cup racks and wine glass supports. - True half load
Both drawers fit a true half load. Each drawer operates independently, so you can wash one load while stacking the other drawer, or wash simultaneously on separate cycles. - Flexible wash options
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitize, Extra Dry and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing. - Design quality
Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence. - Knock to pause
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button. - Quiet performer
Running at a low decibel rating of 44dBA, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
Accessories
| Contemporary round handle | Part number 81671 |
| Contemporary square fine | Part number 82104 |
| Contemporary square handle | Part number 81908 |
| Cutlery basket | 2 |
| Kickstrip | • |
| Knife clip and multipurpose | • |
| Optional stainless steel door kit | 81261 ADDD24DT |
| Professional round flush handle | Part number 82140 |
| Professional round handle kit | Part number 82142 |
| Professional square handle kit | Part number 81727 |
Capacity and Loading
| Accommodates round plates | 12 1/4″ (top drawer), 11″ |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 14 |
| Wine glass supports with | • |
Consumption
| Energy usage | 239 kWh/year |
| Water usage (per wash cycle) | 3.7 gal running both tubs |
Controls
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Knock to pause | • |
| Rinse aid indicator light | • |
| Spray arm sensing | • |
| Wifi connectivity | • |
Features
| Built-in water softener | • |
| Fan assisted drying | • |
| Flow through detergent | • |
| Internal tub material | Stainless steel |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Soft close drawer | • |
Performance
| Noise on standard cycle top | 44dBA |
Power requirements
| Amperage | 10.0A |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Product dimensions
| Depth | 22 1/2 “ |
| Height | 34 – 36 3/8 “ |
| Width | 23 9/16 “ |
Warranty
| Parts and labor | Limited 2 years |
Wash Programs
| 60 min | • |
| Auto | • |
| Dry + | • |
| Eco | • |
| Glassware | • |
| Heavy | • |
| Light | • |
| Medium | • |
| Number of wash programs | 8 |
| Quiet | • |
| Rinse | • |
| Sanitize | • |
| Wash modifiers | 3 |
Water connection
| Inlet water temperature | Max 140°F |
| Supplied hose to suit 3/8″ | • |
| Water pressure | 0.1 Mpa – 1 Mpa (14.5-145 psi) |
| SKU | 82163 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
