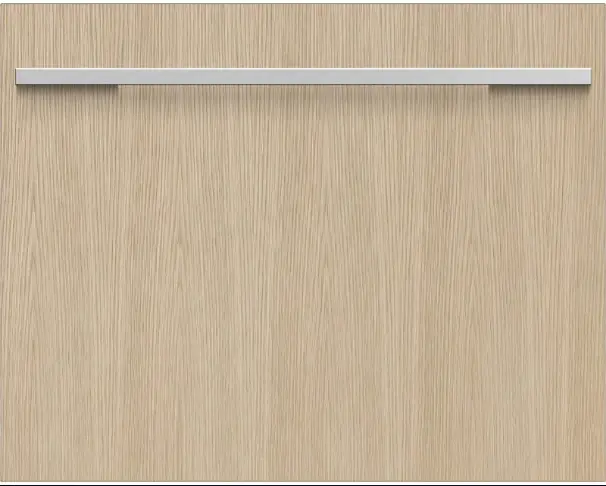

FISHER PAYKEL DD24SHTI9 N Integrated Single DishDrawer Dishwasher Tall Sanitize
INTRODUCTION
Designed to fit your full-sized dinner plates, this DishDrawer™ can be placed anywhere in your kitchen, integrating seamlessly.
- Knock to pause function is perfect if you miss a dish
- Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
- Built-in water softener improves wash performance by reducing unwanted minerals in the water
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

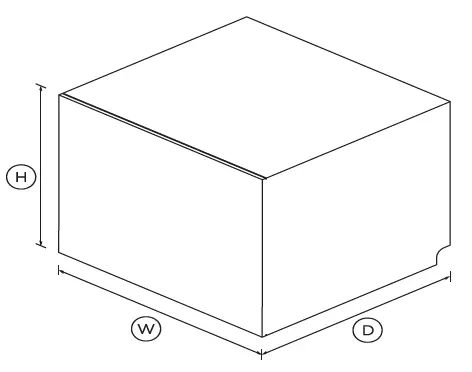

DIMENSIONS
- Height 17 7/8″
- Width 23 9/16″
- Depth 21 3/4″
SPECIFICATIONS
Accessories
| Cutlery basket | • |
| Knife clip and multipurpose | • |
Accessories (sold separately)
- Door panel stainless steel ADDD24STPX
- Handle kit Contemporary AHS-OBDD-60S
- Handle kit Contemporary AHD5-OBDD-60S
- Handle kit Contemporary AHD3-OBDD-60S
- Handle kit Professional round AHP3-DWDD-SX
Capacity and loading
| Accommodates round plates | 12.25″ |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 7 |
Consumption
| Energy rating | Energy star |
Controls
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Knock to pause | • |
| Rinse aid indicator light | • |
| Wi-Fi connectivity | • |
Features
| Built-in water softener | • |
| Fan assisted drying | • |
| Flow through detergent | • |
| Motor type | BLDC |
| Quiet operation | • |
| SmartDrive™ technology | • |
Performance
| Noise on standard cycle top | 44dBA |
Power requirements
| Amperage | 5A |
| Electric circuit | 3 wire |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Product dimensions
| Depth | 21 3/4″ |
| Height | 17 7/8″ |
| Width | 23 9/16″ |
Warranty
| Parts and labour | Limited 2 years |
Wash Program Modifiers
| Extra Dry | • |
| Quick | • |
| Sanitize | • |
| Wash modifiers | 3 |
Wash Programs
- Delicate •
- Eco •
- Fast •
- Heavy •
- Medium •
- Rinse •
- Wash programs 15
Water connection
| Supplied hose to suit 3/8″ | • |
| Water pressure | 100kPa – 1000kPa |
| Water supply | 3/8″ to suit Male Compression |
| SKU | 82340 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
