QUICK REFERENCE GUIDE > DD24SCTB9_N
Single DishDrawer™
Dishwasher, Tall, Sanitize
Series 7 | Contemporary Black
Date: 04.07.2021 > 1

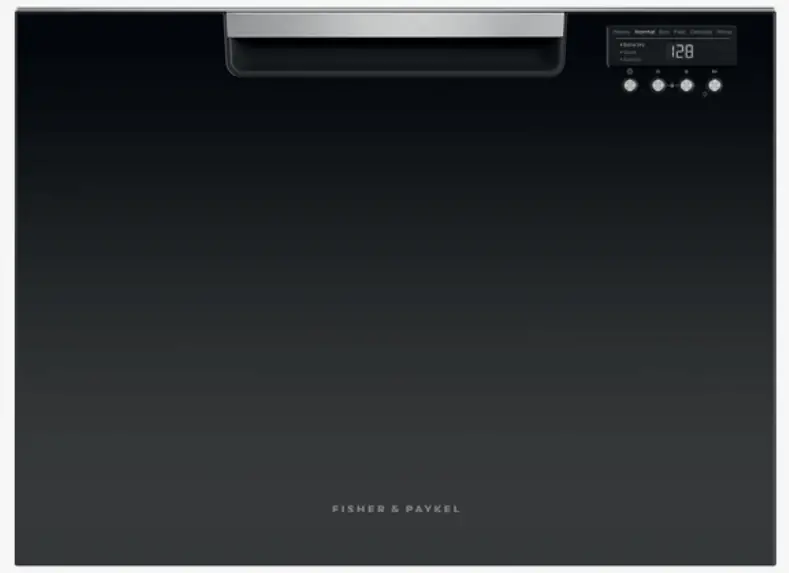

DD24SCTB9 N Sanitize Single DishDrawer Dishwasher
Designed to fit your full-sized dinner plates, this DishDrawer™ can be placed anywhere in your kitchen, for loading dishes with less bending.
- Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
- Flexible racking can be folded down to fit bigger dishes
- American Disabilities Act (ADA) compliant, this can be installed at an accessible height for loading and unloading.

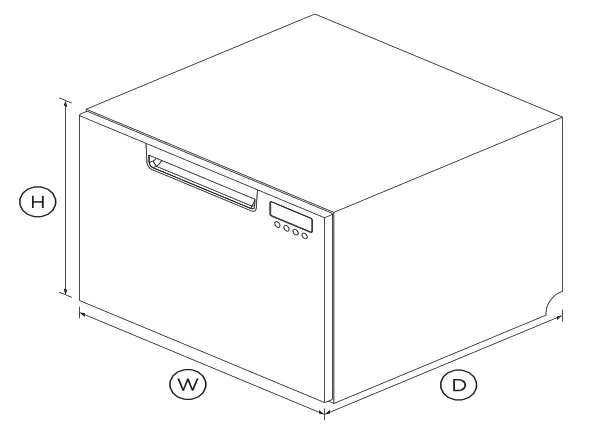

DIMENSIONS
| Height | 17 7/ ” 8 |
| Width | 23 9/ ” 16 |
| Depth | 22 9/ 16 “ |
FEATURES & BENEFITS
Ease of use
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
Quick, Sanitize and Extra Dry
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Quiet performer
Running at a very low decibel rate, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
Complementary design
DishDrawer™ Dishwashers can be installed in any kitchen space and are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling and quality materials.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | Part number 81671 |
| Cutlery basket | 2 |
| Capacity and Loading | |
| Accommodates round plates | 12.25″ |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 7 |
| Consumption | |
| Energy star rating | • |
| Energy usage | 151kWh/year |
| Water usage | 1.81 |
| Controls | |
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Rinse aid indicator light | • |
| Features | |
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Performance | |
| Noise on gentle cycle top | 44 |
| Power requirements | |
| Amperage | 5A |
| Electric circuit | 3 |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 9 22 / ” 16 |
| Dimensions (excluding | 7 H17 / “ |
| Height | 17 7 / ” 8 |
| Width | 23 9 / ” 16 |
| Safety and Compliance | |
| ADA compliant | • |
| Warranty | |
| Parts and labor | Limited 3-Year Parts & Labor |
| Wash Programs | |
| Delicate | • |
| Extra Dry | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Normal eco | • |
| Number of wash programs | 15 |
| Quick | • |
| Rinse | • |
| Sanitize | • |
| Wash modifiers | 3 |
| SKU | 81605 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
