Sharp 42cf2i 42 Inch Smart Led Display Owner's Manual

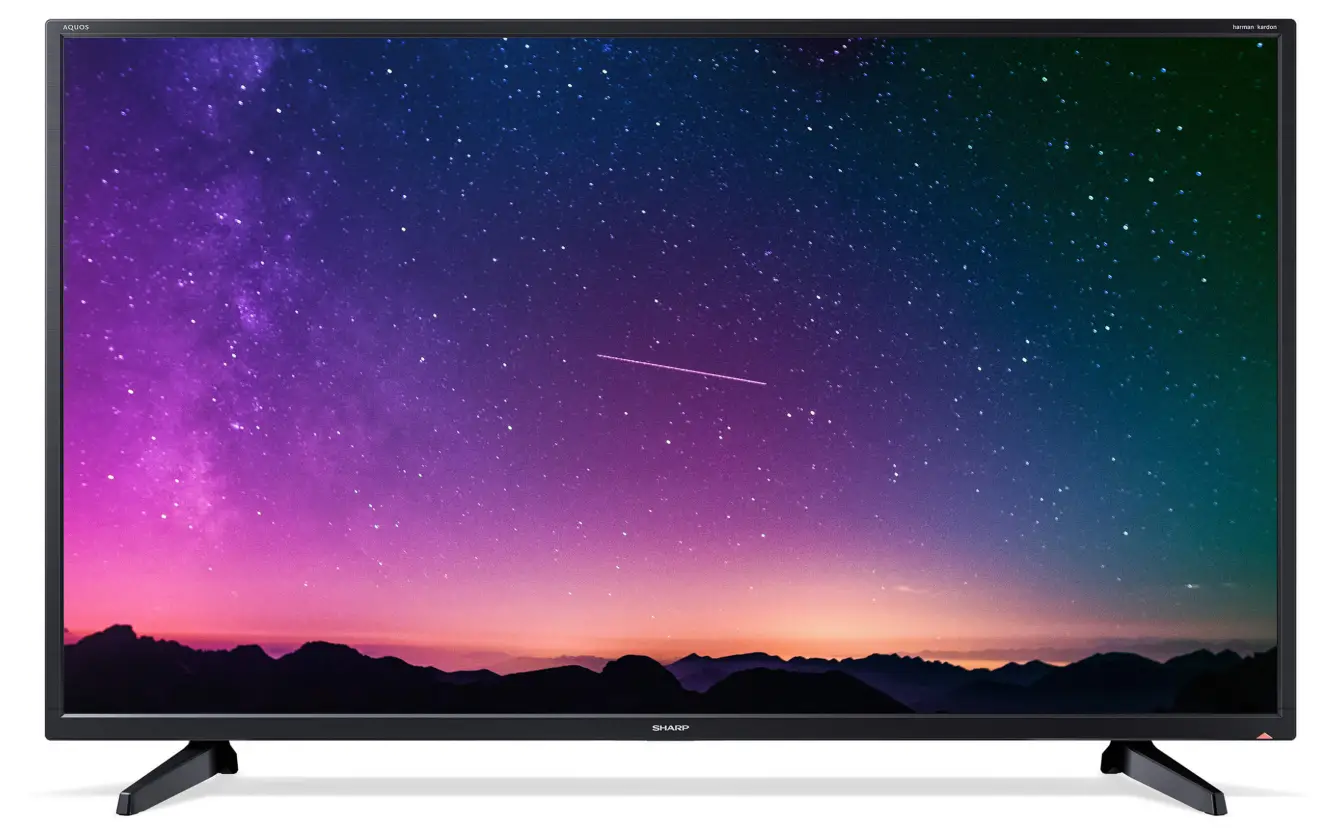

SHARP 42CF2I 42 Inch Smart LED Display

HIGHLIGHTS

FULL HD TV
SCREEN SIZE 106 cm (42”)
HARMAN/KARDON SPEAKER SYSTEM
3 HDMI INPUTS
2 USB FOR MULTIMEDIA PLAYBACK
HD TUNER DVB-T/T2 (MPEG4 + HEVC/H.265)
With 3 HDMI ports, you can connect to your Satellite box, games console, Blu-Ray player or any other HDMI equipped device. The USB port allows you to enjoy your music, movies or photos from a USB memory key.

TV Product Features

• Operating System  Linux
• USB Video MKV, MP4, MOV, AVI, MPG, VOB, DAT, TS
• USB Music MP3, M4A, AAC, AC3, EAC3, DTS, LPCM
• USB Photo JPG, JPEG, BMP, PNG
• USB File System FAT16, FAT32, NTFS
• Digital Programmed List Yes
• USB Software Update Yes
• HDMI ARC Yes
• HDMI CEC Yes

Display Systems

• Diagonal Screen Size Cm 106
• Diagonal Screen Size Inch 42″
• Panel Resolution (HxV) In Pixel 1920 x 1080
• Dynamic Contrast 1 000 000:1
• Active Motion 100

Audio Systems

• Speaker Full-range + silk tweeter
• Speaker power (W) 2x10W (8 ohm)
• Sound System BG, DK, I, L/L’, MN, NICAM/A2
• Sound Settings Bass / Treble
• Audio decoder Dolby Digital, Dolby Digital Plus, DTS 2.0
• Sound Technology Harman-Kardon

I/O Systems

• Antenna Input Yes
• HDMI Connectors x3
• USB x2
• Audio out / headphone jack (3.5mm) Yes
• RJ 45 (LAN – 10BASE-T/100BASETX) x1
• Remote Control IR
• Composite Input Yes
• Component/YPbPr Yes
• L/R Audio for Component/Composite Yes
• Digital Optical Audio Output Yes
• SCART Yes

Video Systems

• TV System (ATV) PAL, SECAM
• Video system HEVC/H.265, MPEG4/H.264
• TV System (DTV) DVB-T/T2 (MPEG4 + H.265/HEVC)

Power Information

• Power Requirements AC 220-240V ~ 50/60Hz
• Power Consumption (ecomode/standard/max) 48/70/90W
• Power Consumption 48,0 W
• Standby Power Consumption <0,50 W
• Safety Logo Certification CE (RED, RoHS, ErP), REACH/PAH/SCCP
• Plug UK Plug
• Auto Power Off Yes
• AC Operated Yes
• Energy Class F

Logistic Information

• Unit Size (W x H x D in mm) 952.4 x 538.6 x 77.3
• Net Size with Stand (W x H x D in mm) 952.4 x 578.5 x 199.0
• Dimension Between Stand Feet (in mm) 901.8
• Box Size (W x H x D in mm) 1085 x 697 x 157
• Unit Weight (kg) 6.7
• Gross Weight (kg) 9.8
• Packaging Content Product, Remote control, 2x AAA batteries, TV stand installation pack, Quick start guide, Safety leaflet
• VESA Standard (mm) EAN200 x 200 5903802460209

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Our products are mercury and lead free (mercury content 0.0%, lead content 0%)

Sharpconsumer.eu | #sharpeurope_official
