XR-65X90J 65 Inch Smart LED Display
Owner’s Manual
XR-65X90J 65 Inch Smart LED Display
SERVICE MANUAL (UNIQUE)
GR1VH CHASSIS Segment : AR / ARB
9-888-792-P4 LCD TV
Sony EMCS (M) Sdn.Bhd.
HES-M © 2021.11
SECTION 2 XR / XRM-55X9*J
Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
and shaded parts are critical for safety. Replace only with part number specified.
Parts contain confidential information. Strictly follow the instruction whenever the components are repaired and/or replaced

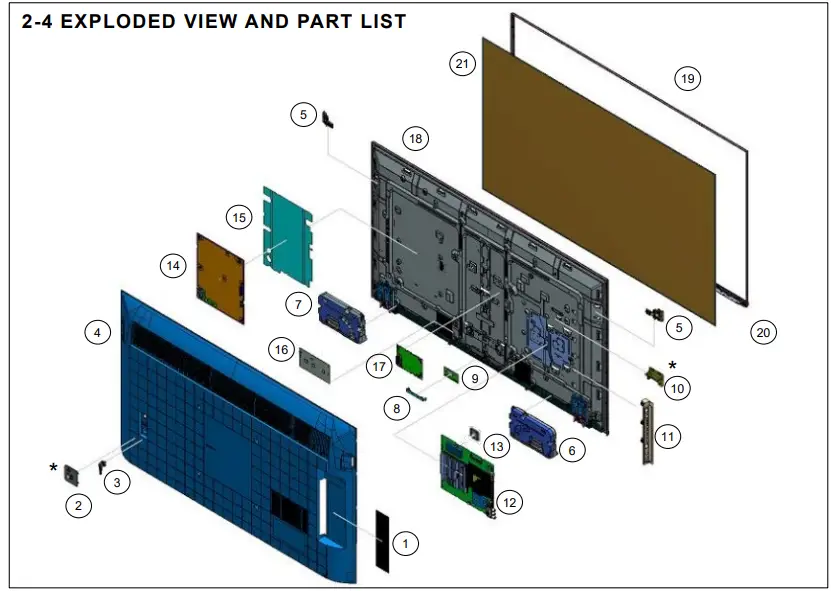

2-4 EXPLODED VIEW AND PART LIST
(*) Parts are not stocked since they are seldom required for routine service. Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
* Only on limited region / country / TV model
ORIGINAL MANUAL ISSUE DATE: 2021.03
