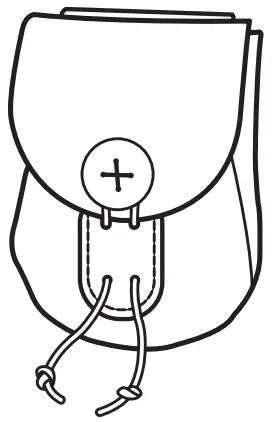

WINSOR BELT BAG KIT
LEVEL 2
YOU WILL NEED:
• Thread Cutter

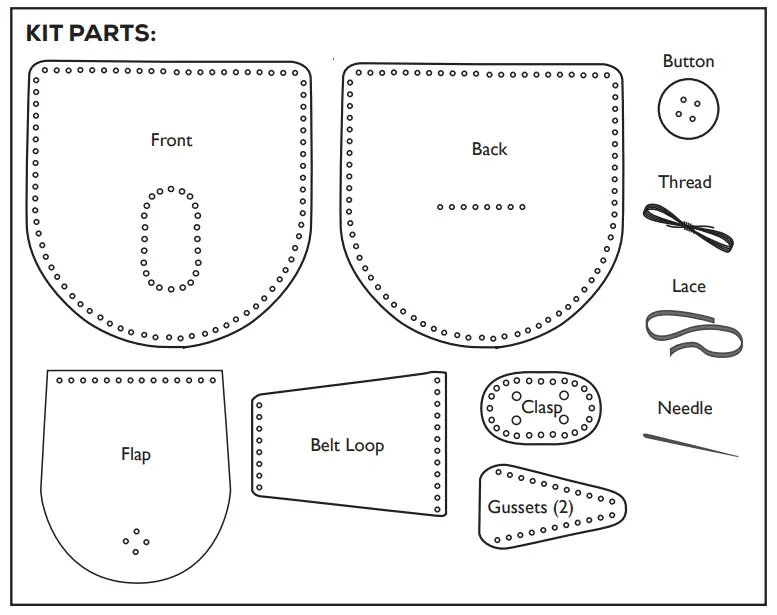

44346-00 Winsor Leather Belt Bag Kit
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including leather dust, which is known to the State of California to
cause cancer. For more information, go to www.P65Warnings.ca.gov.
WARNING:
CHOKING HAZARD- small parts. not for children under 3 years.
CONTAINS FUNCTIONAL SHARP POINT- Adult supervision recommended.
PLEASE READ ALL INSTRUCTIONS BEFORE BEGINNING PROJECT.
NOTE: ALL STAINING, DYING, AND TOOLING SHOULD BE DONE PRIOR TO ASSEMBLY

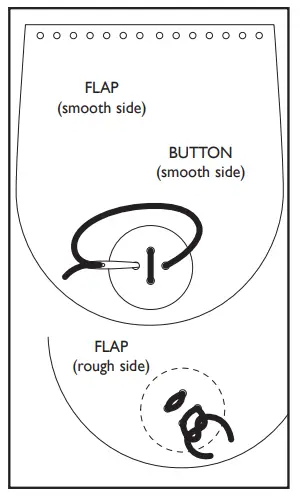

STEP 1: Attach button to flap using 12” of thread and needle. With both pieces smooth side up align holes. Stitch from back side of flap through top hole and down through bottom hole. Up through right hole, down through left hole. Repeat, tie knot on backside of flap.

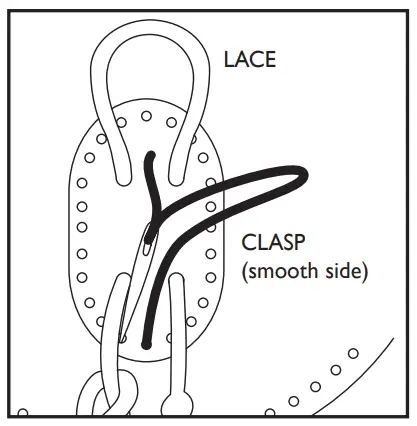

STEP 2: Add lace to clasp. Run ends of lace down through top two holes and up through bottom two holes. Tie knot at end of lace.
STEP 3: Attach clasp to front piece using 22” thread and needle. With both pieces smooth side up align holes. Stitch from back side of front through bottom hole and down through next hole. Continue stitching to beginning, turn and stitch back filling in alternate stitches. Stitch to beginning hole. Tie ends in knot.

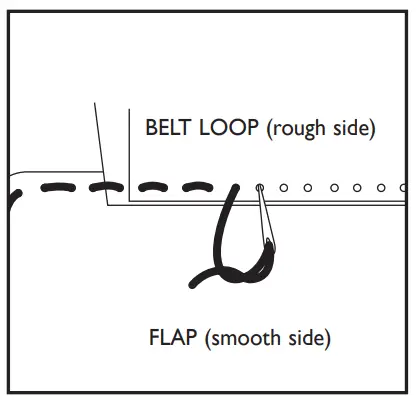

STEP 4: Attach belt loop flap to back piece using 24″ of thread and needle. With all pieces positioned as shown align holes. Stitch up through first hole in back only, back down second hole. At sixth hole go down through flap and back and up through back, flap and belt loop at seventh hole. Continue stitching to twenty-forth hole, turn and
stitch back filling in alternate stitches. Stitch to beginning hole. Tie ends in knot.

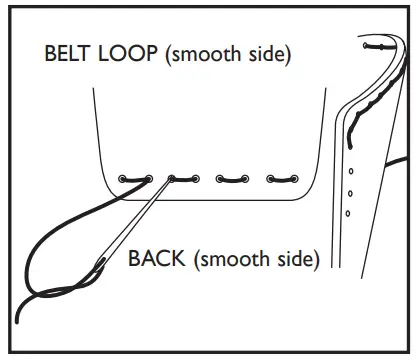

STEP 5: Finish attaching belt loop to back using 10” of thread and needle. With both pieces smooth side up align holes. Stitch from back side of back through first hole and down through second hole. Continue stitching to last hole, turn and stitch back filling in alternate stitches. Stitch to beginning hole. Tie ends of thread in knot.

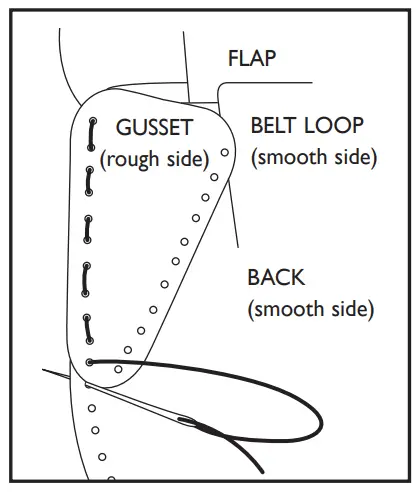

STEP 6: Attach gussets to back piece using 12″ of thread and needle. Align holes in gusset and back (smooth side together). Stitch up through first hole in gusset and back piece. Continue stitching to one hole past last hole in gusset, turn and stitch back filling in alternate stitches. Stitch to beginning hole. Tie ends of thread in knot.

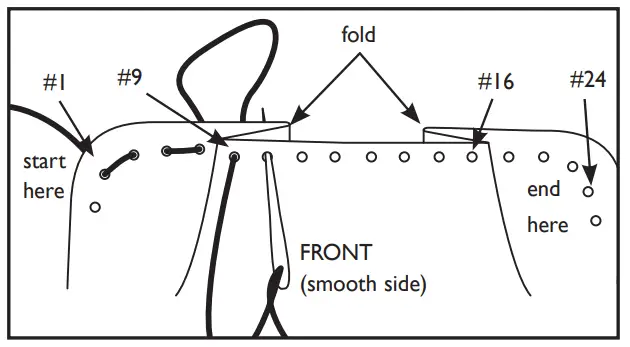

STEP 7: Add pleats to front piece using 12″ of thread and needle. Begin on backside at first hole as shown. Stitch down through second hole, continuing to stitch to fifth hole. Fold front piece as shown, so holes 5, 8 and 9 are aligned. Stitch through these holes and down through aligned holes 10, 7 and 6. Continuing to stitch to hole 15. Fold front piece again as shown, so holes 15, 18 and 19 are aligned. Stitch through these holes and down through aligned holes 16, 17 and 20. Continue stitching to twenty-fourth hole, turn and stitch back filling in alternate stitches. Stitch to beginning hole. Tie ends of thread in knot.

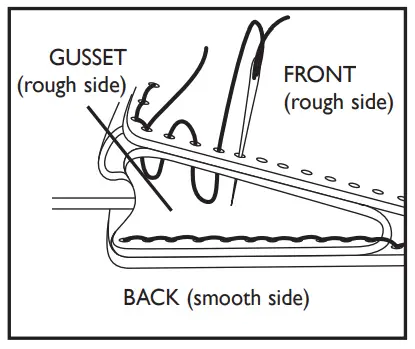

STEP 8: Attach front piece to back assembly (smooth sides together) using remaining thread. Stitch down starting hole in front and gusset, up through second hole in front and gusset piece. Continue stitching to last hole, turn and stitch back filling in alternate stitches. Stitch to beginning hole. Tie ends of thread in knot.
STEP 9: Turn bag smooth side out.

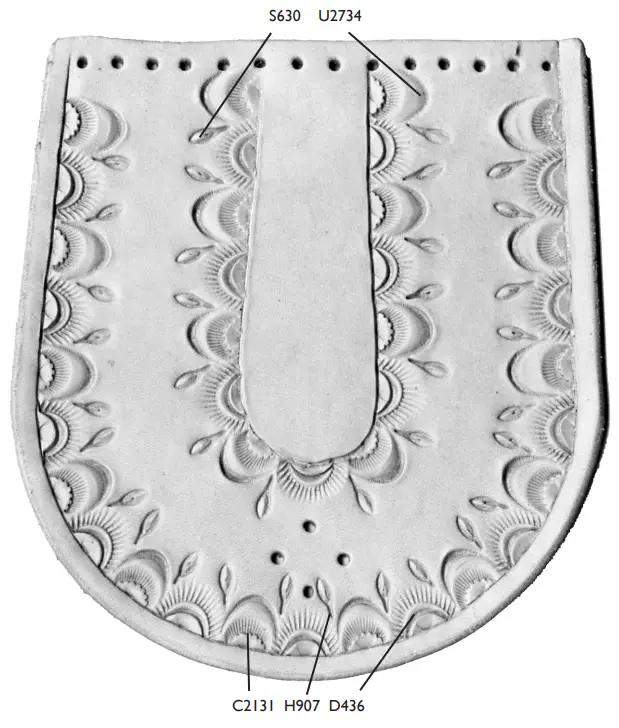

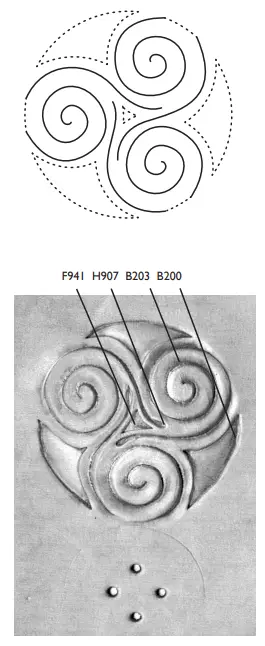

PATTERNS
FOR MORE PATTERNS, PROJECTS, AND TIPS,
VISIT TANDYLEATHER.COM/BLOG.
Distributed by Tandy Leather 1900 SE Loop 820, Fort Worth, TX 76140
Made in the USA with global components.
©2022 Tandy Leather. All rights reserved
