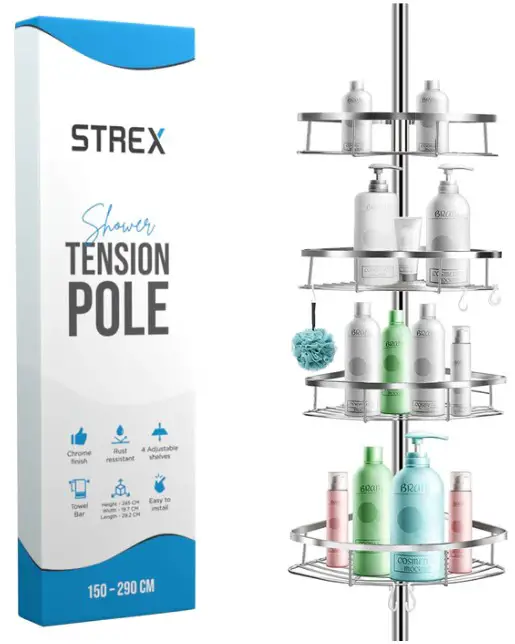

SP181 Telescopisch Doucherek RVS
Instruction Manual
SP181 Telescopisch Doucherek RVS
Strex Instruction Manual
SP181/SP241

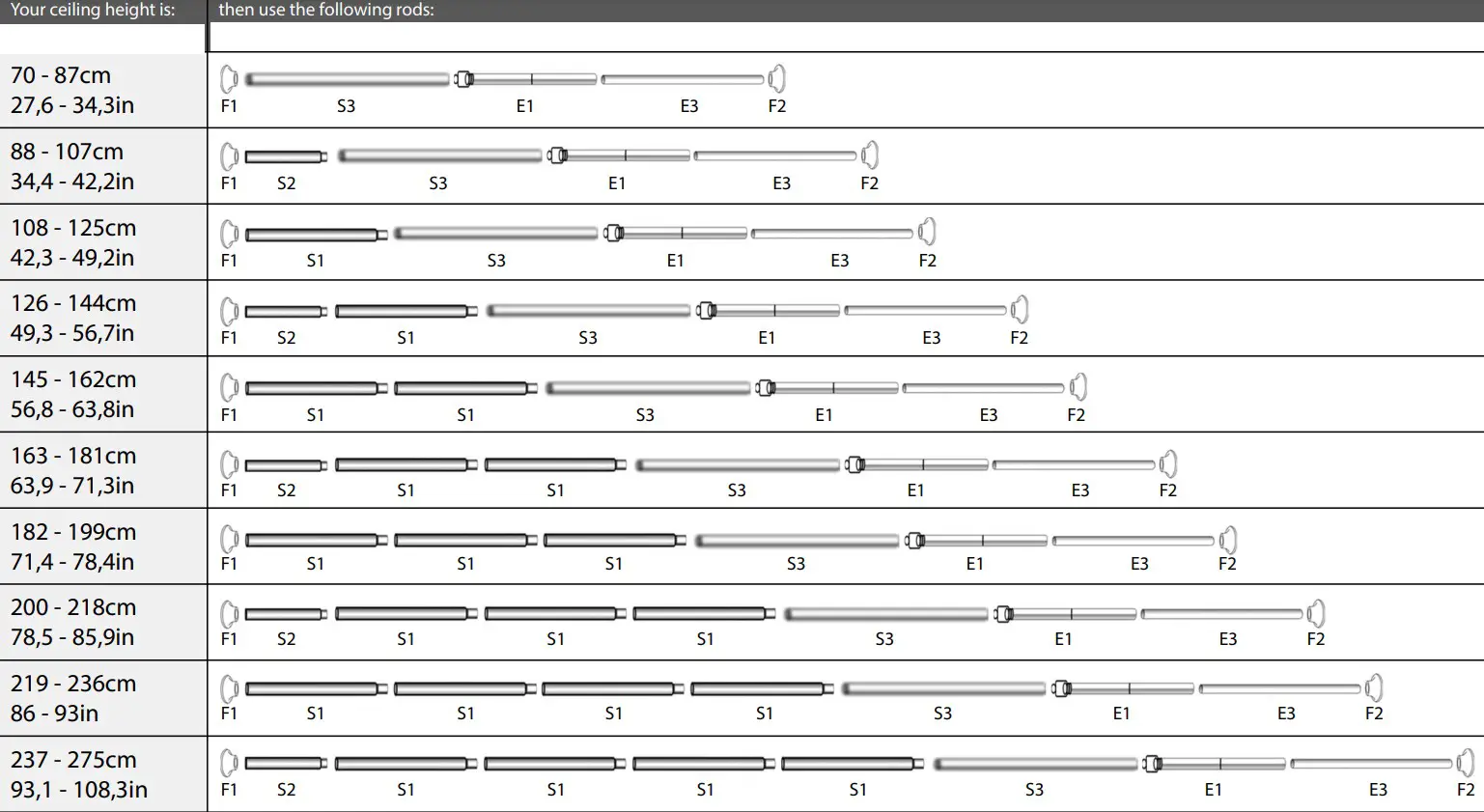

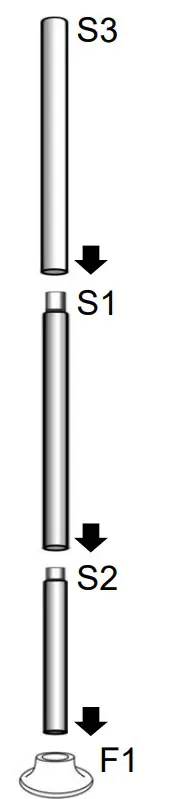

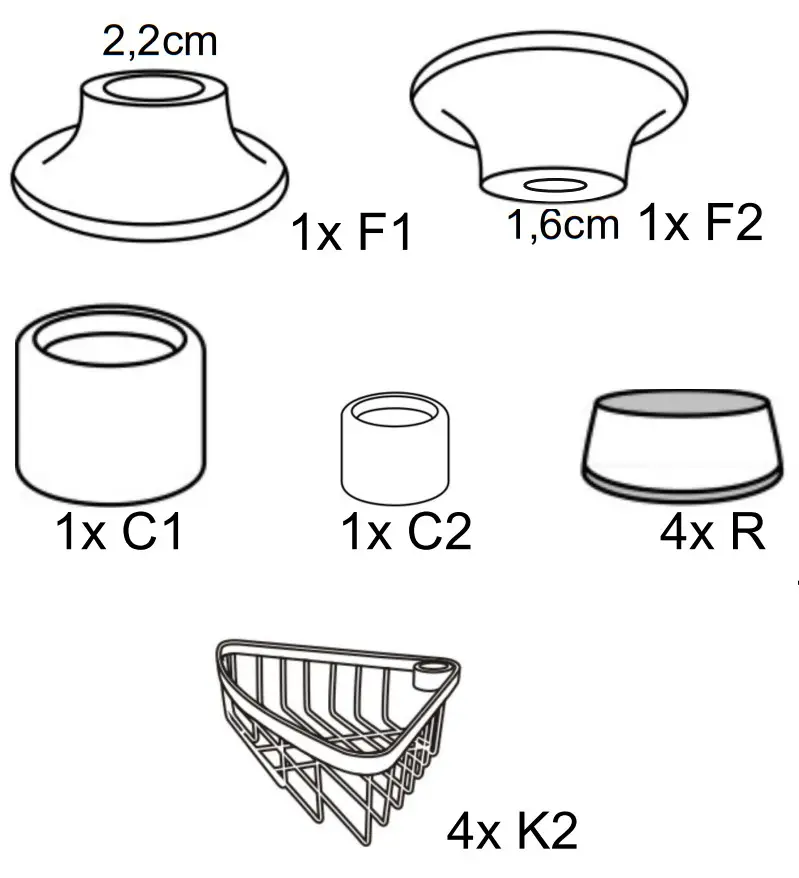

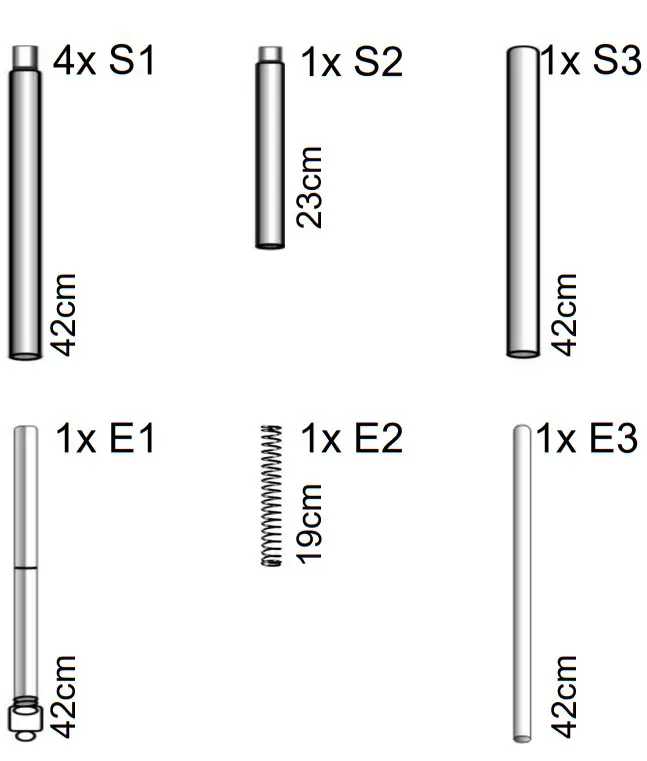

Please refer to the backside of this booklet to find out how many and which rods (S) you need for your perfect height. Place the silicone foot (F1) on the lower end of the first rod (S) and put also your other rods on top of it.

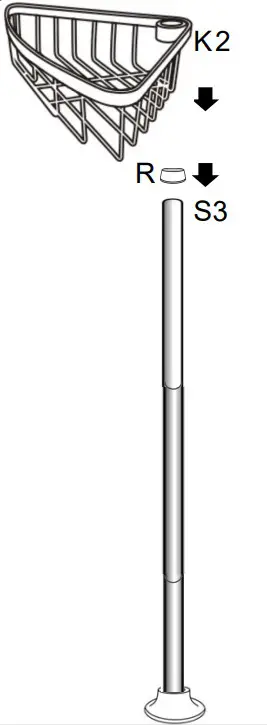

Put the silicone ring (R) over the rod (S) and position it at the height at which you want the basket (K) at. Place the basket (K) over the ring (R). Repeat this with the other baskets. Baskets can only be attached to S-rods, not E-rods.

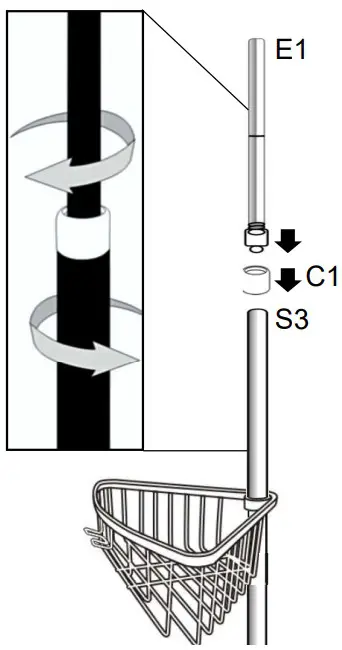

Push the cap (C1) over the top of the rod (S3). This rod (S3) is always the uppermost S-rod. Insert the rod (E1) into the rod (S3) and rotate it until it is firmly seated in the rod (S3). To change the height afterwards, you can tighten the rod (E1) to the desired height. Hereby, the notch on the rod (E1) should not be visible, respectively not be outside the rod (S3).

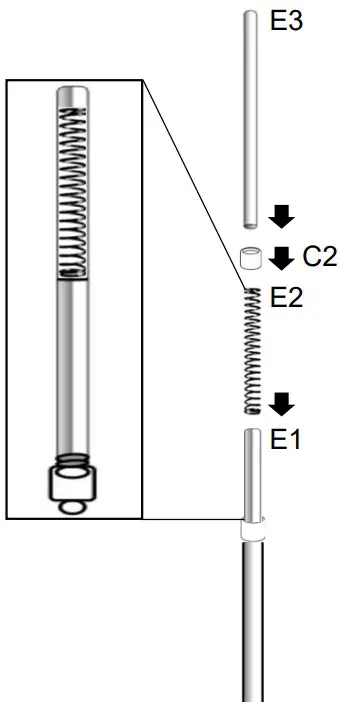

Insert the spiral spring (E2) into the rod (E1), if it is not already inside. Put the cap (C2) over the top of the rod (E1). Now insert the rod (E3) into the rod (E1). The height can also be finely adjusted by pressing on the spiral spring (E2). You can achieve the best grip by tensioning the spiral spring (E2) to a depth of approx. 5cm.
You can now place the silicone head (F2) on the top of the rod (E3) and mount the rack. The easiest way is to first position the upper end of the rod on the ceiling and then, by pressing on the spiral spring, place the lower end of the rod on the floor.
Bekijk hier de montagevideo:
www.support.strex.nl/files/sp181/montage.mp4
