293154 Pole Mount Bracket for Wall Mount Fans
User Manual
Customer Service
US: 1-800-645-2986
293154 Pole Mount Bracket for Wall Mount Fans
Pole Mount Bracket for Global Industrial Wall Mount Fans
Model 293154

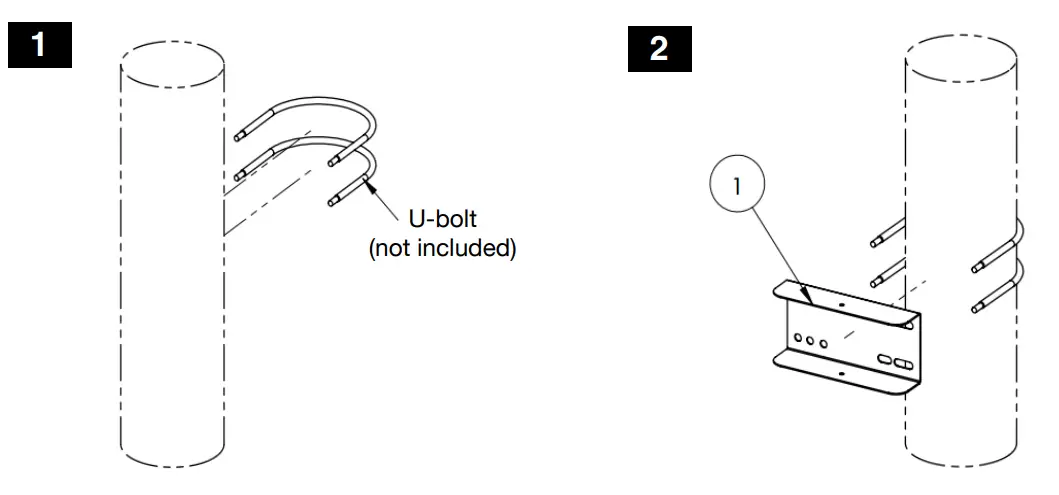

*U-bolt parts shown in this manual are not included.
CONTENTS
| NO. | QTY | DESCRIPTION |
| 1 | 1 | POLE MOUNT BRACKET POLE |
| 2 | 1 | MOUNT SUPPORT ARM |
| 3 | 2 | ADAPTER PLATE 79×44 |
| H1 | 2 | WASHER NYLON M10 |
| H2 | 1 | HEX CAP SCREW M8x150 |
| H3 | 1 | STOP NUT M8 |
| H4 | 1 | WASHER M8 |
| H5 | 1 | HEX CAP SCREW M6x25 HEX |
| H6 | 1 | NUT M6 |
| H7 | 1 | WASHER M6 |
| H8 | 1 | HEX CAP SCREW M10x25 HEX |
| H9 | 1 | NUT M10 |
| H10 | 1 | WASHER M10 |

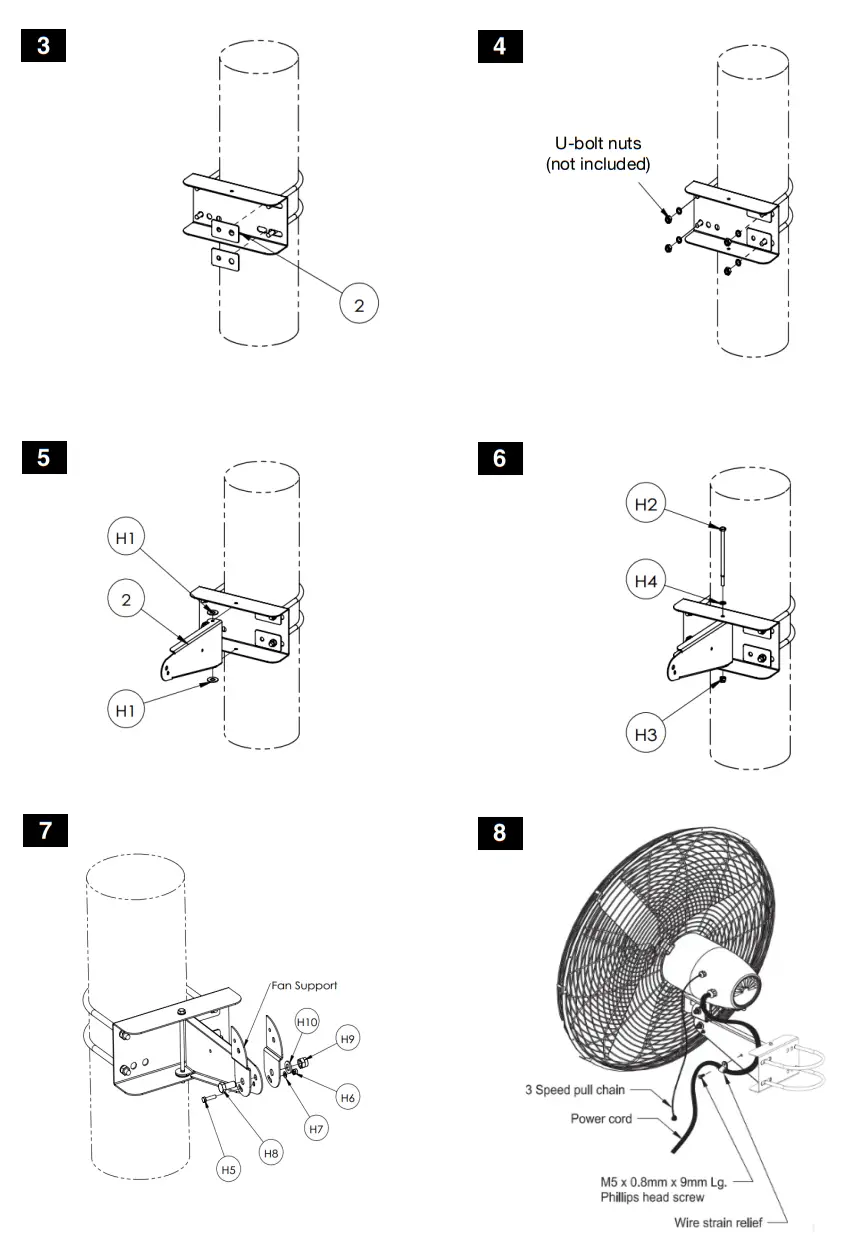

Pole Mount Bracket
