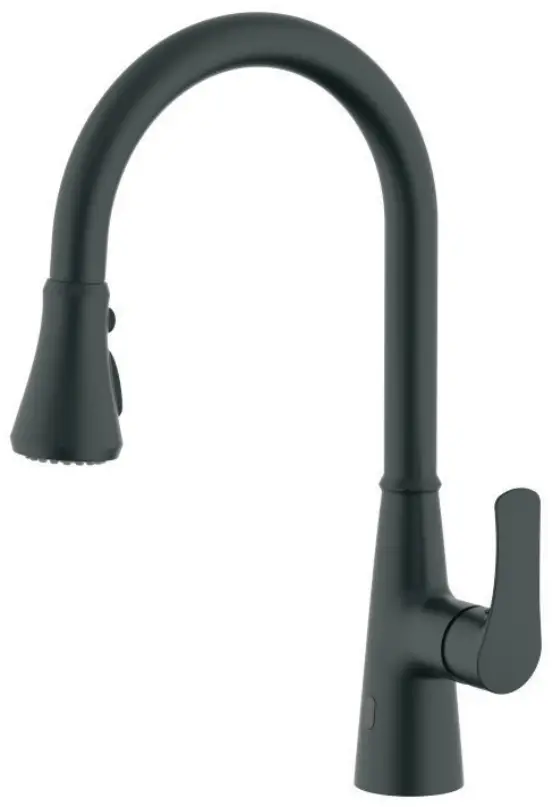

Karran KKF340 Kadoma Single Handle Touchless Pull Down Sprayer

Models:
KKF34oss KKF340MB KKF340GG

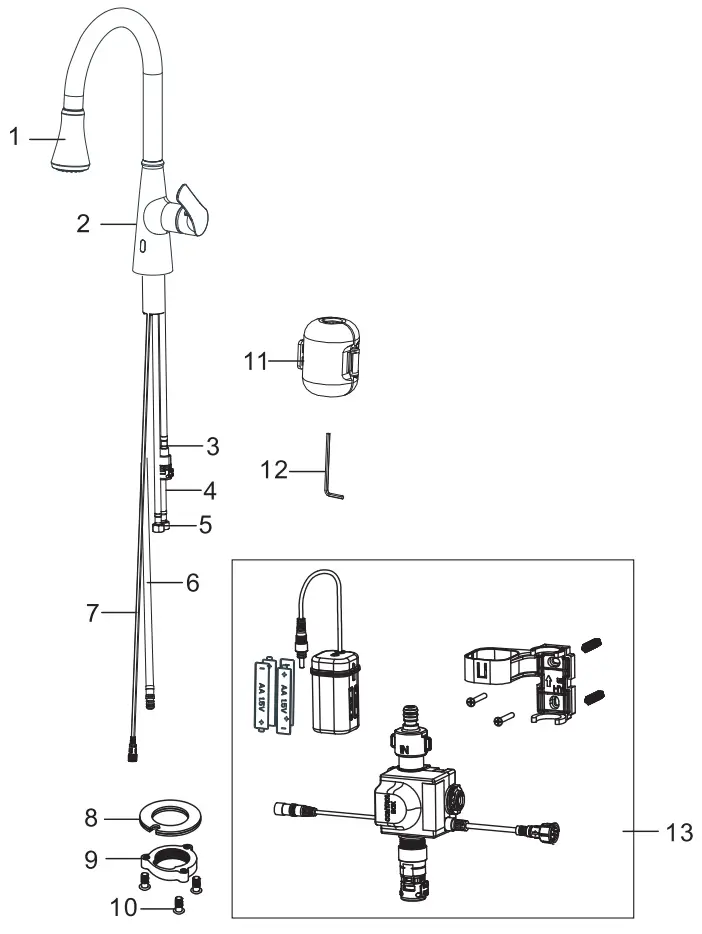

PARTS SHEET

1. Spray Head
2. Faucet Body
3. Quick Connector
4. Hot Water Line
5. Cold Water Line
6. Spray Hose
7. Sensor Line
8. Rubber & Metal Washer
9. Mounting Nut
10. Mounting Screws
11. Weight
12. Hex Wrench
13. Control Box

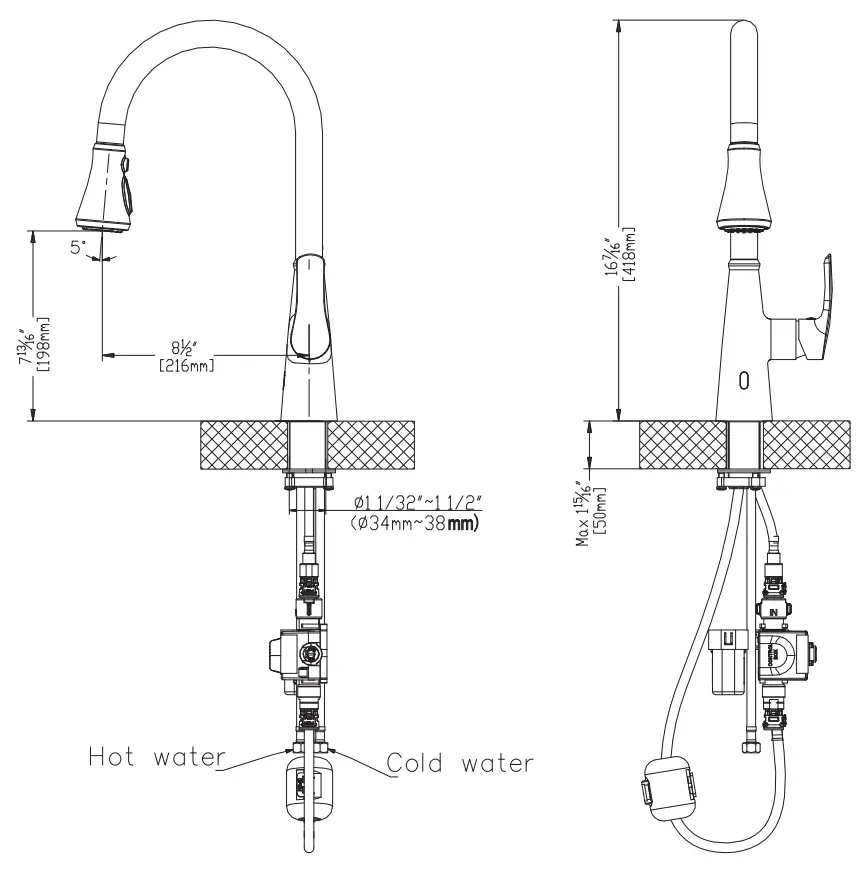

TECHNICAL DRAWING

INSTALLATION GUIDE

STEP 1

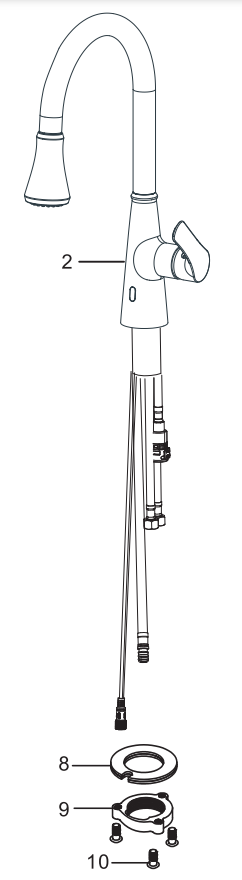

1. Remove the mounting nut (#9), rubber & metal washer (#8) from the faucet body (#2).

   STEP 2
2. Insert the main body into the hole, refix the rubber & metal washer (#8) and mounting nut (#9).

   STEP 3

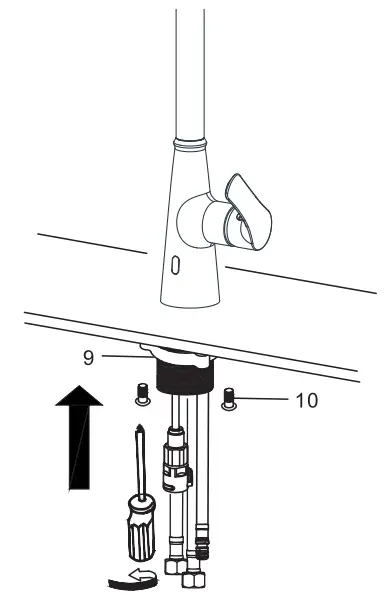

3. After adjusting the direction of the main body, tighten the mounting nut (#9) with hands and tighten the mounting screws (#10) with a Philips screwdriver.

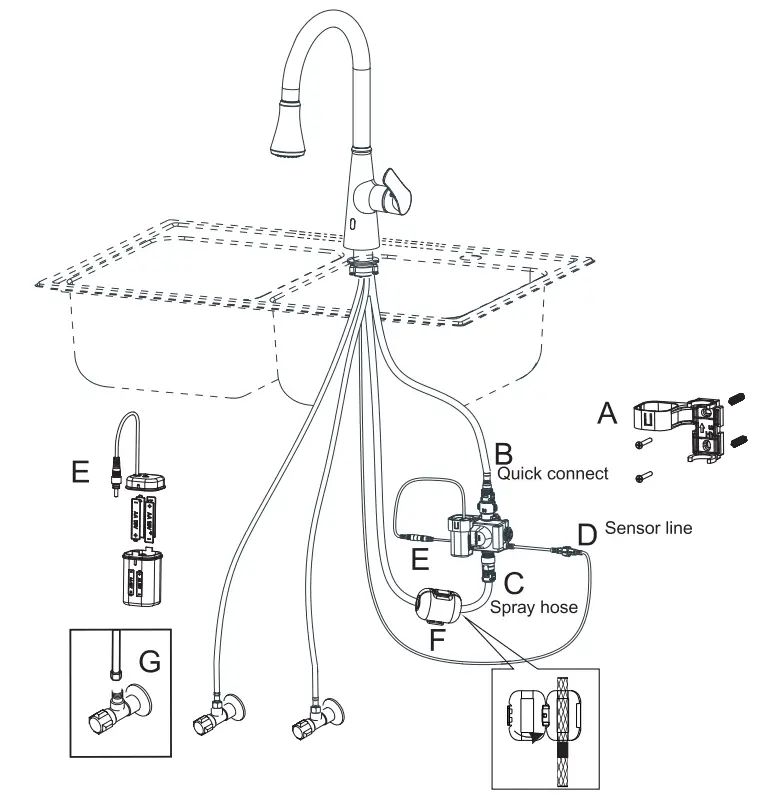

A. Fix the control box holder to the wall with the screws provided (part A in the picture). Then attached the control box to the holder.
B. Insert the quick-connect to the control box ( part Bin the picture).
C. Connect the spray hose to control box ( part C in the picture).
D. Connect the sensor line to control box ( part Din the picture).
E. Attach the weight to the pull-out hose ( part Fin the picture).
F. Put the batteries purchased from store into the battery holder correctly. Insert the battery pack into the holder on the wall. Then connect the batteries line to the control box (Part E in the picture).
G. Connect the water lines to water supplies ( Part Gin the picture).

OPERATION

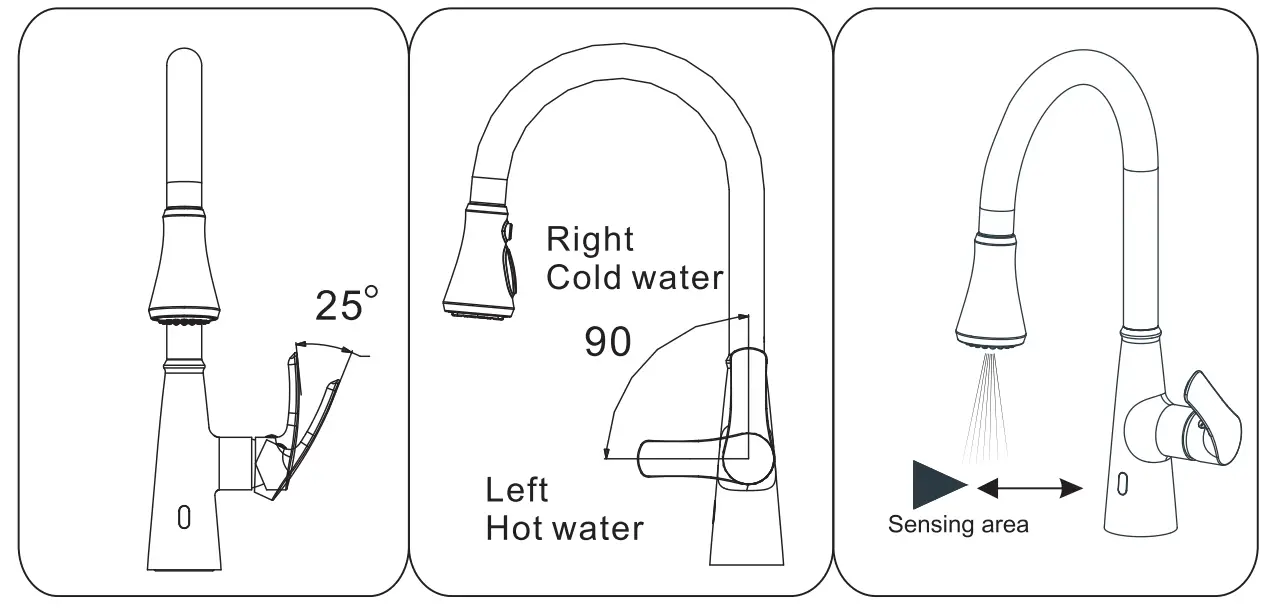

How to operate the handle

1. Open the handle lever to turn water on. Push to turn off.
2. Turn the handle lever to the left to increase hot water flow with higher water temperature. Lower the water temperature by operating reversely.
3. Flush out any debris and check for leaks.

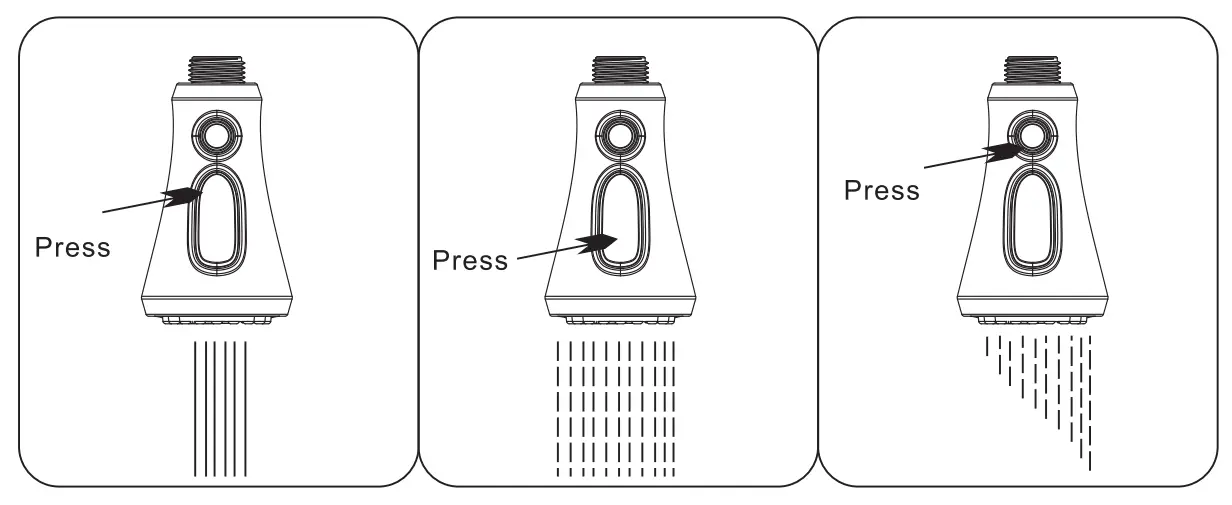

Spray

The operation of the spray diverter:

1. Press the middle button and water flows out of the nozzle.
2. Press button back, water comes from nozzles.
3. Press the button above and water will flow out of the nozzle.

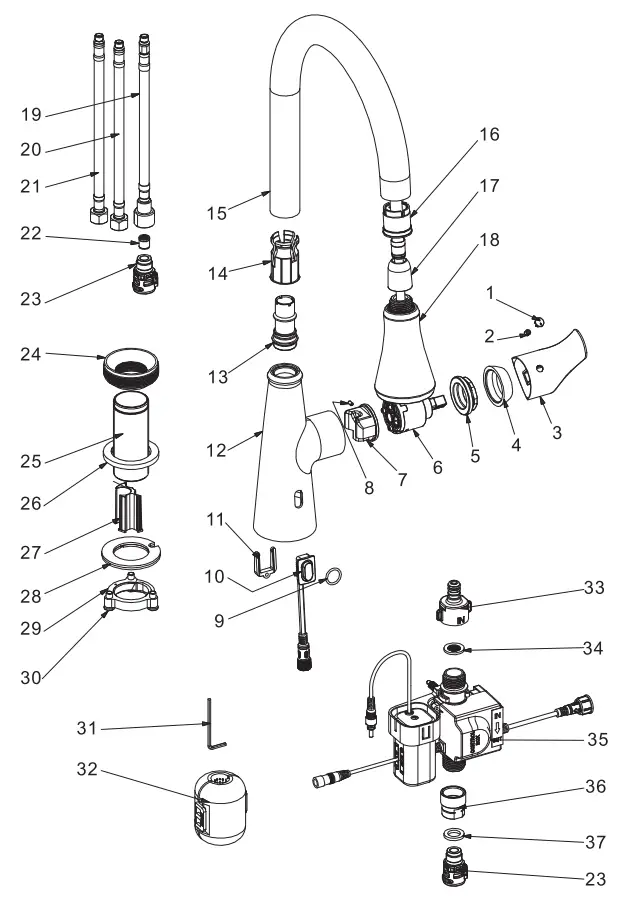

REPLACEMENT PARTS

*Denotes faucet component color options:
SS – Stainless Steel
MB – Matte Black
GG – Gunmetal Grey

CUSTOMER SUPPORT

Karran USA
Tel: 866.452.7726 www.karran.com | [email protected]
