Hercules 1-1/8" Hex Breaker Hammer He31 Owner's Manual

Hercules LOGO

Owner’s Manual & Safety Instructions
21a
Hercules 1-1 8 Hex Breaker Hammer HE31

1-1/8″ Hex Breaker Hammer

Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNING WARNING: To prevent serious injury, the User must read and understand the Owner’s Manual. SAVE THIS MANUAL.

When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call  1-888-866-5797 as soon as possible. Reference 56407

IMPORTANT SAFETY INFORMATION

GENERAL POWER TOOL SAFETY WARNINGS

Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNING1

Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power too

Work area safety

  1. Keep work area clean and well-lit.
    Cluttered or dark areas invite accidents.
  2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks that may ignite dust or fumes.
  3. Keep children and bystanders away while operating a power tool.
    Distractions can cause you to lose control.

Electrical safety

  1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock.
  2. Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is grounded.
  3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
  4. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.
  5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. The use of a cord suitable for outdoor use reduces the risk of electric shock.
  6. If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected supply. The use of a GFCI reduces the risk of electric shock.

Personal safety

  1. Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury
  2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection used for appropriate conditions will reduce personal injuries.
  3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to a power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
  1. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
  1. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  2. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
  1. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. The use of dust collection can reduce dust-related hazards.
  1. Only use safety equipment that has been approved by an appropriate standards agency. Unapproved safety equipment may not provide adequate protection. Eye protection must be ANSI-approved and breathing protection must be NIOSH-approved for the specific hazards in the work area.

Power tool use and care

  1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate at which it was designed.
  2. Do not use the power tool if the Trigger does not turn it on and off.
    Any power tool that cannot be controlled with the Trigger is dangerous and must be repaired.
  1. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
    Such preventive safety measures reduce the risk of starting the power tool accidentally.
  1. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
  1. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  2. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  3. Use the power tool, accessories, and tool bits in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

Percussion Hammer Safety Warnings

  1. Wear ear protectors. Exposure to noise can cause hearing loss.
  1. Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
  2. Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.
  3. Keep clear of moving parts.
  4. Unplug before inspecting, removing, or installing bit, or performing any service.
  1. A pull-on bit after installation and before use; bit may move but MUST NOT slide out
  2. Wear steel-toed boots during use.
  3. Do not operate this tool if you have back, neck, or wrist injuries, or other conditions that will be aggravated by the severe jerking forces that this tool exerts upon the operator.
  1. Maintain labels and nameplates on the tool. These carry important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement.
  2. Avoid unintentional starting. Prepare to begin work before turning on the tool.
  1. Do not lay the tool down until it has come to a complete stop. Moving parts can grab the surface and pull the tool out of your control.
  2. When using a handheld power tool, maintain a firm grip on the tool with both hands to resist starting torque.
  1. Do not leave the tool unattended when it is plugged into an electrical outlet. Turn off the tool, and unplug it from its electrical outlet before leaving.
  2. This product is not a toy. Keep it out of reach of children.
  1. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to the heart pacemakers could cause pacemaker interference or pacemaker failure. In addition, people with pacemakers should:
  • Avoid operating alone.
  • Properly maintain and inspect to avoid electrical shock.
  • Properly ground power cord. Ground Fault Circuit Interrupter (GFCI) should also be implemented — it prevents sustained electrical shock.
  1. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product but must be supplied by the operator.

Vibration Safety

This tool vibrates during use. Repeated or long-term exposure to vibration may cause temporary or permanent physical injury, particularly to the hands, arms and shoulders. To reduce the risk of vibration-related injury:

  1. Anyone using vibrating tools regularly or for an extended period should first be examined by a doctor and then have regular medical check-ups to ensure medical problems are not being caused or worsened from use. Pregnant women or people who have impaired blood circulation to the hand, past hand injuries, nervous system disorders, diabetes, or Raynaud’s Disease should not use this tool. If you feel any medical or physical symptoms related to vibration (such as tingling, numbness, and white or blue fingers), seek medical advice as soon as possible.
  2. Do not smoke during use. Nicotine reduces the blood supply to the hands and fingers, increasing the risk of vibration-related injury.
  3. Use tools with the lowest vibration when there is a choice between different processes.
  4. Include vibration-free periods each day of work.
  5. Let the tool do the work.
  6. To reduce vibration, maintain the tool as explained in this manual. If any abnormal vibration occurs, stop use immediately.

Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNING SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNING1

Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNING3TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING WIRE CONNECTION:

Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the tool. Never remove the grounding prong from the plug. Do not use the tool if the power cord or plug is damaged. If damaged, have it repaired by a service facility before use. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.

Double Insulated Tools: Tools with Two Prong Plugs

  1. Tools marked “Double Insulated” do not require grounding. They have a special double insulation system that satisfies OSHA requirements and complies with the applicable standards of Underwriters Laboratories, Inc., the Canadian Standard Association, and the National Electrical Code.

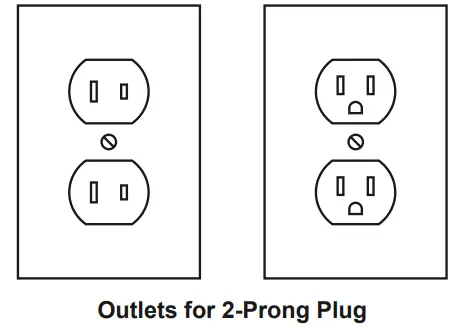

  2. Double insulated tools may be used in either of the 120-volt outlets shown in the following illustration. (
    See Outlets for 2-Prong Plug.)

Hercules 1-1 8 Hex Breaker Hammer HE31 - OUTLETS

Extension Cords

  1. Grounded tools require a three-wire extension cord. Double Insulated tools can use either a two or three-wire extension cord.
  2. As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage. (See Table A )
  3. The smaller the gauge number of the wire, the greater the capacity of the cord. For example, a 14 gauge cord can carry a higher current than a 16 gauge cord. (See Table A.)
  4. When using more than one extension cord to make up the total length, make sure each cord contains at least the minimum wire size required. (See Table A.)
  5. If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum cord size. (See Table A )
  6. If you are using an extension cord outdoors, make sure it is marked with the suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.
  7. Make sure the extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified electrician before using it.
  8. Protect the extension cords from sharp objects, excessive heat, and damp or wet areas.
TABLE A: RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE AMPERES (at full load)EXTENSION CORD LENGTH
25′50′75′100′150′
0 — 2.01818181816
2.1 — 3.41818181614
3.5 — 5.01818161412
5.1 — 7.01816141212
7.1 — 12.018141210
12.1 — 16.0141210
16.1 — 20.01210
* Based on limiting the line voltage drop to five volts at 150% of the rated amperes.

Warning Symbols and Definitions

Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNING This is the safety alert symbol. It is used to alert you to potential personal injury hazards Obey all safety messages that follow this symbol to avoid possible injury or death.

warning 2DANGER Indicates a hazardous situation that, if not avoided, will result in death or serious injury.
Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNINGWARNING Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNINGCAUTION Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE Addresses practices not related to personal injury.

Symbology

Double insulationDouble Insulated
vVolts
Alternating Current
AAmperes
no xxxx/min.No Load Revolutions per Minute (RPM)
Wear safety goggles icon cautionWARNING marking concerning Risk of Eye Injury. Wear ANSI-approved safety goggles with side shields.
Danger iconRead the manual before set-up and/or use.
Flammable Warning IconWARNING marking concerning Risk of Fire.
Do not cover ventilation ducts. Keep flammable objects away.
Electric Warning IconWARNING marking concerning Risk of Electric Shock.
Properly connect the power cord to the appropriate outlet.
Wear ear-muff s icon cautionWARNING marking concerning Risk of Hearing Loss.
Wear hearing protection.

Specifications

Electrical Rating120VAC / 60Hz / 15A
Bits1 Bull Nose Bit
1 Narrow Tile Bit

Functional Description.

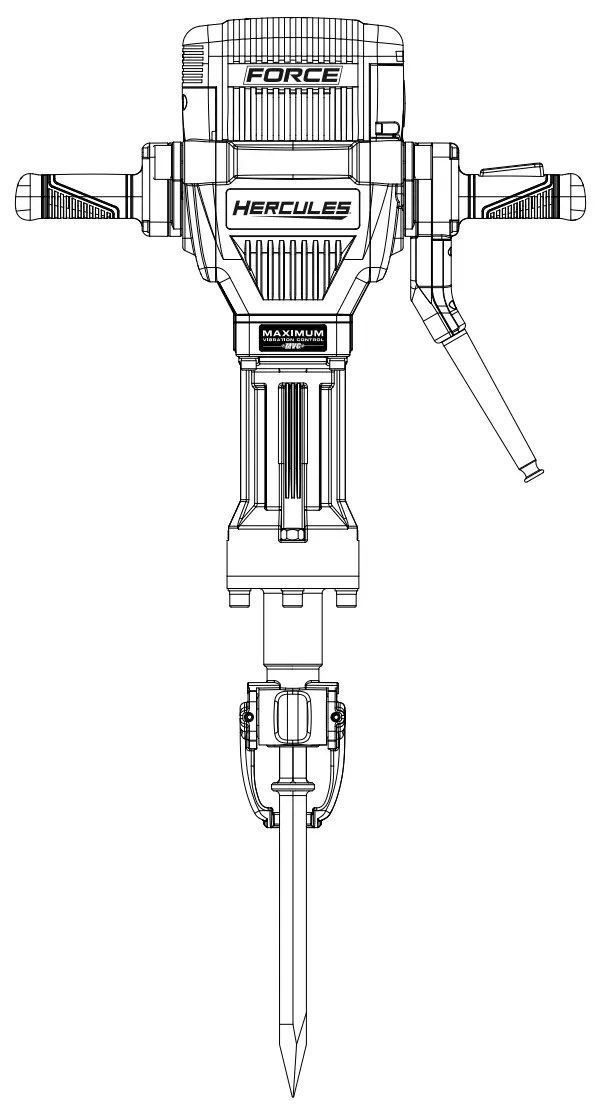

Hercules 1-1 8 Hex Breaker Hammer HE31 - Functional

OPERATION

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product.

Tool Set Up

Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNING1
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Make sure that the Trigger is in the off position and unplug the tool from its electrical outlet before performing any procedure in this section.

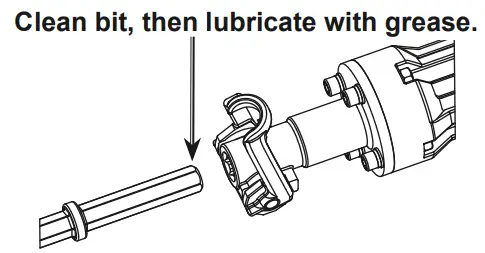

NOTICE: Clean the loading end of the bit to remove any debris, then lubricate the bit with grease.

Hercules 1-1 8 Hex Breaker Hammer HE31 - OXEULFDWH

Install Collarless Bit

  1. Pull the Lock Lever to the side, just far enough to allow the Bit to be inserted.

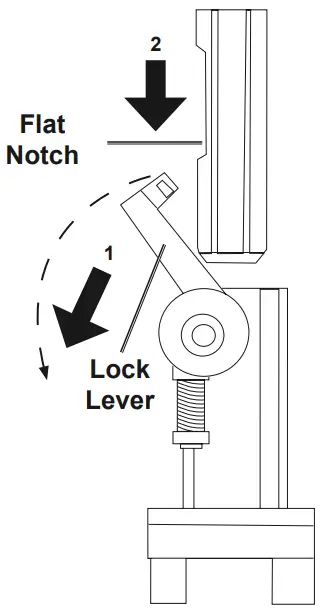

    Hercules 1-1 8 Hex Breaker Hammer HE31 - Collarlessnote: Flat Notch on Collar-less Bit must face the Lock Lever.
  2. Insert Bit with the Flat Notch facing the Lock Lever.

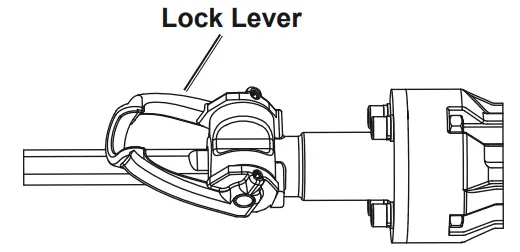

    Hercules 1-1 8 Hex Breaker Hammer HE31 - Lock Lever
  3. Slide the Bit in as far as it will go.
  4. Pull the Lock Lever back until it locks the Bit into place.
    note: The lock Lever will not lie flat against the chuck.

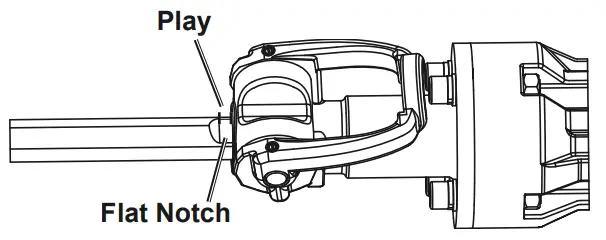

    Hercules 1-1 8 Hex Breaker Hammer HE31 - ODW1RWFK
  5. When the Bit is installed, there will be approximately 1-3/4″ of play along with the Flat Notch of the shank. Physically check that the Bit is secure before operating.

Install Collared Bit

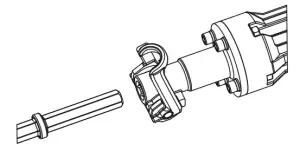

  1. Pull the Lock Lever open about 70-80° to the second engaging position.
    Hercules 1-1 8 Hex Breaker Hammer HE31 - Install Collared Bit
  2. Insert the collared Bit.

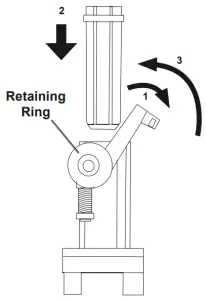

  3.  Slide the Bit in as far as it will go.
    Hercules 1-1 8 Hex Breaker Hammer HE31 - Slide the Bit

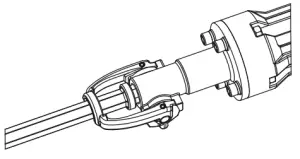

  4. Return the Lock Lever to its original position to lock the Bit in place.
    Hercules 1-1 8 Hex Breaker Hammer HE31 - Return the Lock
  5. Physically check that the Bit is secure before operating. The Bit will have approximately 1-3/4″ of play, but should not come out when pulled.
    Note: During extended operation, periodically remove the bit and re-lubricate the loading end with grease.

Workpiece and Work Area Set Up

  1. Designate a work area that is clean and well-lit. The work area must not allow access by children or pets to prevent distraction and injury.
  2. Route the power cord along a safe route to reach the work area without creating a tripping hazard or exposing the power cord to possible damage. The power cord must reach the work area with enough extra length to allow free movement while working.
  3. Secure loose workpieces using a vise or clamps (not included) to prevent movement while working.
  4. There must not be objects, such as utility lines, nearby that will present a hazard while working. If working in the ground or on a concrete slab on the earth, call a local utility company to ensure that area is clear of utility lines.
  5. Protect the power cord from crushing, abrasion, and scraping by broken rock or concrete.
  6. Keep the power cord away from moving machines.

General Operation

Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNING1
TO PREVENT SERIOUS INJURY:

Wear ANSI-approved safety goggles, ear protection, steel-toe boots, and dust masks during use.

Keep feet clear of Breaker Hammer.

Keep children and animals well clear of the work area.

  1. Check Bit for dullness, cracks, or other damage.
    Hercules 1-1 8 Hex Breaker Hammer HE31 - dullnessCAUTION! Dull tipped bits can cause unnecessary bit movement, resulting in tool wear and possible injury. Use only sharp-tipped bits.
  2. Clearly mark the work area.
  3. Make sure that the Trigger is in the off position, then plug the tool into an outlet on a circuit rated to 20 amps.
  4. Set the bit against the work area.
    CAUTION!  Keep the power cord away from moving machines.
  5. Place one hand on the Side Handle and the other hand around the Main Handle.
  6. Press down on the Trigger.
    Note: Trigger does not lock. Keep pressure on the Trigger to keep running the tool.
  1. Push the tip forcibly down to begin striking material.
    NOTICE: A running tool with no load or “empty blows” will damage the Breaker Hammer.
    CAUTION! Once activated, do not press, bear down, or thrust forcibly against the work surface. Allow the Breaker Hammer’s own weight to supply the needed force.
    Note: If the Breaker Hammer has not been used for a long time or is being used in low temperatures, the tool may require 3-5 minutes to warm up.
    NOTE: Carbon Brushes will wear during use. The Breaker Hammer will stop working if the Brushes are worn. This does NOT mean Breaker Hammer is malfunctioning or broken, only that the worn Brushes will need to be replaced with the included Brushes by a qualified technician.
  2. When work is complete, release the Trigger. The Trigger is spring-loaded and will return to the off position automatically.
  3. To prevent accidents, turn off the tool and disconnect its power supply after use.
  4. Clean, then store the tool indoors out of children’s reach.

MAINTENANCE AND SERVICING

Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNING Procedures not specifically explained in this manual must be performed only by a qualified technician.

Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNING1 TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Make sure that the Trigger is in the off position and unplug the tool from its electrical outlet before performing any procedure in this section.

TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.

Cleaning, Maintenance, and Lubrication

  1. BEFORE EACH USE, inspect the general condition of the tool. Check for:
    • loose hardware
    • misalignment or binding of moving parts
    • cracked or broken parts
    • damaged electrical wiring
    • any other condition that may affect its safe operation.
  2. AFTER USE, wipe the external surfaces of the tool with a clean cloth.
  3. Store in temperatures no lower than 50-60°F.

NOTE The Breaker Hammer has airtight construction, allowing long periods of use (approximately six months of regular usage) before lubrication.

Replacing Carbon Brushes

NOTE: The Breaker Hammer will cease operation once Carbon Brushes are worn. Have brushes been replaced by a qualified technician when necessary?

  1. Remove the Fan Cover (70) by removing the four bolts (71) and Flat Washers (99).
  2. Slide Fan Cover off of Housing (31).
  3. Remove Carbon Brush Bracket (61).
  4. Remove Carbon Brushes from Brackets.
  5.  Insert new Carbon Brushes into Bracket.
  6. Replace Carbon Brush Bracket and slide Fan Cover back over Housing.
  7. Replace Bolts and Flat Washers until securely fastened.

Greasing Gearbox

Note: Due to the possibility of accidental damage and/or contamination, only a qualified technician should disassemble and lubricate this item.

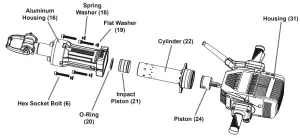

  1. Remove the four Socket Bolts (6) and Washers that connect the Aluminum Housing (16) to the Housing. Disassemble the Aluminum Housing, Cylinder (22), and Piston (24).
  2. Clean the Aluminum Housing, Piston, and Cylinder thoroughly, inside and out.
  3. Check the condition of the 0-Ring (20).
    If the outside diameter (OD) of the 0-Ring is less than the Piston’s OD, replace the 0-Ring.
  4. Fill each of the 4 grooves inside the Aluminum Housing with 0.5 ounces of synthetic high-temperature grease.
  5. Slide the Cylinder back into the Cylinder Case and fill it with 0.5 ounces of tool oil.
  6. Carefully slide the Piston into the Ram, making sure that the 0-Ring stays in place and is not damaged.
  7. Replace the Socket Bolts and Washers to connect the Aluminum Housing to the Housing and tighten securely.

Hercules 1-1 8 Hex Breaker Hammer HE31 - Greasing GearboxTroubleshooting

Problem

Possible CausesLikely Solutions
The tool will not start.
  1. Cord not connected.
  2. No power at outlet.
  3. Tool’s thermal reset breaker tripped (if equipped).
  4. Internal damage or wear. (Carbon brushes or Trigger, for example.)
  1. Check that cord is plugged in.
  2. Check power at outlet. If the outlet is unpowered, turn off the tool and check the circuit breaker. If the breaker is tripped, make sure the circuit is the right capacity for the tool and the circuit has no other loads.
  3. Turn off the tool and allow it to cool. Press the reset button on the tool.
  4. Have technician service tool.
The tool operates slowly.Extension cord too long or wire size too small.Eliminate the use of extension cords. If an extension cord is needed, use a shorter/heavier gauge cord. See Extension Cords in the GROUNDING section.
Performance decreases over time.
  1. Bit dull or damaged.
  2. Internal lubrication is cold.
  3. Carbon brushes worn or damaged.
  1. Keep cutting bits sharp. Replace as needed.
  2. Allow the tool to operate with no load for 5 minutes before use.
  3. Have qualified technicians replace brushes.
Excessive noise or rattling.Internal damage or wear. (Carbon brushes or bearings, for example.)Have technician service tool.
Overheating.
  1. Forcing tools to work too fast.
  2. Bit dull or damaged.
  3. Blocked motor housing vents.
  4. The motor is strained by a long or small diameter extension cord.
  1. Allow the tool to work at its own rate.
  2. Keep cutting bits sharp. Replace as needed.
  3. Wear ANSI-approved safety goggles and a NIOSH-approved dust mask/respirator while blowing dust out of the motor using compressed air.
  4. Eliminate the use of extension cords. If an extension cord is needed, use one with the proper diameter for its length and load. See Extension Cords in the GROUNDING section.
Hercules 1-1 8 Hex Breaker Hammer HE31 - WARNING follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power supply before service.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Record Product’s Serial Number Here:___________________________________

Note: If the product has no serial number, record the month and year of purchase instead.

Note; Some parts are listed and shown for illustration purposes only and are not available individually as replacement parts.

PARTS LIST AND DIAGRAM
Parts List

PartDescriptionQty
1Bit Chuck1
2Front Cover1
3Lock Ring2
4Spring Column Pin2
5Locking Lever1
6Hex Socket Bolt M14x704
7014 Spring Washer4
8014 Flat Washer4
90 Ring 077)(02.91
10Fluorine 0 Ring 039×052
11Impact Hammer1
12Hammer Ring1
13Shock Absorption Ferrule1
14Locking Ring1
15M14 6 Nut4
16Aluminum Housing1
17Hex Socket Bolt M10x704
18010 Spring Washer4
19010 Flat Washer4
200 Ring 053.8×062
21Impact Piston1
22Cylinder1
23Piston Pin 014×61.51
24Piston1
25Connecting Rod Assembly1
26Needle Bearing1
27Square Seal Ring 097×3.5×3.21
28Cylinder Seat1
290 Ring 087)(03.52
30Cover1
31Housing1
32Ball Bearing 62051
33Final Gear1
34Part Key 4×182
35024 Retaining Ring1
36Paper Washer1
37Ball Bearing 6004 LUV CW1
38042 Retaining Ring1
39Double Teeth Pin 016×501
40Needle Bearing Hk16122
41Double Teeth1
42Gear Cover1
43Hex Socket Bolt M8x205
44Hex Socket Bolt M8x256
45Stop Block1
4605 Flat Washer1
47Hex Socket Bolt M5x121
48Ball Bearing 6206 LUV CW1
49Crank Shaft1
50Oil Tank Cover1
51Deflating Valve1
52Wool Block1
53Bottom Cover1
54Stator Assembly1
55Stator 110-120V1
56Positioning Bracket1
57Armature 110-120V1
58Tapping Screw ST4.8×702
59Carbon Brush2
60Coil Spring2
61Carbon Brush Bracket1
62Machine Screw M4×82
63Fan1
64Bearing Cover1
65Ball Bearing 6301ZV CW1
66Hex Socket Bolt M6×201
67M12×1 Lock Nut1
68ø37 Retaining Ring1
69Cover1
70Fan Cover1
71Hex Socket Bolt M6×154
72Mandrel Subassembly1
73Shock Absorption Spring1
74Support2
75Side Handle Support1
76Tapping Screw ST4.2×165
77Side Handle Cover1
78Side Handle Assembly1
79M10 Lock Nut2
80ø6 Flat Washer8
81Hex Socket Bolt M6×354
82Main Handle Support1
83Side Handle Assembly Base1
86Switch Cover1
87Trigger1
88Main Handle1
89Hex Socket Bolt M6×504
90Tapping Screw ST4.2×184
91Main Handle Cover1
92Switch1
93Power Cord Clip1
94Power Cord Armor1
95Power Cord1
96Wire Cover1
97Screw Sleeve8
98ø10 Flat Washer2
99ø6×ø10.5 Flat Washer4
801Front Cover Subassembly1
803Cylinder Subassembly1
802Piston1
804Housing Subassembly1

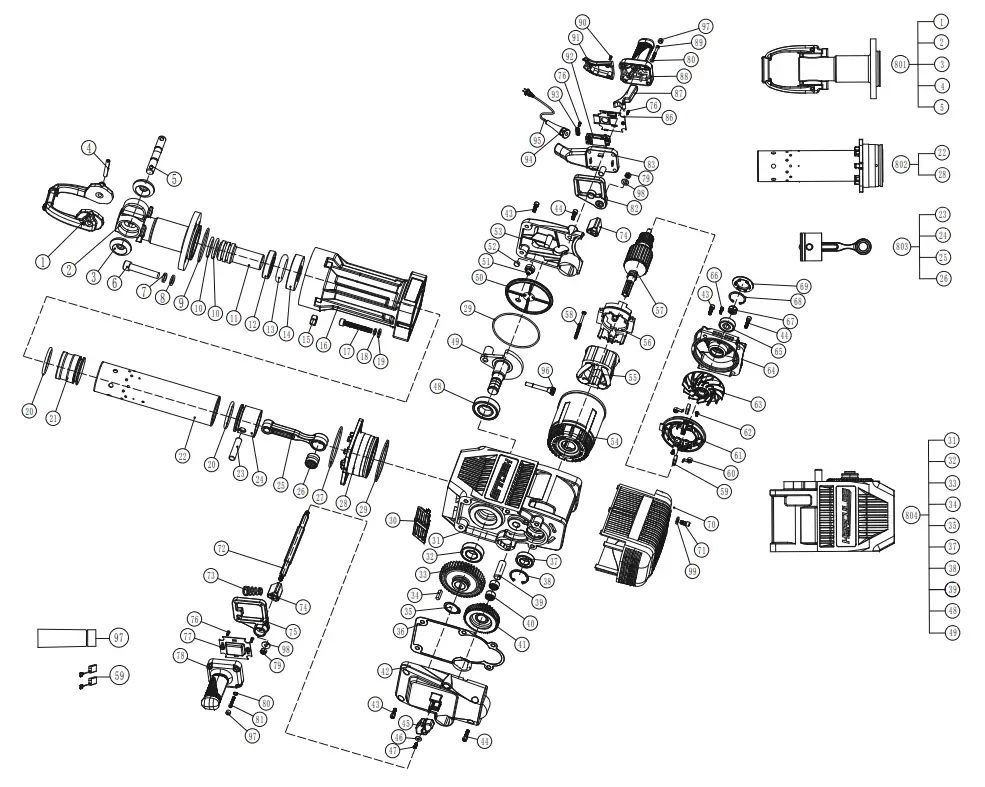

Assembly Diagram

Hercules 1-1 8 Hex Breaker Hammer HE31 - Assembly Diagram

LIMITED 90 DAYS WARRANTY

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear, and tear, or to lack of maintenance. We shall in no vent be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

  To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
For technical questions, please call 1-888-866-5797

Copyright 2019 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, the actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.

Hercules LOGO

26541 Agoura Road
Calabasas, CA 91302
1-888-866-5797

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
