Owner’s Manual & Safety Instructions
21a

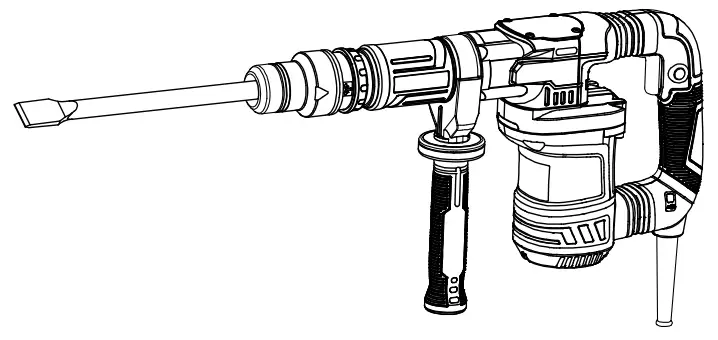

HERCULES HCE33 12 lb SDS Max Type Demolition Hammer

Model HCE33

12 lb SDS-Max Type Demolition Hammer

warning 4 WARNING: To prevent serious injury, the User must read and understand the Owner’s Manual. SAVE THIS MANUAL.

When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-888-866-5797 as soon as possible. Reference 56846

IMPORTANT SAFETY INFORMATION

GENERAL POWER TOOL SAFETY WARNINGS

warning 4 WARNING

Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool.

Work area safety

  1. Keep work area clean and well-lit.
    Cluttered or dark areas invite accidents.
  2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools
  3. Keep children and bystanders away while operating a power tool.
    Distractions can cause you to lose control.

Electrical safety

  1. Power tool plugs must match the outlet.
    Never modify the plug in any way.
    Do not use any adapter plugs with grounded power tools.
    outlets will reduce the risk of electric shock.
  2. Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is grounded.
  3. Do not expose power tools to rain or wet conditions.
    will increase the risk of electric shock.
  4. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool.
    Keep cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.
  5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. The use of a cord suitable for outdoor use reduces the risk of electric shock.
  6. If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected supply.
    The use of a GFCI reduces the risk of electric shock.

Personal safety

  1. Stay alert, watch what you are doing, and use common sense when operating a power tool.
    Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication.
  2. Use personal protective equipment. Always wear eye protection. such as dust masks, non-skid safety shoes, hard
  3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to a power source and/or battery pack, picking up or carrying the tool.
    tools that have the switch on invite accidents.
  4. Remove any adjusting key or wrench before turning the power tool on. A wrench
  5. Do not overreach. Keep proper footing and balance at all times. This enables better control
  6. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry
  7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. The use of dust collection can reduce dust-related hazards.
  8. Only use safety equipment that has been approved by an appropriate standards agency.

Power tool use and care

  1. Do not force the power tool. Use the correct power tool for your application.
    safer at the rate for which it was designed.
  2. Do not use the power tool if the switch does not turn it on and off.
  3. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
  4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are
    dangerous in the hands of untrained users.
  5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents
  6. Keep cutting tools sharp and clean. are less likely to bind and are easier to control.
  7. Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the intended could result in a hazardous situation.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the Percussion Hammer Safety Warnings

  1. Wear ear protectors.
    noise can cause hearing loss.
  2. Use auxiliary handles supplied with the tool.
  3. Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
  4. Keep clear of moving parts.
  5. Unplug before inspecting, removing, or installing a bit, or performing any service.
  6. A pull-on bit after installation and before use; the bit may move but MUST NOT slide out.
  7. Wear steel-toed boots during use.
  8. Do not operate this tool if you have back, neck, or wrist injuries, or other conditions that will be aggravated by the severe jerking forces that this tool exerts upon the operator.
  9. Maintain labels and nameplates on the tool. These carry important safety information. If unreadable or missing, contact
    Harbor Freight Tools for a replacement.
  10. Avoid unintentional starting. Prepare to begin work before turning on the tool.
  11. Do not lay the tool down until it has come to a complete stop. Moving parts can grab the surface and pull the tool out of your control.
  12. When using a handheld power tool, maintain a firm grip on the tool with both hands to resist starting torque.
  13. Do not leave the tool unattended when it is plugged into an electrical outlet. Turn off the tool, and unplug it from its electrical outlet before leaving.
  14. This product is not a toy. Keep it out of reach of children.
  15. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to the heart pacemakers could cause pacemaker interference or pacemaker failure.
    In addition, people with pacemakers should:
    • Avoid operating alone.
    • Properly maintain and inspect to avoid electrical shock.
    • Properly ground power cord. Ground Fault Circuit
    Interrupter (GFCI) should also be implemented
    – it prevents sustained electrical shock.
  16. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.
    It must be understood by the operator that common sense and caution are factors that cannot be built into this product but must be supplied by the operator.

Vibration Safety

This tool vibrates during use. Repeated or long-term exposure to vibration may cause temporary or permanent physical injury, particularly to the hands, arms, and shoulders. To reduce the risk of vibration-related injury:

  1. Anyone using vibrating tools regularly or for an extended period should first be examined by a doctor and then have regular medical check-ups to ensure medical problems are not being caused or worsened from use. Pregnant women or people who have impaired blood circulation to the hand, past hand injuries, nervous system
    disorders, diabetes, or Raynaud’s Disease should not use this tool. If you feel any medical or physical symptoms related to vibration (such as tingling, numbness, and white or blue fingers), seek medical advice as soon as possible.
  2. Do not smoke during use. Nicotine reduces the blood supply to the hands and fingers, increasing the risk of vibration-related injury.
  3. Use tools with the lowest vibration when there is a choice between different processes.
  4. Include vibration-free periods each day of work.
  5. Let the tool do the work.
  6. To reduce vibration, maintain the tool as explained in this manual. If any abnormal vibration occurs, stop use immediately.

warning 4 SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

warning 4 WARNING

Electric Warning IconTO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING WIRE CONNECTION:
Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the tool. Never remove the grounding prong from the plug. Do not use the tool if the power cord or plug is damaged. If damaged, have it repaired by a service facility before use. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.

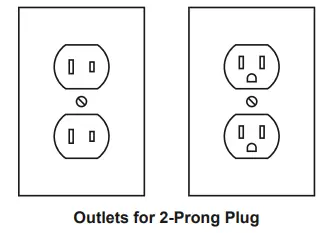

Double Insulated Tools: Tools with Two Prong Plugs

  1. Tools marked “Double Insulated” do not require grounding. They have a special double insulation system that satisfies OSHA requirements and complies with the applicable standards of Underwriters Laboratories, Inc., the Canadian Standard Association, and the National Electrical Code.
  2. Double insulated tools may be used in either of the 120-volt outlets are shown in the following illustration. (See Outlets for 2-Prong Plug.)
    HERCULES HCE33 12 lb SDS Max Type Demolition Hammer - Two Prong Plugs

Extension Cords

  1. Grounded tools require a three-wire extension cord.
    Double Insulated tools can use either a two or three-wire extension cord.
  2. As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage. (See Table A.)
  3. The smaller the gauge number of the wire, the greater the capacity of the cord. For example, a 14 gauge cord can carry a higher current than a 16 gauge cord. (See Table A.)
  4. When using more than one extension cord to make up the total length, make sure each cord contains at least the minimum wire size required. (See Table A.)
  5. If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum cord size. (See Table A.)
  6. If you are using an extension cord outdoors, make sure it is marked with the suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.
  7. Make sure the extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified electrician before using it.
  8. Protect the extension cords from sharp objects, excessive heat, and damp or wet areas.
TABLE A: RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE AMPERES (at full load)EXTENSION CORD LENGTH
25″50″75″100″15W
0 — 2.01818181816
2.1 — 3.41818181614
3.5 — 5.01818161412
5.1 — 7.01816141212
7.1 — 12.018141210
12.1 — 16.0141210
16.1 — 20.01210
* Based on limiting the line voltage drop to five volts at 150% of the rated amperes.

Warning Symbols and Definitions

warning 4This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.

EQK DDR2599E 25 PINTS Dehumidifier - deangerIndicates a hazardous situation that, if not avoided, will result in death or serious injury.

EQK DDR2599E 25 PINTS Dehumidifier - warning1Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

SKIL JS820301 20V 7 8 Inch Stroke Length Orbital Jigsaw - icon 12Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE Addresses practices not related to personal injury.

Symbology

Double insulation

Double Insulated

V

Volts

Alternating Current

A

Amperes

n0 xxxx/min.

No Load Revolutions per Minute (RPM)
Wear safety goggles icon cautionWARNING marking concerning Risk of Eye Injury. Wear ANSI-approved safety goggles with side shields.

Danger icon

Read the manual before set-up and/or use.

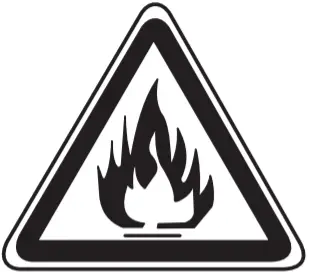

Flammable Warning Icon

WARNING marking concerning Risk of Fire.

Do not cover ventilation ducts.
Keep flammable objects away.

Electric Warning Icon

WARNING marking concerning Risk of Electric Shock.
Properly connect the power cord to the appropriate outlet.
Wear ear-muff s icon cautionWARNING marking concerning Risk of Hearing Loss.
Wear hearing protection.

Specifications

Electrical Rating120VAC / 60Hz / 10A
Bit Type3/4″ (18mm) SDS-Max Type
Bits1 Bull Point Bit
1 Flat Bit

Functional Description

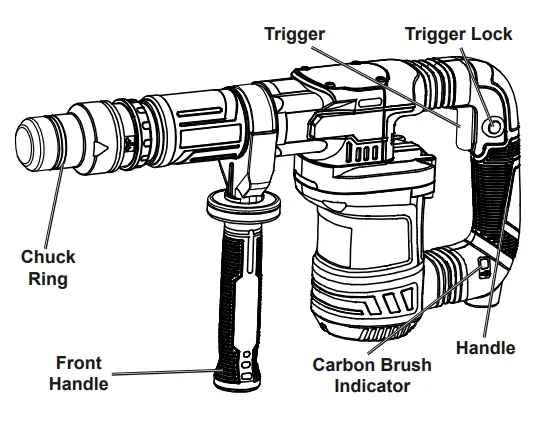

HERCULES HCE33 12 lb SDS Max Type Demolition Hammer - Functional Description

OPERATION

warning 4Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of
this product.

Tool Set Up

warning 4 WARNING

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Make sure that the Trigger is in the off position and unplug the tool from its electrical outlet before performing any procedure in this section.

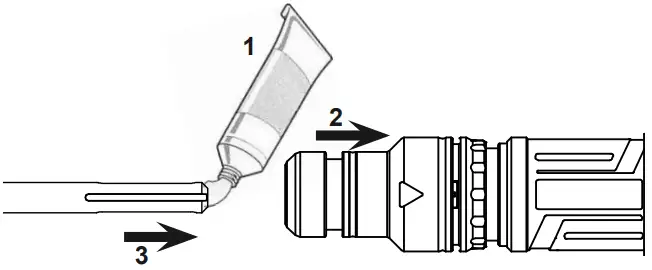

  1. Clean the loading end of the Bit to remove any debris, then lubricate the Bit with grease.
  2. Pull the Chuck Ring back and hold it.
  3. Insert the Bit while twisting it.
    HERCULES HCE33 12 lb SDS Max Type Demolition Hammer - Tool Set Up
  4. Release the Chuck Ring. If not, adjust the Bit until the Chuck Ring slides back into place.
  5. Physically check that the Bit is secure before operating. The Bit will have some play, but should not come out when pulled.
  6. To adjust the Front Handle, twist it to loosen it, rotate it as needed, and retighten it securely.

Workpiece and Work Area Set Up

  1. Designate a work area that is clean and well-lit. The work area must not allow access by children or pets to prevent distraction and injury.
  2. Route the power cord along a safe route to reach the work area without creating a tripping hazard or exposing the power cord to possible damage. The power cord must reach the work area with enough extra length to allow free movement while working.
  3. Secure loose workpieces using a vise or clamps (not included) to prevent movement while working.
  4. There must not be objects, such as utility lines, nearby that will present a hazard while working. If working in the ground or on a concrete slab on the earth, call a local utility company to ensure that area is clear of utility lines.
  5.  Protect the power cord from crushing, abrasion, and scraping by broken rock or concrete.
  6. Keep the power cord away from moving machines.

General Operation

warning 4 WARNING

TO PREVENT SERIOUS INJURY: Wear ANSI-approved safety goggles, ear protection, steel-toe boots, and a dust mask during use.
Keep feet clear of Demolition Hammer.
Keep children and animals well clear of the work area.

  1. Check Bit for dullness, cracks, or other damage.
    HERCULES HCE33 12 lb SDS Max Type Demolition Hammer - General OperationCAUTION! Dull tipped bits can cause unnecessary bit movement, resulting in tool wear and possible injury. Use only sharp-tipped bits.
  2.  Clearly mark the work area.
  3.  Make sure that the Trigger is in the off position, then plug the tool in.
  4. Set the bit against the work area.
    CAUTION! Keep the power cord away from moving machines.
  5. Place one hand on the Front Handle and the other hand around the Handle.
  6.  Press the upper part of the Trigger to start the tool.
    Note: Trigger will lock on. Press the lower part of the Trigger to turn the tool off.
  7. Push the tip forcibly down to begin striking the material.
    NOTICE: A running tool with no load or “empty blows” will damage the Demolition Hammer.
    CAUTION! Once activated, do not bear down, or thrust forcibly against the work surface.
    Note: If the Demolition Hammer has not been used for a long time or is being used in low temperatures, the tool may require 3-5 minutes to warm up.
    NOTE: Carbon Brushes will wear during use. The Carbon brush Indicator will light if the brushes are worn. If the Carbon Brush Indicator lights, the worn Brushes will need to be replaced with the included Brushes by a qualified technician.
    Note: During extended operation, periodically remove the bit and re-lubricate the loading end with grease.
  8. If a different speed setting is needed, press the lower part of the Trigger, allow the tool to stop, and adjust the Speed Knob.
  9. When work is complete, press the lower part of the Trigger to turn the tool off.
  10. To prevent accidents, turn off the tool and disconnect its power supply after use.
  11.  Clean, then store the tool indoors out of children’s reach.

MAINTENANCE AND SERVICING

warning 4Procedures not specifically explained in this manual must be performed only by a qualified technician.

warning 4 WARNING

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Make sure that the Trigger is in the off position and unplug the tool from its electrical outlet before performing any procedure in this section.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment.
If abnormal noise or vibration occurs, have the problem corrected before further use.

Cleaning, Maintenance, and Lubrication

  1. BEFORE EACH USE, inspect the general condition of the tool. Check for:
    • loose hardware
    • misalignment or binding of moving parts
    • cracked or broken parts
    • damaged electrical wiring
    • any other condition that may affect its safe operation.
  2. AFTER USE, wipe the external surfaces of the tool with a clean cloth.
  3.  Store in temperatures no lower than 50-60°F.
    NOTE: The Demolition Hammer has airtight construction, allowing long periods of use (approximately six months of regular usage) before lubrication.

Troubleshooting

ProblemPossible CausesLikely Solutions
Tool will not start.1. Cord not connected.
2. No power at outlet.
3. Tool’s thermal reset breaker tripped (if equipped).
4. Internal damage or wear. (Carbon brushes or Trigger, for example.)
1. Check that cord is plugged in.
2. Check power at outlet. If the outlet is unpowered, turn off the tool and check the circuit breaker.   If the breaker is tripped, make sure the circuit is at the right capacity for the tool and the circuit has no other loads.
3. Turn off the tool and allow it to cool. Press the reset button on the tool.
4. Have a technician service tool.
Tool operates slowly.Extension cord too long or wire size too small.Eliminate the use of extension cord. If an extension cord is needed, use a shorter/heavier gauge cord. See Extension Cords in the GROUNDING section.
Performance decreases over time.1. Bit dull or damaged.
2. Internal lubrication cold.
3. Carbon brushes worn or damaged.
1. Keep cutting bits sharp. Replace as needed.
2. Allow the tool to operate with no load for 5 minutes before use.
3. Have qualified technicians replace brushes.
Excessive noise or rattling.Internal damage or wear. (Carbon brushes or bearings, for example.)Have technician service tool.
Overheating.1. Forcing tool to work too fast.
2. Bit dull or damaged.
3. Blocked motor housing vents.
4. Motor being strained by a long or small diameter extension cord.

1. Allow the tool to work at its own rate.
2. Keep cutting bits sharp. Replace as needed.
3. Wear ANSI-approved safety goggles and NIOSH-approved dust mask/respirator while blowing dust out of the motor using compressed air.
4. Eliminate the use of extension cord. If an extension cord is needed, use one with the proper diameter for its length and load. See Extension Cords in the GROUNDING section.

warning 4 Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power supply before service.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATE THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Record Product’s Serial Number Here:

Note: If the product has no serial number, record the month and year of purchase instead.

Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts.

PARTS LIST AND DIAGRAM

Parts List

PartDescriptionQty
1Hammer Rod Protector1
2Ø28 Retaining Ring1
3Move Limited Ring1
4Chuck Ring1
5Flex Spring1
6Ø32 Retaining Ring1
7Plum Blossom Chuck1
8Move Limited Ring1
9Cover1
10SØ6 Steel Ball4
11Front Cover1
12O Ring Ø27.5ר21
13Lock Bit Bead2
14Hammer Bit Sheath1
15Impact Hammer1
16Hammer Ring1
17Impact Piston1
18O Ring Ø23.2×3.51
19Cylinder1
20Cylinder Cover1
21Hex Socket Bolt M6×25(12.9)8
22Ø6ר10.5 Flat Washer4
23O Ring Ø44ר2.21
24O Ring Ø22ר41
25O Ring Ø24ר1.81
26Gas Press Piston1
27Piston Pin Ø8×261
28Connecting Rod Asm.1
29M4×12 Hex Socket Bolt4
30Oil Tank Cover1
31O Ring Ø55ר2.51
32Crank Shaft1
334×12 Key1
34Ø47 Retaining Ring1
356303 RS Ball Bearing1
36O Ring Ø46.5ר21
37Oil Seal Ring Ø17ר30×61
38Gearbox1
39Gear1
406001 RS Ball Bearing1
41Inner Cover1
42Ø5 Spring Washer4
43M5×16 Hex Socket Bolt4
44Ø5×14 Pin1
45Seal Ring1
46O Ring Ø31.5XØ21
476201 RS Ball Bearing1
48Armature1
49Armature Insulation Washer1
50608ZT CW Ball Bearing1
51ST4.8×65 Screw2
53Stator1
54Fan Guide1
55Housing Asm.1
56Ø6 Spring Washer4
57Carbon Brush Wire2
58Carbon Brush2
59Coil Spring2
60Screw ST3.5×124
61Fan Cover1
62ST4.2×16 Screw8
63Bottom Support Seat1
64Bottom Shock Absorption Jacket1
65Main Handle1
66Top Support Seat1
67Hex Socket Bolt M5×122
68Top Shock Absorption Jacket1
69Shock Absorption Spring1
70Shock Absorption Pivot1
71Washer2
72M6×14 Hex Socket Bolt2
73Trigger1
74ST5.5×25 Machine Screw1
75Main Handle Cover1
76Screw ST5.5×381
79Indicator Subassembly1
80Carbon Brush Indicator1
81Cord Clip1
82Cord Armor1
83Cord1
84Side Handle Asm. Steel Tie1
85Ø5×23 Spring Column Pin1
86Abnormity Bolt1
87Front Handle Asm. Base1
88Front Handle Asm. Cover1
89Front Handle Asm.1
90Grease Tube1
92Front Cover Washer 2mm1
93Woolen Washer Ø7.2×71
94Woolen Ring Ø17×4.51
95O Ring Ø31xØ5.251
96Rubber Cushion1
97Seal Ø15.5xØ23.2×3.32

Assembly Diagram

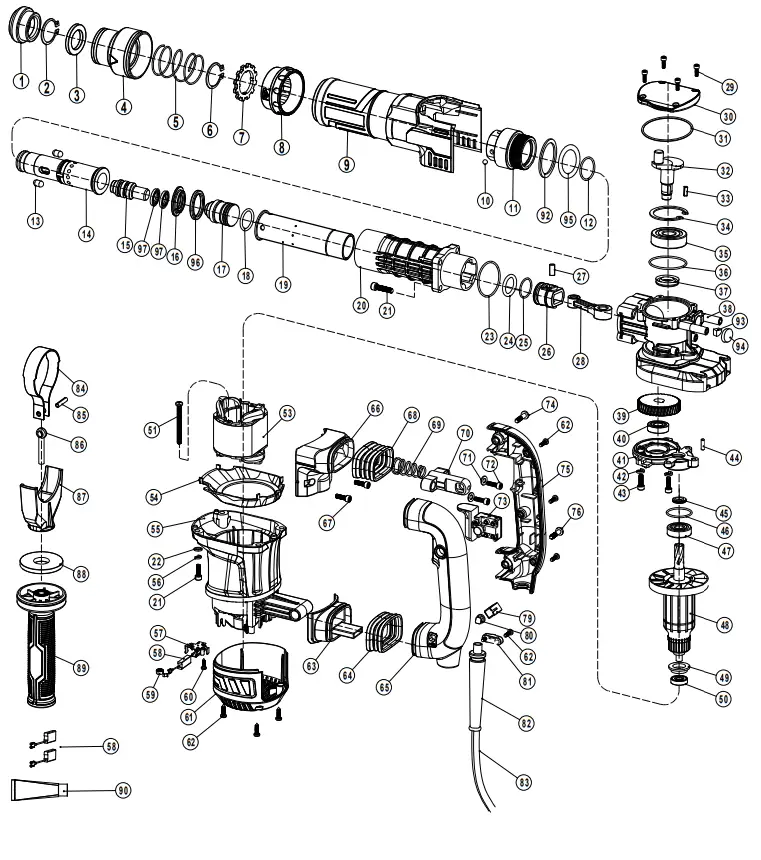

HERCULES HCE33 12 lb SDS Max Type Demolition Hammer - Assembly Diagram

LIMITED 90 DAYS WARRANTY

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
For technical questions, please call 1-888-866-5797

©Copyright 2019 by Harbor Freight Tools®.
All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, the actual product may differ slightly from the
product described herein. Tools required for assembly and service may not be included.
HERCULES logo26541 Agoura Road
Calabasas, CA 91302
1-888-866-5797

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
