PALMER FIXTURE COMPANY HD0961-17 Storm Rider Hand Dryer User Manual
Operating Instructions and Parts Manual (Automatic)

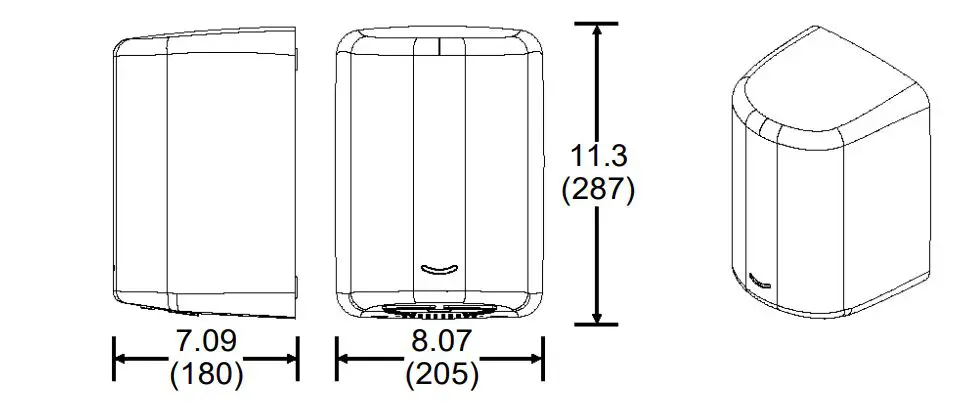

Surface Mount
Unit Size: (inch) mm

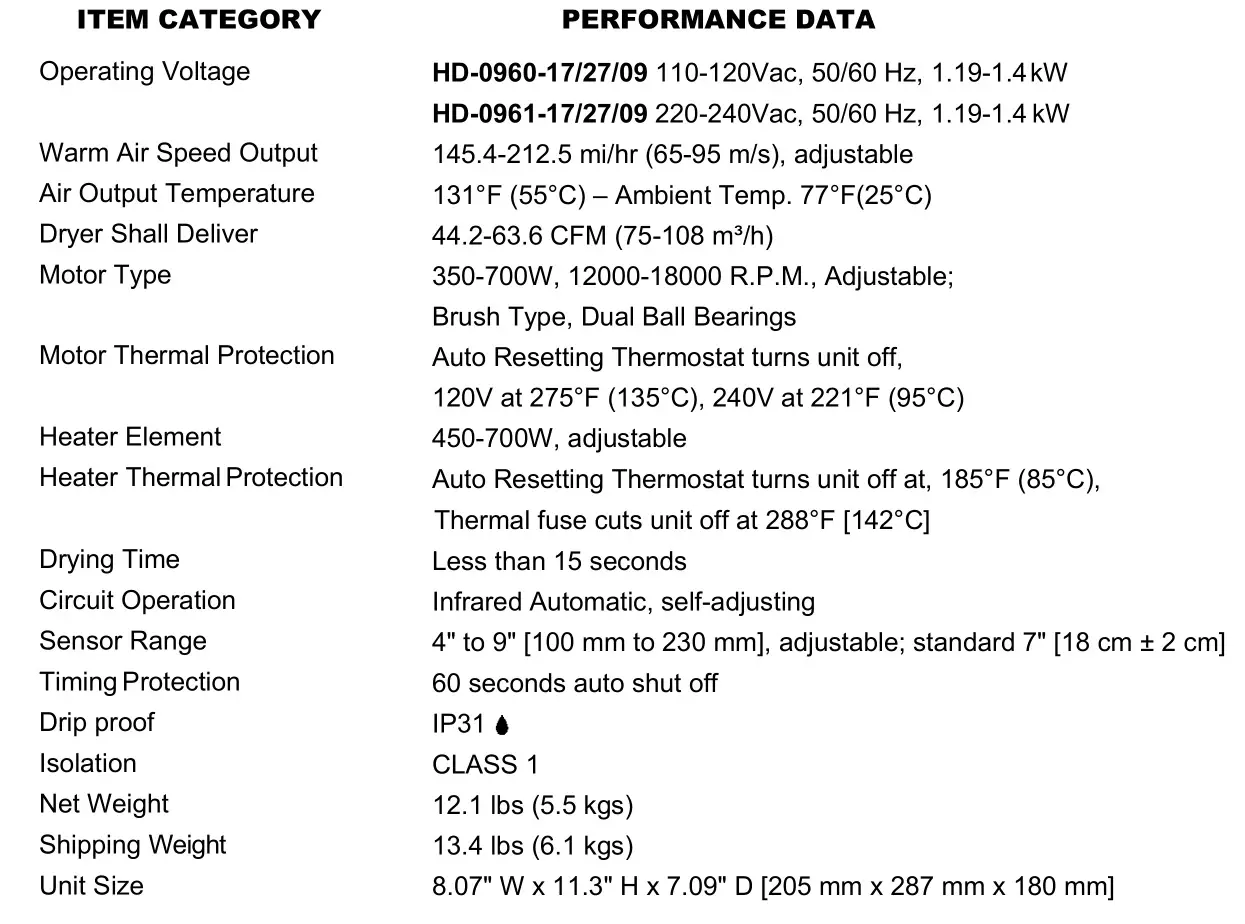

TECHNICAL SPECIFICATIONS
COVER TYPE/ COVER FINISH
HD-0960/0961-17 – Steel; White porcelain enameled coating. (t:1.6 mm)
HD-0960/0961-27 – Steel; Matte Black porcelain enameled coating. (t:1.6 mm)
HD-0960/0961-09 – Stainless Steel; Satin finish. (t:1.5 mm)
General safety information
This product is intended for installation by a qualified service person. Use 2.0 mm²(AWG NO.14) solid conductor for wiring.
Disconnect power at the service breaker before installing or servicing. Full pole disconnection device must be incorporated in the fixed wiring in accordance with the wiring rules.
Failure to properly ground unit could result in severe electrical shock and/or death.
All units must be supplied with a 3-wire service. The ground wire must be connected to the dryer’s backplate.
NOTE: We do not recommend installing this dryer above a basin. If you are installing this dryer above a basin, please make sure that reflection won’t occur.
【Type Y attachment】
If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified person in order to avoid a hazard. Disconnect the fixed wiring only in accordance with the wiring rules.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

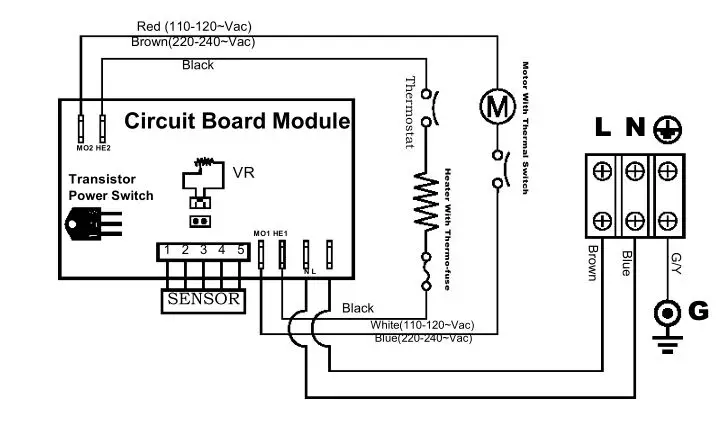

Circuit Diagram
Installation
- Make sure power supply breaker is switched off. Installation must be carried out in accordance with the current edition of the local wiring regulations code having jurisdiction. Installation should be performed only by a qualified electrician.
- Place template against wall at desired height (see mounting height recommendations) and mark locations of 4 mounting holes and wire service entry at knockout (KO) location.
Note: For two or more dryers, dryers should be no closer than 24 inches (610 mm) on center.

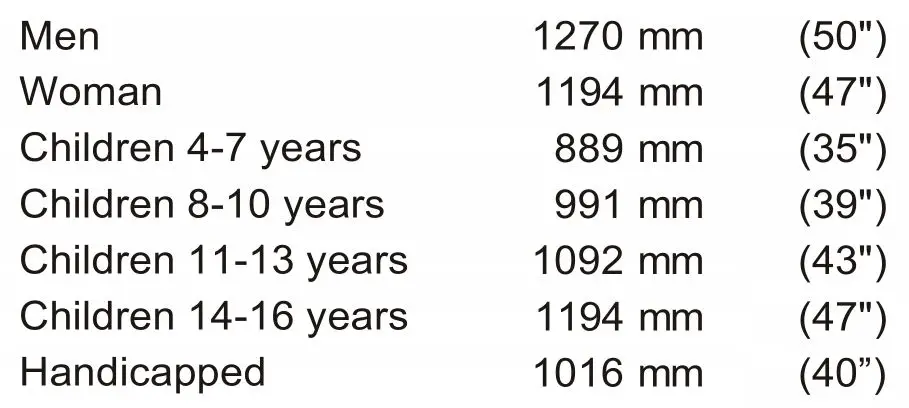

Recommended mounting heights
– from bottom edge of dryer above finished floor (AFF)
Operation
- No-touch operation.
- Shake excess water from hands.
- Place hands under the outlet to start operation.
- Rub hands lightly and rapidly.
- Stops automatically after hands are removed.
Cleaning and Maintenance
Periodic cleaning of the unit is recommended to ensure optimum performance.
- Disconnect the electrical supply.
- Remove the two cover-mounting screws.
- Remove the cover.
- Clean all dust lint from the interior of the dryer.
- Do not flush with water.
- Wipe the cover with a damp cloth and mild cleaning solution. Do not Soak. Never use abrasives to clean the cover.
- Replace the cover. Do not over tighten the screws.

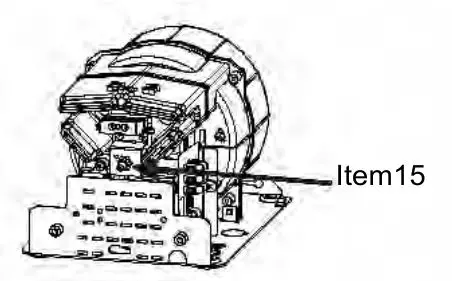

Warm air speed adjustment
- Switch off the power, loosen the cover screws and remove the cover.
- Use small Philips head screwdriver or plastic flat blade probe to turn VR shaft. Turn it gently clock-wise [CW] to increase power to maximum (+)
, [CCW] to reduce power as required(-)
. - Note that at minimum power the unit may not start if low line Voltage condition exists.
, [CCW] to reduce power as required(-)

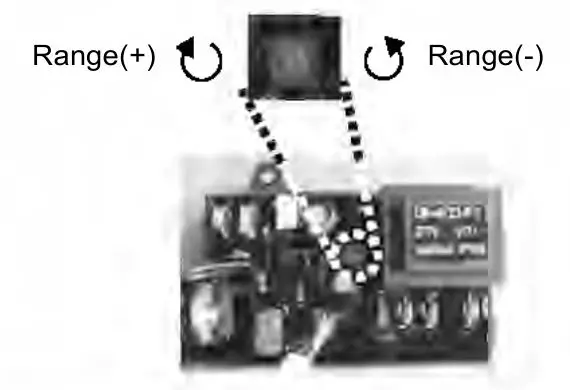

.Sensor range adjustment
- The ranger is 4″ to 9″ [100 mm to 230 mm], Standard 7″ [180 mm ± 20 mm].
- Clockwise: Lengthen the sensing range(+)
- Counterclockwise: Shorten the sensing range(-)
- DO NOT OVERTURN !

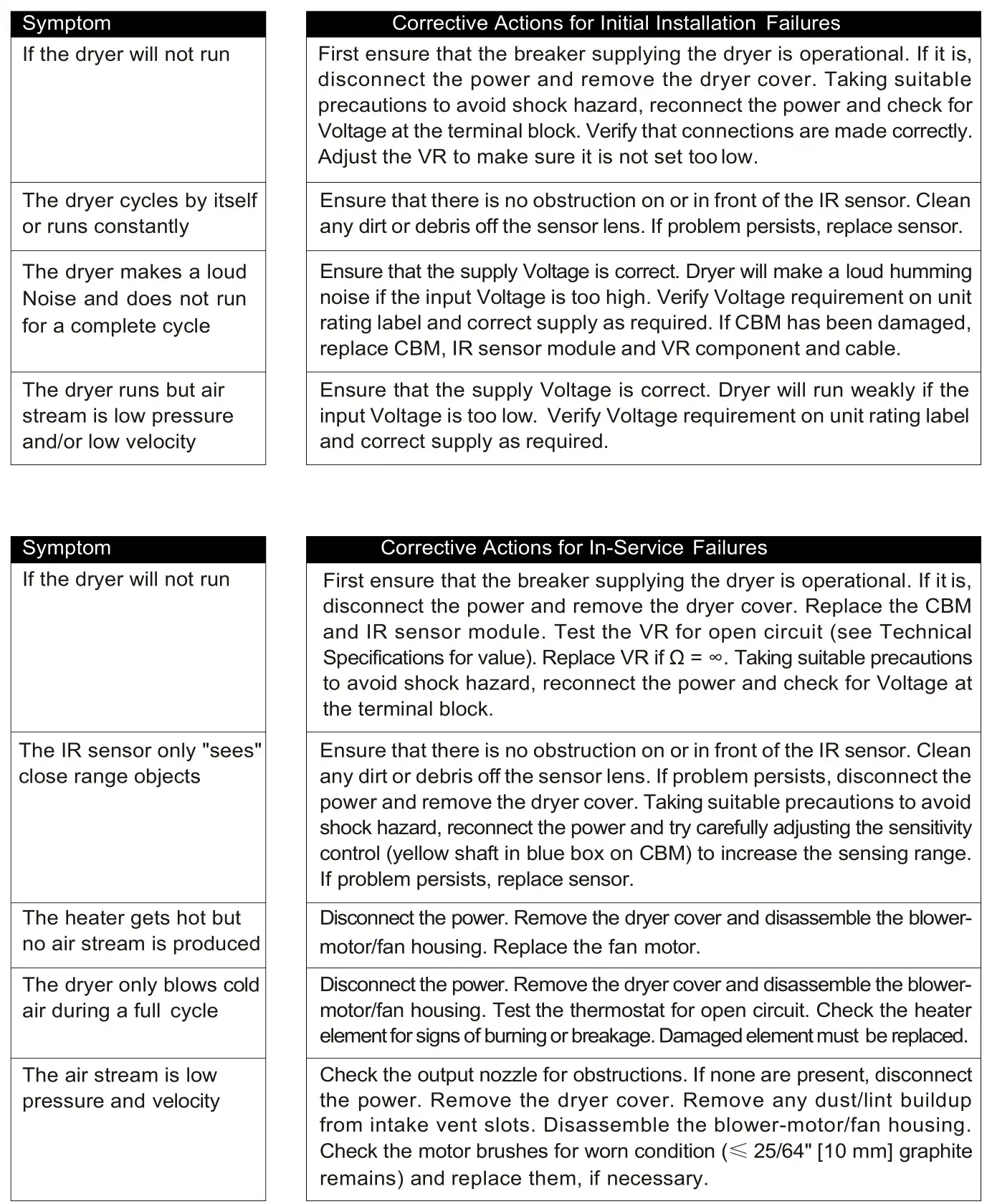

Diagnostics and Remedies

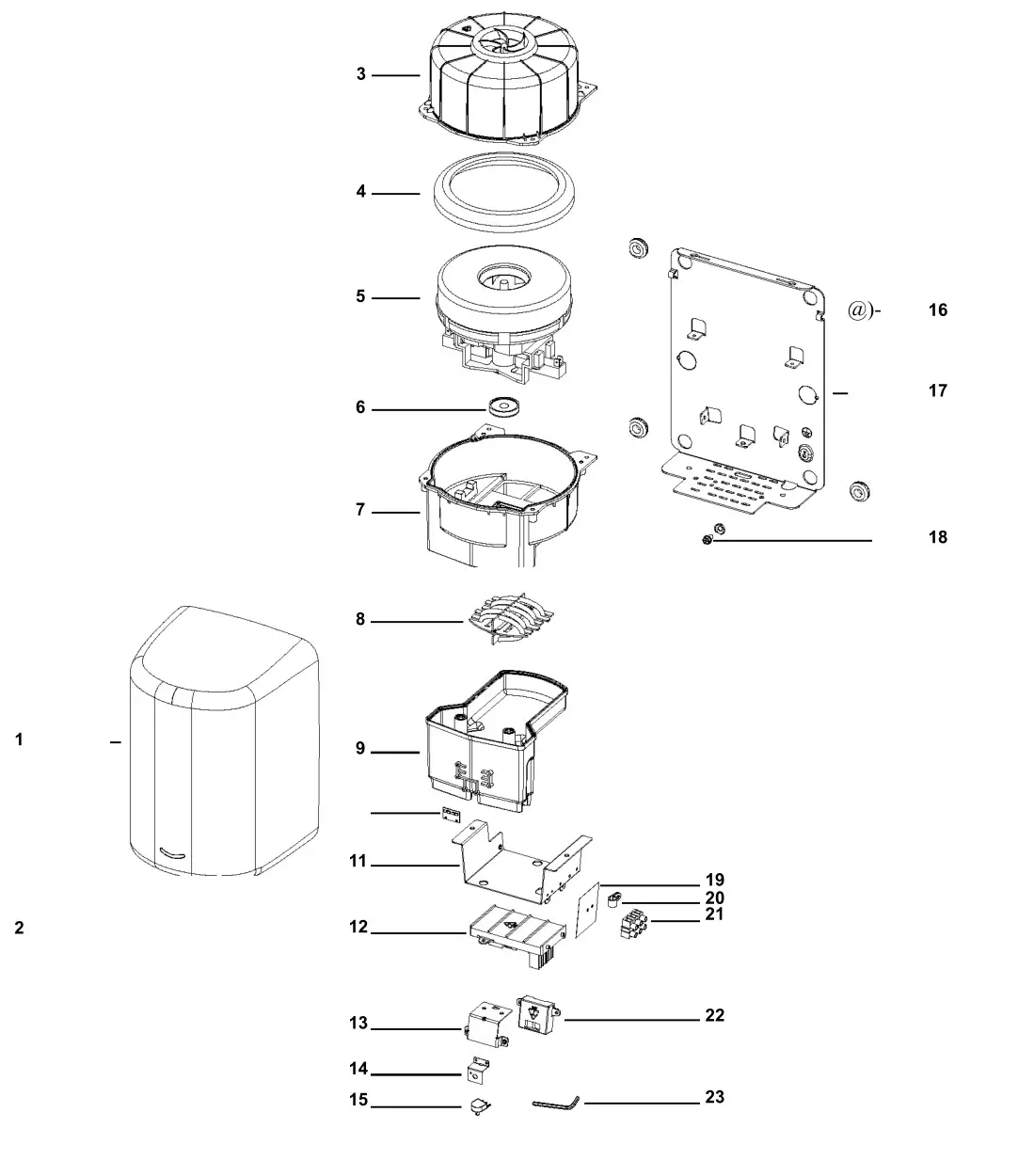

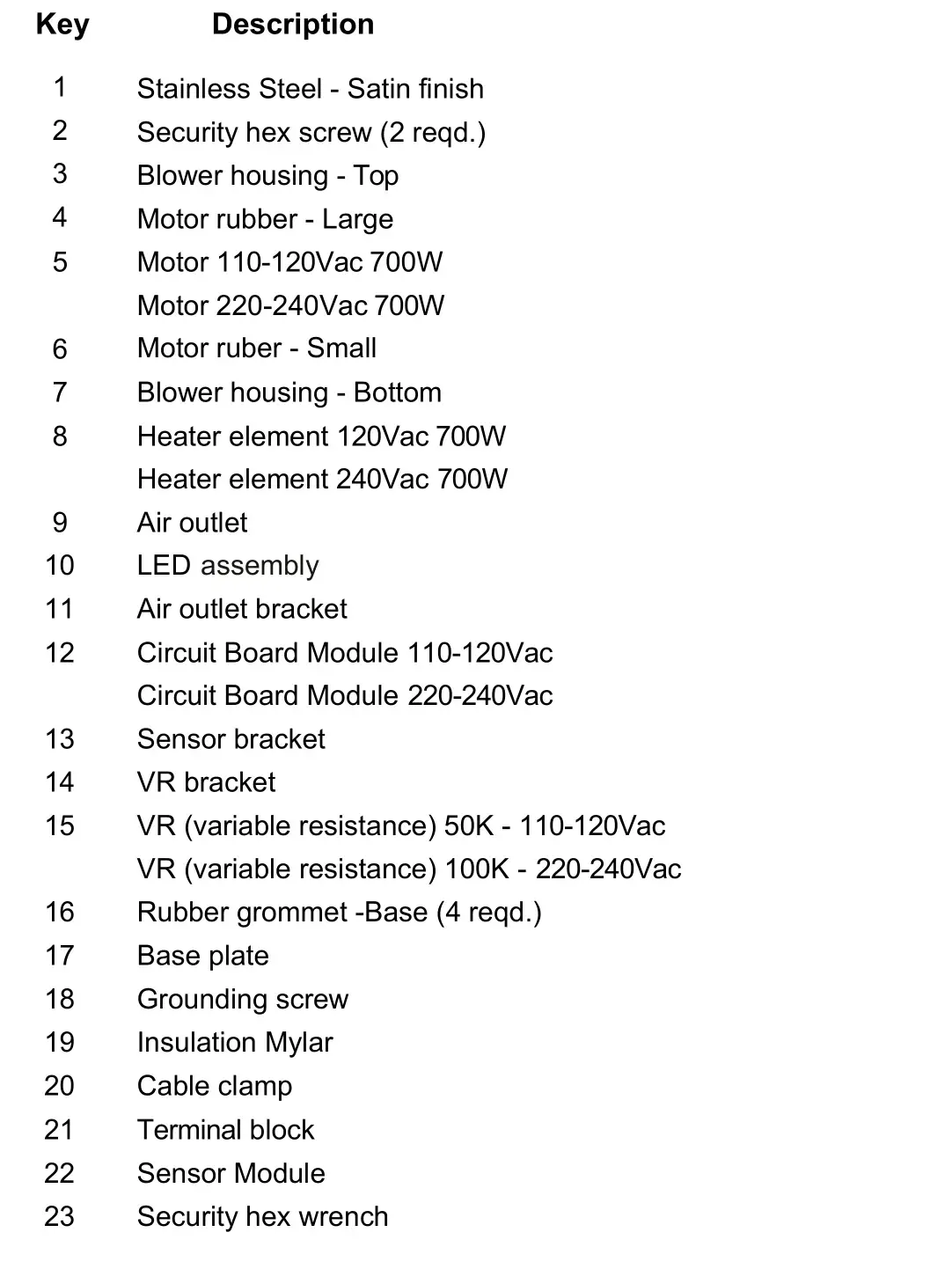

Repair parts list
