1473500-2 Sundae Three-Piece Bathroom Accessory Set
Instruction Manual
1473500-2 Sundae Three-Piece Bathroom Accessory Set
Record your model number:………………………
 |  |
CAUTION: Risk of personal injury. Do not install where the product might be used as a grab bar or support bar.
IMPORTANT! When possible, secure the product to a wall stud.

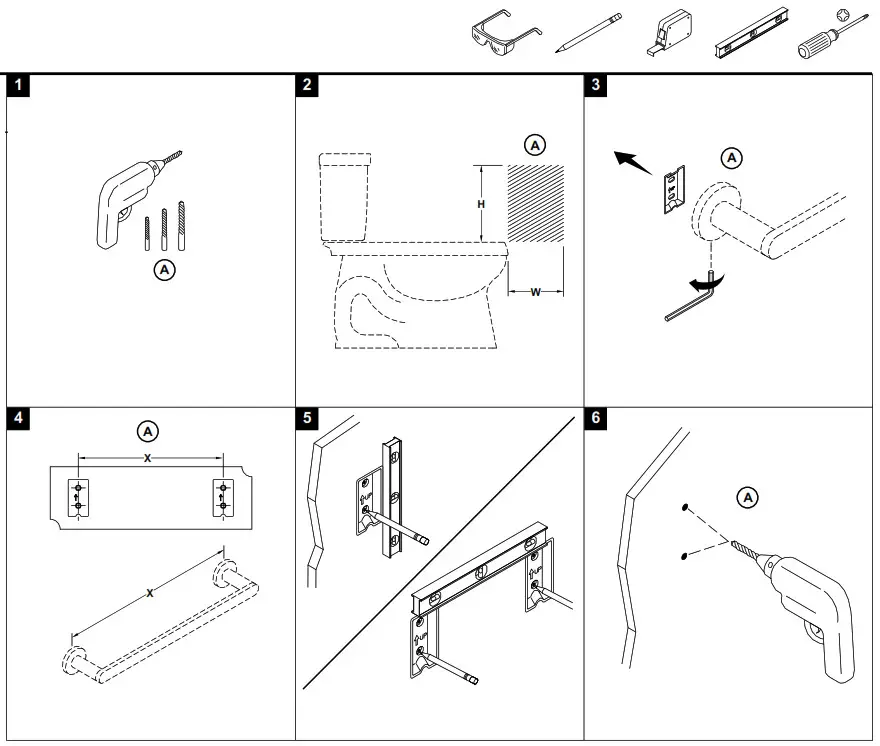

1A. Drill Bits: 1/8″, 1/4″, 5/16″
2A. Recommended Tissue Holder Location: H = 8″ (203 mm) to 12″ (305 mm), W = 6″ (152 mm)
3A. Some Models: Loosen the setscrew and remove the wall plate.
4A. Two-Post Accessory: Verify that “X” on the template matches your product dimension.
6A. For installation to a stud, drill 1/8″ holes. For installation to drywall, drill 5/16″ holes. For installation to ceramic tile, drill 1/4″ holes.

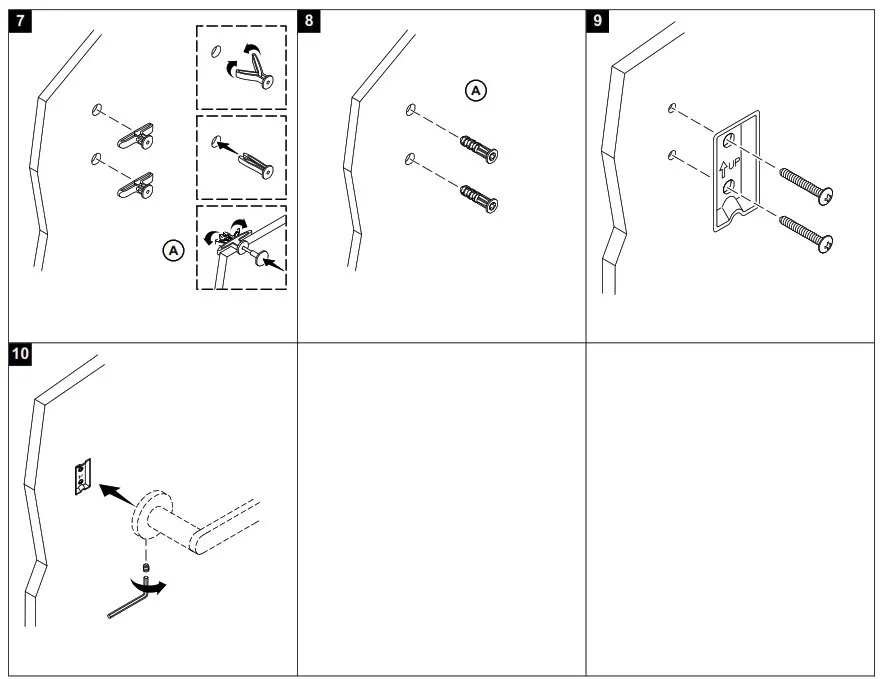

7A. Installation Between Studs: Use the provided pin to install the drywall anchors.
8A. Installation to Concrete or Tile: Install ceramic anchors.
Need help? Contact our Customer Care Center.
- USA/Canada: 1-800-4KOHLER (1-800-456-4537), Mexico: 001-800-456-4537
- For service parts, visit kohler.com/serviceparts.
- For care and cleaning, visit kohler.com/clean.
This product is covered under the KOHLER® Faucet Lifetime Limited Warranty, found at kohler.com/warranty. For a hardcopy of warranty terms, contact the Customer Care Center.
1473500-2-B
