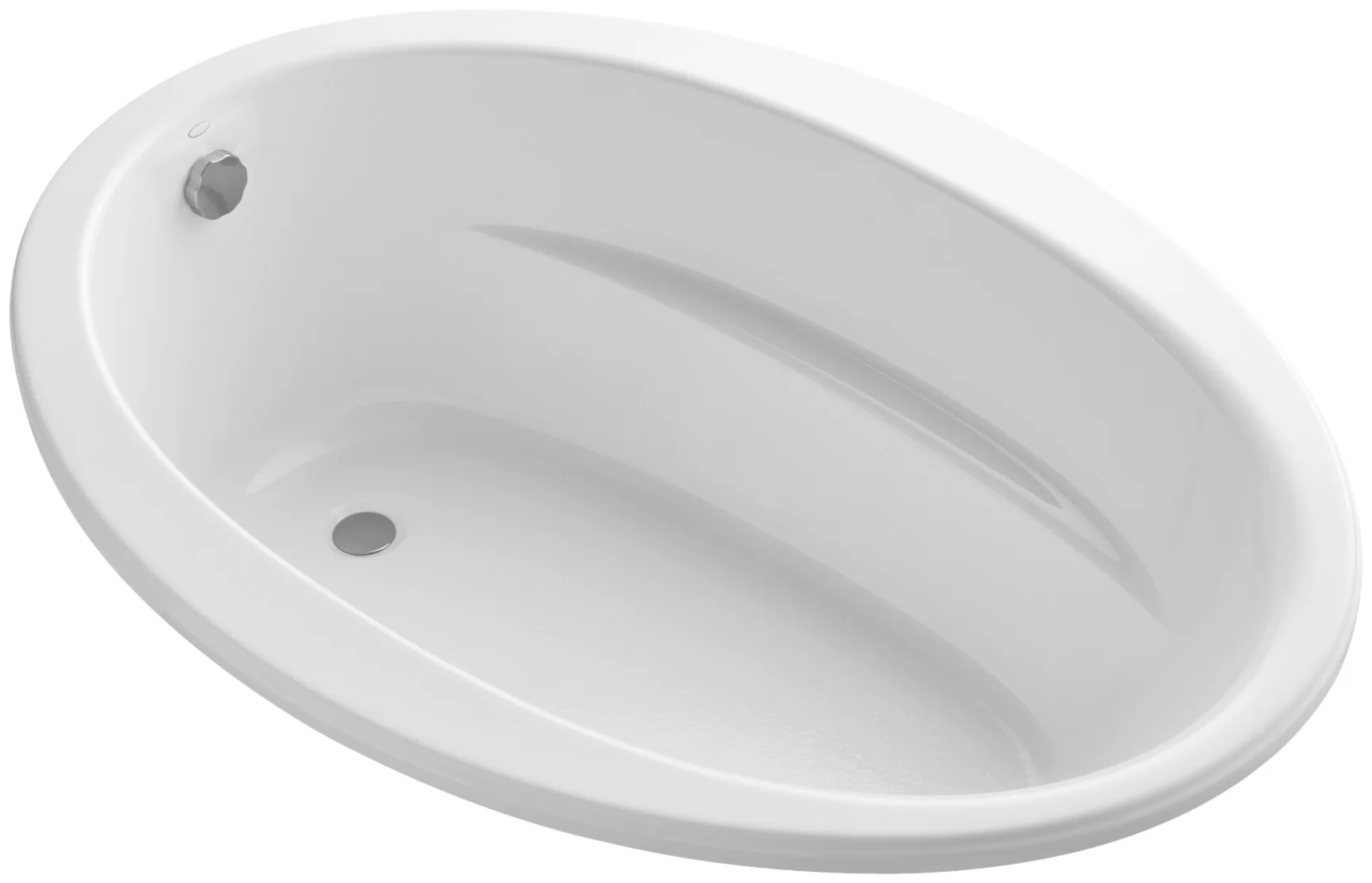

KOHLER K-1163-S1 Sunward 60 x 42 Inch Drop-in Bath

Features

• Oval basin creates a spacious bathing experience.
• Integral lumbar support and armrests offer extra comfort while bathing.
• Textured bottom surface.

Material

• Acrylic.

Installation

• Reversible drain.
• Drop-in.

Recommended Products/Accessories

• K-576 Undermount installation kit for K-1162/K-1163 baths
• K-1491 Bath/Whirlpool Pillow
• K-1601 Bath/whirlpool footstop, removable
• K-11677 Bath Drain
• K-24916 Wireless Music Kit
• K-23726 Drain treatment
• K-23732 Tub & shower cleaner

Codes/Standards

• CSA B45.5/IAPMO Z124

KOHLER® Plastic Baths and Receptors Lifetime Limited Warranty

See website for detailed warranty information.

Available Colors/Finishes
Color tiles intended for reference only.

Color  Code   Description

• 0 White
• 96 Biscuit
• G9 Sandbar

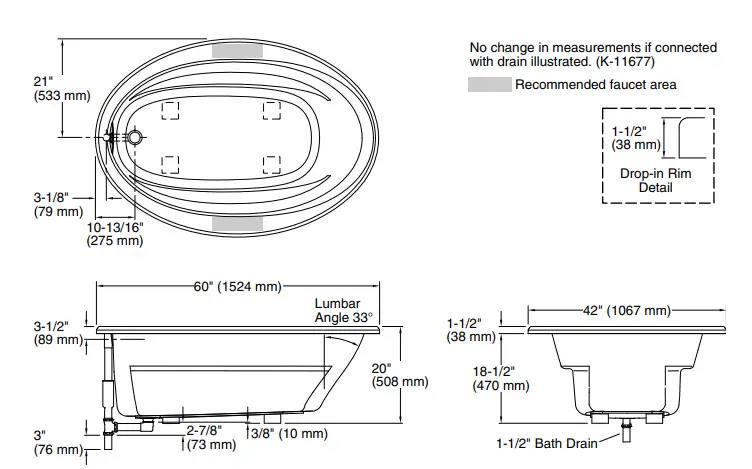

Technical Information

All product dimensions are nominal.

• Installation: Drop-in
• Drain location: End
• Basin area, bottom: 43″ x 21-9/16″ (1092 mm x 548 mm)
• Basin area, top: 53-1/2″ x 32-1/8″ (1359 mm x 816 mm)
• Weight: 75 lbs (34 kg)
• Minimum floor load: 33 lbs/ft² (161.1 kg/m²)
• Water depth: 15″ (381 mm)
• Water capacity: 57 gal (215.8 L)
• Template: Drop-in, 1042556-7, required, included

Notes

• Measure your actual product for rough-in details.
• Install this product according to the installation instructions.
• The hot water supply should be 70% of the capacity of the bath or greater. Installations will vary.
• If installing a rim-mount faucet, make sure there is no interference above or below the deck before drilling any holes.

1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.kohler.com.
5-6-2022 23:03 – US/CA
