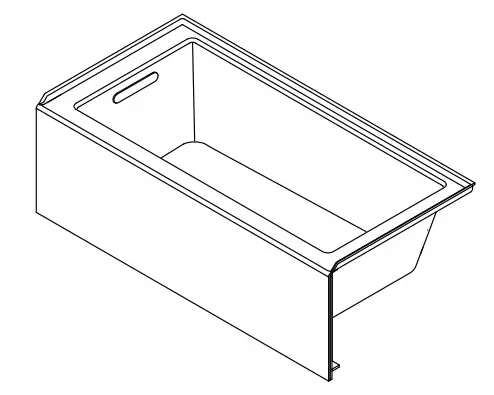

KOHLER K-20201-LA Underscore 60 x 30 Inch Alcove Bath
Features
- Convenient 19″ step-over height retains the same depth as a standard 21″ bath
- Integral lumbar support
- Slotted overflow allows for deep soaking
- Integral apron creates a clean, finished look

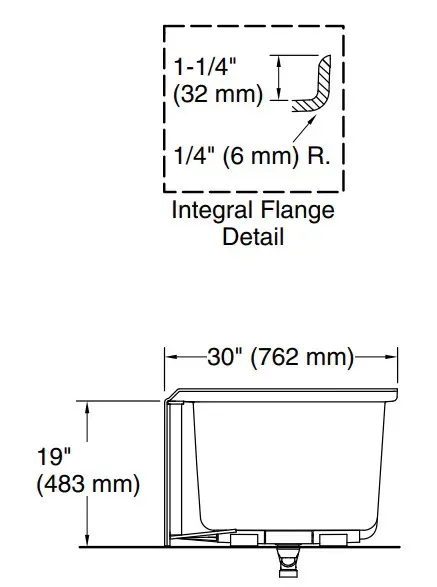

- Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
- Textured bottom surface
Material
- Acrylic
Installation
- Left drain
- Requires K-7271 or K-7272 Clearflo slotted overflow bath drain (sold separately)
- Alcove
Required Products/Accessories
- K-7271 Brass Slotted Overflow Bath Drain
- K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
- K-23726 Drain treatment
- K-23732 Tub & shower cleaner
- K-31797 Slotted overflow bath drain kit
- K-31795 Slotted overflow above-the-floor bath drain kit
Codes/Standards
- CSA B45.5/IAPMO Z124
- ASTM E162
- ASTM E662
- ADA
KOHLER® Plastic Baths and Receptors Lifetime Limited Warranty See website for detailed warranty information.
Available Colors/Finishes Color tiles intended for reference only.
Color Code Description gray 0 White

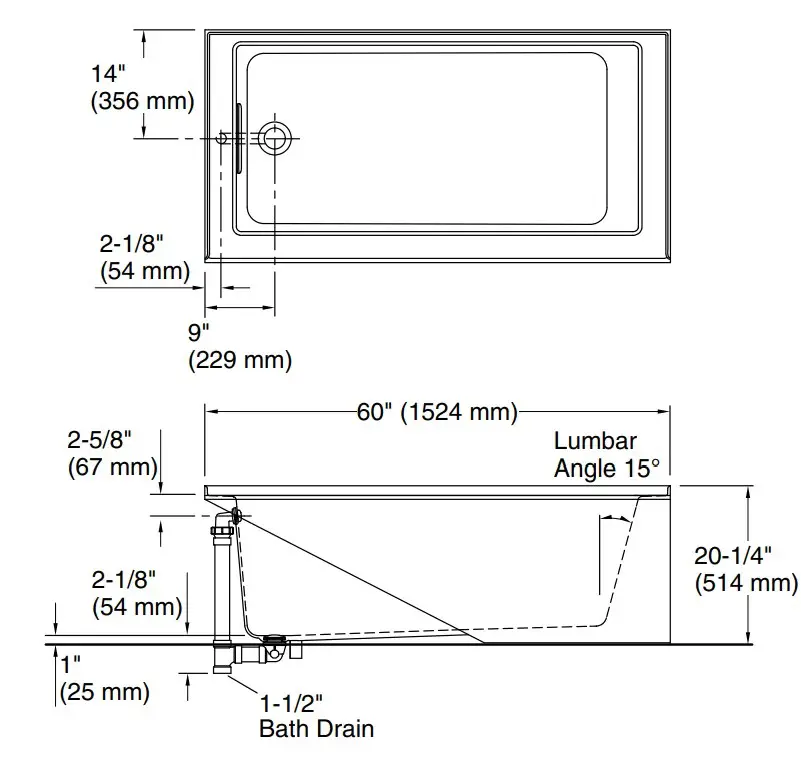

No change in measurements if connected with drain illustrated. (K-7272)
Technical Information
All product dimensions are nominal.
- Installation: Three-wall alcove
- Drain location: Left
- Basin area, bottom: 46-1/4″ x 22″ (1175 mm x 559 mm)
- Basin area, top: 52″ x 24″ (1321 mm x 610 mm)
- Weight: 100 lbs (45.4 kg)
- Minimum floor load: 56 lbs/ft² (273.4 kg/m²)
- Water depth: 15-1/2″ (394 mm)
- Water capacity: 68 gal (257.4 L)
- Minimum flat for door: 2-3/4″ (70 mm)
Notes Measure your actual product for rough-in details. Install this product according to the installation instructions. The hot water supply should be 70% of the capacity of the bath or greater. Installations will vary. ADA compliant when installed to the specific requirements of these regulations.
