22PTE Shoulder Electric Sprayer
User Manual

CAUTION: READ THE USER MANUAL CAREFULLY FIRST BEFORE USE

SAFETY SYMBOLS

	Read through the instruction manual carefully.		Do not leave the machine close to heat sources
	Wear protective gloves.		Do not leave the machine exposed to frost.
	Use body protection.		Use the machine only between +1°C and +40°C.
	Use respiratory protection		The minimum distance between the machine and other people is 3m.
	Wear eye protection.		“CE” marking. See EC declaration of conformity.
	Do not spray toward people or animals.		Don’t dispose of the battery in the fire where it will explode
	Do not use with solvents, oils, or flammable products		Don’t disassemble the battery
	Do not place domestic waste		Li-on battery. Don’t dispose of household waste

INTRODUCTION

Our congratulation on the choice made. The main features of our electric sprayers are the high quality of their parts and their long-lasting lifetime. They have been studied to resist any weather condition and they guarantee maximum efficacy with the lowest power waste. Like all our other products this sprayer went through accurate and precise tests;  if it is used according to the instructions below, it will meet your needs for many years and a very reliable spare-parts service will give you the possibility to make repairs with original parts for a long time.

HANDBOOK DESCRIPTION

INTRODUCTION
Please kindly study very carefully this instruction handbook before any setting, use, maintenance or any other imaginable operation of/on the sprayer.
Correct use of the sprayer and effective and rational maintenance allows you to keep the sprayer in the best working conditions without reducing its efficacy and safety.
The present instruction handbook was drawn up in conformity with the indications included in ENCLOSURE I of the MACHINERY DIRECTIVE 2006/42/CE” and is considered an integral and essential part of the sprayer.
This handbook must be kept close to the sprayer and ready for consultation; it must be kept together with the sprayer during its whole lifetime, from the starting test until the final dismantling.

PURPOSES AND LIMITS OF THE HANDBOOK
This manual is intended for the use of:

• Describe the operation and conditions for use of the sprayer.
• Show the main technical features of the sprayer.
• Provide the correct instructions for use.
• Underline the potential risks and/or possible dangerous situations.
• Provide instructions for maintenance and repair.
• Enable understanding of possible operational problems and how to solve them.
• Provide instructions for completing the audit log.

On the contrary, in no case, this handbook shall replace the appropriate experience that the users have already achieved on similar sprayers or that they can achieve with this one under the good guidance of experienced trainers. Neither can it replace the attention of the same operator who must always consider the potential risks and/or possible dangerous situations.
In addition to the observance of the instructions contained in this handbook, the use of the sprayer depends on the respect of all the safety rules in force.

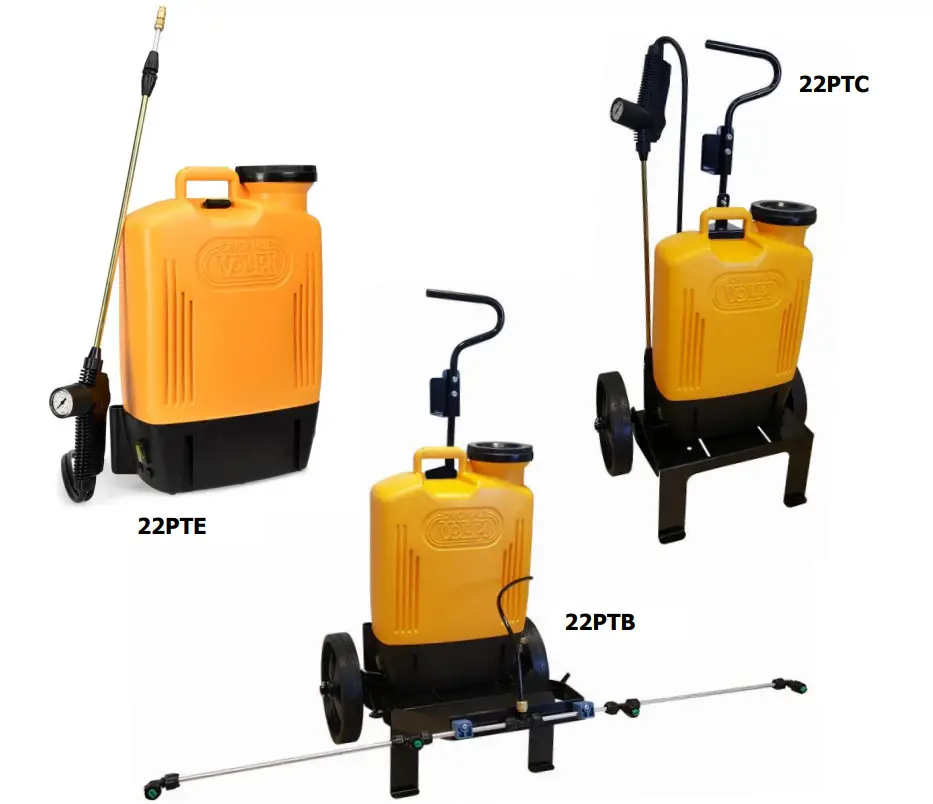

SPRAYER DESCRIPTION

TECHNICAL FEATURES
The Sprayer “ELETTROLITHIUM” was produced for dispensing liquid solutions avoiding temperatures that exceed 40°C.

ALLOWED ENVIRONMENTAL CONDITIONS
The environmental conditions where the sprayer can work are Temperature: 5÷40° C; Humidity: 0÷70% (not condensed). It is also necessary to put the sprayer protected from bad weather, sun rays, and cold weather, in a clean and dry place.
WARNING: THE SPRAYER IS NOT SUITABLE TO BE USED IN AN ENVIRONMENT UNDER EXPLOSION RISK CONDITIONS.

NOISE AND VIBRATIONS
The vibrations and noise produce while using the sprayer are largely below the disturbance threshold by law and cannot cause harm to the operator (surface sound pressure level <70dBA; vibration machine <2,5m/s²).

GENERAL INSTRUCTIONS

SAFETY WARNINGS AND CAUTIONS ARE TO BE OBSERVED.
In spite of the adopted cautions, the sprayer may involve dangerous situations and potential risks in the working area. It is necessary to analyze carefully the potential presence of these dangerous situations and risks in order to assure safe working procedures, and appropriate behavior rules and to plan individual protective devices.

• DURING THE USE OF THE SPRAYER, THE OPERATOR MUST FOLLOW SAFE WORKING PROCEDURES AND FOLLOW THE SECURITY RULES AND REGULATIONS.
• Do not use products whose toxicological features are unknown. Use exclusively products authorized by the Public Health Ministry, carefully respecting all the instructions listed on the packaging.
• For children, teenagers, and pregnant women it is strictly forbidden to use the sprayer.
• Do not spray solvents, acids, and inflammable liquids.
• Always wear protective clothes, gloves, and goggles (picture 6) to avoid any contact with harmful and toxic products.
• Carefully avoid breathing fumes or drops of the chemical solution: in case of accidental contact or inhalation call the doctor.
• Do not eat or smoke while using the sprayer.
• Use the sprayer in well airy and illuminated areas, not windy or shady.
• Use the sprayer at least 6mt away from people or animals.
• Keep the sprayer far from children and domestic pets; do not spray close to fish aquariums.
• Do not eat treated fruits or vegetables before the date foreseen by the chemical product manufacturer and, in any case, wash them very carefully.
• Do not pressurize by means of under-pressure devices.
• Do not disperse the remaining chemical solutions in the environment.
• After using the sprayer, carefully wash hands, face, and clothes.
• Do not leave the sprayer out in bad weather conditions.
• The user is responsible for the fact that the sprayer is maintained at optimal operating conditions so the sprayer can function in a proper and safe way. Parts and accessories of the equipment must be replaced when they no longer assure the correct function of the sprayer.

PROHIBITIONS

• It is forbidden to modify the sprayer’s parts.
• It is forbidden to apply devices or accessories to the sprayer without the authorization of DAVIDE E LUIGI VOLPI S.P.A.
• It is forbidden to use solvents, such as alcohol, gasoline solvents or thinner, for the cleaning of the sprayer.

TRANSPORT AND HANDLING INSTRUCTIONS

The transport of the sprayer must be effected using all the necessary cautions in order to avoid damages.
The sprayer must not be placed on or under any other products during transport and storing.
When transporting the sprayer please make sure the switch on/off is always off.
When moving the sprayer it is recommended to avoid bumps that could cause damage to the product.

INSTRUCTIONS FOR USE

SETTING OF THE SPRAYER
Fix the hooks (FE70/1) at the bottom of the shoulder straps (picture 3) (22PTE, 22PTC).
Screw the extension (189TPE) on the handle (22K5) (22PTE, 22PTC).
Check that the status of the battery is good (see Prg. 6.2), this operation which ensures the maximum operation of the sprayer must be done every time you reuse the pump after a period of inactivity.
However, at least every four months of inactivity, the battery must be fully charged (see Prg. 6.2).

FILLING OF THE SPRAYER TANK
Prepare the solution in a specific container.
Unscrew the cap (92/2) of the tank and pour the prepared solution (picture 4) through the filter (78/3).
Carefully screw the cap.
WARNING:
Do not prepare the solution in the sprayer tank but always in a separate container.
Do not ever pour the solution into the tank without the use of the filter.

OPERATION AND POSITIONING OF THE SPRAYER
Link one of the hooks (FE70/1) in its special housing (picture 5) placed in the lower part of the base (98/61), slip one arm in the shoulder strap and put the sprayer on one shoulder, then with the other hand seize the free strap and hook it to the base after passing it over the shoulder. When you put the sprayer away make the opposite operation  (22PTE, 22PTC).
To activate the sprayer first turn on the general switch then turn the handle lever to start the sprayer (22PTE, 22PTC). For sprayer 22PTB, you have to switch it to work directly with the general switch.
WARNING:
Never let the sprayer work when the tank is empty.
This sprayer (22PTE, 22PTC) is supplied with a manual pressure regulator (10/8) and with an adjustable cone nozzle (928) (picture 7). To regulate the pressure variation rotate the handle (fig. 1A) of the regulator; when screwing it tight you get the maximum pressure and by unscrewing it the pressure will be released. The 22PTB sprayer work with a fixed pressure.

OPERATIONS TO BE CARRIED OUT AT TERMINATION OF WORK
When finishing work, pour the remaining liquid into a specific container and carefully rinse the internal of the tank and the hose letting it flow through the lance with clean cold water.
Check that the water used for rinsing has completely come out. Turn off the general on/off switch (0-1) after every use.
In case of long inactivity of the machine, after having cleaned the tank, remove, clean, and put back the filter inside the tank (98/5) and the one in the rear part of the handle.  Wear protective clothing and equipment during these activities.
Clean the handle using a wet rag without dipping it into water.
Clean the sprayer from foreign materials such as deposits or other things which could damage it.
The handle (fig.1A) of the regulator must not be left fully screwed in.

WARNING: Do not disperse the rinsing water or the remaining solution in the environment; it is recommended to pour all these liquids in specific drains, appositive for water purification and drainage.
Switch off the general switch (0-1) after every use.
Keep the sprayer out of reach from children and protected it from sun rays and cold temperatures.

MAINTENANCE

INTRODUCTION
Correct use of the sprayer and regular maintenance is necessary to keep the sprayer in the best working, efficacy and safety conditions.
Use exclusively original spare parts

BATTERY RECHARGE
The sprayer is fed by a hermetic storage battery, rechargeable with the battery charger supplied with the sprayer.
A fuse (10/16) protects the electric motor from eventual overloads and the battery from eventual short-circuits.
In order to handle the battery in a safe way it is necessary to follow the below-listed warnings:

• In case of direct contact with the internal parts of the battery rinse immediately with water and call the doctor in case of direct contact with eyes.
• The danger of explosion if the battery is incorrectly replaced.
• Do not expose the battery to high temperatures, wet conditions or liquids.
• Do not expose the battery to flames: it could explode.
• Do not short circuit.
• Do not try to disassemble/reassemble the battery.
• Keep the battery in a cold and dry place/condition.
• Use only the original battery charger.
• Replace the battery only with the same or similar type, recommended by the manufacturer.
• Dispose of used batteries according to the instructions of the manufacturer.
• Recharge the battery at least every four months if not used for a long time.

WARNING: During the recharge operations, follow safe working procedures and carefully observe the general safety rules.
In order to recharge the battery, follow these instructions:

• Turn off the general switch (0-1)
• Check that the network voltage corresponds to the indication printed on the battery charger plate.
• Connect the battery charger to a suitable and electrically protected current tap.
• Insert the battery-charge plug in its specific socket (98/13) on the side of the machine base.
• The red light on the battery charger means that the battery is charging.
• The green light on the battery charger means that the battery is charged.
• The complete battery recharge takes 7,5 hours.
• At the end of the re-charge, it is recommended to disconnect the battery charger from the power network first and then from the socket on the side of the machine base;
• During long periods of inactivity, it is recommended to verify that the general switch is off.

The battery lifetime mostly depends on the observance of some important rules:

• Do not create a short-circuit.
• Promptly recharge it with the general on/off switch turned off and respect the necessary time of charging.
• For the recharge exclusively use the battery charger supplied with the sprayer.
• Do not turn the sprayer on when the battery charger is connected.
• After the complete recharge keeps the battery between 5 and 40° C.
• In case of long stocking or non-use, recharge the battery every four months.

When the battery is no longer rechargeable it is necessary to replace it with another one with the same sizes and features, respecting the connection polarities; the old battery shall be taken to an authorized collecting point

PROBLEMS – CAUSES – SOLUTIONS

*To release the suction valve it is necessary to put the sprayer on a table, turn it on and push the black button placed on the body of the pump. This operation must be done with a finger going through the hole that you can find under the base of the sprayer.

INSTRUCTIONS FOR DISMANTLEMENT AND DISCHARGING

To dismantle the sprayer, it is necessary to operate according to rules conforming to laws in force, if necessary, specialized companies in the discarding of materials.
The sprayer is made of non-dangerous materials:

• Plastic and synthetic materials;
• Iron metals (steel)and non-iron metals (aluminium-brass-copper);
• Electric lithium battery

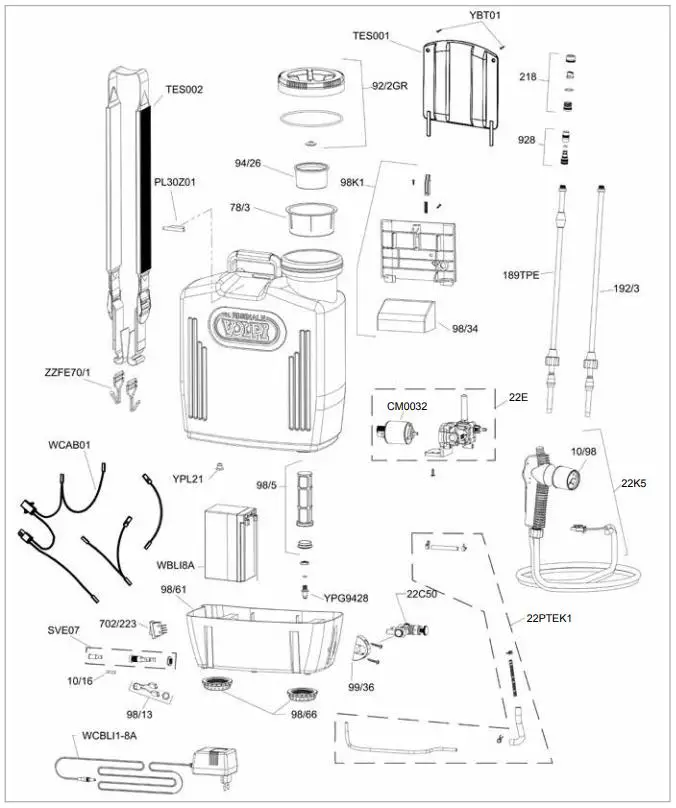

SPARE-PARTS HANDBOOK (PICTURE 1)

WARRANTY

24 months warranty for private users and 12 months warranty for professional users. It covers core parts, including Li-battery, charger, motor and transmission mechanism.
Following conditions invalidate the warranty:

• Any abnormal operation
• Product not maintained as per the Maintenance Instruction
• Product modifications
• Any damages even if made by mistake
• Damaged after amateurish repairing.
• Nature caused damages
• Battery not recharged with the requested frequency
• Components subjected to wear during normal operation are not covered by warranty.

The warranty is valid only for products that have been registered through the website within 30 days from the purchase date. For more information, you can write to [email protected]
Activate the warranty for your new product Originale Volpi through our website: https://www.volpioriginale.it/registra-il-tuo-prodotto/

http://www.volpioriginale.it/garanzia/

The buyer must also keep a copy of the sales document (receipt, invoice) and of the warranty registration: a copy of these documents must be given to the Dealer or Authorized  Customer Service together with the machine to be repaired. In the absence of these documents, the machine will in any case be considered out of warranty.

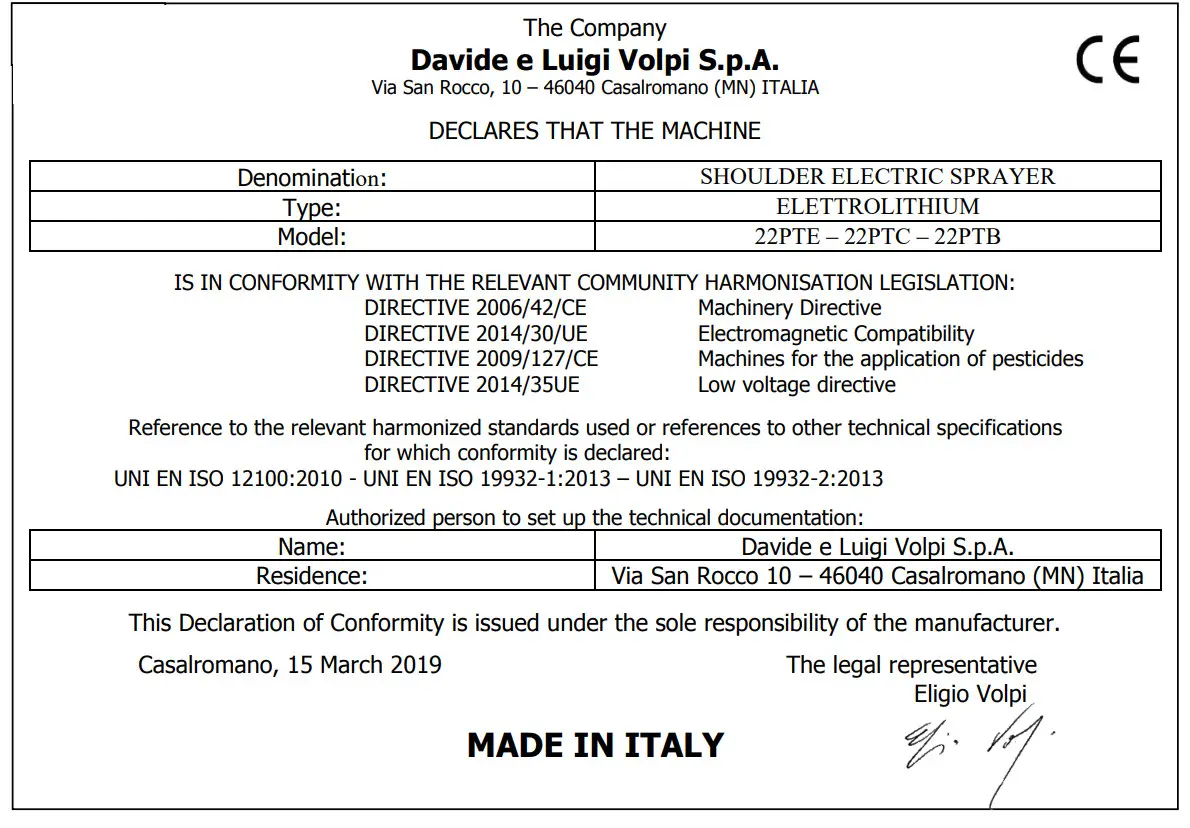

CE DECLARATION OF CONFORMITY

Davide e Luigi Volpi S.p.A.
Via San Rocco,10 – 46040 Casalromano (MN) – Italy
Tel. +39 0376.76009 – 76012 Fax. +39 0376.76408
www.volpioriginale.it
e-mail: [email protected] – [email protected]
