Lumens Full HD Webcam User Manual
Welcome

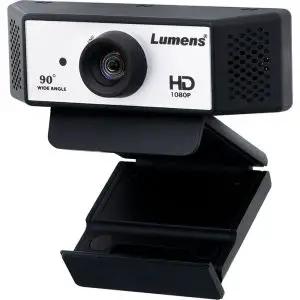

The Lumens® VC-B2U video conference camera provides a high-quality video with Full HD 1080p 30fps for a personal video conference experience. In addition, the wide 90° field-of-view angle and outstanding image quality in low- light, provides an excellent visual collaboration experience. Thanks to its built-in two Omni-directional microphones, it can capture crystal-clear voice up to a distance of 3.6-meters. The USB plug-and-play connectivity and tripod-ready universal clips make it effortless to enrich online meeting experience.
Key Features
- Full HD 1080p premium video quality
- Wide 90° field of view angle can capture people with ease
- Dual microphones capture voice from every angle
- Quick and easy USB connecting
- Compatible with Zoom, Skype, Microsoft Teams, Google Meet, etc.
Applications
Personal Video Conference
- One-on-one conference call
- Premium quality camera with a clip for laptops or monitors
- Work from home video communication
- Optimized microphone distance 3.6 meters
Huddle Space Video Conference
- Stand-up video conference; no table and chairs required
- Pop-in meeting set-up
- Short and brief communication
- MIC array optimized distance 3.6meters
Product Specifications
| Sensor | 112.7′ 2.13MP CMOS |
| Video Format | 1920×108030/25 fps 1280×720 30/25 fps 640×480 30/25 fps 640×36030/25 the |
| video Output (HD) Interface | USB 2.0 (USB 3.0 compatible) |
| Viewing Angle | 90′ |
| Tilting Angle | 0° – -30° |
| Aperture | F3.0 |
| Focal Length | Fixed Lens |
| Shutter Speed | 1120 to 1/10.000 s |
| Minimum Object Distance | 30 cm |
| Video SIN Ratio | > 501:113 |
| Minimum Illumination | S lux |
| Focus System | Fixed Lens |
| Gain Control | Auto |
| White Balance | Auto/ Manual |
| Brightness Control | Yes |
| Exposure Control | Auto |
| 20 NR | Yes |
| Control Interface | USB |
| Control Protocol | LNG / UAC |
| Built-in Mic | 2 Omni-drectional MICs |
| Power Consumption | <2.5W (5V 00.5A) |
| Video Format | YUY2 / MJPEG |
| Mic Effective Distance | 3.6 meters |
| Mounting | Tripod-ready tmiversal dip |
| Weight | Baths (200g) |
| Dimensions | Folded : 3.1′ x 4″ x 2′ (79×102:42 mm) Open : 2.6- x 4′ x C (65x102x102 mm) |
