Vadania Heavy Duty Drawer Slides User Manual
Package

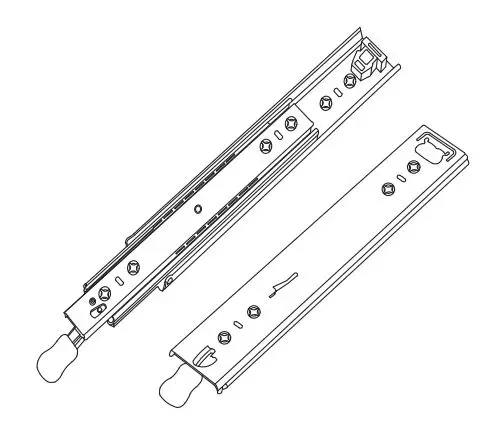

1 Pair of drawer slide
Attention:
The mounting brackets and screws are not included.
- NAME: VADANIA HEAVY DUTY DRAWER SLIDES C2035
- MATERIAL: COLD-ROLLED (COLD ROLLED) STEEL
- INSTALLATION METHOD: SIDE MOUNT
- MAXIMUM LOAD CAPACITY: 256LB / 120KG.
- MINI DEPTH OF CABINET: DRAWER LENGTH + 0.12IN / 3MM
- SLIDE STYLE: 3 FOLDS FULL EXTENSION, SIDE MOUNT, SEPARA-
BLE, WITH LOCK - PLATE THICKNESS: OUTER SLIDER 0.08IN(2MM) / MIDDLE SLIDER
0.08IN(2MM) / INNER SLIDER 0.08IN(2MM) - SIZE: 12-40IN / 300-1000MM
- SCOPE OF APPLICATION: MECHANICAL CABINETS, WAREHOUSE
CABINETS, INDUSTRIAL CABINETS, FINANCIAL EQUIPMENT, TRUCK DRAWERS

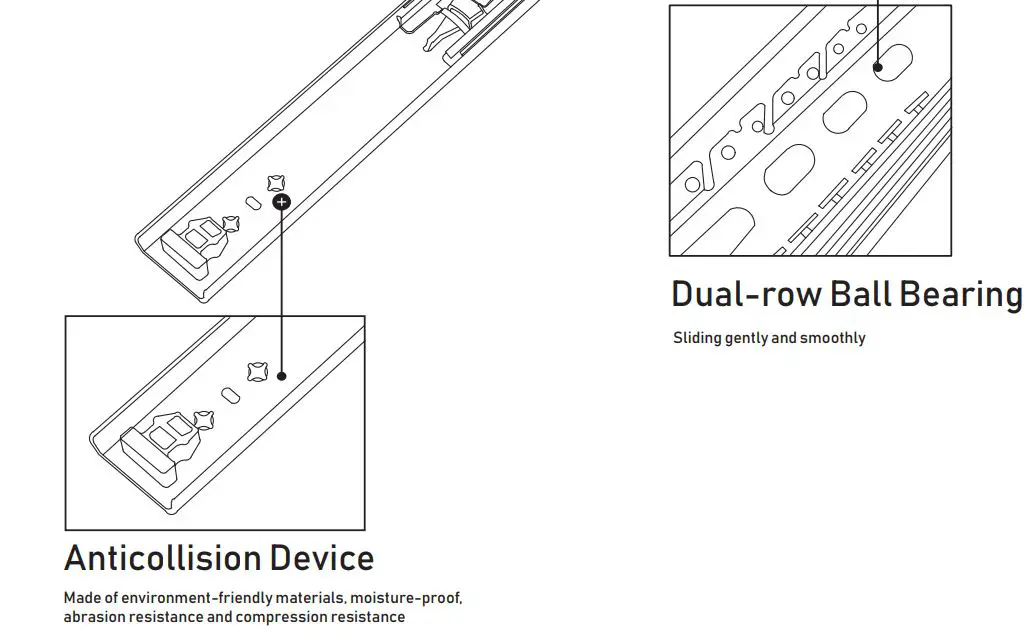

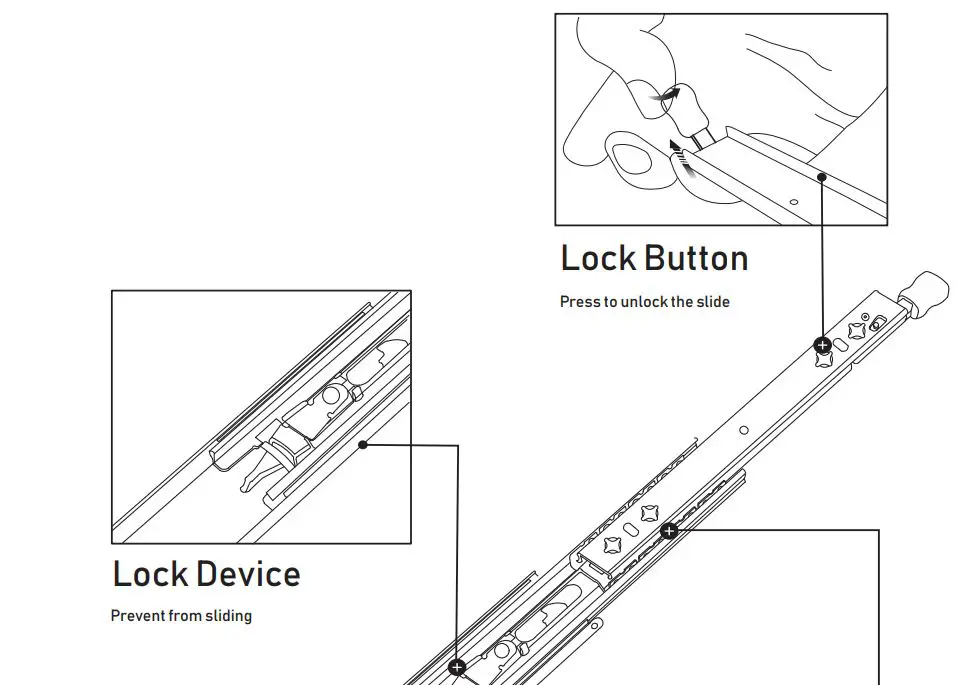

Product Features
Installation Instruction

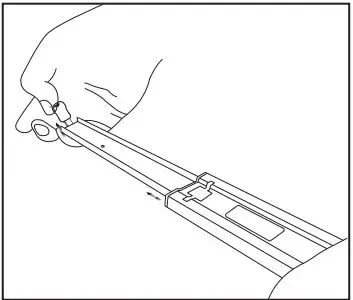

Step1 Separate drawer and base portion before mounting with provided lever

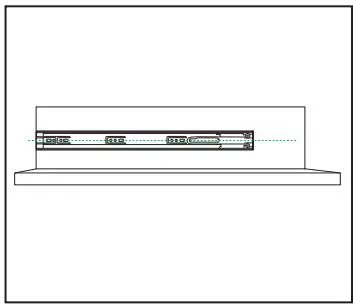

Step2 Make sure the slides are leveled during the installation process

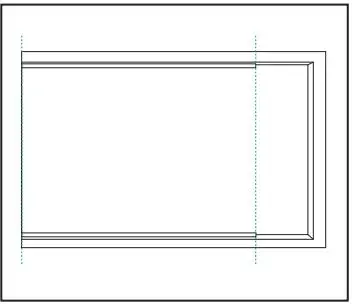

Step3 Place the outer member flush with the front edge of cabinet

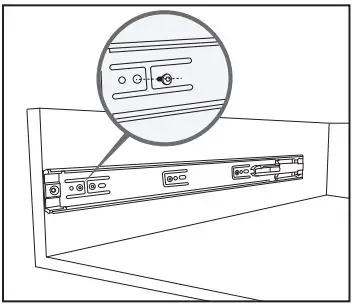

Step4 Mount the screws in the permanent mounting (Breathing) holes

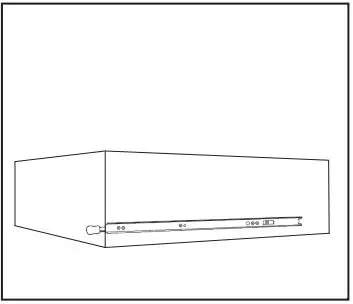

Step5 Adjust and level the inner member. mount the screws in the permanent mounting holes

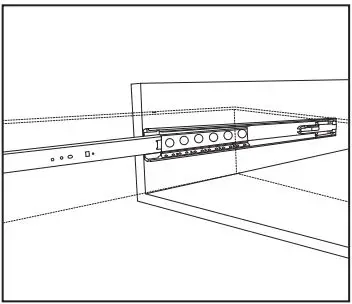

Step6 Move the metal retainer to the front of cabinet member and insert the drawer box carefully.

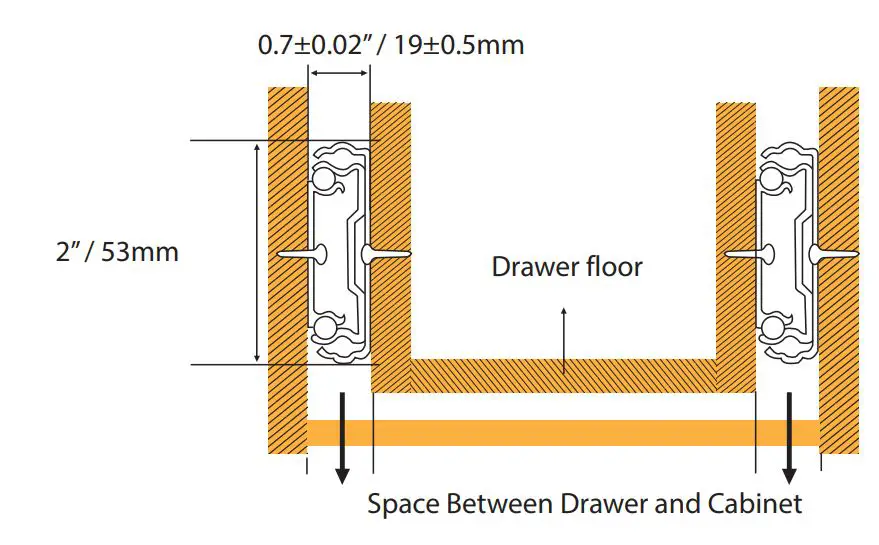

Installation Precautions

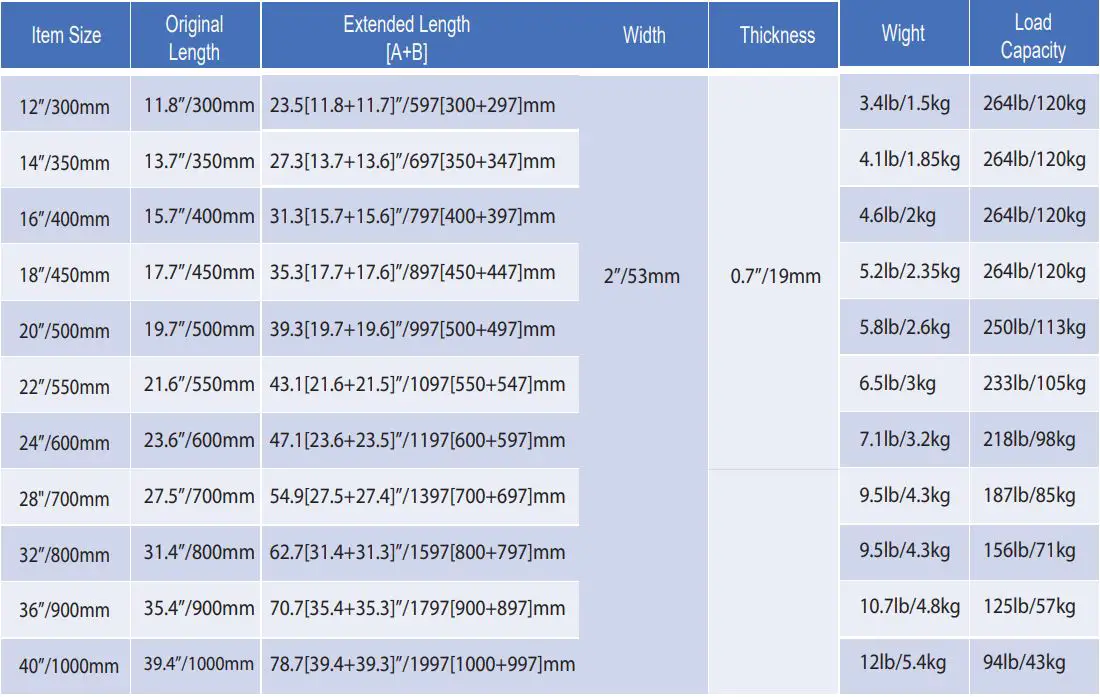

Size Table

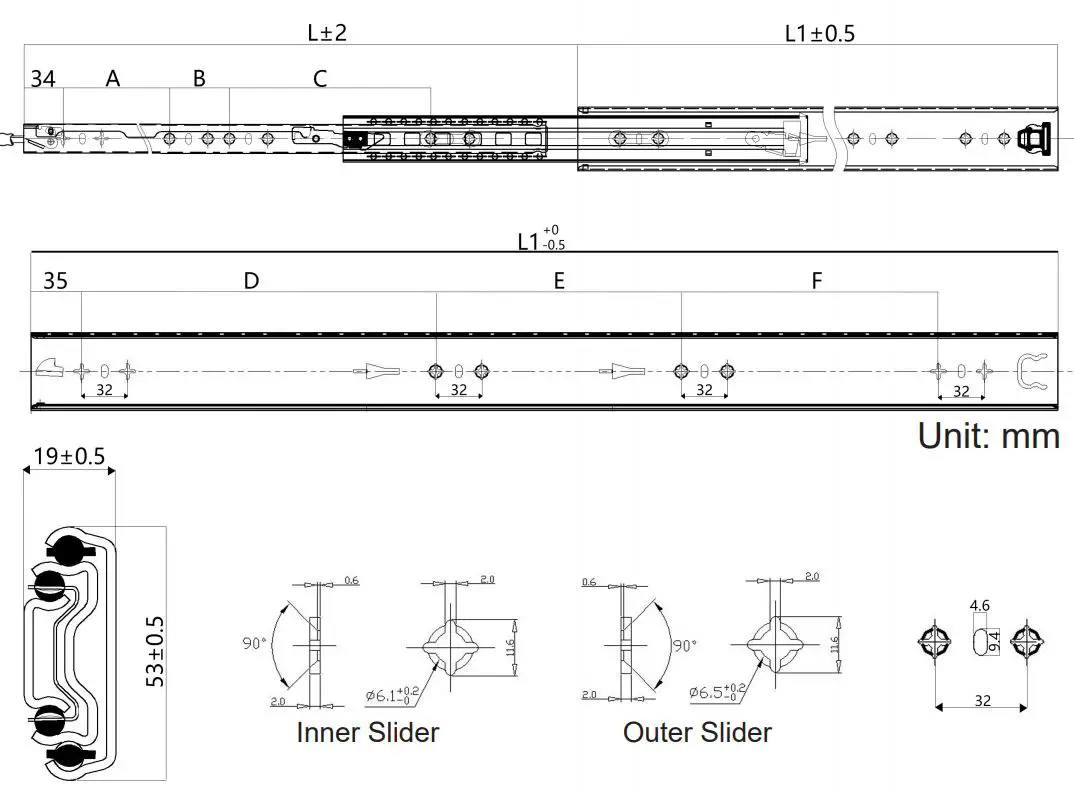

Dimension
How to Chose Size
Measure the depth of the drawer ( for example, if the depth is 13in/330mm, choose 12in/300mm drawer slides. Deviations of 0.7in/20mm-1in/30mm are suitable)
