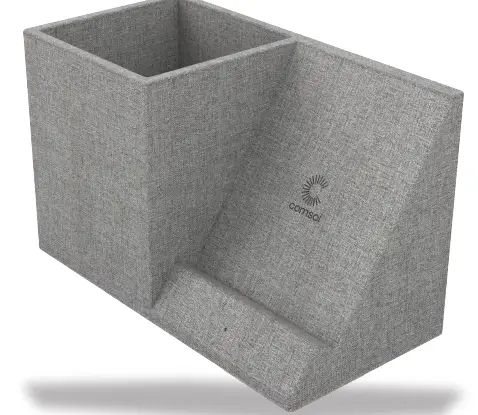

comsol WCPH10 Wireless Fast Charging Desk Organiser
Compatibility
Compatible with Qi-enabled devices* including
- iPhone 11 Pro/11
- iPhone XS/XS Max/XR
- Samsung Note 10/9/8/5
- Sony Xperia XZ2
- iPhone X/8/8 Plus
- Huawei P30 Pro
- Samsung Galaxy Fold
- Huawei Mate 30/20 Pro
- LG V30+
Features
- Supports 7.5W Apple wireless fast charging for iPhone 8 or later’
- Supports 1 OW wireless fast charging for compatible devices such as Samsung Galaxy Series and more
- Supports SW standard wireless charging for all Qi enabled devices
- No need to remove your protective case. Works with most cases up to 3mm thick
- LED indicator to show charging status
- Smart IC enables energy saving mode when device is fully charged
- Full safety protection for your devices with Qi certified temperature control, strict voltage regulation & short circuit protection
- Includes 1.5m Micro USB charging cable (does not inlcude USB wall charger)
Wireless Charger Operation
- Connect the wireless charging organiser to a USB wall charger (not included)
- The red LED will be on for 3 seconds to indicate the charging pad is powered on and in stand-by mode
- Place your wireless phone on the charging stand and your phone should start charging automatically
- The LED will flash green to indicate charging
- If your phone does not not start charging, move your phone until the correct position is found and your phone starts charging
- When your phone is fully charged, the Smart IC enables energy saving trickle charge mode
Please Note: When wirelessly charging a device, the wireless charger and your device may feel warm. This is a normal operating condition and should not be cause for concern.
Specifications
- Wireless Standard: WPC/Qi (v1 .2.4)
- Quantity of Wireless Charging Coils: One Coil
- Input: DC 5V 2A or 9V 1.67 A
- Output: SW / 7.5W / 10W
- Working Frequency: 11 Oto 205KHz
- Charging Distance: 3 to 8mm
- Charging Efficiency: > 72%
- Dimensions: 169 x 105 x 102mm.
Important Safety Instructions
- Only use original or reputable third party chargers and cables
- Do not get wet to avoid causing short circuit damage and leakage
- Do not use in extreme hot, humid or corrosive environments to avoid short circuit damage and leakage
- Do not place too close to magnetic strip or chip ID card to avoid magnetic failure
- Do not place within 20cm of implantable medical devices (pacemaker, cochlear implant etc.) to avoid potential interference
- Do not clean with harmful chemicals or detergents
- Misuse, dropping or excessive force may cause damage to the charging stand
iPhone is a trademark of Apple inc., registered in the U.S. and other countries. The ‘Qi’ Symbol is a trademark of the Wireless Power Consortium. Android is a trademark of Google Inc. www.mycomsol.com.au
