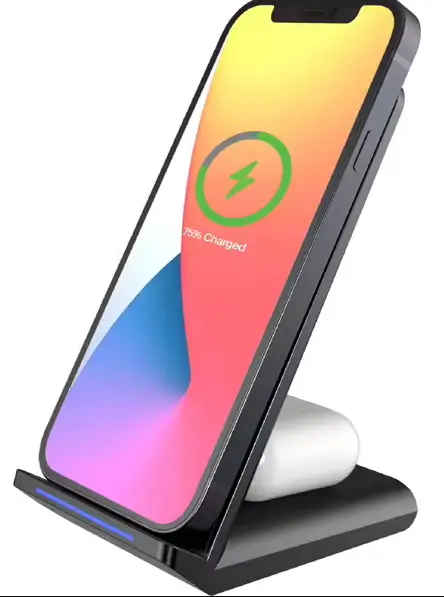

comsol WCTW15 15W Wireless Fast Charging Stand

Compatibility

Compatible with Qi-enabled devices* including

• iPhone 12 Pro/Max
• iPhone 12/mini
• iPhone 11 Pro/11
• iPhone SE/XS/XS Max/XR
• iPhone X/8/8 Plus
• Samsung S20/S10/S9/S8\
• Samsung Note 20/10/9
• Google Pixel 5/4/3
• Sony Xperia XZ3/XZ2
• Xiaomi Mi 10/Mi 9
• LG G8S/G7 ThinQ
• LG V30+/V40

Features

• Charge your wireless phone and wireless earbuds at the same time – AirPods and other TWS models must have a wireless charging case
• Two coils on the stand enable large wireless coverage to allow phone charging in portrait or landscape modes
• Supports 7.5W wireless fast charging for iPhone 8 or later
• Supports 10W wireless fast charging for compatible devices such as Samsung Galaxy Series and more
• Supports 5W standard wireless charging for all Qi-enabled devices and 15W wireless fast charging for NextGen devices
• No need to remove your protective case. Works with most cases up to 3mm thick
• LED indicator to show charging status
• Full safety protection for your devices with Qi-certified temperature control, strict voltage regulation & short circuit protection
• Includes certified QC 3.0 USB wall charger and 1.5m USB-A to USB-C charging cable

* Check with device manufacturer for Qi wireless compatibility

Wireless Charger Operation

• Connect the wireless charging stand to the wall charger using the included cable
• The below table explains the LED indicator function

Specifications

• Wireless Standard: WPC/Qi (v1.2.4)
• Wireless Charging Coils for Phone: Two Coils
• Wireless Charging Coil for AirPods/TWS: One Coil
• Input: DC 5V/3A 9V/2A 12V/1.5A
• Stand Output: 15W / 10W / 7.5W / 5W (Max)
• AirPods/TWS Output: 3.5W (Max)
• Working Frequency: 110 to 205KHz
• Charging Distance: 3 to 8mm
• Charging Efficiency: up to 80%
• Dimensions: 121 x 82 x 73mm

Important Safety Instructions

• Only use original or reputable third-party chargers and cables
• Do not get wet to avoid causing short circuit damage and leakage
• Do not use in extreme hot, humid or corrosive environments to avoid short circuit damage and leakage
• Do not place too close to magnetic strip or chip ID card to avoid magnetic failure
• Do not place within 20cm of implantable medical devices (pacemaker, cochlear implant etc.) to avoid potential interference
• Do not clean with harmful chemicals or detergents
• Misuse, dropping or excessive force may cause damage to the charging stand

Please Note: When wirelessly charging a device, the wireless charger and your device may feel warm. This is a normal operating condition and should not be cause for concern.

iPhone is a trademark of Apple inc.,
registered in the U.S. and other countries.
The ‘Qi’ Symbol is a trademark of the Wireless Power Consortium.
