IMFsoft IMF-EV03 Charging Cable
Specification
| IMF – EV03 (A/T) | IMF – EV04 (A/T) | IMF – EV0S (A/T) | |
| EV plug | Type 2 (IEC 62196) | Type 2 (IEC 62196) | Type 2 (IEC 62196) |
| Grid plug | Schuko E/F (3p) | CEE 3x32A (5p) | CEE 3x32A (5p) |
| Rated voltage | 230V (1F) | 230V (1F) | 400V (3F) |
| Current option | 6-8-10-13-16 A | 6-8-10-13-16-20-25-32 A | 6-8-10-13-16 A |
| Power | 3.7 kW | 7.4 kW | 11 kW |
| Cable length | 5 m [3, 5, 7]* | 5 m [3, 5, 7]* | 5 m [3, 5, 7]* |
| Variant | A (Basic)/T (Tesla)* | A (Basic)/T (Tesla)* | A (Basic)/T (Tesla)* |
| Circuit breaker | Typ A (AC), 30mA | Typ B (AC/DC), 30mA | Typ B (AC/DC) , 30mA |
| Voltage range | 90-270V[5 -60Hz] | 90-270V[50-60Hz] | 160-470V[50-60Hz] |
| Temper. range | -30 to +50°C | -30 to +50°C | -30 to +50°C |
| IP cover | IP 54 | IP 54 | I 54 |
| UV resistance | YES | YES | YES |
| Weight | 1.6 kg/ 5 m | 2.3 kg/ 5 m | 1.9 kg/ 5 m |
- In stock is a cable length of 5 m, other variants are to order within 14 days.
- The T-Tesla variant includes a remote control for the charging socket cover.

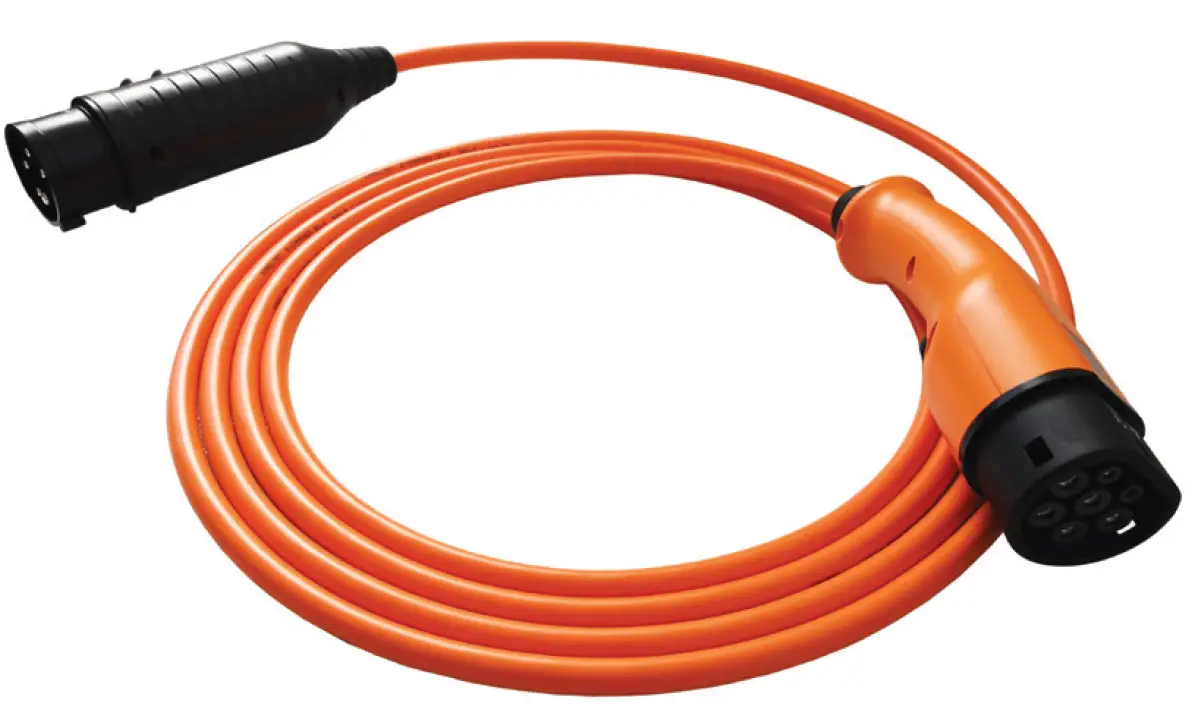

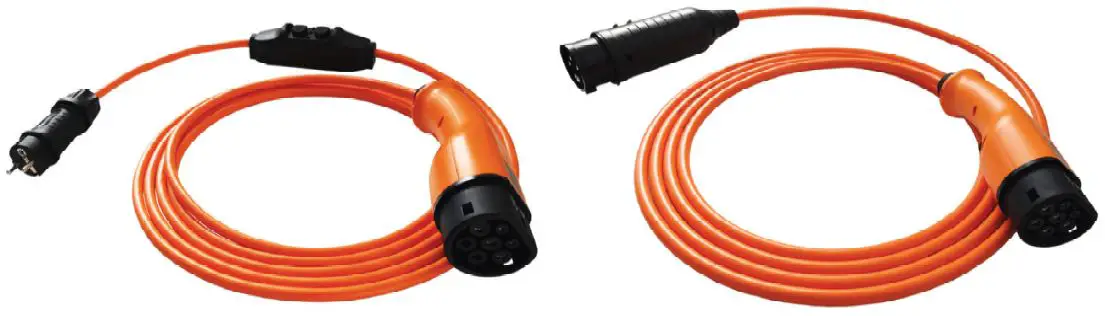

IMF charging cables EV03, EV04 and EV05 are designed for charging electric vehicles equipped with Mennekes Type 2 connectors from a standard Schuko or CEE 3x32A socket.
The key advantage of this design is the integration of the control and monitoring elements directly into the connectors, so there is no longer a large and heavy housing on the cable. Easy handling, small dimensions, and low weight allow the cable to be used not only at home, in a company or in a hotel car park, but also on the road. The investment in an expensive Wallbox device is thus completely unnecessary.
GET STARTED
GET STARTED | |
| I. | Plug in the cable into an electrical plug. |
| II. | When inserted into an electrical plug, the blue LED will inform you of the value of the set current according to the number of flashes. A steady blue LED indicates readiness for charging. |
| III. | By the button, it is possible to change the charging current. Immediately after pressing the button, the blue LED goes out and after 5 s it will gradually inform you about the new value of the charging current. The button is not released until the desired current value is displayed and stored in memory. |
| IV. | After connecting to the car, the blue LED flashes to indicate that charging is in progress. A steady blue LED indicates that the vehicle battery is fully charged. |
| X. | The charging cable is equipped with an integrated RCD. The protector is used to protect people and equipment when an electrical circuit is disconnected when a power leak is detected. The red LED indicates that charging has been disconnected to detect a leakage current through the RCD. |
Charging Options
| Charging option | Current [A] | Power [kW] | ||
| LED | Current | 1F | 2F | 3F |
| 1 | 6 A | 1.4 kW | 2.8 kW | 4.1 kW |
| 2 | 8 A | 1.8 kW | 3.7 kW | 5.5 kW |
| 3 | 10 A | 2.3 kW | 4.6 kW | 6.9 kW |
| 4 | 13 A | 3.0 kW | 6.0 kW | 9.0 kW |
| S | 16 A | 3.7 kW | 7.4 kW | 11.0 kW |
| 6 | 20 A | 4.6 kW | 9.2 kW | 13.8 kW |
| 7 | 25 A | 5.8 kW | 11.5 kW | 17.3 kW |
| 8 | 32 A | 7.4 kW | 14.7 kW | 22.0 kW |
LIMITED WARRANTY
Warranty valid for 24 months The Warranty does not cover mechanical damage, unauthorized modifications, improper use, flooding, lightning or other natural phenomena.
