SIGMA 18553 Charging Cable Micro-USB
ACCESSORIES

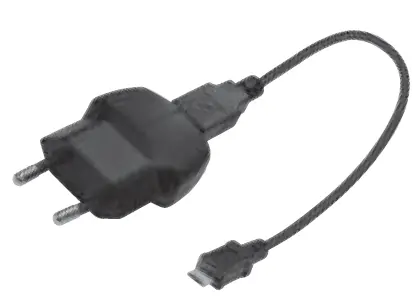

- Charger + Charging cable Micro-USB

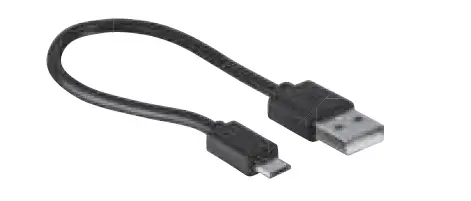

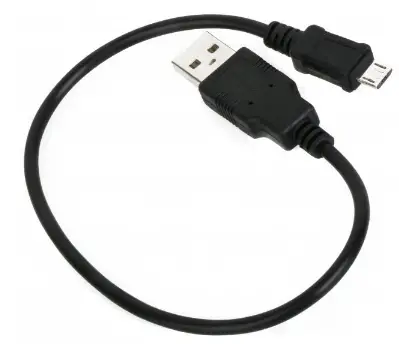

- Charging cable Micro-USB

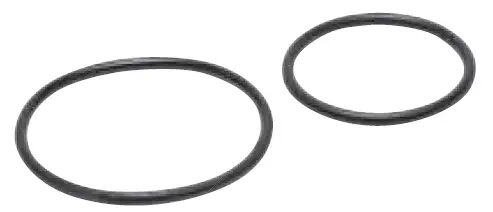

- O-ring bracket
INFORMATION
SIGMA-ELEKTRO GmbH hereby declares that the BLAZE comply with the fundamental requirements and other relevant regulations of Directive 2014/30/EU and RoHS Directive 2011/65/EU. You can find the CE declaration at: ce.sigmasport.com/blaze

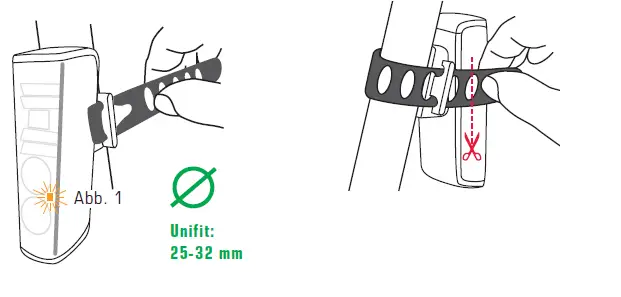

MOUNTING
- Do not cover the rear light
Before mounting, clean and degrease seatpost to ensure a tight fit. When attaching, make sure that the silicone strap fitting is tightened and mounted during installation so that the tail light can not self-adjust or be easily adjusted (i.e., torque required to adjust must be greater than 2 Nm after mounting).
Mounting height between
- After assembly with the rubber band, cut off the protruding end to ensure optimum light emission to the side.
- The SIGMA tail light is a sensor-controlled, self-calibrating kinetic brake light. During calibration, the yellow indicator LED (Abb. 1) flashes for approx. 3 sec. then permanently, indicating the day mode. Attention: Before switching the tail light on, mount it and place the bicycle in a horizontal position.

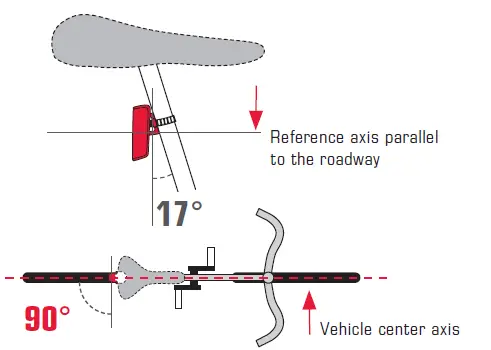

ALIGNMENT
Final side of the tail lamp perpendicular to the roadway and at right angles to the vehicle center axis.

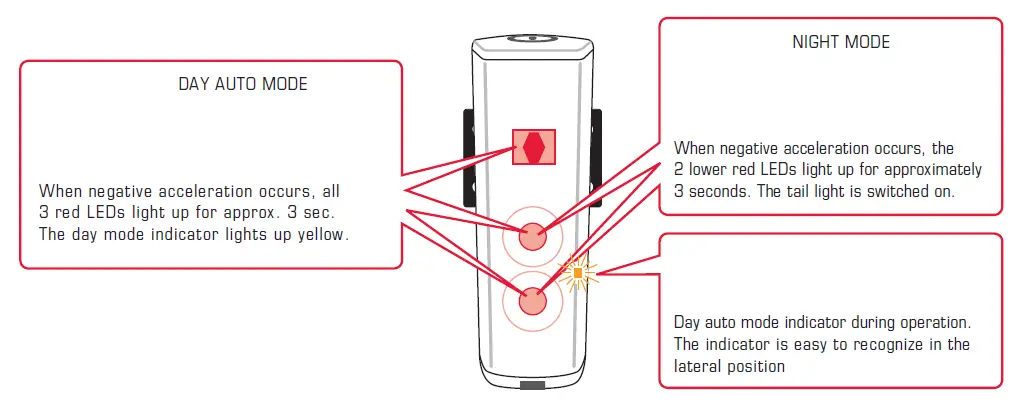

DAY AUTO MODE

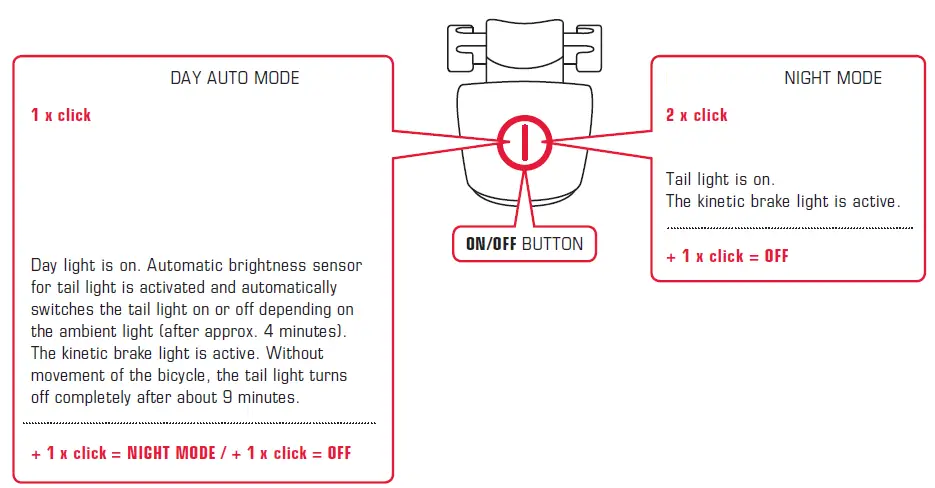

LED MODE

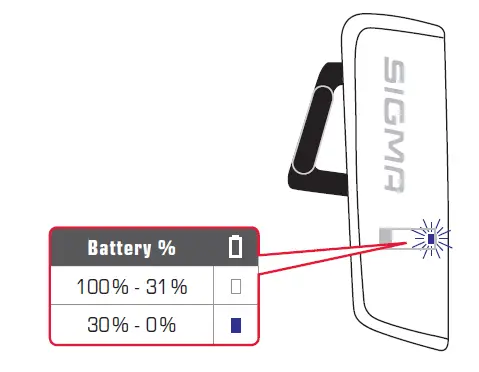

BATTERY INDICATOR
The battery needs to be charged immediately if the monitoring device/blue indicator has been activated. The LEDs are not replaceable. If an LED fails, replace the tail light.

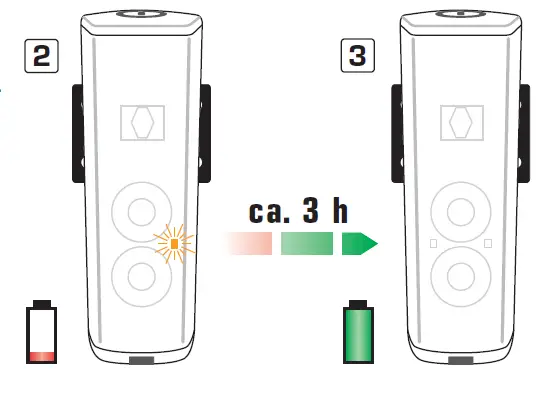

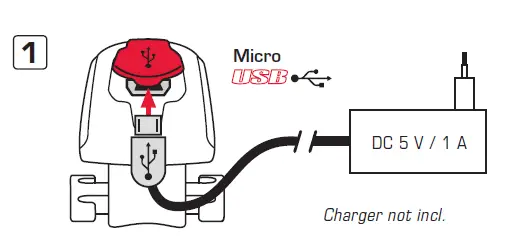

CHARGING
- Make sure that the sealing marked in the illustration is always closed correctly.
- Energy extraction through the Micro USB port is not possible. These lamp needs to be replaced in case of defective light source.
- During charging, the battery monitoring system lights up yellow. If the battery is ready for use again, the battery monitoring system goes out.
SIGMA-ELEKTRO GmbH Dr. – Julius -Leber-Straße 15 D-67433 Neustadt / Weinstraße Tel. +49 6321-9120-118 [email protected]
ce.sigmasport.com/blaze
