Quick Installation Guide
Model: GS1020PS2

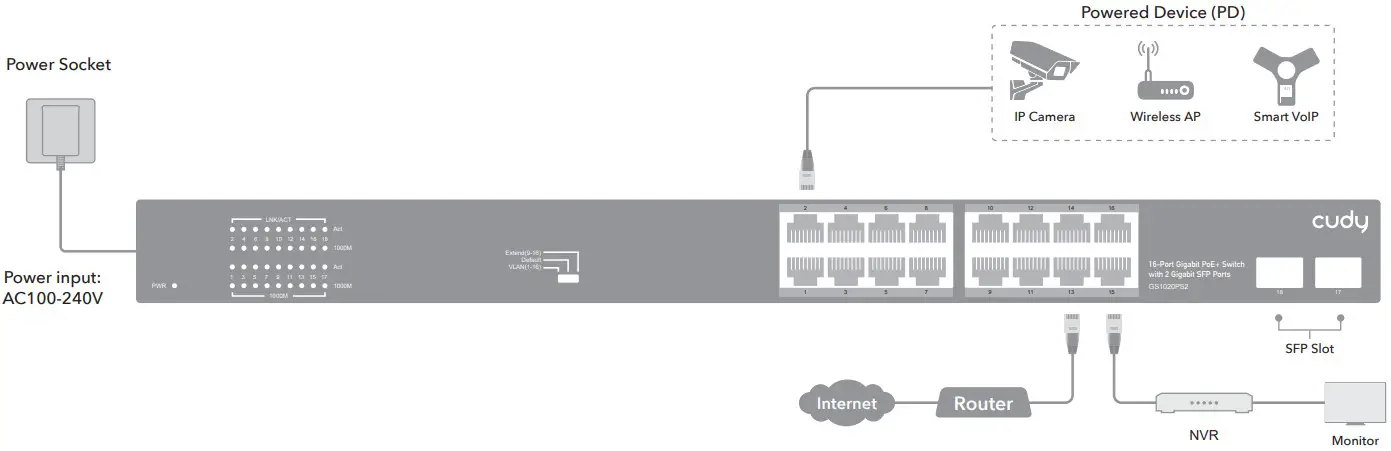

Hardware Connection
Specifications
| Model | GS1020PS2 |
| Network Protocols | IEEE802.3 / IEEE802.3u HIEEE802.3x |
| IEEE802.3ab / IEEE802.3z | |
| PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at |
| Max each port: 15.4W ( IEEE 802.3af ) | |
| Max each port: 30W ( IEEE 802.3at ) | |
| PoE compatibility: IEEE 802.3af/at adaptive | |
| PoE port output: DC48-55V | |
| Power Pin : Power over spare pairs 1/2(+), 3/6 (-) | |
| Network Media | 10BASE-T: Cat 5E UTP(5250 meter) |
| 100BASE-TX: Cat5 or more UTP (5100 meter) | |
| 1 000BASE-TX: Cat5 or more UTP (<_100 meter) | |
| Bandwidth | 36Gbps |
| MAC | 8K |
| Packet Buffer Memory | 4M |
| Packet Forwarding Rate | 26.784Mpps |
| Power Supply | Power input: AC100-240V 50/60Hz, Output: 52V5.76A |
| Power Budget: 200W | |
| Working Environment | Operating Temperature: -20℃ ~ 50℃; |
| Storage Temperature: -40℃ ~ 80℃; | |
| Operating Humidity: Max 90%, non-condensing | |
| Storage Humidity: Max 95%, non-condensing | |
| Working Height: Max to 10,000 feet (3,000 meters) | |
| Storage Height: Max to 10,000 feet (3,000 meters) |
DIP Explanation
| VLAN | Port Isolation | Downlink designated ports are isolated from each other, only transmit data with the uplink port. |
| Default | Standard Switch | All ports communicate freely |
| Extend | Link Extension | The specified port speed drops to 10Mbps, max PoE transmission distance is 250 meters. |
LED and Interface Explanation
| PWR | Power supply indicator Red | ON | Powered |
| OFF | No power | ||
| 1-16 Port . | RJ-45 LINK indicator Green | ON | 1000M Connect |
| OFF | 100M or Disconnect | ||
| 1-16 Port | RJ-45 ACT indicator Green | ON | Connecting |
| OFF | Disconnect | ||
| Flashing | Data Transmit |
EU declaration of conformity
Cudy hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.The original EU declaration of conformity may be found at http://www.cudy.com/
Email: [email protected]
Email: [email protected]
Website: www.cudy.com
