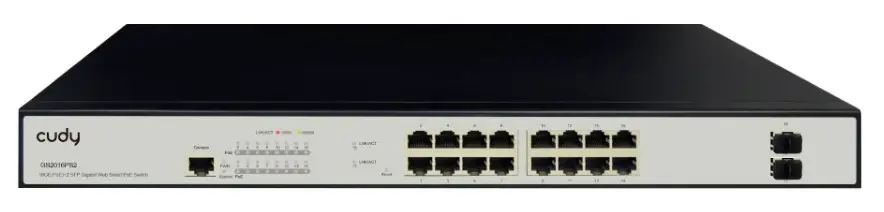

cudy GS2018PS2 16-Port L2 Managed Gigabit PoE+ Switch Installation Guide

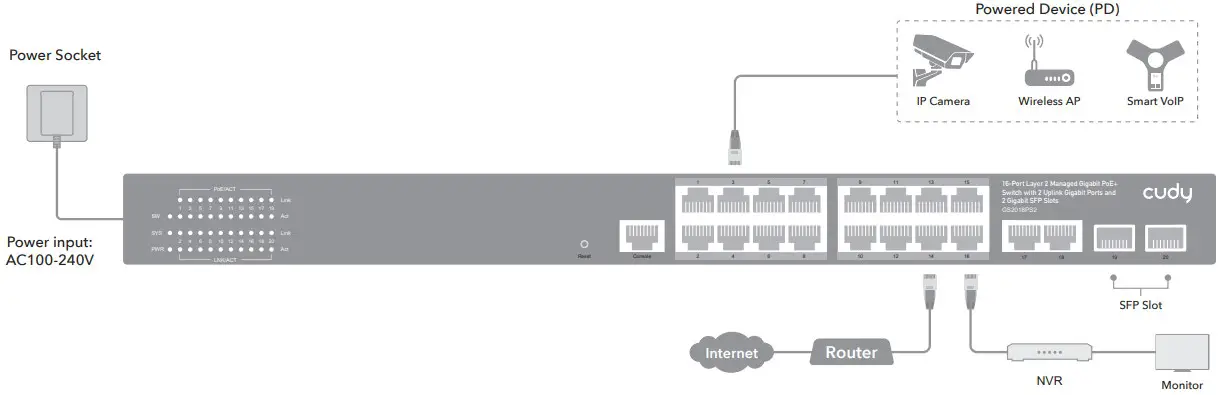

Hardware Connection
Specifications
| Model | Model |
| AC INPUT | AC100-240Vđ50/60Hz |
| Ethernet Port | 16 * 10/100/1000Mbps PoE Port |
| 2* 10/100/1000Mbps Uplink Port | |
| 2* 1000Mbps SFP Port | |
| 1 * RJ45 Console Port | |
| Bandwidth | 40Gbps |
| Packet Forwarding rate | 29.76Mpps |
| DDR SDRAM | 128MB |
| Flash Memory | 16MB |
| Packet Buffer Memory | 4M |
| MAC Address | 8K |
| Jumbo frame | 9.6Kbytes |
| VLANs | 4096 |
| Fiber Medium | Multi-mode Fiber: 50/125a62.5/125a100/140um |
| Single-mode Fiber: 8/125a8.7/125a9/125a10/125um | |
| Working Environment | Operating temperature: -20~50°C |
| Storage temperature: -40~85°C | |
| Operating Humidity: 10%~90%, No condensation | |
| Storage Humidity: 5%~90%, No condensation | |
| Working height: Up to 10,000 feet | |
| Storage height: Up to 10,000 feet |
DIP Explanation
| VLAN | 1-16 ports are isolated from each other, and the PoE Watchdog function is open (hardware takes precedence over software) |
| Default | All ports can communicate with each other, PoE Watchdog is closed |
| Extend | 13-16 Port: Supports 250m link extension at a rate of 10M, other ports normal, PoE Watchdog open (hardware takes precedence over software) |
| Reset | Short press restart, long press 5 seconds to restore factory Settings |
LED and Interface Explanation
| Indicator | PWR, SYS, SW, PoE/ACT, Link/ACT |
| PWR(Power Indicator) | Lighting: Powered |
| Un-Light: No Power | |
| SYS(System Indicator) | Flashing: System Start-up |
| Lighting: System Running | |
| SW(DIP Indicator) | Lighting: VLAN |
| Un-Light: Default | |
| Flashing: Extend | |
| PoE/ACT | Lighting: PoE on |
| Un-Light: PoE off | |
| Link/ACT | Lighting: Link connection |
| Flashing: Data transmission | |
| Un-Light: Link disconnect |
