WLTFGT-145ACN LTE Indoor CPE
Installation Guide

Copyright

This DOCUMENT is copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Gemtek Technology Co. Ltd.

Notice

Gemtek reserves the right to change specifications without prior notice. While the information in this document has been compiled with great care, it may not be deemed an assurance of product characteristics. Gemtek shall be liable only to the degree specified in the terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents are subject to written authorization from Gemtek.

About this Guide

This document provides information and procedures on the installation and configuration of LTE Indoor CPE. You could utilize the theoretical information in this guide to set up your device. This Quick Installation Guide covers the basic installation of the LTE Indoor Gateway.

What’s in the box?

Here’s a quick checklist of everything inside your box.
Before installing the CPE, verify that you have all the items listed in the packing checklist. If any of the items are missing or damaged, contact your LTE service
provider.

	The LTE Indoor CPE
	Quick Installation Guide
	Power Adapter
	CAT5e 8-wire Ethernet cable for connecting IDU and computer

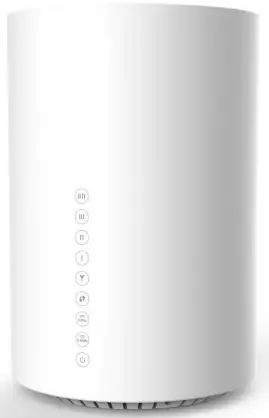

LED Indicators

	LED Indication	Icon	Status	Description
1	Power		ON	Power ON
			OFF	Power OFF
2	2.4 WiFi		ON	Wi-Fi ON
			Blinking	Transmitting data
			OFF	Wi-Fi OFF
3	5 WiFi		ON	Wi-Fi ON
			Blinking	Transmitting data
			OFF	Wi-Fi OFF
4	WPS		Blinking	Searching for Connection
			ON	Connection confirm (will be off after 5 seconds)
5	Signal Strength	Display signal strength
			ON	SINR < 7dB (Blinking: No SIM Card)
				1 LED: 7dB SINR < 11dB
				2 LED: 11dB SINR < 18dB
				3 LED: 18dB SINR < 23dB
				4 LED: 23dB < SINR
		OFF		LTE OFF
6	Firmware Upgrade	Electronic scrolling marquee
7	Reset	All LEDs are blinking

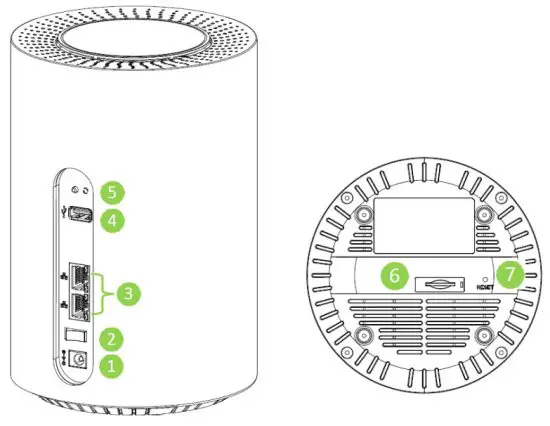

Connectors

Installation

Please follow the steps below to install the device:
Step1: Insert SIM card into the device with the right direction.
Step2: Connect the device LAN port to your PC with an RJ-45 Ethernet cable that is supplied.
Step3: Insert the power cord into the LTE Indoor CPE’s DC-12V power jack, and insert the plug into a power outlet.
Step4: Switch ON the power. The device will start the booting process. After a few seconds, the LED lights will start blinking.

Easy Setup

Please follow the steps below to configure your device through the web interface:

Step1: Open the Web browser (Internet Explorer) and enter the default IP address of the IDU CPE: http://192.168.15.1

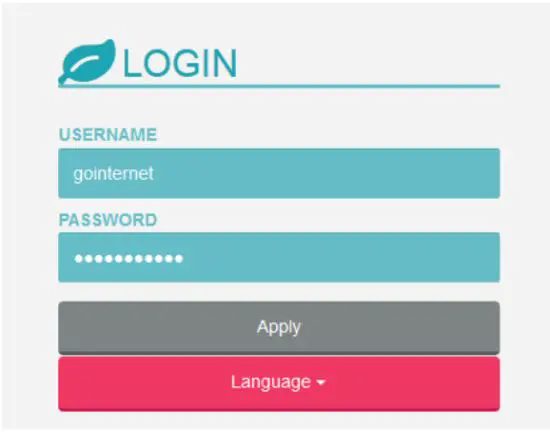

Step2: Enter username/password to access the web management interface.
Username: admin
Password: admin

Step3: The page displays in your browser after login; you can simply configure the device settings.

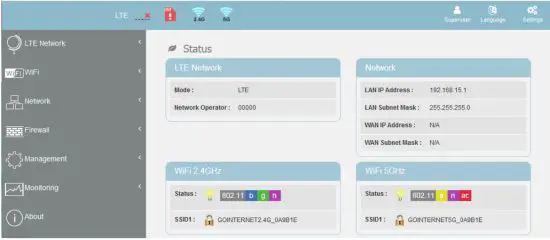

Signal strength indicator on the upper-left corner of the webpage.

WiFi Setting

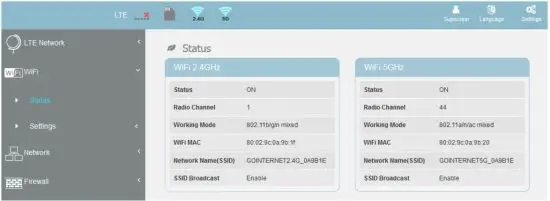

Select WiFi from the main menu. Then the screen will display the default setting of SSID, radio channel, working mode, and SSID broadcast.

WiFi Status:

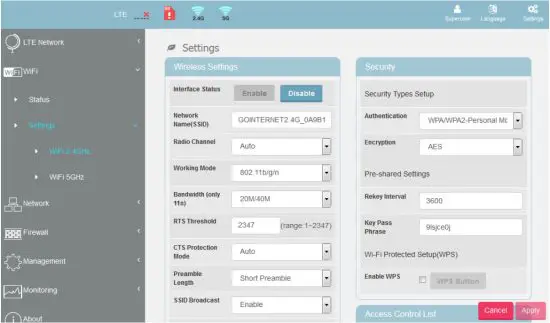

WiFi 2.4G Settings:

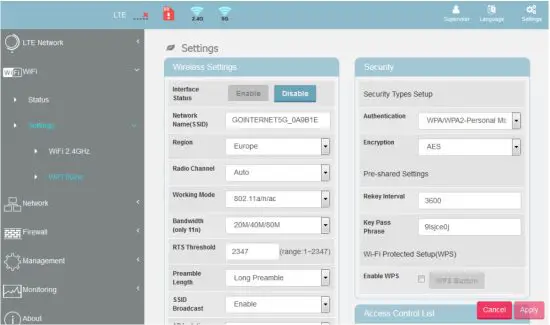

WiFi 5G Settings:
