Weil-mclain 383500766 Ultra Easy-up Manifold Kit Instructions

WEIL-McLAIN 383500766 Ultra Easy-Up Manifold Kit

EASY-UP MANIFOLD

Saves Time
Ready to install design reduces average single boiler installation time by two hours or more

Saves Money
Less than the cost of all components, plus assembly time including layout, measuring, cutting, soldering, etc.

Easy Installation
A few connections while ensuring proper flow through the boiler

Eliminates Piping Errors
Helps ensure correct piping strategy by incorporating the primary/secondary piping requirements

Provides a Professional Appearance
Neat joints, top quality components, color-coded valves, precise and true installation

Makes Indirect Water Heater Installation Easy
Includes boiler flow check and take-offs for domestic hot water connection for now, or in the future

Simple System Servicing
Manifold shut off valves provide quick isolation of the boiler and circulator from system piping

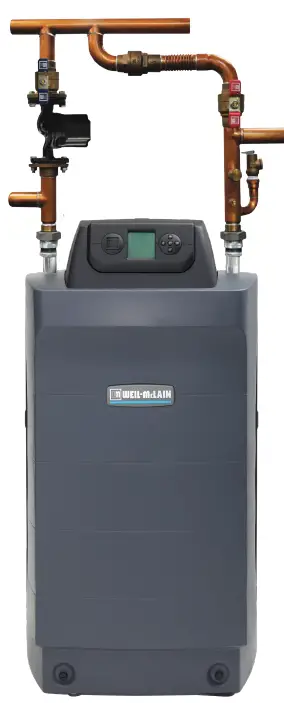

1. System Return
2. Shut-off Valve
3. DHW Return (Use tubing cutter if required)
4. Boiler Return
5. Check Valve
6. Flex Pipe
7. LWCO Opening
8. Pressure/Temperature Gauge Opening
9. Dielectric Unions
10. Boiler Out
11. System Supply
12. Shut-off Valve
13. DHW Supply (Use tubing cutter if required)
14. Safety Relief Valve

*Circulator is not included in the Ultra Easy-Up Manifold Kit, a circulator ships with every Ultra Boiler

Part Numbers for Ordering
Ultra Boilers 80 & 105 #383-500-765 Ultra Boilers 155-399 #383-500-766

Ultra Gas kits

WM2106_FLY_068_UltMnfare available to make installation even easier

3” PVC Concentric Vent kit #383-500-350 4” PVC Concentric Vent kit #383-900-075 Condensate Neutralizer kit #383-500-631 Low Water Cut Off kit #511-100-005

WM2106_FLY_068_UltMnf

www.weil-mclain.com
