Digital & Analog Audio Extractor with 18Gbps HDMI Passthrough
EXP-CON-AUD-H2
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process.
IMPORTANT! Installation Requirements
IMPORTANT! Installation Requirements- Visit the product page to download the latest documentation.
- Read through the Wiring and Connections section for important wiring guidelines before creating or choosing premade cables.
In the Box
1x EXP-CON-AUD-H2 Audio Converter
1x 5V DC 1A Power Supply with Wall Adapters
2x Mounting Brackets

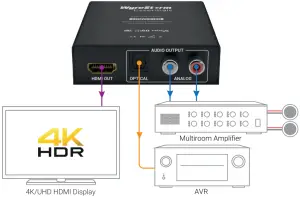

Basic Wiring Diagram
Key
HDMI
Digital Audio
Analog Audio

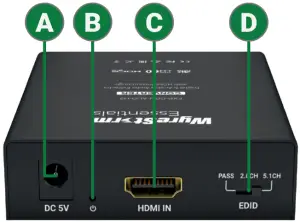

Front Panel
| (A) | Power In | 2.1mm DC Jack Input Connect to the included 5V DC 1A power supply. |
| (B) | Power LED | Solid: The unit is powered On Off: The unit is powered Off |
| (C) | HDMI In | 19-pin type A HDMI female Supports HDMI and DVI/D with adapter |
| (D) | EDID Switch | Switch between Passthrough, 2ch and 5ch Audio Modes |
Rear Panel

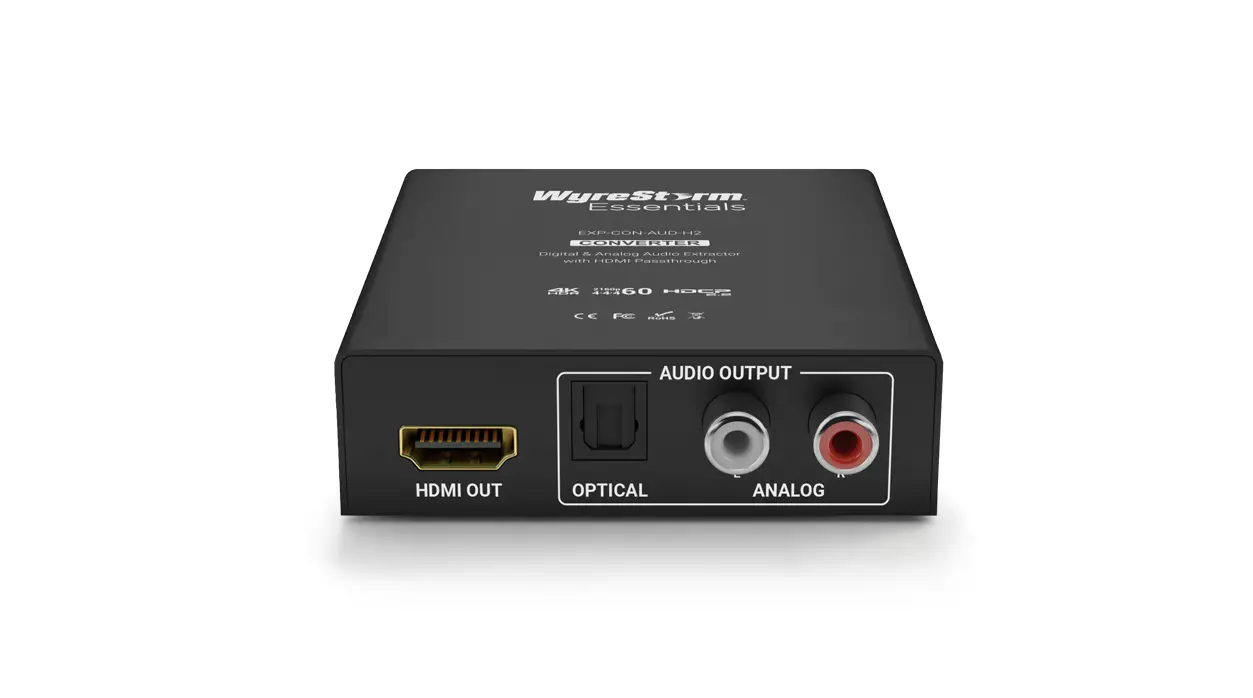

| (A) | HDMI Output | 19-pin type A HDMI female Supports HDMI and DVI/D with adapter |
| (B) | Optical Output | Toslink optical port Connect to digital audio input of pre-amplifier, AVR or audio system |
| (C) | Analog Audio Output | 2 x RCA (L/R Phono) Ports Connect to analogue audio input of preamplifier, AVR or audio system |
Audio Connections

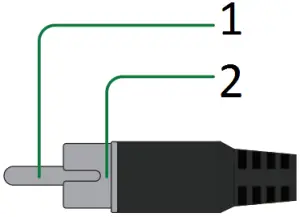

Analog Audio Out
- Tip: Audio Positive (+)
- Shield: Audio Negative (-)
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
- Verify that power is being supplied to the device
- Verify that all HDMI connections are not loose and are functioning properly
Troubleshooting Tips:
- WyreStorm recommends using a cable tester or connecting the cable to other devices to verify functionality.
Setup and Configuration
EDID Switch Settings

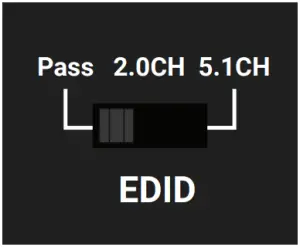

| Pass Through (Default) | Allows EDID pass-through from the display to the source for optimum video and audio outputs to the display. |  |

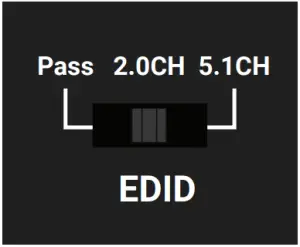

| 2.0CH | Transfers 2.0CH EDID of EXP-CON-AUD-H2 to the source for optimum video and 2.0CH audio outputs to the display. |  |

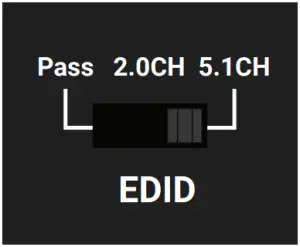

| 5.1CH | Transfers 5.1CH EDID of EXP-CON-AUD-H2 to the source for optimum video and 5.1CH audio outputs to the display. |  |
Note:
- If EDID Copy fails, a fixed 1920x1080p @60Hz 2.0CH would be provided to source device.
- In order to achieve a better user experience, please refer to the following audio support descriptions and examples for EDID setting during installation.
1. Slide the EDID to Pass Through (default) – Copy EDID from HDMI out.
| Display Audio | HDMI Output Audio | S/PDIF Output Audio | L/R Output Audio |
| Dolby /DTS 7.1 | Dolby/DTS 7.1 | – | – |
| Dolby/DTS 5.1 | Dolby/DTS 5.1 | Dolby/DTS 5.1 | – |
| PCM 7.1 | PCM 7.1 | PCM 2.0 | PCM 2.0 |
| PCM 5.1 | PCM 5.1 | PCM 2.0 | PCM 2.0 |
| PCM 2.0 | PCM 2.0 | PCM 2.0 | PCM 2.0 |
By default (position “Pass Through”), when connected to a 1080p, PCM5.1 TV, the extractor will transmit the 1080p, PCM5.1 signal to it, S/PDIF Output audio is PCM2.0, and L/R Output Audio is PCM2.0.
2. Slide the EDID to 2.0CH – The option with 2.0CH.
| HDMI Output Audio | S/PDIF Output Audio | L/R Output Audio |
| PCM 2.0 | PCM 2.0 | PCM 2.0 |
Slide to position “2.0CH”, when connected to a 1080p/5.1ch TV, the extractor will transmit the 1080p/2.0ch signal to it, S/PDIF Output audio is PCM2.0, and L/R Output Audio is PCM2.0.
3. Slide the EDID to 5.1CH – The option with 5.1CH
| Display Audio | HDMI Output Audio | S/PDIF Output Audio | L/R Output Audio |
| Dolby /DTS 7.1 | Dolby/DTS 7.1 | – | – |
| Dolby/DTS 5.1 | Dolby/DTS 5.1 | Dolby/DTS 5.1 | – |
| PCM 7.1 | PCM 7.1 | PCM 2.0 | PCM 2.0 |
| PCM 5.1 | PCM 5.1 | PCM 2.0 | PCM 2.0 |
| PCM 2.0 | PCM 2.0 | PCM 2.0 | PCM 2.0 |
Slide to position “5.1CH”, when connected to a 1080p, PCM7.1 TV, the extractor will transmit the 1080p, PCM5.1 signal to it, S/PDIF Output audio is PCM2.0, and L/R Output Audio is PCM2.0.
Specifications
| Audio and Video | ||
| Inputs | 1x HDMI In: 19-pin type A | |
| Outputs | 1x HDMI Out: 19-pin type A | 1x RCA Female Stereo (L/R) | 1x S/PDIF Toslink | |
| Audio Formats | HDMI: 2ch PCM | Multichannel: LPCM and up to DTS-X and Dolby Atmos Analog: 2ch LPCM Toslink: 5.1ch surround sound | |
| Video Resolutions (Max) | Resolution | HDMI |
| 1920x1080p @60Hz 12bit | 15m/49ft | |
| 1920x1080p @60Hz 16bit | 7m/23ft | |
| 3840x2160p @24Hz 10bit 4:2:0 HDR | 7m/23ft | |
| 3840x2160p @30Hz 8bit 4:4:4 | 5m/16ft | |
| 3840x2160p @60Hz 10bit 4:2:0 HDR | 5m/16ft | |
| 4096x2160p @60Hz 8bit 4:2:0 | 5m/16ft | |
| 4096x2160p @60Hz 8bit 4:4:4 | 3m/10ft | |
| Supported Standards | DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100 | |
| Maximum Pixel Clock | 600MHz | |
| Communication and Control | ||
| HDMI | HDCP 2.2 | DVI-D supported with adapter (not included) | |
| Power | ||
| Power Supply | 5V DC 1A | |
| Max Power Consumption | 2.88W | |
| Environmental | ||
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing | |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing | |
| Maximum BTU | 9.83 BTU/hr | |
| Dimensions and Weight | ||
| Rack Units/Wall Box | <1U | |
| Height | 22mm/0.87in | |
| Width | 80mm/3.15in | |
| Depth | 90mm/3.54in | |
| Weight | 0.23kg/0.51lbs | |
| Regulatory | ||
| Safety and Emission | CE | FCC | RoHS | |
Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice.
Warranty Information
WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited product warranty.
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
EXP-CON-AUD-H2 Quickstart Guide | 200317
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
[email protected]
WyreStorm - Professional Audio Visual Solution Provider
