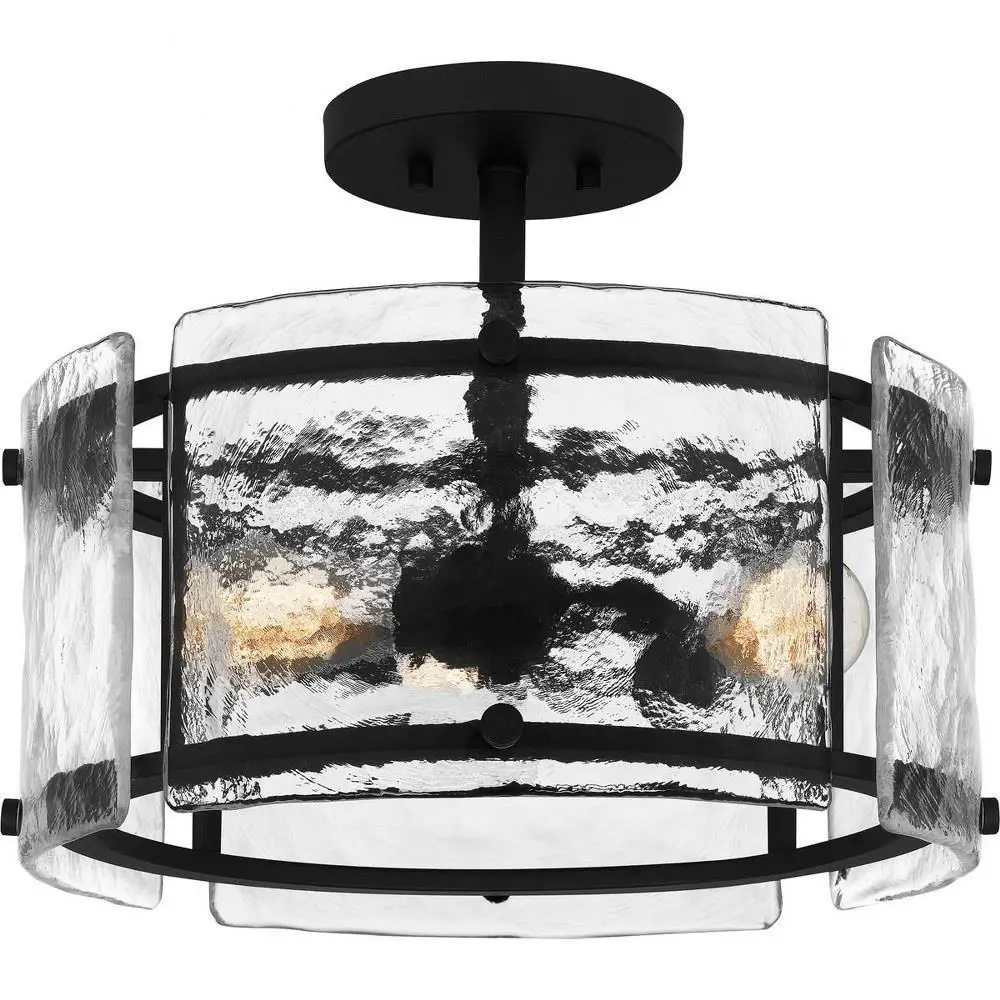

QUOIZEL FTS3124EK and FTS3124MM Fortress 4 Light Mottled Silver Ceiling Fan with Light
WARNINGS AND CAUTIONS
READ AND SAVE THESE INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.

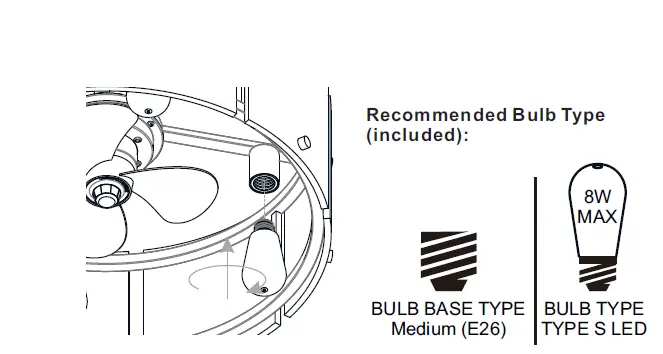

- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
- RISK OF PERSONAL INJURY – DO NOT bend the blades when installing the fan, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.
- RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY – mount to outlet box marked (acceptable for fan support of 22.7kg(50lbs) or less) and use mounting screws provided with the outlet box.
- All set screws must be checked, and re-tightened where necessary, before installation.

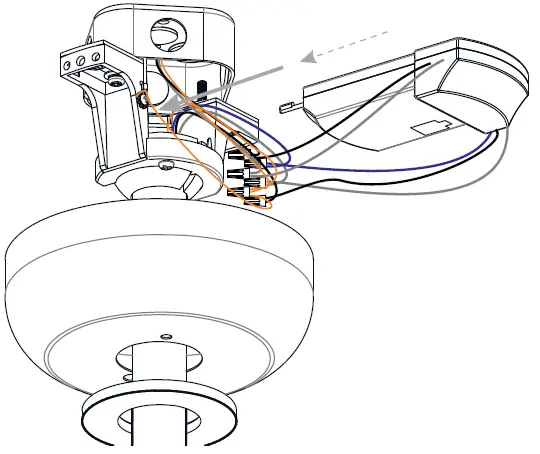

- After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box and the ungrounded conductor on the other side of the outlet box.
- Suitable for use with solid-state speed controls.
- use only with light kits marked suitable for use in damp locations.
- This unit weighs 14.5 kg (31.9 lbs).
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Disconnect fixture from the power source before replacing bulbs or cleaning. Make sure the bulbs are given sufficient time to cool be before removing

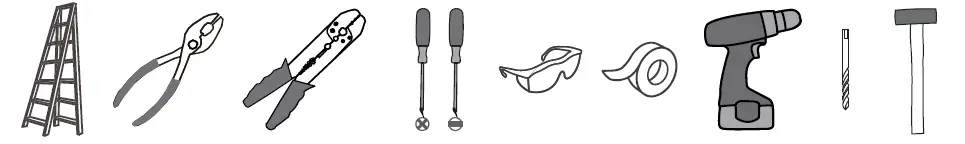

TOOLS REQUIRED
CARE AND MAINTENANCE
Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish. If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

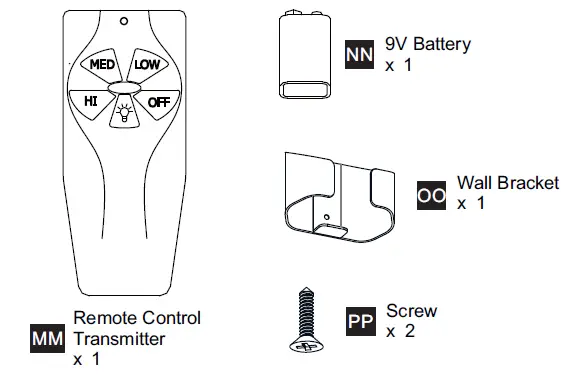

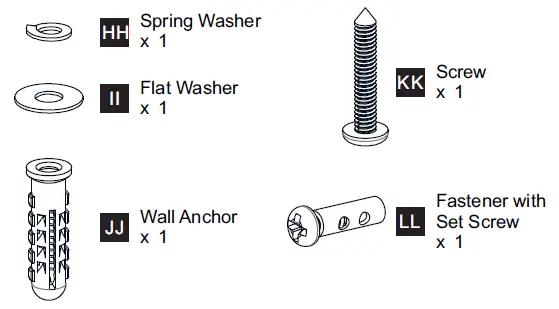

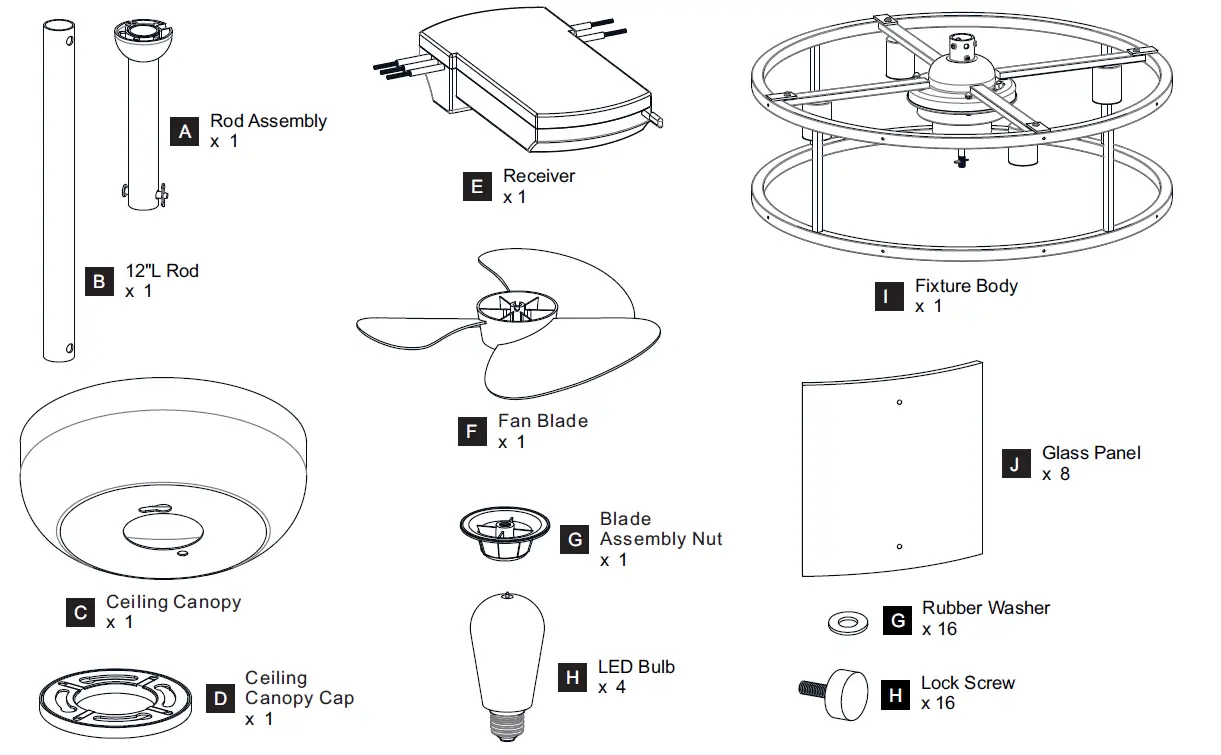

PACKAGE CONTENTS
(PARTS BAG 1)
(PARTS BAG 2)
(PARTS BAG 3)
INSTALLATION

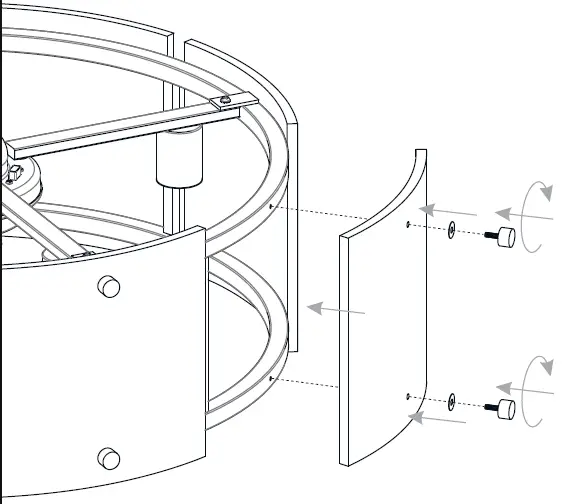

Install Glass Panels

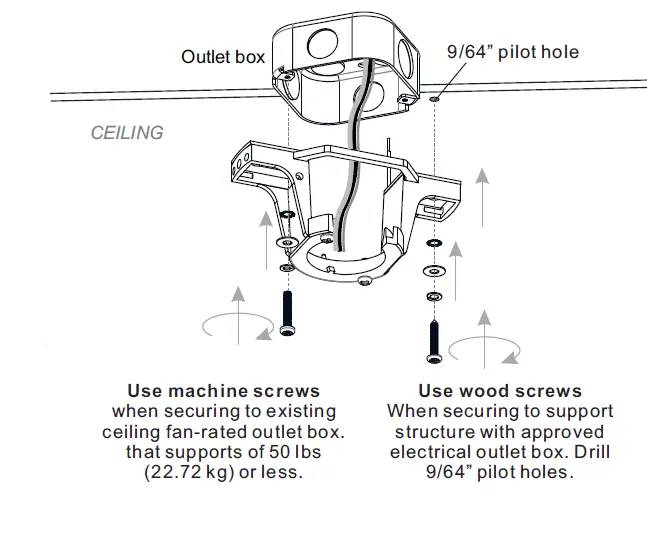

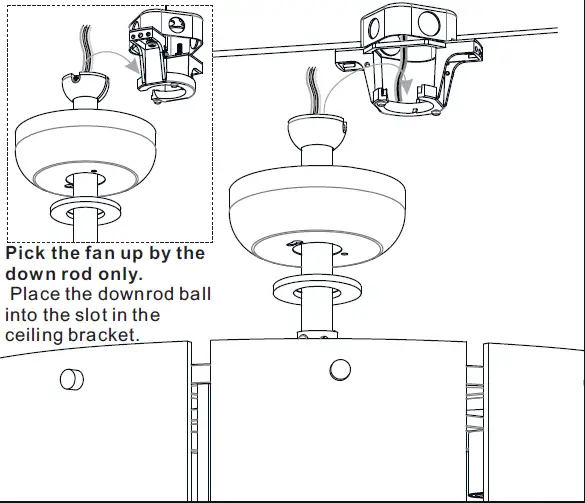

Install Hanger Frame
This fan cannot be used for the ceiling which angle is greater than 10 degree. For angled ceilings, point opening toward peak.
INSTRUCTIONS

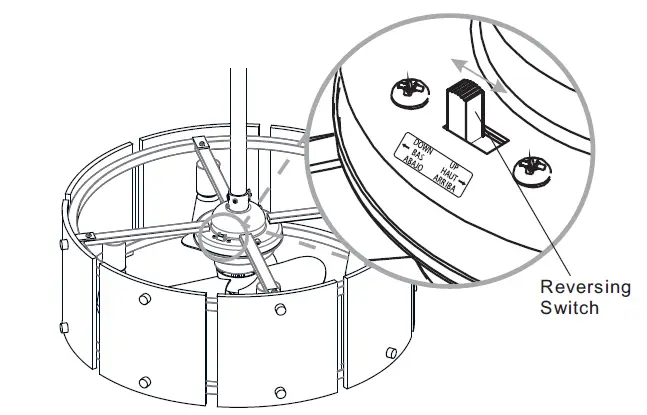

| Reverse Switch Information | ||
| Season | Rotation Direction | Switch Position |
| Summer | Counterclockwise | Left |
| Winter | Clockwise | Right |
Note:
- If airflow is desired in the opposite direction, turn the fan off and wait for the blades to stop turning.
- Push the reverse switch to Left or Right completely
Your installation is now complete! Restore electricity and save this sheet for future reference.
Quoizel | Artisans In Lighting
