3inus Ee01 Mechanical Keyboard With 5 Port Hub User Manual

echanical Keyboard with 5 Port Hub
User’s Manual
EE01

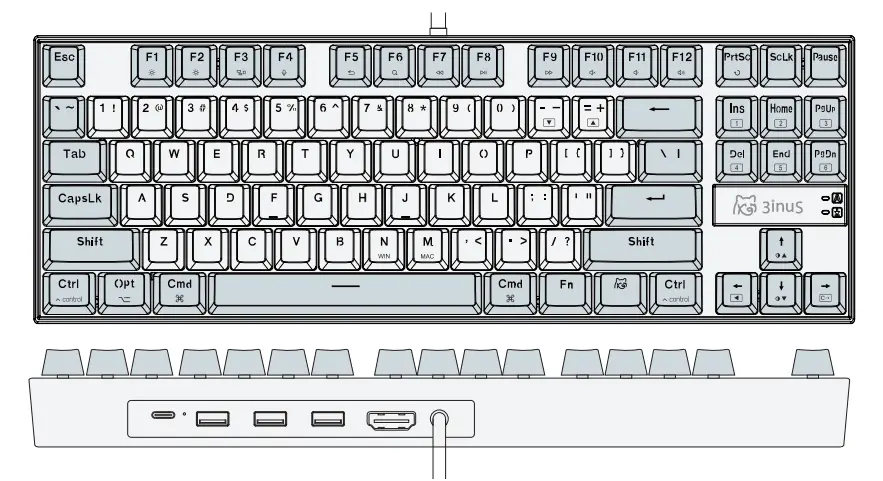

EE01 Mechanical Keyboard with 5 Port Hub

RGB Mechanical Keyboard

For MacBook Pro, MacBook Air, New iMac 2021/2022

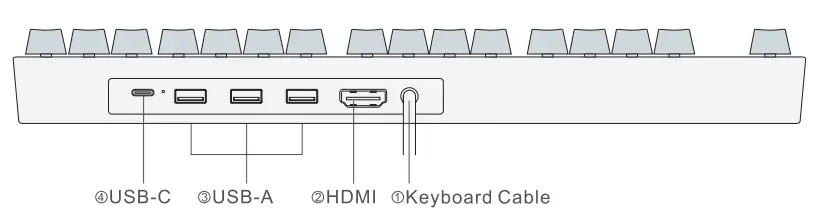

5 Port Hub

1. Connect to MacBook Pro, MacBook Air, iMac 2021/2022
2. HDMI 4K/60Hz for Monitor, TV, Projector
3. Three USB-A USB 3.0 for Mouse, Flash drive, Smartphones
4. USB-C USB 3.1 for iPhone and other high speed connect

Press change from Mac OS to Windows OS
Press change from Windows OS to Mac OS

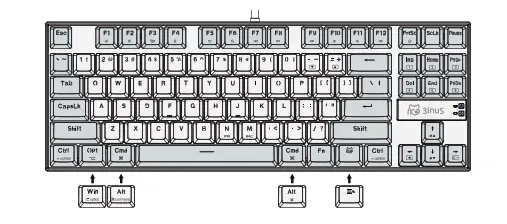

For Windows user, replace the following 4 Keycaps

Function and Multi-media keys

	Mac OS		Windows OS
	Decrease Screen Brightness		Decrease Screen Brightness
	Increase Screen Brightness		Increase Screen Brightness
	Mission Control		Multi-Windows Tasking(Alt+ Tab)
	Wake Up “Siri”		Desktop (Win+D)
			Return
			Search
	Previous Track		Previous Track
	Play/ Pause		Play/ Pause
	Next Track		Next Track
	Mute		Mute
	Volume Down		Volume Down
	Volume Up		Volume Up

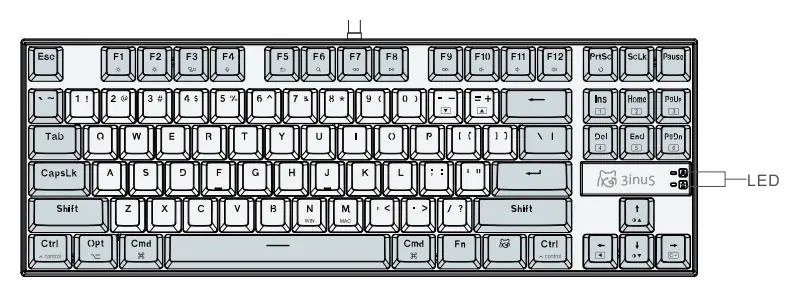

Keyboard RGB Backlight Effects:

Backlight Adjustment

	Backlight Mode	Description
	increase Brightness	20%, 40%, 60%, 80%,100% until Full Brightness
	Decrease Brightness	80%, 60%, 40%, 20%, 0% until Light Off
	Change Flow Direction
	Change Colors	8 Different Colors
	Effect Speed +
	Effect Speed

­18 Pre-Set RGB Backlight Effects
There are 18 different pre-set backlight patterns. Press and hold theand then to change backlight effect. Each key provides 3 different modes. Totally there are 18 RGB Backlight effects.
Customize your own Backlight

1. Press twice, the key lights as color on and breath slowly.
   The “Caps Lock” and “Scroll Lock” indicators blink together.
2. Press to change color which shows on the key.
3. Press any other key to light it up.
4. Repeat the previous two steps to light up more keys.
5. Pressonce again to save the setting.

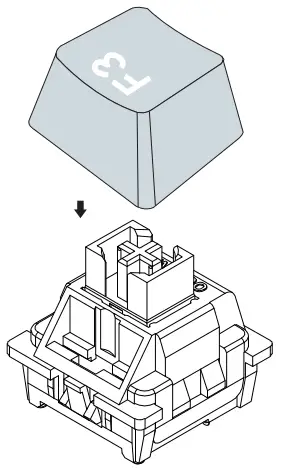

Keycaps Replacement

Never Scratch Off Letter from Double Inject Durable ABS Keycaps with Crystal Clear Uniform Backlighting.

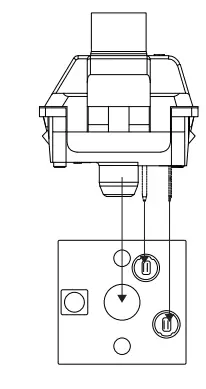

Hot-swappable Switches

Fully Compatible with different Types of Switches, can be easily plug and pull from its own socket.

www.3inus.com
