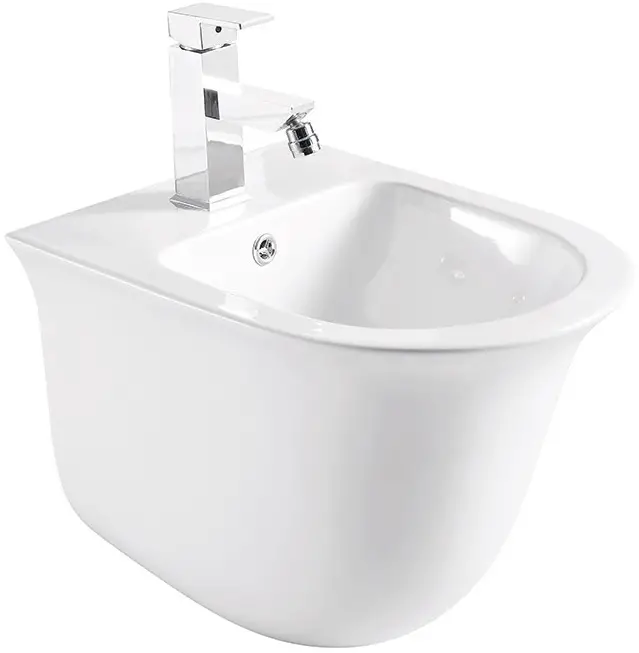

Wellis WF00095 Olivia Wall Mounted Bidet
Before Installation
- Make sure the wall should be straight.
- Read the instruction to be familiar with the tools, fittings, and installation procedures to prevent any unnecessary damage.

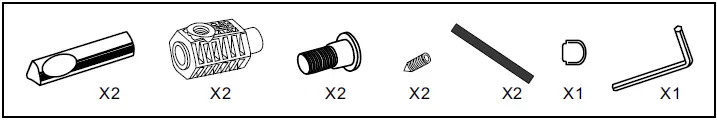

- Check the fittings follow the fitting form and check whether there is any damage to the product.
- Because the ceramic is easy to be damaged, please handle it gently and the nut should not be over-tightened.
- Make sure the water supply has been turned off.
Tools (not included)

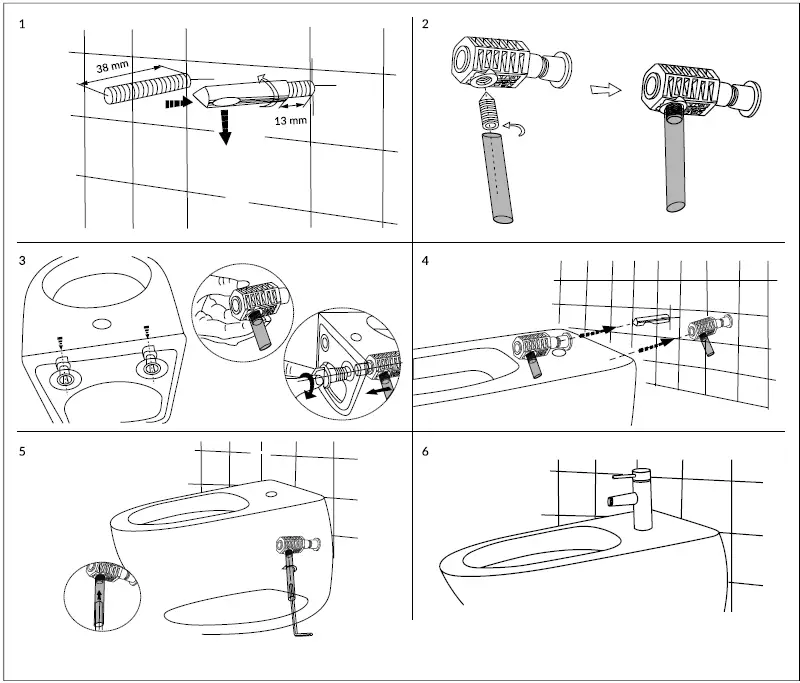

Installation Procedure
- Put the bidet in a suitable position, and make the water outlet of the bidet aligned with the drainage outlet.
Note: Preposition enough distance for connecting the water supply pipe and drain pipe. - Mark the installing holes on the floor.
- Remove the bidet carefully and drill holes according to the mark. Insert the expansible plastics or install 7# fixing plastic.
- Install the faucet, water supply valve, and drain units according to the installation instruction for fittings.
- Put the bidet into a suitable position and get the water supply valve and the faucet connected with a soft pipe. Then adjust the connecting bar.
Note: The water faucet is not supplied with this product. - Get the screw aligned with the plastic particle and fix the bidet onto the floor. Then cover the decoration cap.
- Daub a layer of silicone between the bidet and the floor.
- Finish the installation.

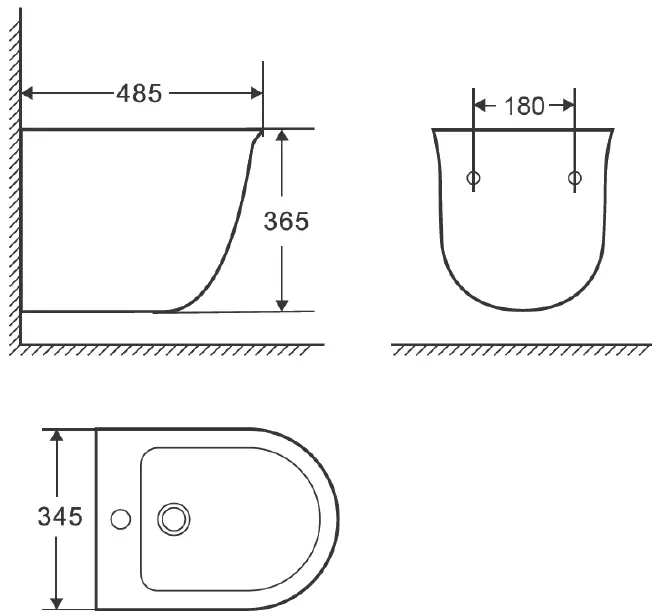

Dimension
